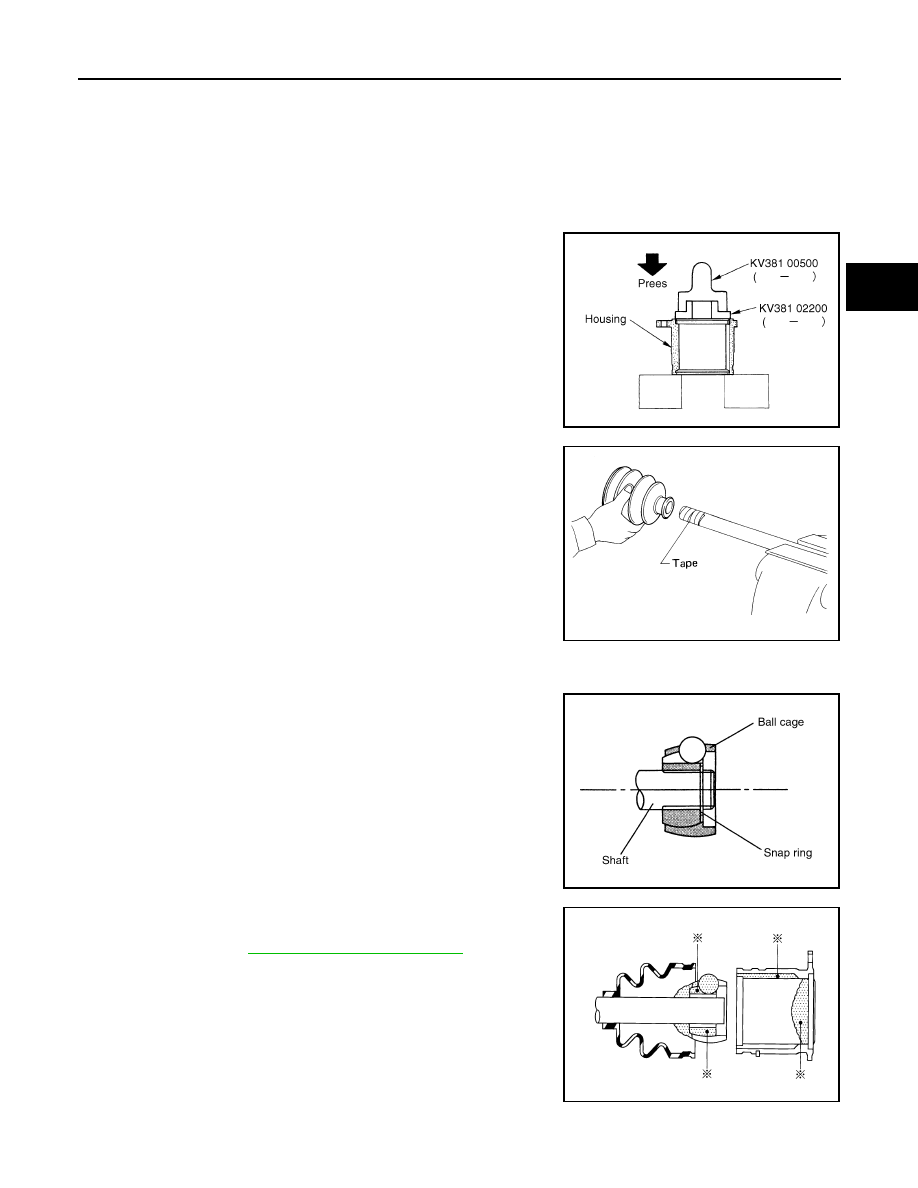

REAR DRIVE SHAFT

RAX-13

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

• Check the ball sliding surface for any compression scars, cracks, or fractures.

• Check for any damage to the serrated part.

CAUTION:

If any defective conditions are found, install a new housing, ball cage, steel ball, and inner race as a

set.

ASSEMBLY

Final Drive Side

1. If the plug has been removed, use Tool to press in a new one.

NOTE:

Discard the old plug and use a new one for assembly.

2. Wrap the serrated part of the shaft with tape. Install the boot

band and boot to shaft.

NOTE:

Discard the old boot band and boot and use a new one for

assembly.

3. Remove the tape wound around the serrated part of the shaft.

4. Install the ball cage, steel ball, and inner race assembly on the

shaft, and secure them tightly using the snap ring.

NOTE:

Discard the old snap ring and use a new one for assembly.

5. Insert the specified quantity of Genuine NISSAN Grease or

equivalent, onto the housing (indicated by * marks), and install it

onto shaft. Refer to

MA-13, "Fluids and Lubricants"

.

6. Install the stopper ring onto the housing.

Tool number

: KV38100500 ( — )
: KV38102200 ( — )

SDIA1153E

SFA800

SDIA1125E

Grease capacity

: 175

 195 g (6.17  6.88 oz)

RAC0678D

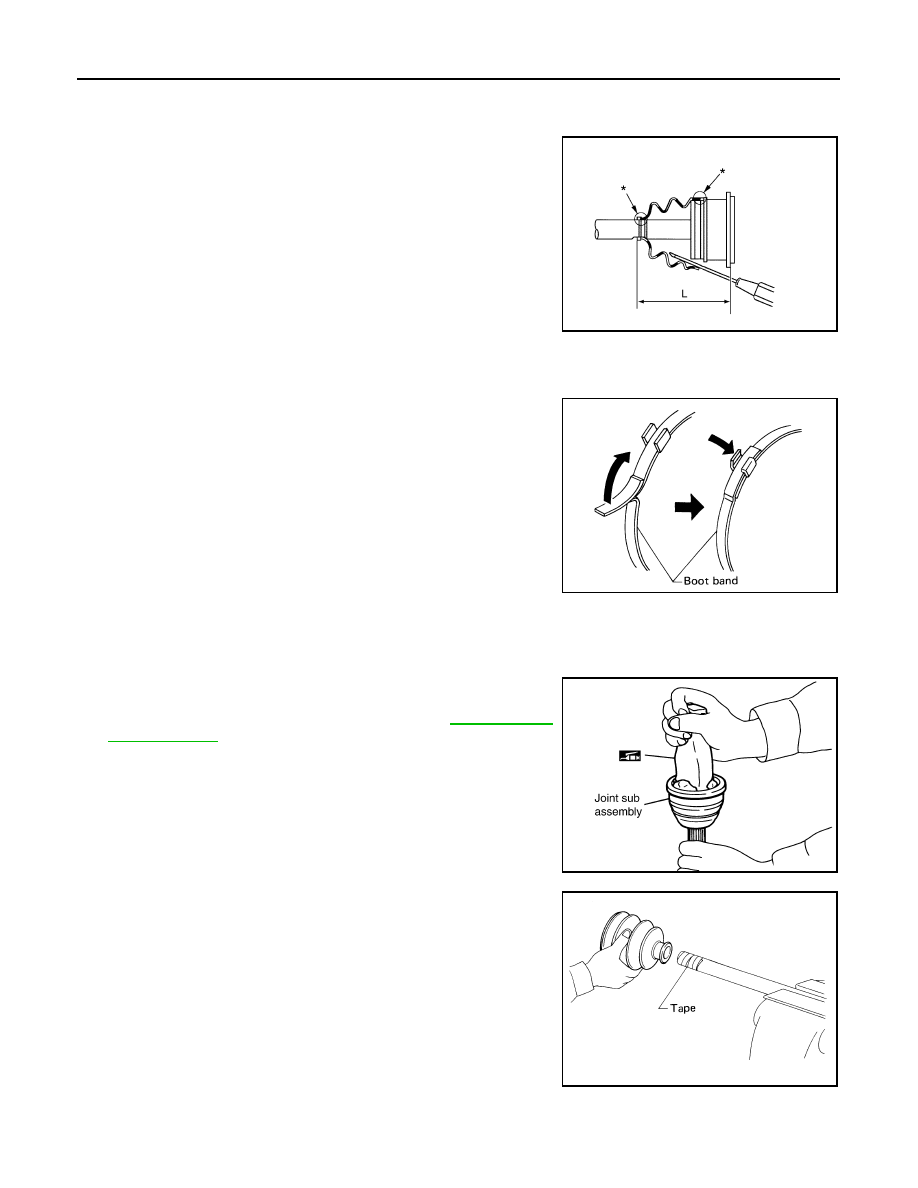

RAX-14

< DISASSEMBLY AND ASSEMBLY >

REAR DRIVE SHAFT

7. After installation, pull on the shaft to check engagement between the joint sub-assembly and the stopper

ring.

8. Install the boot securely into the grooves (indicated by * marks)

as shown.

CAUTION:

If there is grease on boot mating surfaces (indicated by*

marks) of shaft and housing, boot may come off. Remove

all grease from surfaces.

9. Check that the boot installation length (L) is the length indicated

below. Insert a suitable tool into large side of the boot. Bleed the

air from the boot to prevent any boot deformation.

CAUTION:

• The boot may break if the boot installation length is less than the specified value.

• Do not to touch the tip of the tool to the inside of the boot.

10. Secure the large and small ends of the boot with the new boot

bands as shown.

NOTE:

Discard the old boot bands and use new ones for assembly.

11. After installing the housing and shaft, rotate the boot to check that the boot is positioned correctly. If the

boot is not positioned correctly, reposition the boot and secure the boot using a new boot band.

Wheel Side

1. Insert the Genuine NISSAN Grease or equivalent, into the joint

sub-assembly serration hole until the grease begins to ooze

from the ball groove and serration hole. Refer to

MA-13, "Fluids

and Lubricants"

After inserting the grease, use a shop cloth to

wipe off the grease that has oozed out.

2. Wind the serrated part of the shaft with tape. Install the boot

band and boot onto the shaft. Do not damage the boot.

NOTE:

Discard the old boot band and boot and use a new one for

assembly.

3. Remove the protective tape wound around the serrated part of

the shaft.

Boot installation length (L)

: 147.9 mm (5.82 in)

WDIA0287E

SFA395

SDIA1127E

SFA800

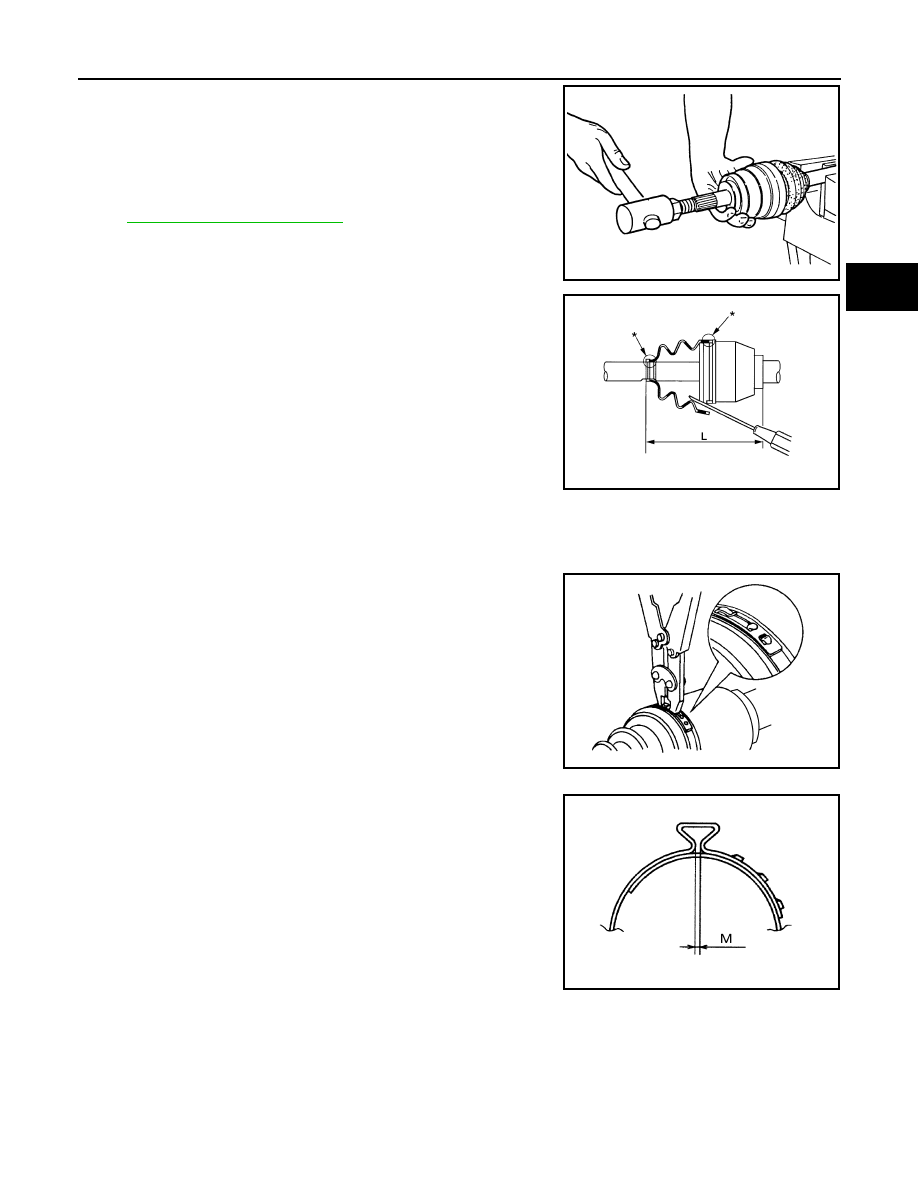

REAR DRIVE SHAFT

RAX-15

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

4. Attach the circlip to the shaft. The circlip must fit securely into

the shaft groove. Attach the nut to the joint sub-assembly.

Use a suitable tool to press-fit the circlip.

NOTE:

Discard the old circlip and use a new one for assembly.

5. Insert the specified quantity of Genuine NISSAN Grease or

equivalent, into the housing from the large end of the boot. Refer

to

MA-13, "Fluids and Lubricants"

.

6. Install the boot securely into the grooves (indicated by the *

marks) as shown.

CAUTION:

If there is grease on the boot mating surfaces (indicated by

the * marks) of the shaft and housing, the boot may come

off. Remove all grease from the shaft surfaces.

7. Check that the boot installation length (L) is the specified length.

Insert a flat-tip screwdriver or similar tool into the large end of

the boot. Bleed the air from the boot to prevent boot deforma-

tion.

CAUTION:

• The boot may break if the boot installation length is less than the specified length.

• Do not contact inside surface of boot with the tip of the screwdriver.

8. Secure large and small ends of the boot using new boot bands

using tool as shown.

NOTE:

Discard the old boot bands and use new ones for assembly.

• Secure boot band so that dimension (M) meets specification

as shown.

9. After installing the housing to the shaft, rotate the boot to check that it is positioned correctly. If the boot is

not positioned correctly, remove the old boot bands then reposition the boot and secure the boot with new

boot bands.

Grease capacity

: 140

 160 g (4.93  5.64 oz)

RAC0049D

Boot installation length (L)

: 134.5 mm (5.30 in)

Tool number : KV40107300 ( — )

WDIA0288E

RAC1133D

Dimension (M)

: 1.0 – 4.0 mm (0.039 – 0.157 in)

DSF0047D

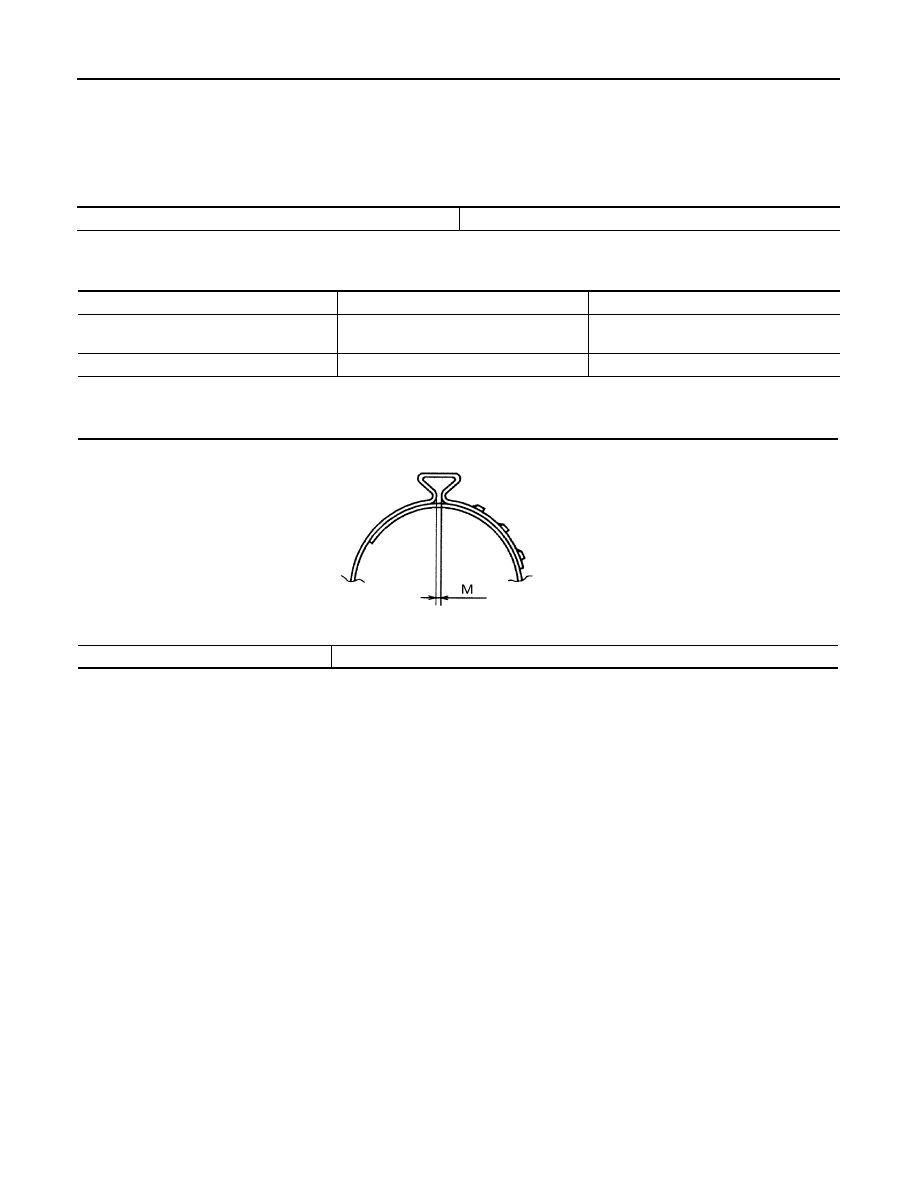

RAX-16

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000005148959

Drive Shaft

INFOID:0000000005148960

Boot Bands

INFOID:0000000005148961

Unit: mm (in)

Axial end play

0 mm (0 in)

Joint

Wheel side

Final drive side

Grease capacity

140

− 160 g

(4.93

− 5.64 oz)

175

− 195 g

(6.17

− 6.88 oz)

Boot installed length

134.5 mm (5.30 in)

147.9 mm (5.82 in)

Dimension (M)

1.0 - 4.0 (0.039 - 0.157)

DSF0047D
