FUSE AND RELAY BOX

ABMIA1208GB

PG-72

< COMPONENT DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

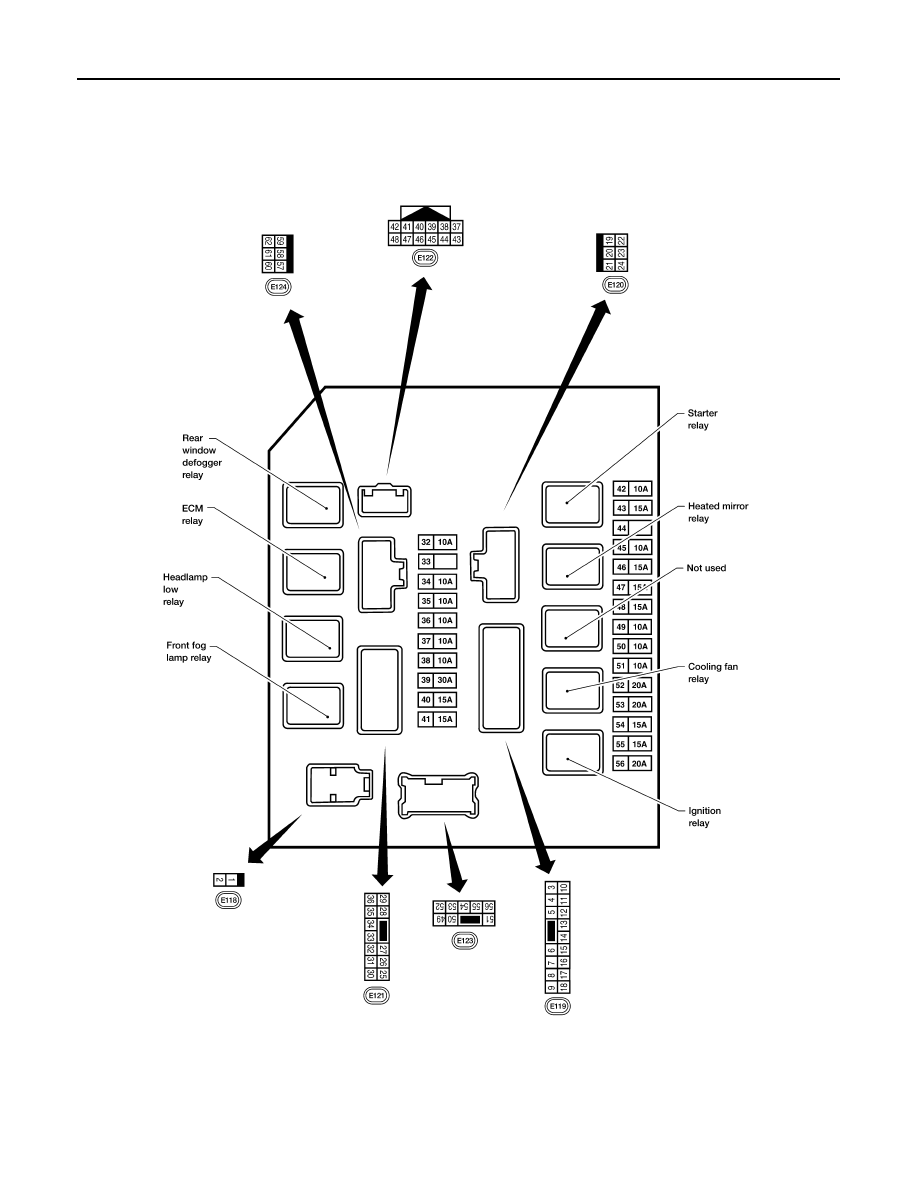

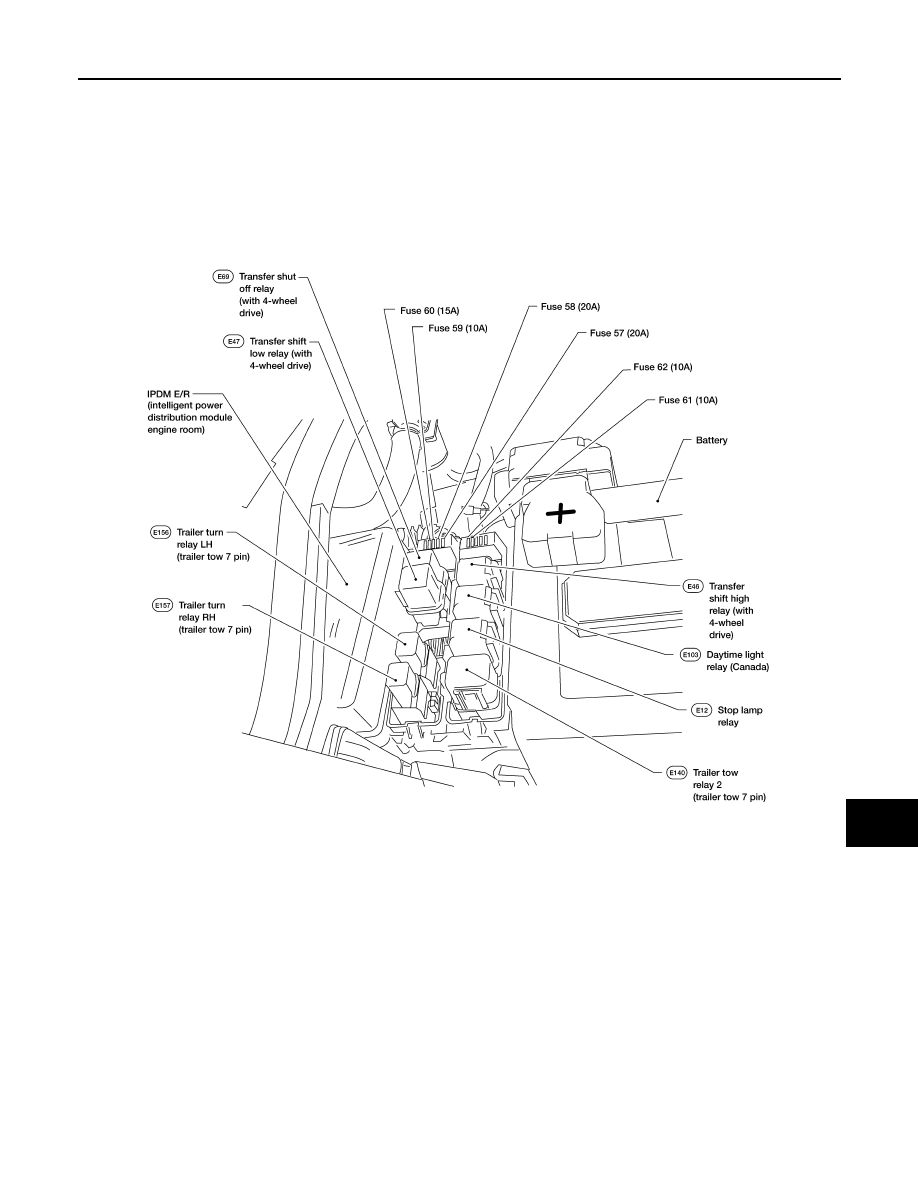

IPDM E/R Terminal Arrangement - Type A

INFOID:0000000005370327

WKIA5852E

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-73

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

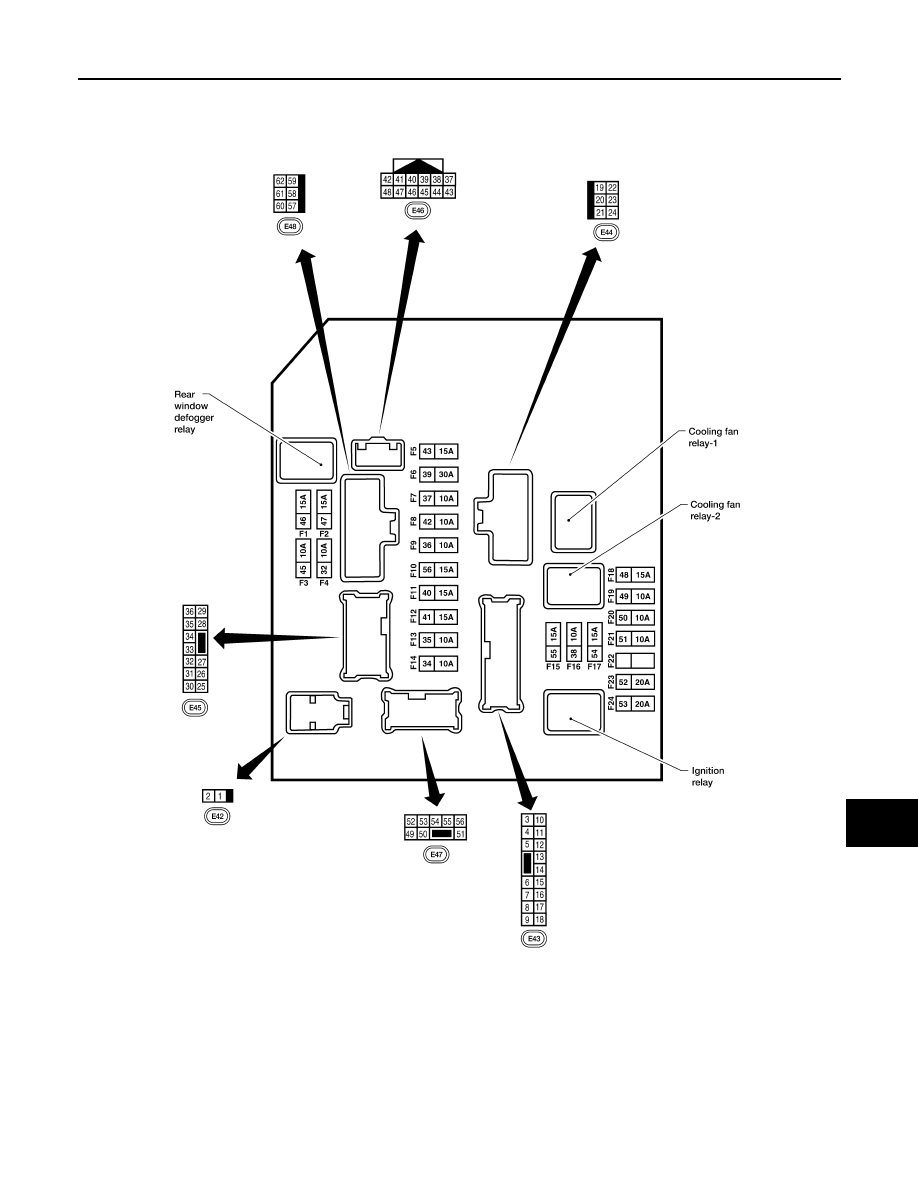

IPDM E/R Terminal Arrangement - Type B

INFOID:0000000005370328

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

AAMIA0364GB

PG-74

< ON-VEHICLE REPAIR >

BATTERY

ON-VEHICLE REPAIR

BATTERY

Removal and Installation

INFOID:0000000005146588

REMOVAL

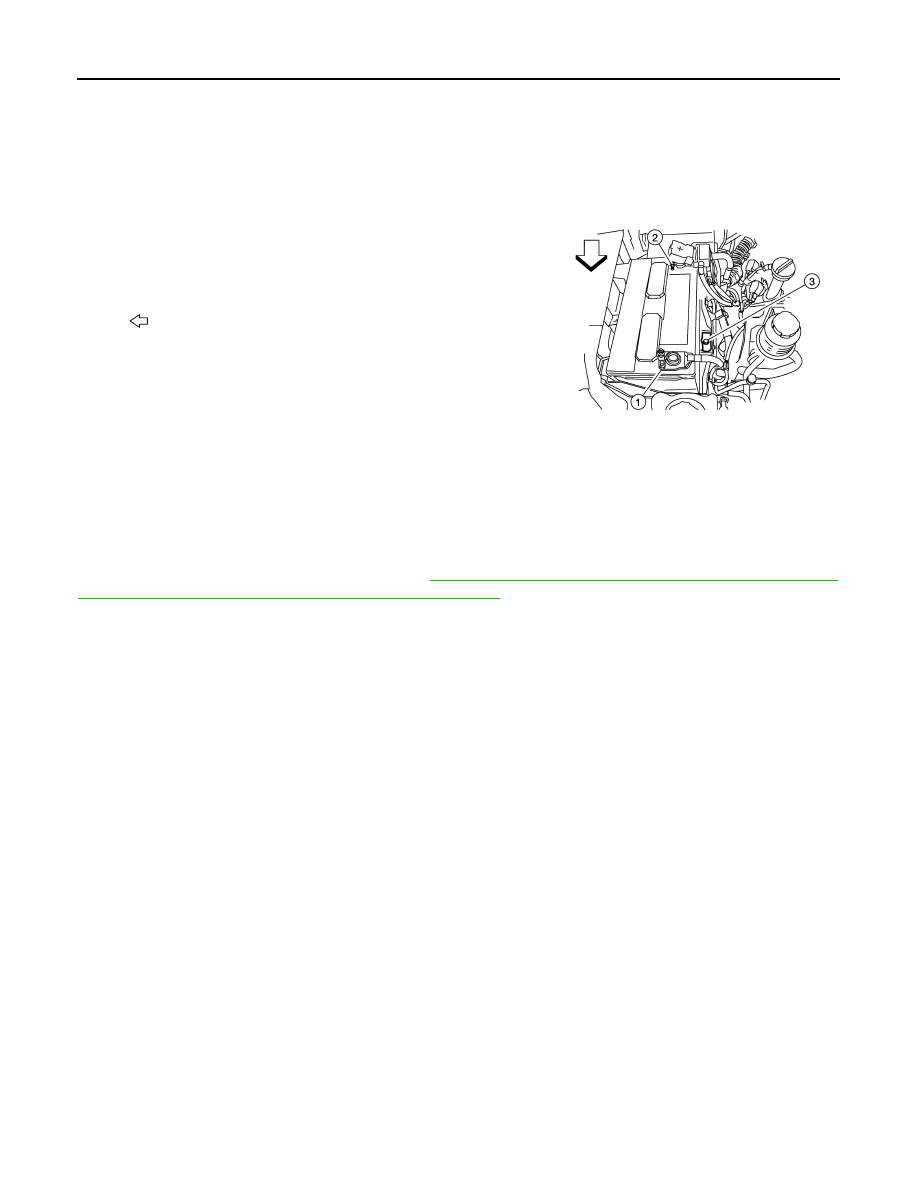

1. Disconnect the negative battery terminal (1) and positive battery

terminal (2).

CAUTION:

Remove negative battery terminal first.

2. Remove the battery cover.
3. Remove the battery clamp bolt (3) and battery clamp.
4. Remove the battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, install the positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-8, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

: Front

AWBIA0504ZZ

Battery clamp bolt

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

Battery terminal nut

: 3.5 N·m (0.36 kg-m, 31 in-lb)
