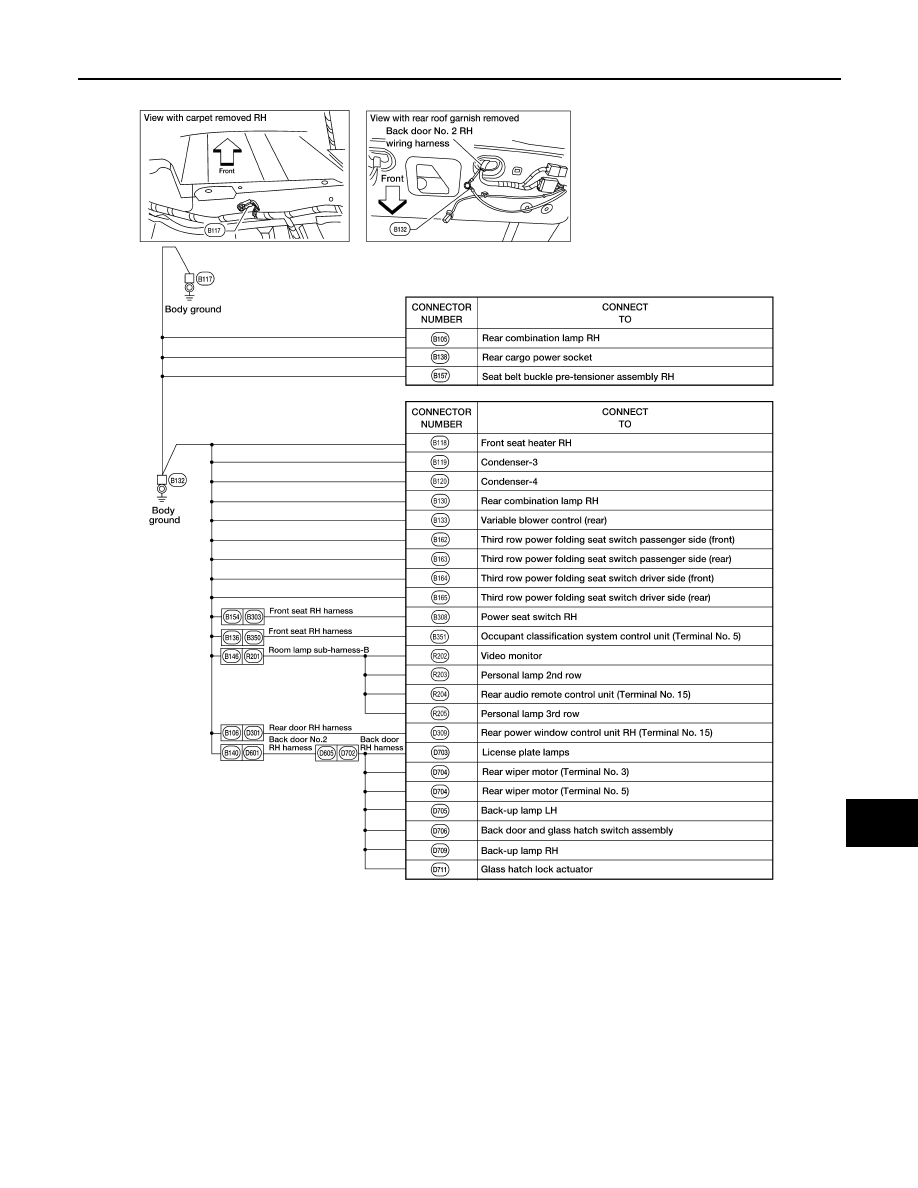

BODY NO. 2 HARNESS

ABMIA1196GB

PG-40

< COMPONENT DIAGNOSIS >

GROUND

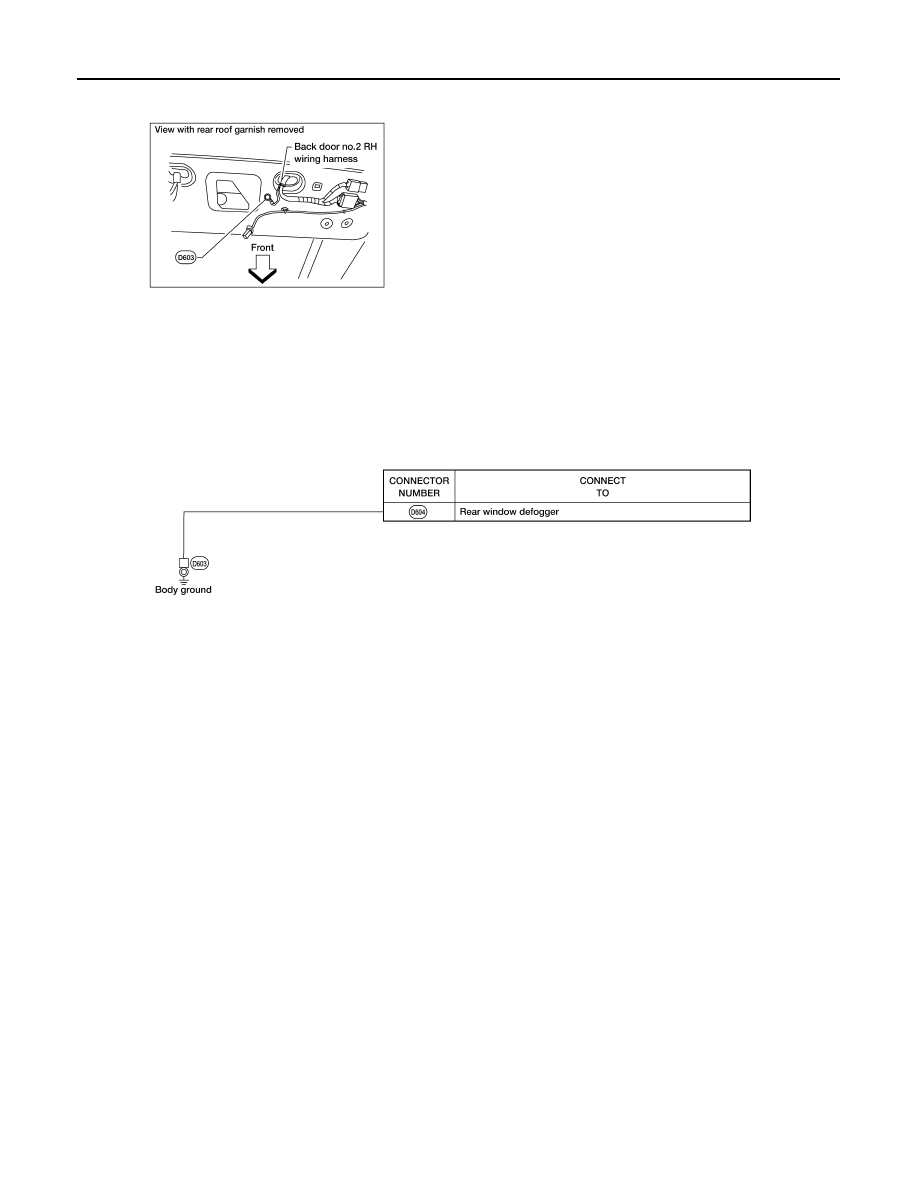

BACK DOOR NO. 2 RH HARNESS

ABMIA1197GB

PG

HARNESS

PG-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS

Harness Layout

INFOID:0000000005146582

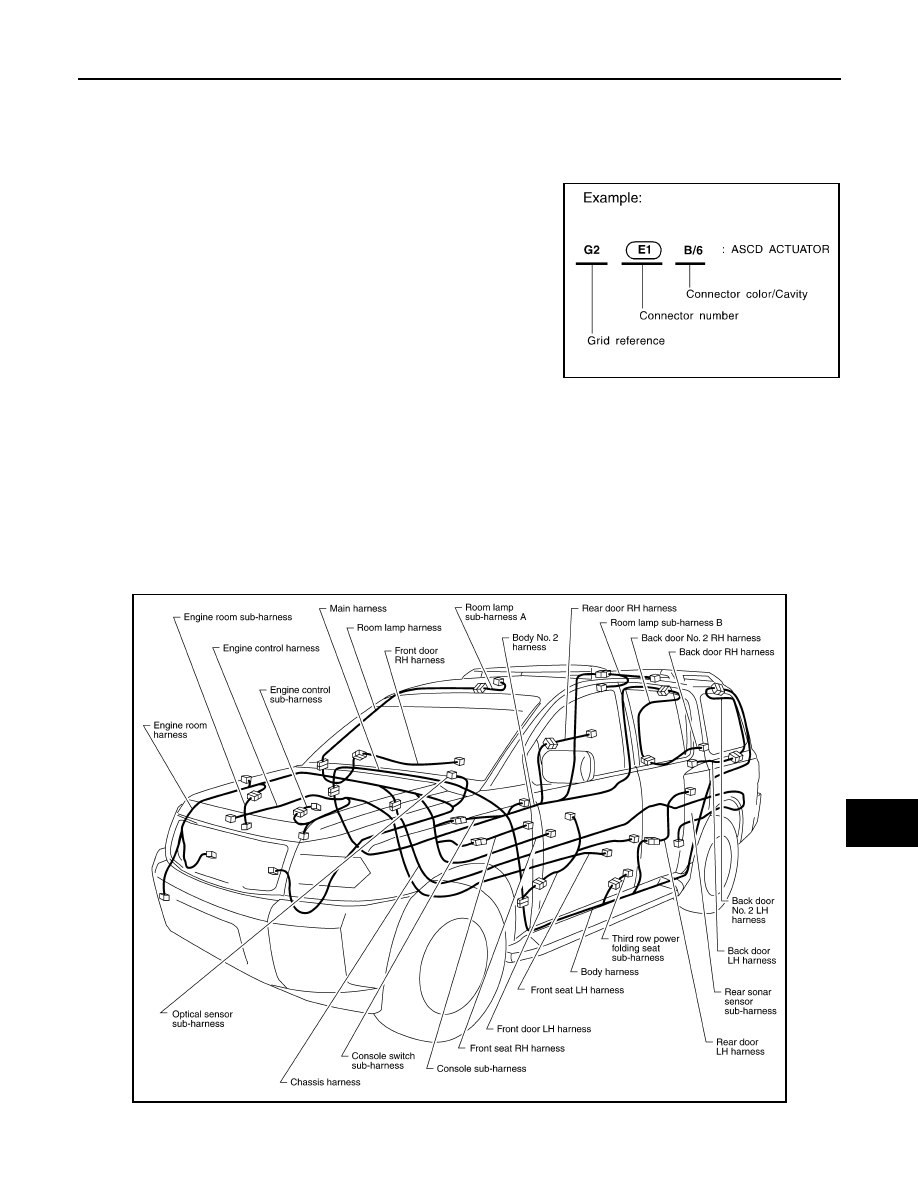

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness, Console Sub-harness, Console Switch Sub-har-

ness and Optical Sensor Sub-harness

• Engine Room Harness and Engine Room Sub-harness

• Engine Room Harness (Passenger Compartment)

• Engine Control Harness and Engine Control Sub-harness

• Chassis Harness and Rear Sonar Sensor Sub-harness

• Body Harness, Front Seat LH Harness and Third Row Power Fold-

ing Seat Sub-harness

• Body No. 2 Harness and Front Seat RH Harness

• Rear Seat Harness

• Room Lamp Harness, Room Lamp Sub-harness A, and Room Lamp Sub-harness B

• Back Door Harness, Back Door No. 2 LH Harness, Back Door LH Harness, Back Door No. 2 RH Harness

and Back Door RH Harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

ABMIA1198GB

PG-42

< COMPONENT DIAGNOSIS >

HARNESS

MAIN HARNESS

ABMIA1199GB

G4 M1

W/16

: To R1

E2

M79

—

: Body ground

F4

M2

W/12

: To R2

C1

M80

B/2

: Resistor

G2 M3

W/8

: Fuse block (J/B)

E3

M81

GR/10

: Shift lock control unit

G2 M4

W/16

: Fuse block (J/B)

A3

M82

W/2

: Circuit breaker-2
