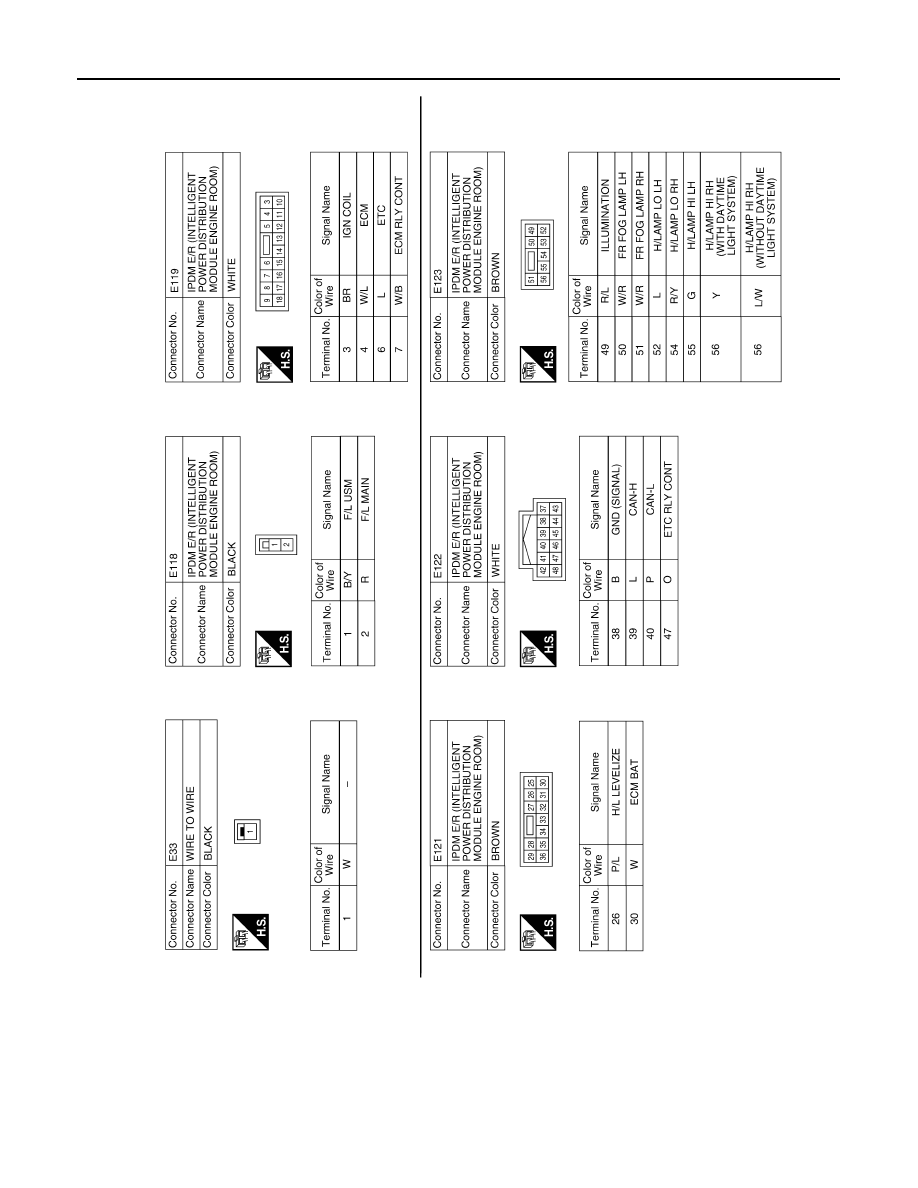

POWER SUPPLY ROUTING CIRCUIT

PG-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1178GB

PG-16

< COMPONENT DIAGNOSIS >

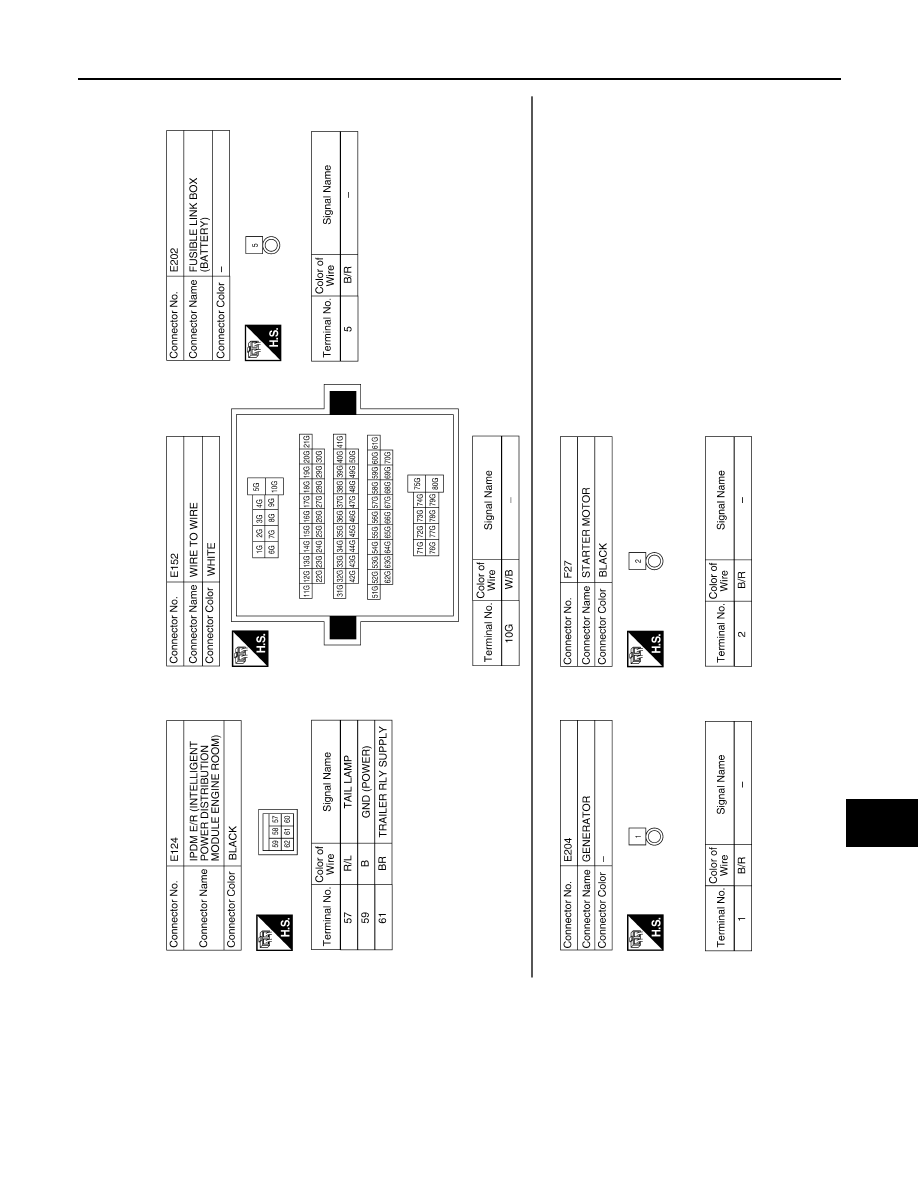

POWER SUPPLY ROUTING CIRCUIT

ABMIA1179GB

PG

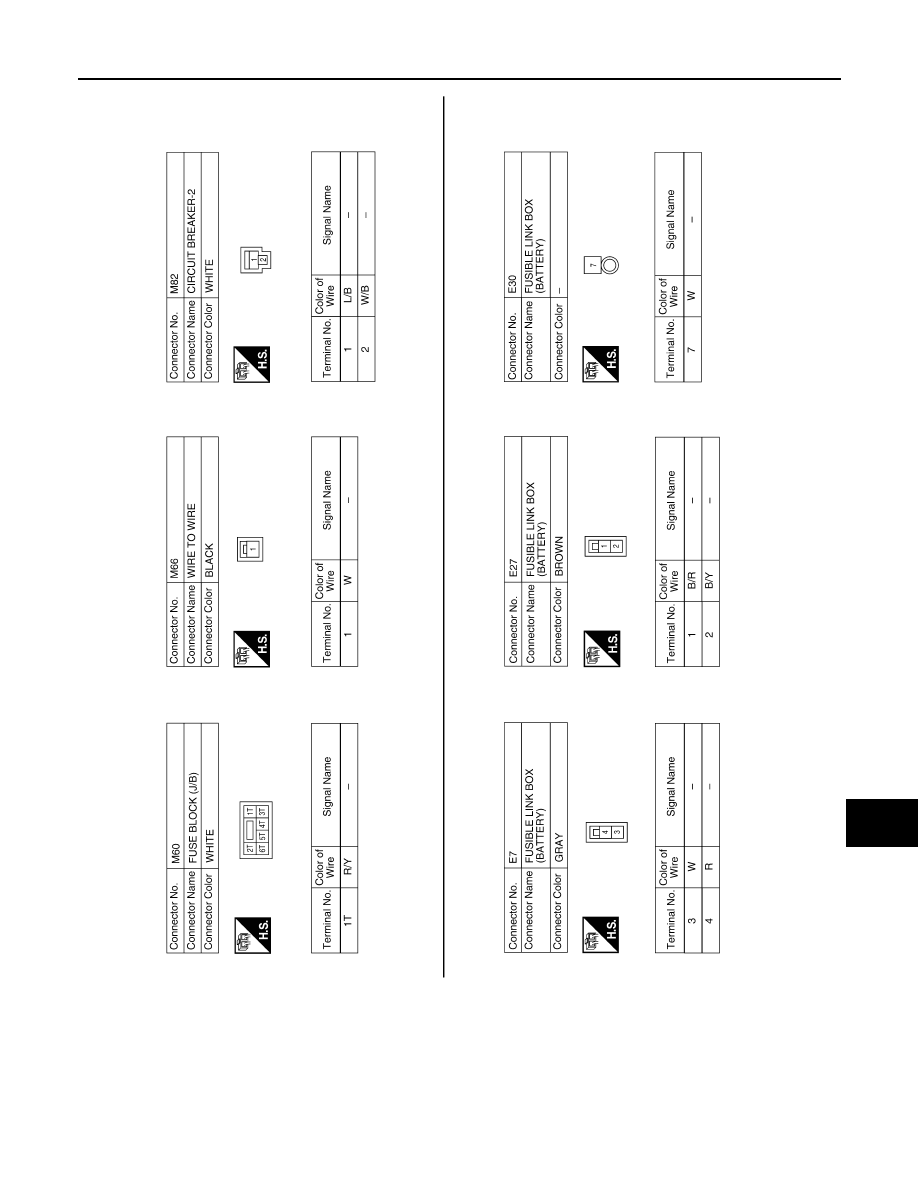

POWER SUPPLY ROUTING CIRCUIT

PG-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1180GB

PG-18

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

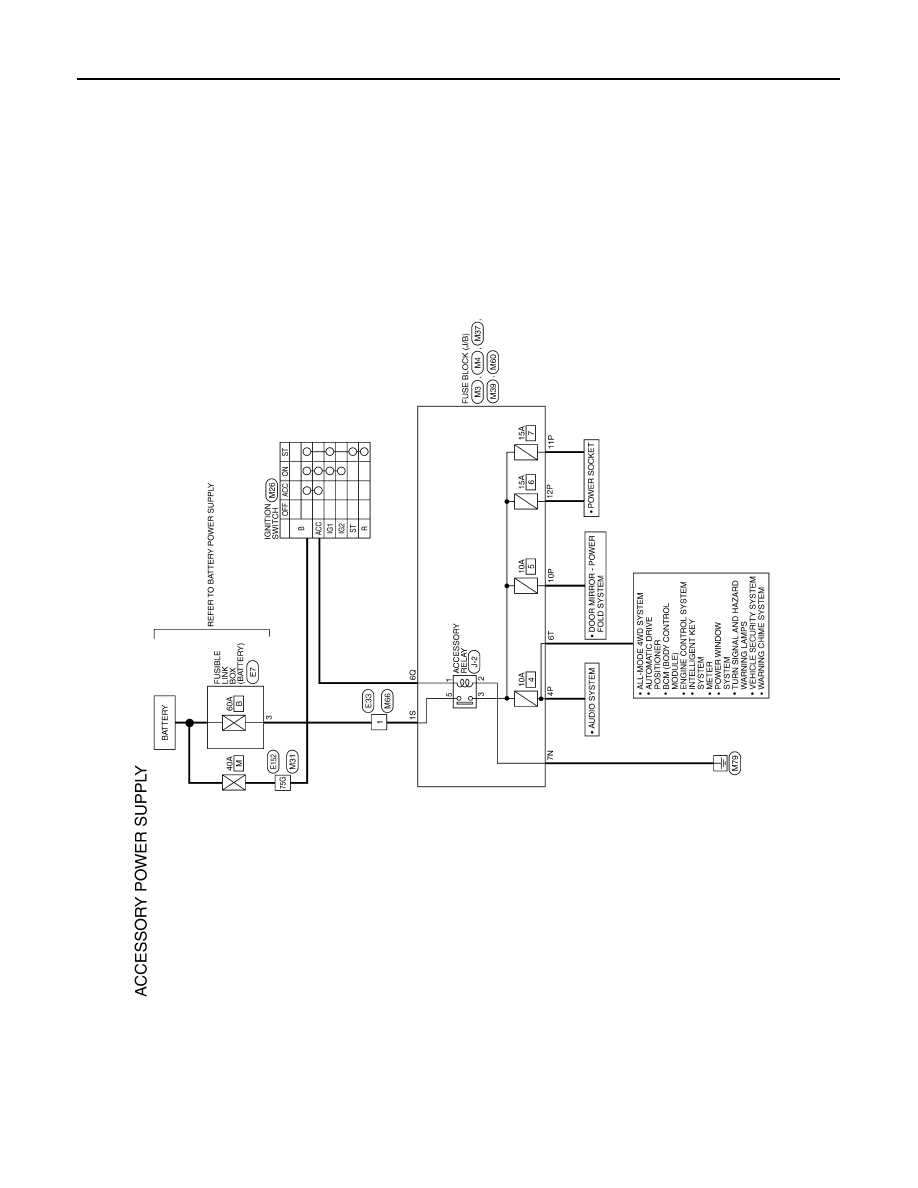

Wiring Diagram —Accessory Power Supply —

INFOID:0000000005146577

ABMWA0433GB
