Infiniti QX56 (JA60). Manual - part 716





MWI

PRECAUTIONS

MWI-99

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

5. When the repair work is completed, return the ignition switch to the

″LOCK″ position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

MWI-100

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

Removal and Installation

INFOID:0000000005146131

REMOVAL

1. Disconnect battery negative terminal.
2. Remove the cluster lid A. Refer to

IP-14, "Removal and Installation"

.

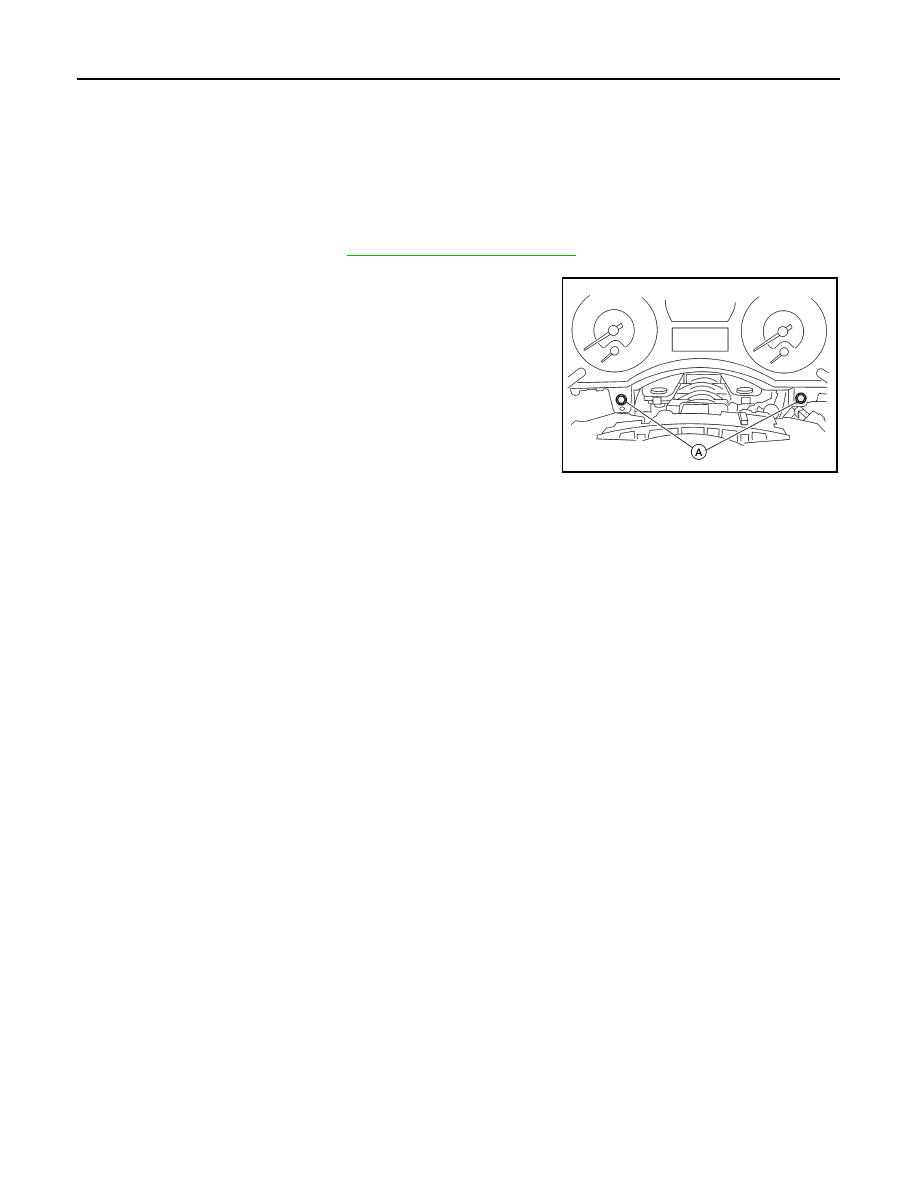

3. Remove the combination meter lower screws (A), using power

tool.

4. Remove the combination meter upper screws, using power tool, and pull out the combination meter.
5. Disconnect the combination meter connectors, and remove the combination meter.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0283ZZ

MWI

CLOCK

MWI-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CLOCK

Removal and Installation

INFOID:0000000005146132

REMOVAL

1. Disconnect battery negative terminal.
2. Remove the cluster lid C lower. Refer to

IP-15, "Removal and Installation"

.

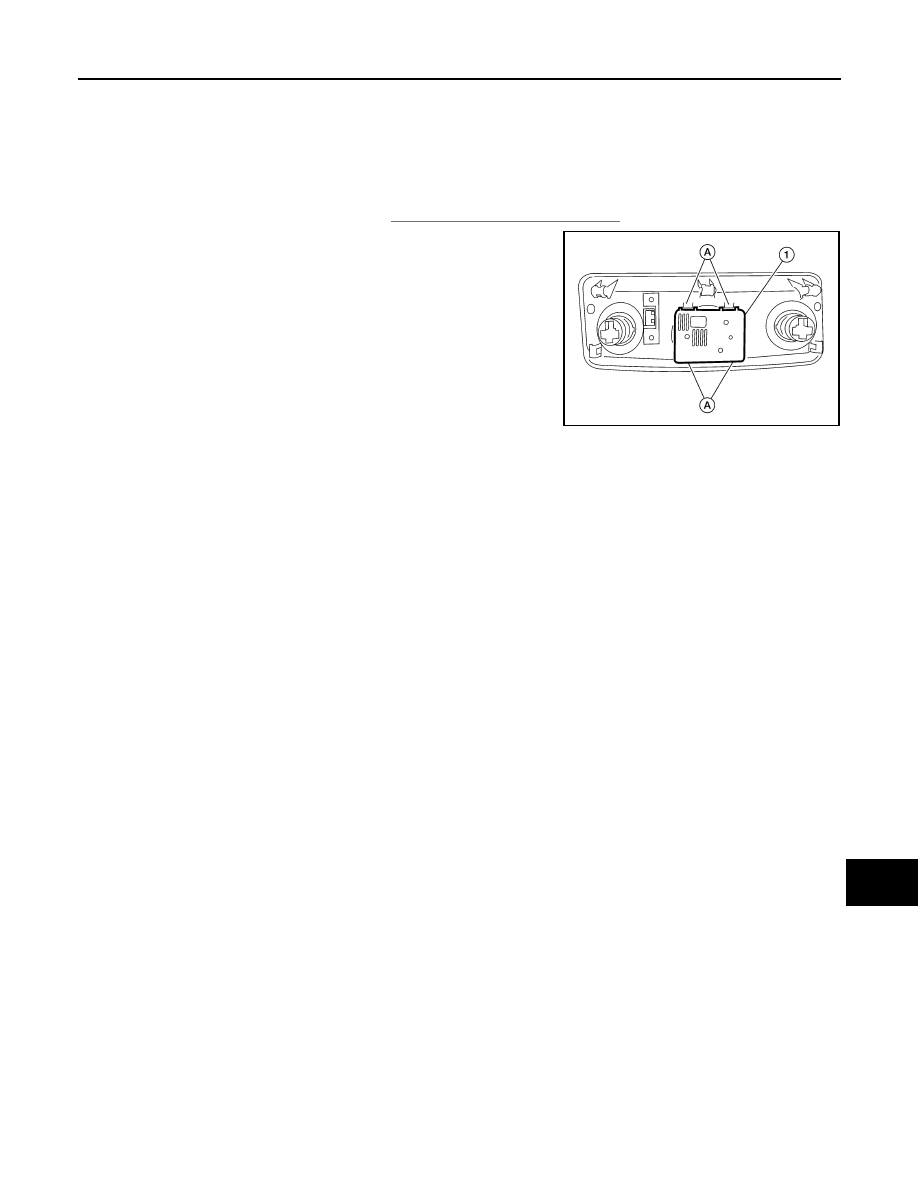

3. Detach the clock (1) from the tabs (A) and remove clock (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0661ZZ

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

ON-VEHICLE MAINTENANCE .....................

5

PARKING BRAKE SYSTEM ...............................

5

On-Vehicle Service  ...................................................

5

ON-VEHICLE REPAIR ..................................

7

PARKING BRAKE CONTROL ...........................

7

Component ...............................................................

7

Removal and Installation  ..........................................

7

PARKING BRAKE SHOE  ..................................

9

Removal and Installation  ..........................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

12

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

12

Parking Brake  ..........................................................

12

Parking Brake Control  .............................................

12
