Infiniti QX56 (JA60). Manual - part 695





MWI

METER SYSTEM

MWI-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

VOLTAGE GAUGE : System Diagram

INFOID:0000000005146050

VOLTAGE GAUGE : System Description

INFOID:0000000005146051

The voltage gauge indicates the battery/charging system voltage.

The voltage gauge is regulated by the unified meter control unit.

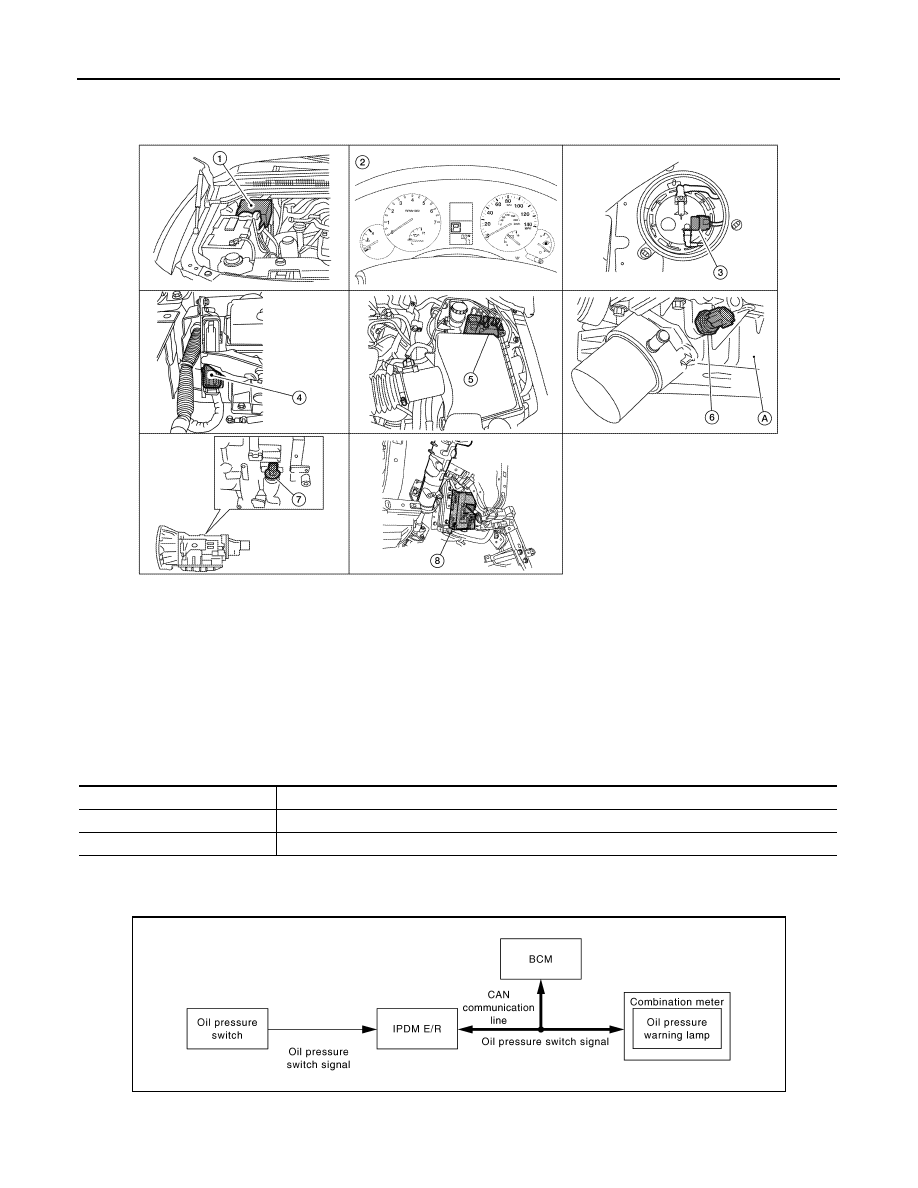

VOLTAGE GAUGE : Component Parts Location

INFOID:0000000005146052

AWNIA0106GB

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0201ZZ

MWI-16

< FUNCTION DIAGNOSIS >

METER SYSTEM

VOLTAGE GAUGE : Component Description

INFOID:0000000005146053

ODO/TRIP METER

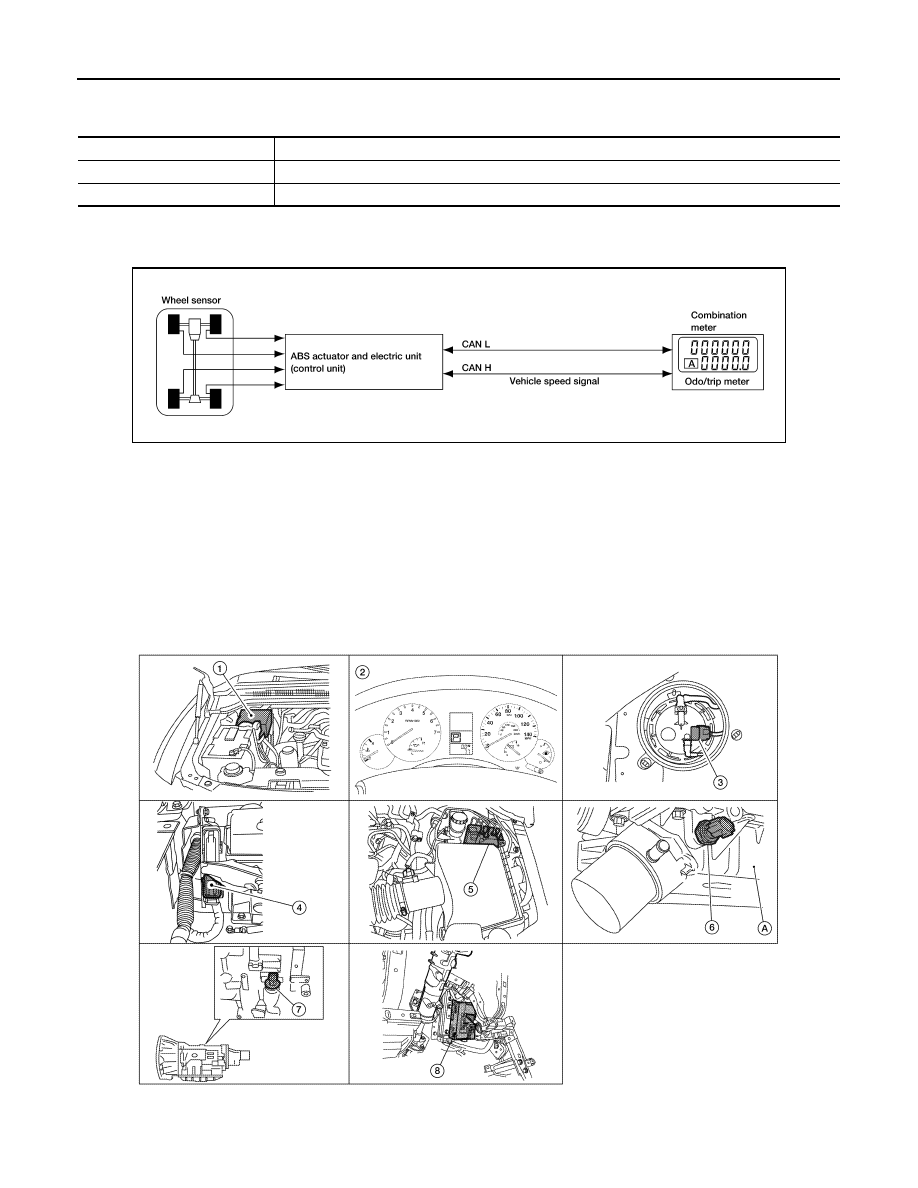

ODO/TRIP METER : System Diagram

INFOID:0000000005146054

ODO/TRIP METER : System Description

INFOID:0000000005146055

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-

nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

ODO/TRIP METER : Component Parts Location

INFOID:0000000005146056

Unit

Description

Combination meter

Indicates the battery voltage according to the voltage signal received from the fuse block (J/B).

Fuse block (J/B)

Transmits the battery voltage signal to the combination meter.

AWNIA0005GB

AWNIA0201ZZ

MWI

METER SYSTEM

MWI-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Description

INFOID:0000000005146057

SHIFT POSITION INDICATOR

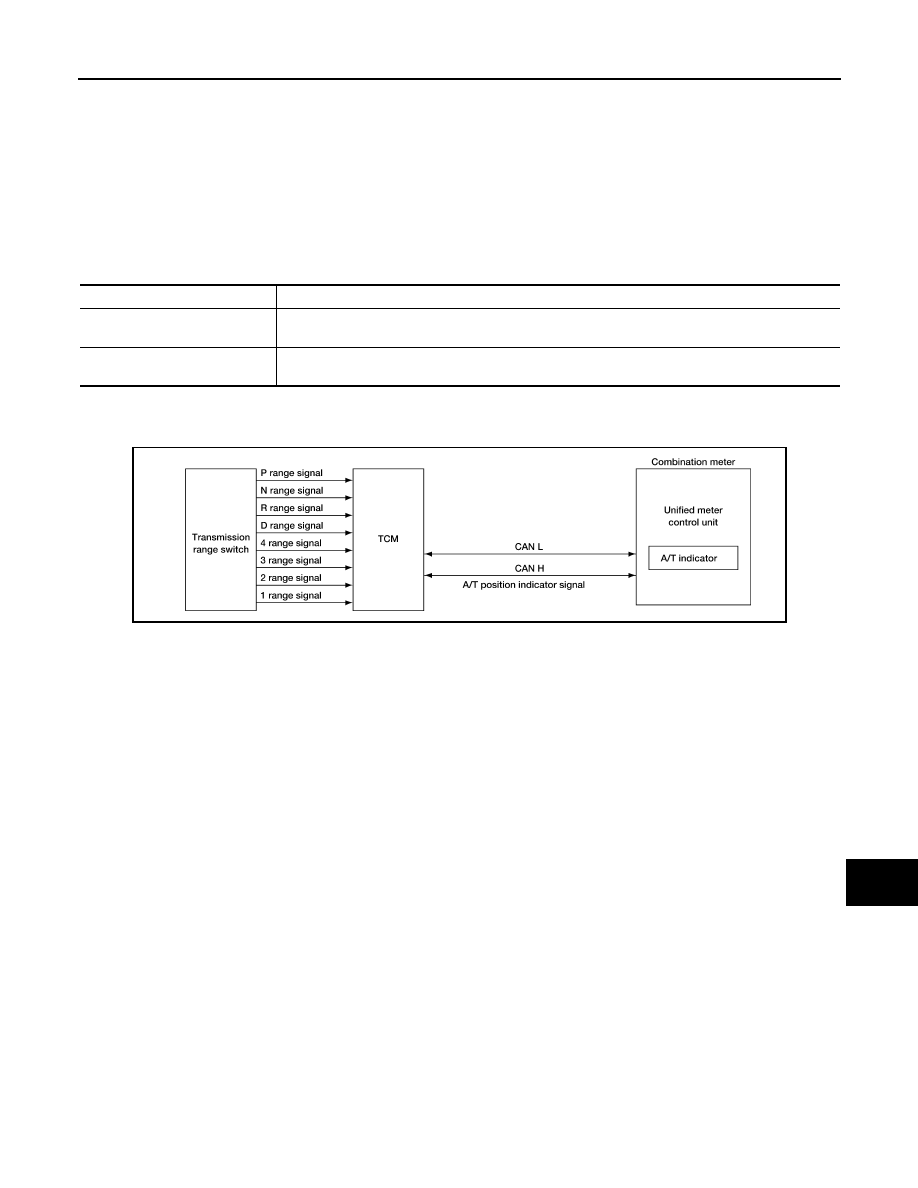

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000005146058

SHIFT POSITION INDICATOR : System Description

INFOID:0000000005146059

The TCM receives A/T indicator signals from the transmission range switch. The TCM then sends A/T position

indicator signals to the combination meter via CAN communication lines. The combination meter indicates the

received shift position.

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage, and it displays the accumulated mileage to the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

AWNIA1906GB

MWI-18

< FUNCTION DIAGNOSIS >

METER SYSTEM

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000005146060

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000005146061

WARNING LAMPS/INDICATOR LAMPS
WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000005146062

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0201ZZ

Unit

Description

Combination meter

Displays the shift position on the information display using shift position signal received from TCM.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JSNIA0449GB
