GW-14

< ON-VEHICLE REPAIR >

REAR WINDOW GLASS AND MOLDING

INSTALLATION

Installation is in the reverse order of removal.

FRONT DOOR GLASS AND REGULATOR

GW-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

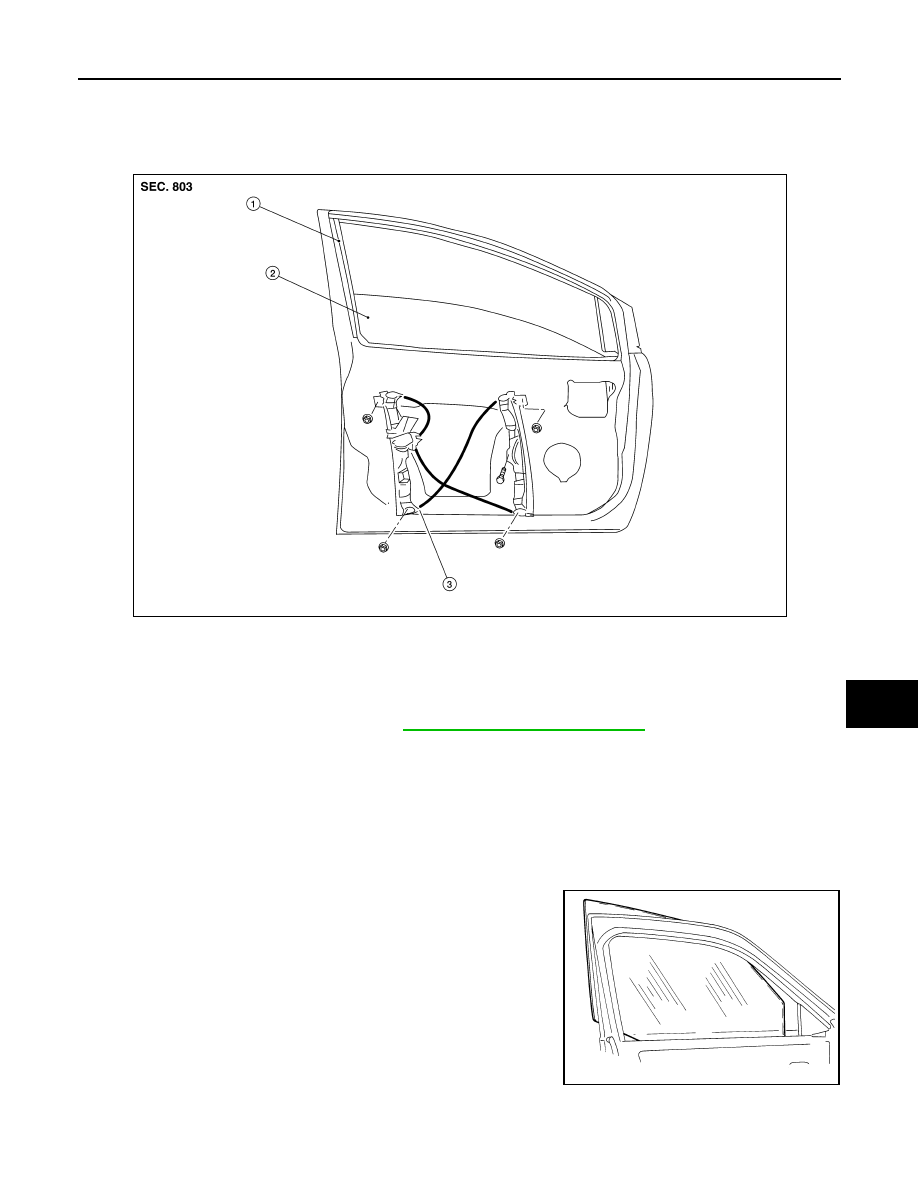

FRONT DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000005147161

FRONT DOOR GLASS

Removal

1. Remove the front door speaker. Refer the

AV-174, "Removal and Installation"

.

2. Position aside the vapor shield.
3. Remove the hole cover over rear glass bolt.
4. Temporarily reconnect the power window switch.
5. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
6. Remove the inside seal.
7. Remove the glass bolts.

8. While holding the front door glass, raise it at the rear end and

pull the glass out of the sash toward the outside of the door.

Installation

Installation is in the reverse order of removal.

1.

Door glass run

2.

Door glass

3.

Front door glass regulator assembly

WIIA0941E

LIIA1687E

GW-16

< ON-VEHICLE REPAIR >

FRONT DOOR GLASS AND REGULATOR

Fitting Inspection

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

FRONT DOOR GLASS REGULATOR

Removal

1. Remove the front door finisher. Refer the

INT-11, "Removal and Installation"

.

2. Position aside the vapor shield.
3. Remove the hole cover over rear glass bolt.
4. Temporarily reconnect the power window switch.
5. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
6. Remove the glass bolts.
7. Raise the front door glass and hold it in place with suitable tool.
8. Disconnect the harness connector from the regulator assembly.
9. Remove the bolts and the regulator assembly.

Installation

1. Install the regulator assembly.
2. Reposition the vapor shield.
3. Connect the harness connector to the regulator assembly.
4.  Align the glass and install the glass bolts.

5. Reset the limit switch. Follow the "Setting of Limit Switch" procedure.
6. Install front door finisher. Refer to

INT-11, "Removal and Installation"

.

SETTING AFTER INSTALLATION

Setting of Limit Switch

If any of the following work has been done, set the limit switch (integrated in the motor).

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the glass.

• Removal and installation of the glass run.

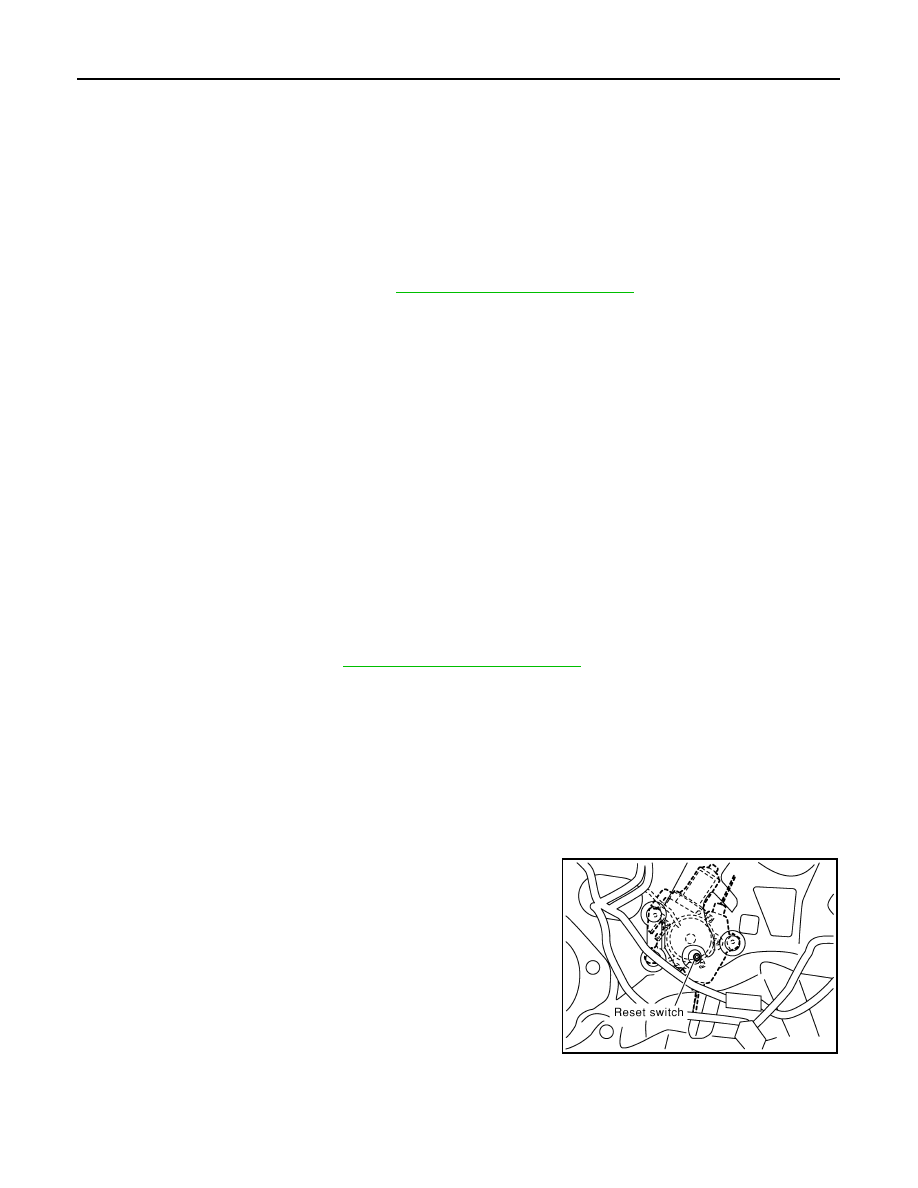

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top position.

2. While pressing and holding the reset switch, lower the glass to

the bottom position.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not, pull the switch using suitable tool.

4. Raise the glass to the top position.

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

Disassembly And Assembly

Remove the regulator motor from the regulator assembly.

Inspection After Removal

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

SIIA0347E

FRONT DOOR GLASS AND REGULATOR

GW-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Check the regulator assembly for the following items. If a malfunc-

tion is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

The arrows in the figure show the application points of the body

grease.

LIIA0670E
