Infiniti QX56 (JA60). Manual - part 554

FSU-22

< DISASSEMBLY AND ASSEMBLY >

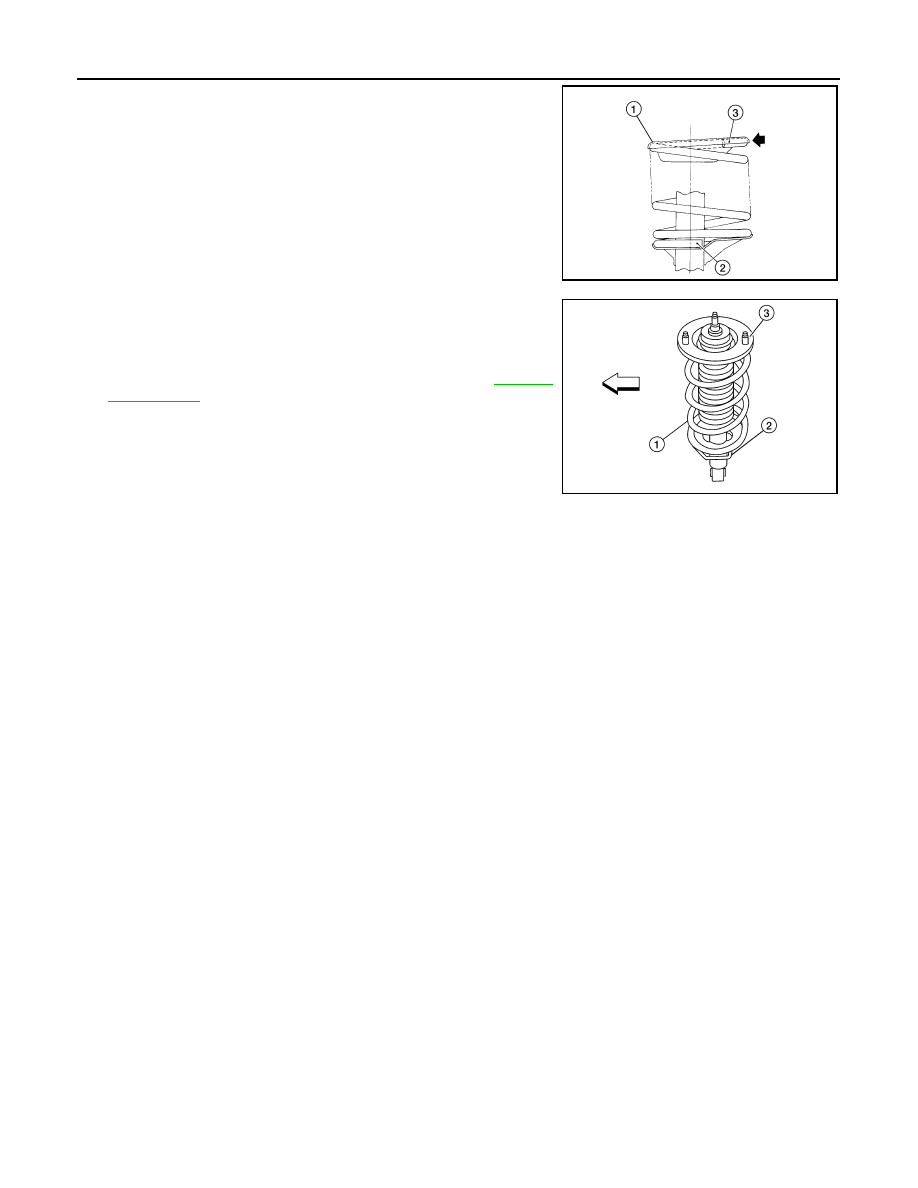

COIL SPRING AND SHOCK ABSORBER

1. When installing coil spring on shock absorber, the lower end and

upper end must be positioned as shown.

• Shock absorber mounting insulator (1)

• Lower end (2)

• Upper end (3)

•

⇐: Flat tail

2. Install upper spring insulator (3) with studs located in line with

lower shock mount and in lower seat step. The lower seat step

(2) in the shock absorber assembly (1) faces outside of vehicle.

•

⇐: Front

3. Tighten the piston rod lock nut to specification. Refer to

FSU-13,

"Component"

 .

• Use a new piston rod lock nut for assembly.

WEIA0154E

WEIA0155E

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

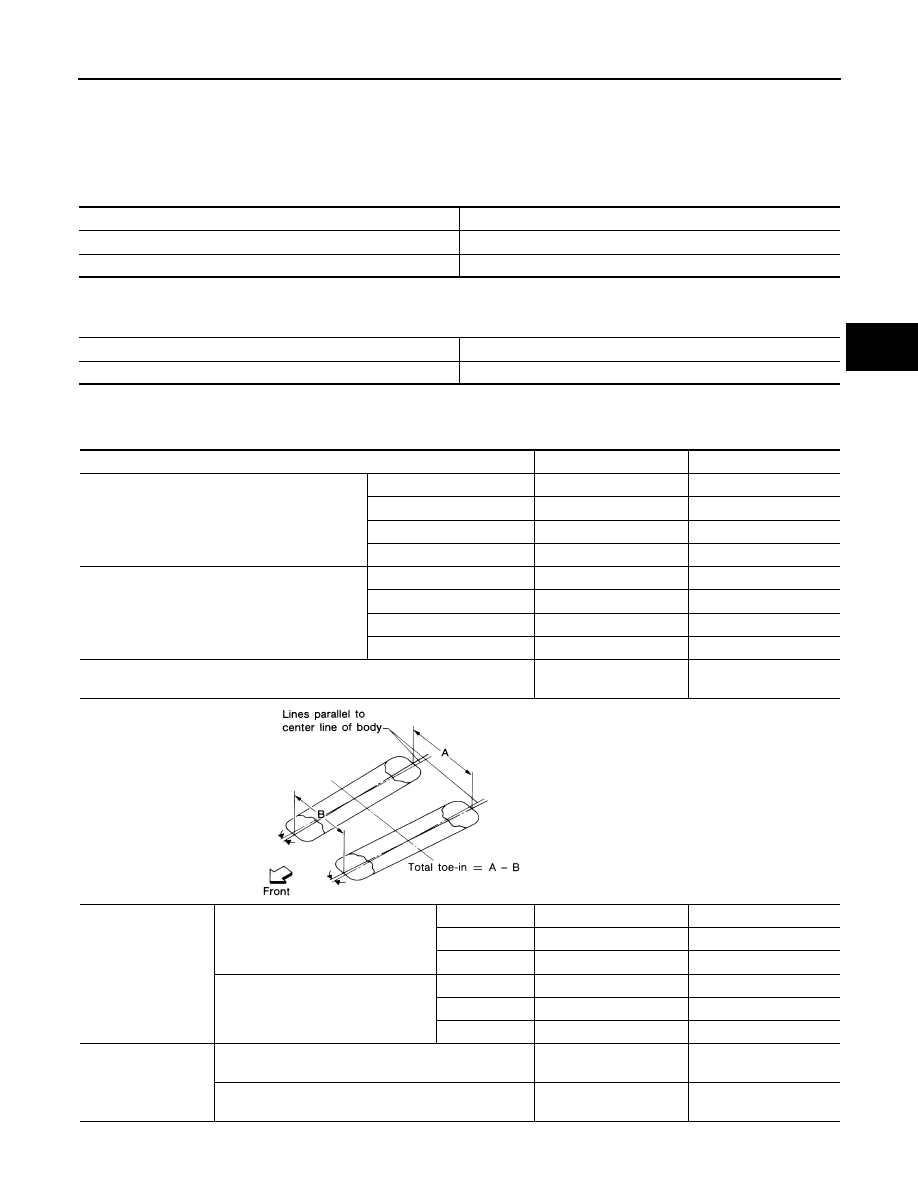

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005148120

Spring Free Height

INFOID:0000000005148121

Wheel Alignment (Unladen*

1

)

INFOID:0000000005148122

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Suspension type

Independent double wishbone coil over shock

Shock absorber type

Double-acting hydraulic

Stabilizer

Standard equipment

2WD

325.5

± 3 mm (12.8 ± 0.1 in)

4WD

335.0

± 3 mm (13.2 ± 0.1 in)

Drive type

2WD

4WD

Camber
Degree minute (decimal degree)

Minimum

-0

° 51′ (-0.85°)

-0

° 33′ (-0.55°)

Nominal

-0

° 6′ (-0.10°)

0

° 12′ (0.20°)

Maximum

0

° 39′ (0.65°)

0

° 57′ (0.95°)

Cross camber

0

° 45′ (0.75°) or less

 0

° 45′ (0.75°) or less

Caster
Degree minute (decimal degree)

Minimum

3

° 15′ (3.25°)

2

°45′ (2.75°)

Nominal

4

° 0′ (4.00°)

3

° 30′ (3.50°)

Maximum

4

° 45′ (4.75°)

4

° 15′ (4.25°)

Cross caster

0

° 45′ (0.75°) or less

0

° 45′ (0.75°) or less

Kingpin inclination
Degree minute (decimal degree)

13

° 32′ (13.53°)

13

°13′ (13.22°)

Total toe-in

Distance (A

− B)

Minimum

1.8 mm (0.07 in)

1.8 mm (0.07 in)

Nominal

2.8 mm (0.11 in)

2.8 mm (0.11 in)

Maximum

3.8 mm (0.15 in)

3.8 mm (0.15 in)

Angle (left side or right side)
Degree minute (decimal degree)

Minimum

0

° 3′ (0.05°)

0

° 3′ (0.05°)

Nominal

0

° 5′ (0.08°)

0

° 5′ (0.08°)

Maximum

0

° 7′ (0.12°)

0

° 7′ (0.12°)

Wheel turning angle
(full turn)

Inside
Degree minute (decimal degree)

34

° 31′ – 38° 31′ *2

(34.52

° – 38.52°)

34

° 44′ –  38° 44′ *4

(34.73

° – 38.73°)

Outside
Degree minute (decimal degree)

30

° 59′ –  34° 59′ *3

(30.98

° – 34.98°)

30

° 29′ –  34° 29′ *5

(30.48

° – 34.48°)

SFA234AC

FSU-24

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

*2: Target value 37

° 31′ (37.52°)

*3: Target value 33

° 59′ (33.98°)

*4: Target value 37

° 44′ (37.73°)

*5: Target value 33

° 29′ (33.48°)

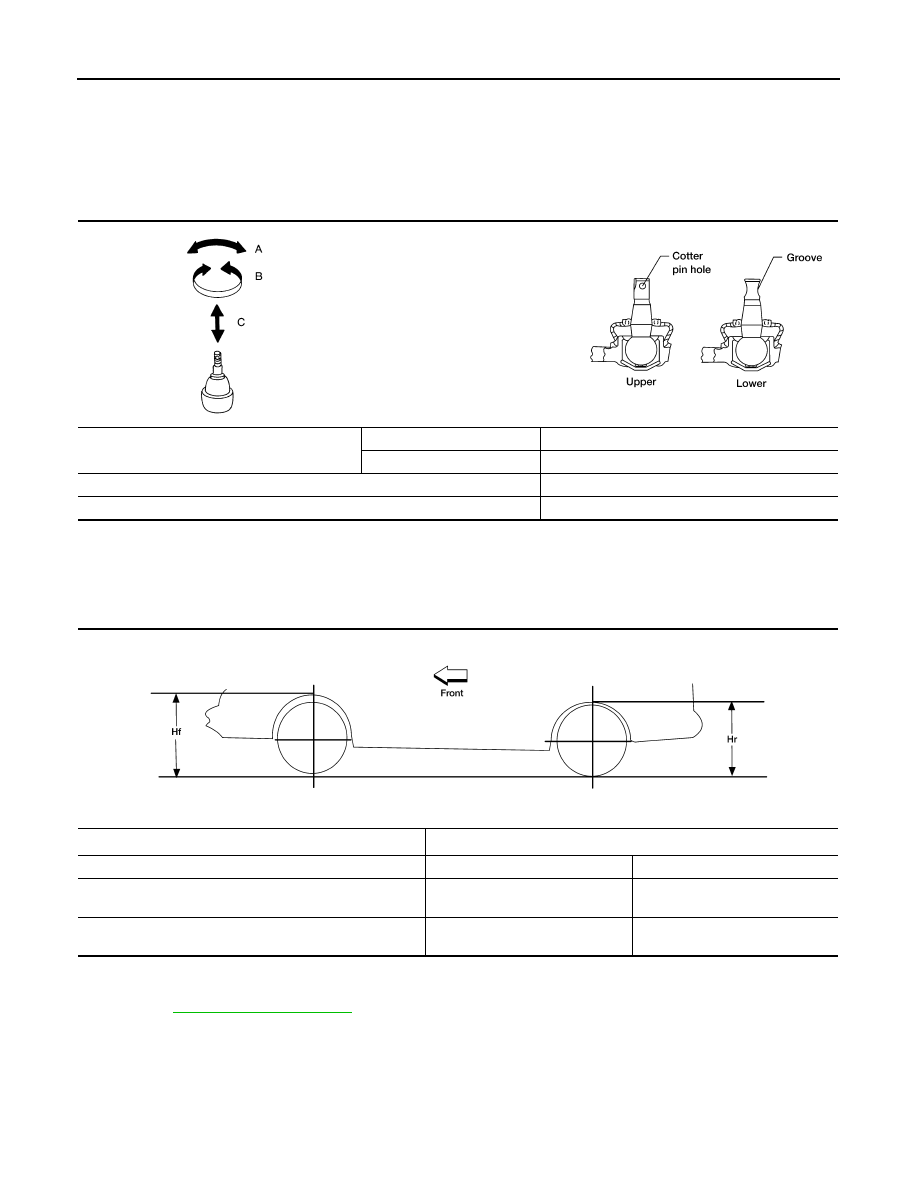

Ball Joint

INFOID:0000000005148123

*1 Measure at cotter pin hole
*2 Measure at groove

Wheelarch Height (Unladen*

1

)

INFOID:0000000005148124

Unit: mm (in)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Verify the vehicle height. If vehicle height is not within

± 10 mm (0.39 in) of the specification, perform the control unit initialization pro-

cedure. Refer to

SCS-7, "CONSULT-III Function"

.

Swinging force (A)

Upper ball joint

8.1 – 103.2 N (0.8 – 10.5 kg-f, 1.8 – 23.2 lb-f) *1

Lower ball joint

11.4 – 145.5 N (1.1 – 14.8 kg-f, 2.5 – 32.7 lb-f) *2

Turning torque (B)

0.5 - 6.4 N·m (0.05 - 0.65 kg-m, 4 - 57 in-lb)

Vertical end play (C)

0 mm (0 in)

SFA858A

WEIA0076E

Suspension type

Air leveling*

2

Applied model

2WD

4WD

Front wheelarch height (Hf)

920

(36.22)

937

(36.89)

Rear wheelarch height (Hr)

917

(36.10)

937

(36.89)

LEIA0085E
