FSU-10
< ON-VEHICLE MAINTENANCE >

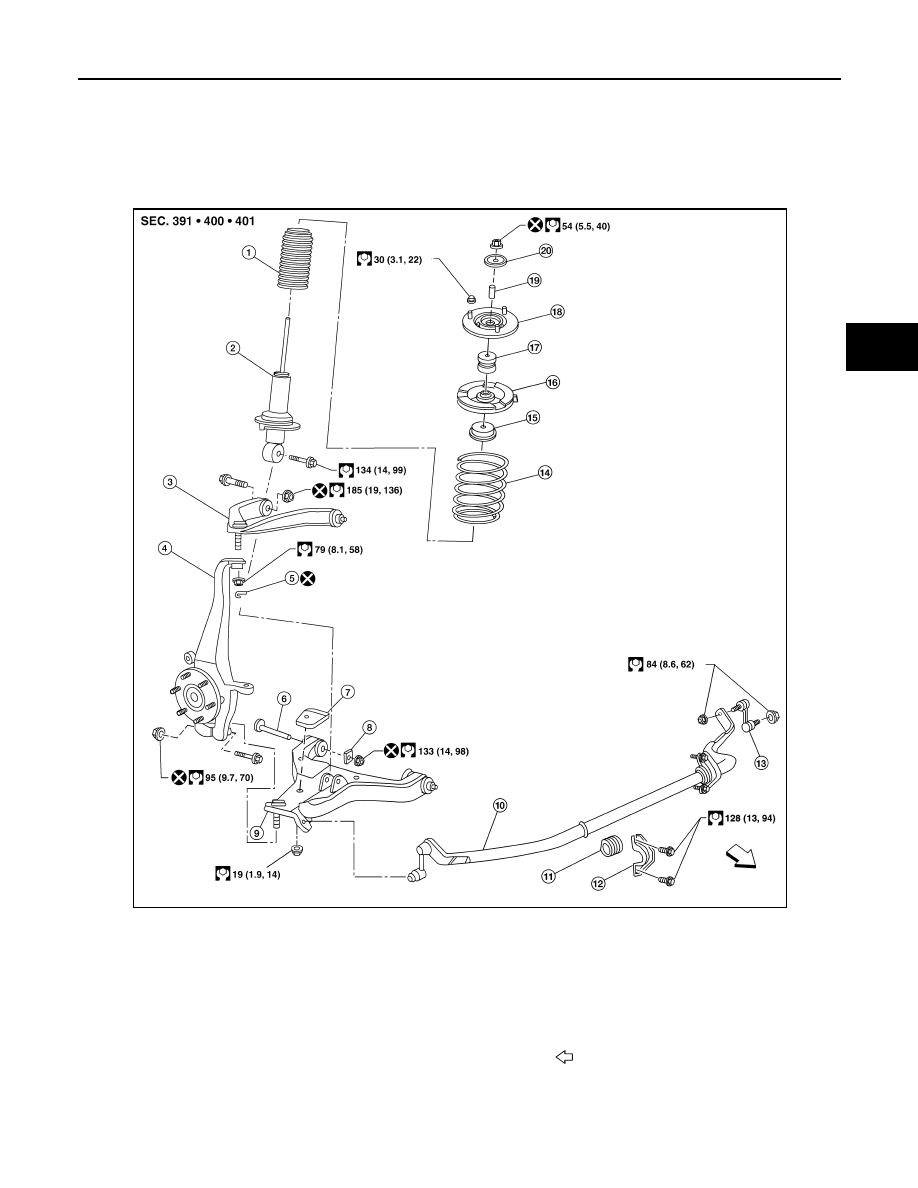

UPPER BALL JOINT AND LOWER BALL JOINT
UPPER BALL JOINT AND LOWER BALL JOINT
Inspection
INFOID:0000000005148110
• Check the ball joint for excessive play. Replace the upper or lower link assembly if any of the following
exists:
- Ball joint stud is worn.
- Ball joint is hard to swing.
- Ball joint play in axial directions or end play is excessive.
Swinging Force
NOTE:
Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball
joint is properly broken in.

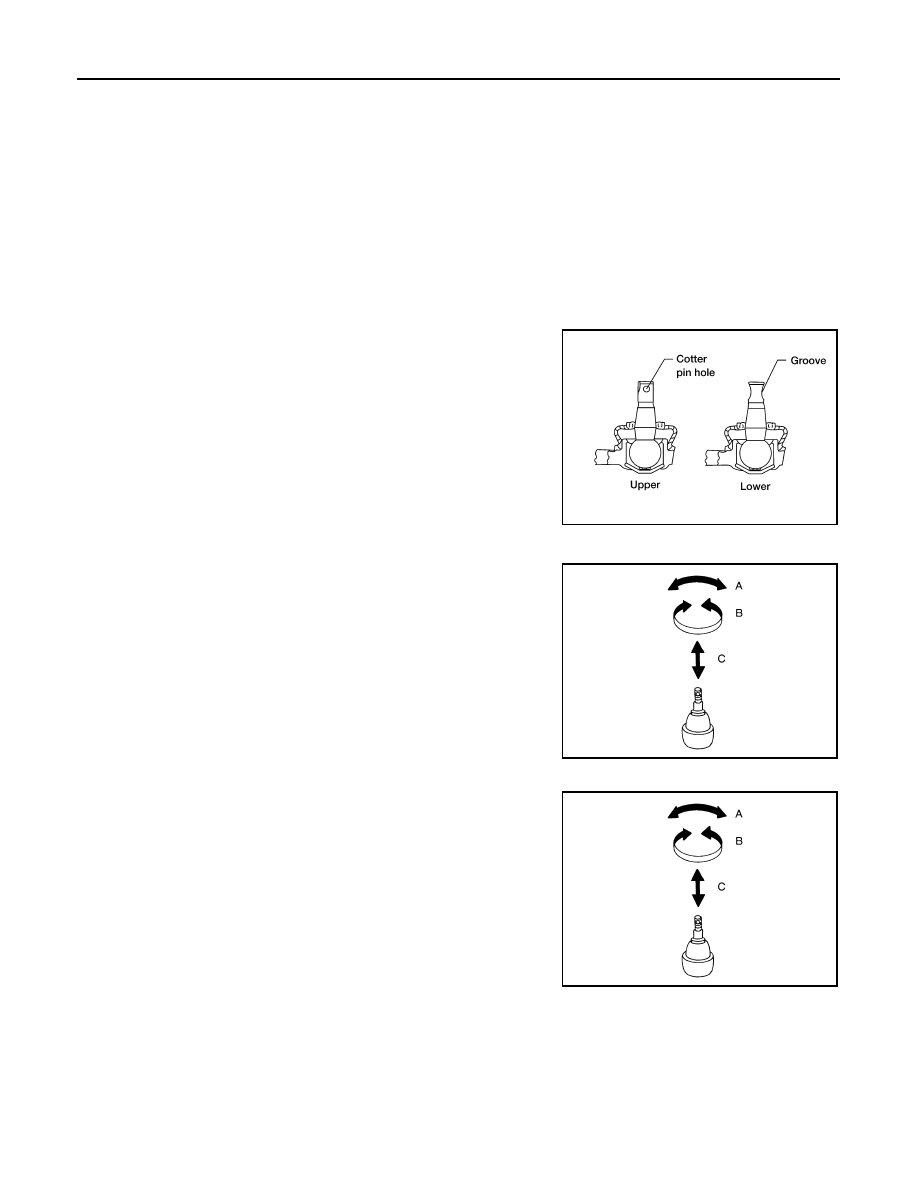

1. Measure the ball joint swinging force using a suitable tool.
• Measure at the cotter pin hole for upper ball joint as shown.
• Measure at the groove for lower ball joint as shown.
2. Verify the ball joint swinging force is within specification.
Turning Force
Check the turning torque using a suitable tool.
NOTE:
Before checking the axial forces and end play, turn the lower ball
joint at least 10 revolutions so that the ball joint is properly broken in.
Vertical End Play
Check dust cover for damage. Replace it and the cover clamp if necessary.
NOTE:
WEIA0076E
Swinging force (A)
Upper ball joint
: 8.1 - 103.2 N (0.8 - 10.5 kg-f,
1.8 - 23.2 lb-f)
Lower ball joint
: 11.4 - 145.5 N (1.1 - 14.8 kg-f,
2.5 - 32.7 lb-f)
SFA858A
Turning torque (B)
: 0.5 - 6.4 N·m (0.05 - 0.65 kg-m, 4
- 57 in-lb)
SFA858A
