EXT-22

< SERVICE INFORMATION >

OVER FENDER

6. Install the front and/or rear over fender screws.

FENDER PROTECTOR

EXT-23

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

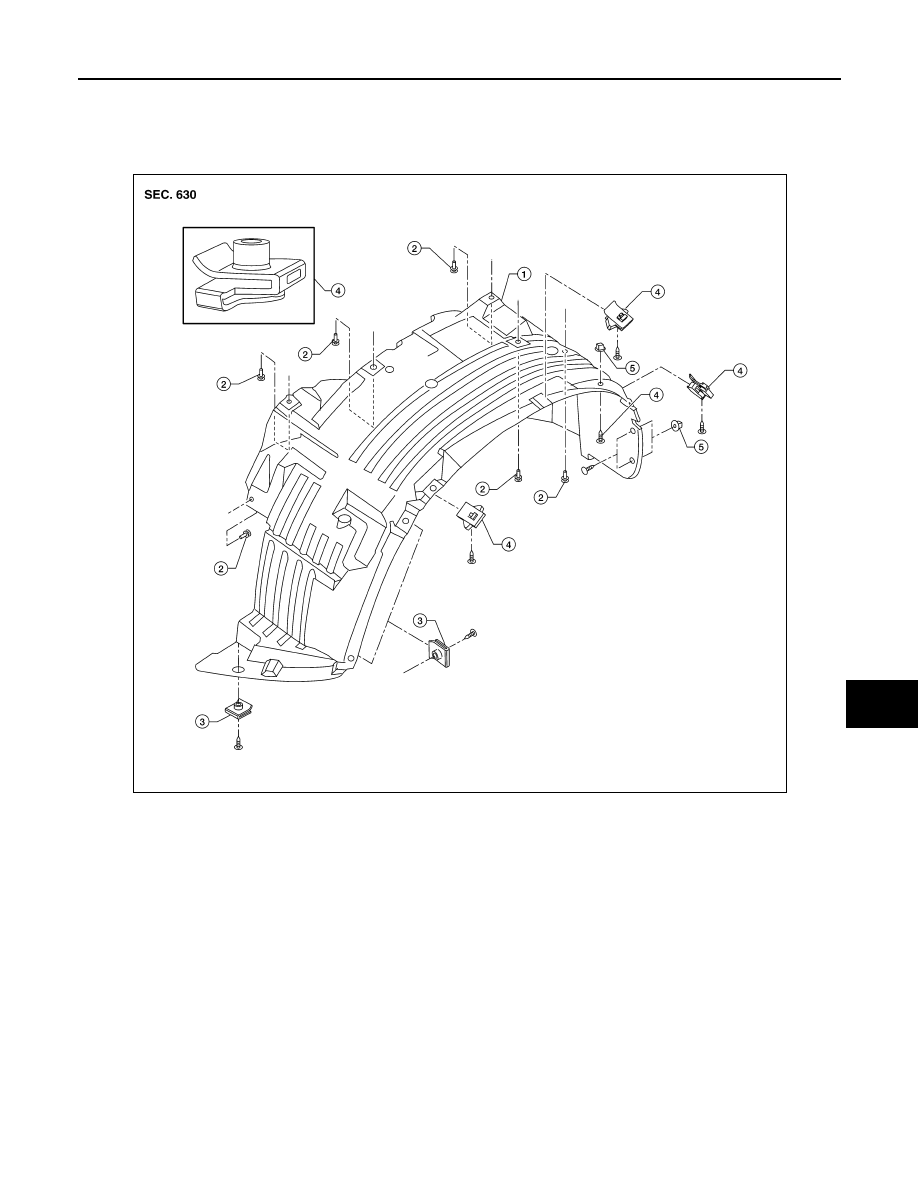

FENDER PROTECTOR

Removal and Installation

INFOID:0000000005147324

REMOVAL

1. Remove the screws.
2. Remove the plastic clips.
3. Remove the front fender protector.
4. Remove the clips from the fender protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Fender protector (LH shown)

2.

Clip C205

3.

J-clip

4.

Clip

5.

Clip CS101

WIIA0958E

EXT-24

< SERVICE INFORMATION >

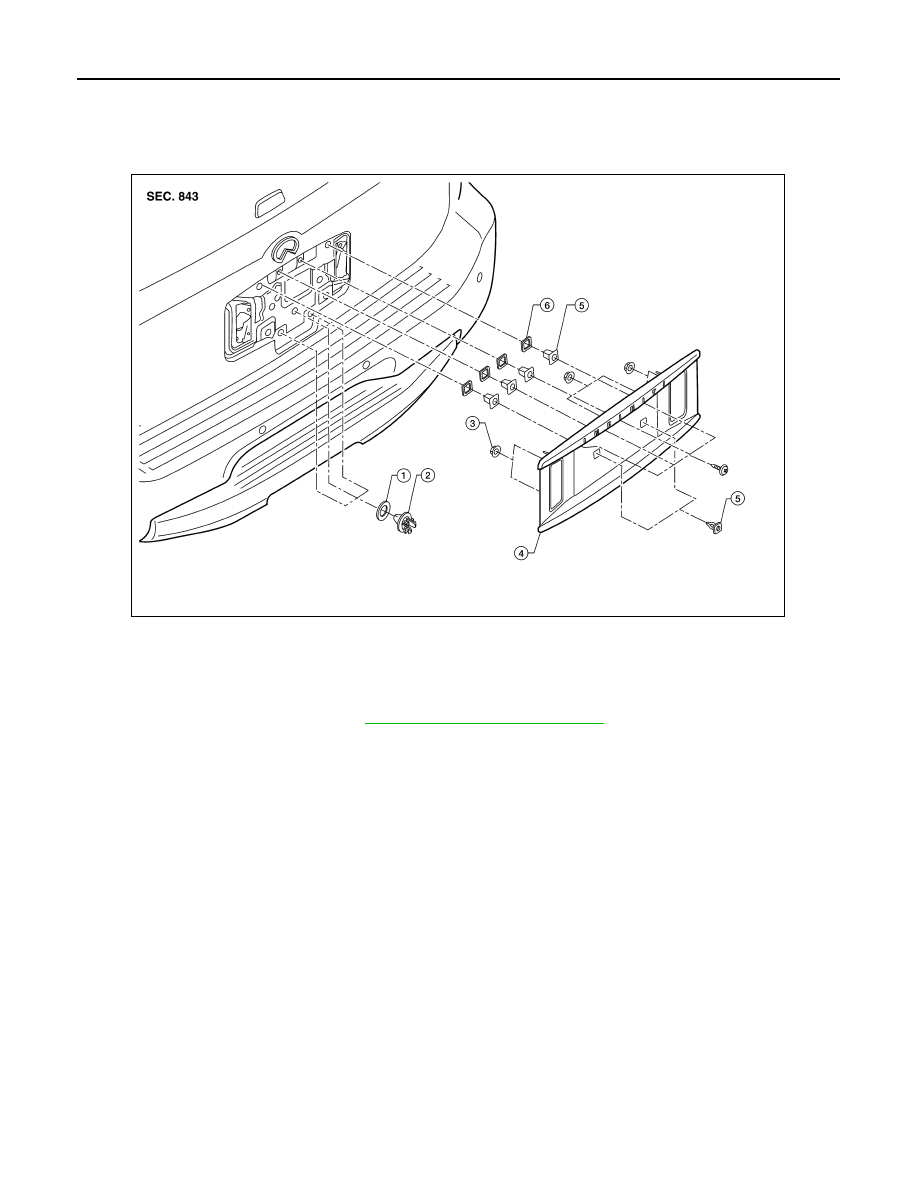

LICENSE LAMP FINISHER

LICENSE LAMP FINISHER

Removal and Installation

INFOID:0000000005147325

REMOVAL

1. Remove the back door trim. Refer to

INT-21, "Removal and Installation"

.

2. Disconnect the harness connectors and remove with bulbs from license lamps.
3. Disconnect the back-up lamp bulbs.
4. Disconnect the rear view camera connector.
5. Remove the nuts and screws from the license lamp finisher.
6. Release the clips and remove the license lamp finisher.

INSTALLATION

Installation is in the reverse order of removal.

1.

Seal

2.

Plastic clip

3.

Nut

4.

License lamp finisher

5.

Clip CS101

6.

Seal

WIIA0959E

RUNNING BOARDS

EXT-25

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

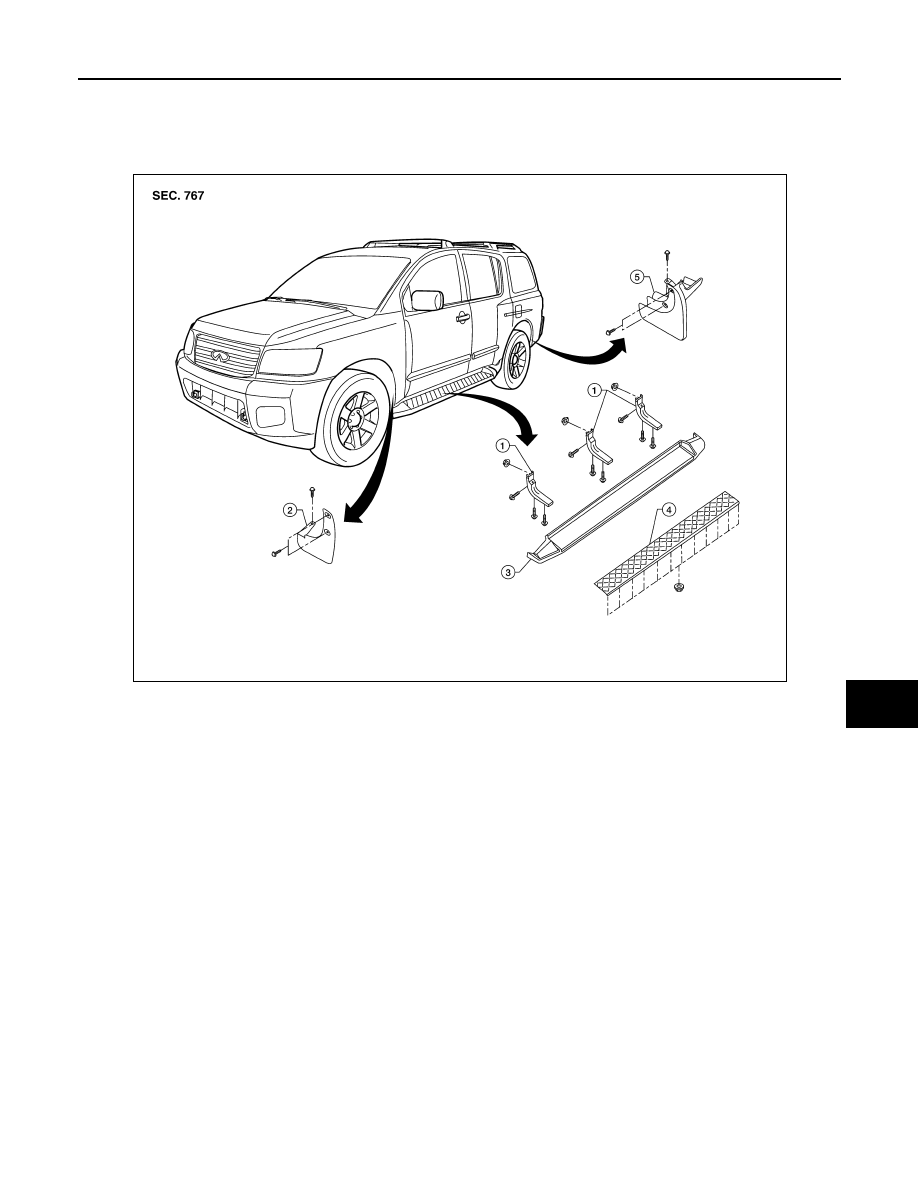

RUNNING BOARDS

Removal and Installation

INFOID:0000000005147326

REMOVAL

1. Remove the bolts and the remove running board from the running board brackets.
2. Remove the nuts, then remove the step pad from running board.
3. Remove the nuts, then the bolts and remove the running board brackets.
4. Remove the screws, then remove the front and rear mud guards.

INSTALLATION

Installation is in the reverse order of removal.

1.

Running board bracket

2.

Front mud guard

3.

Running board

4.

Step pad

5.

Rear mud guard

WIIA0960E
