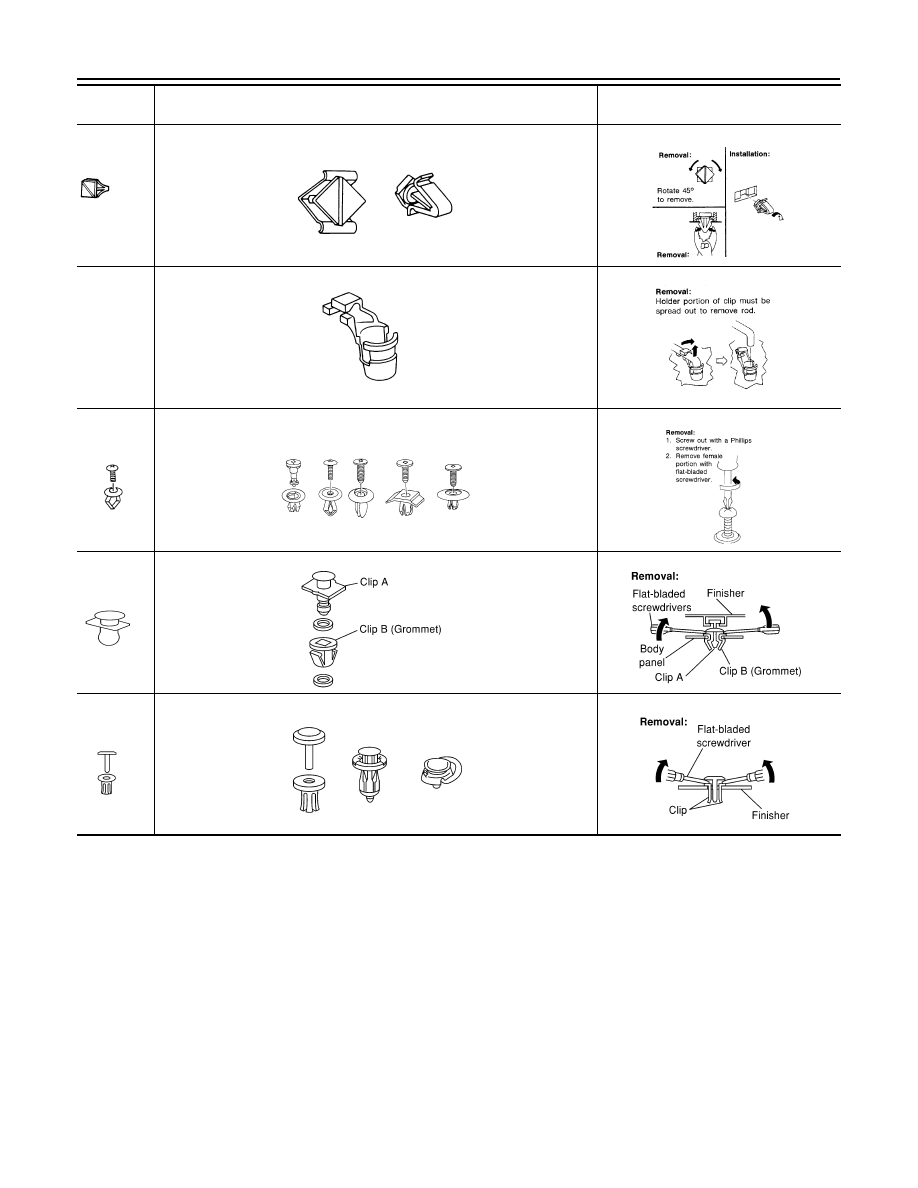

CLIP AND FASTENER

Description

INFOID:0000000005147317

• Replace any clips and/or fasteners which are damaged during removal or installation.

Symbol

No.

Shapes

Removal & Installation

C101

C103

C203

CE103

CG104

CE114

—

SBF302H

SBF367BA

SBT095

SBF423H

SBF258G

LIIA0236E

SBF104B

SBF147B

LIIA0237E

SBF352C

SBF353C

EXT-12

< SERVICE INFORMATION >

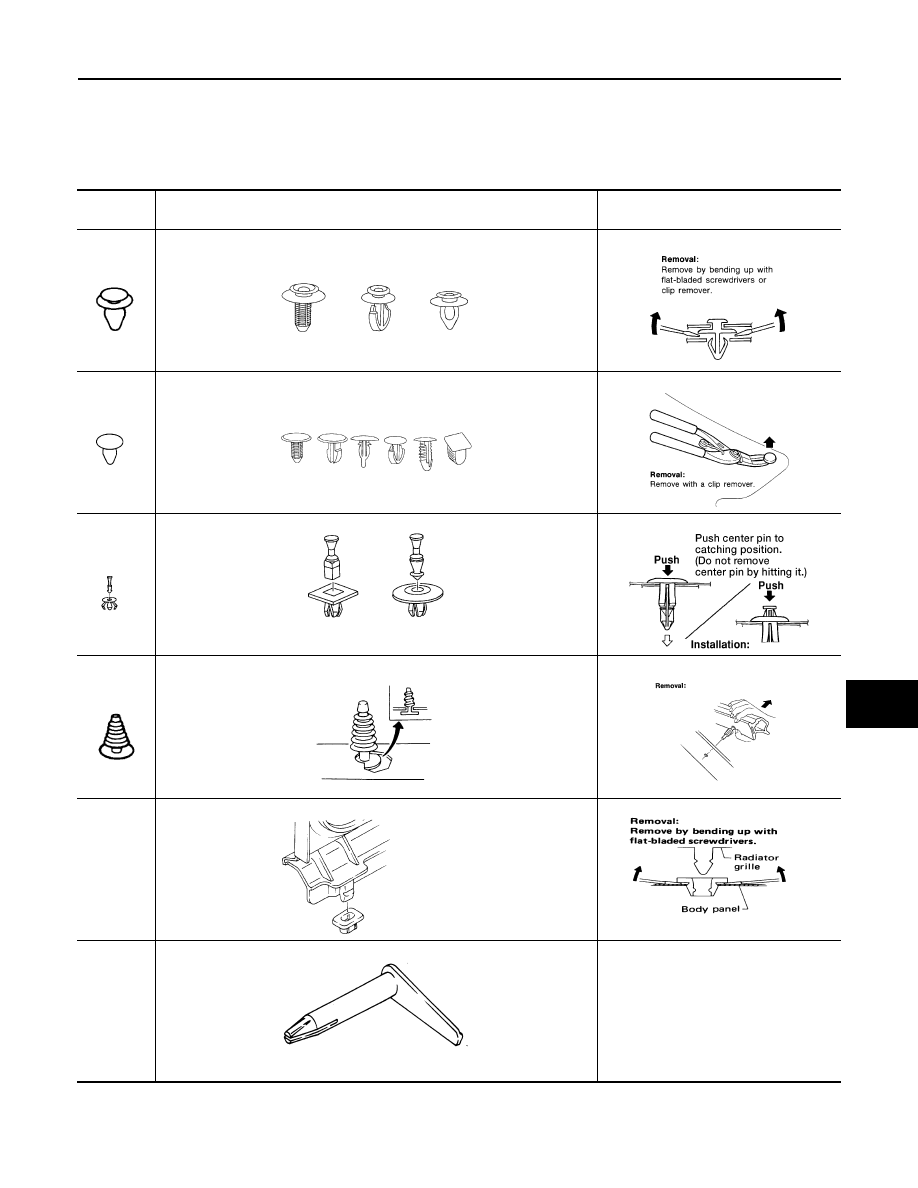

CLIP AND FASTENER

CG101

CR103

CS101

CF118

C205

Symbol

No.

Shapes

Removal & Installation

SBF145B

SBF085B

SBF768B

SBF770B

SBF078B

SBF992G

LIIA1341E

LIIA1342E

LIIA1344E

LIIA1345E

FRONT BUMPER

EXT-13

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

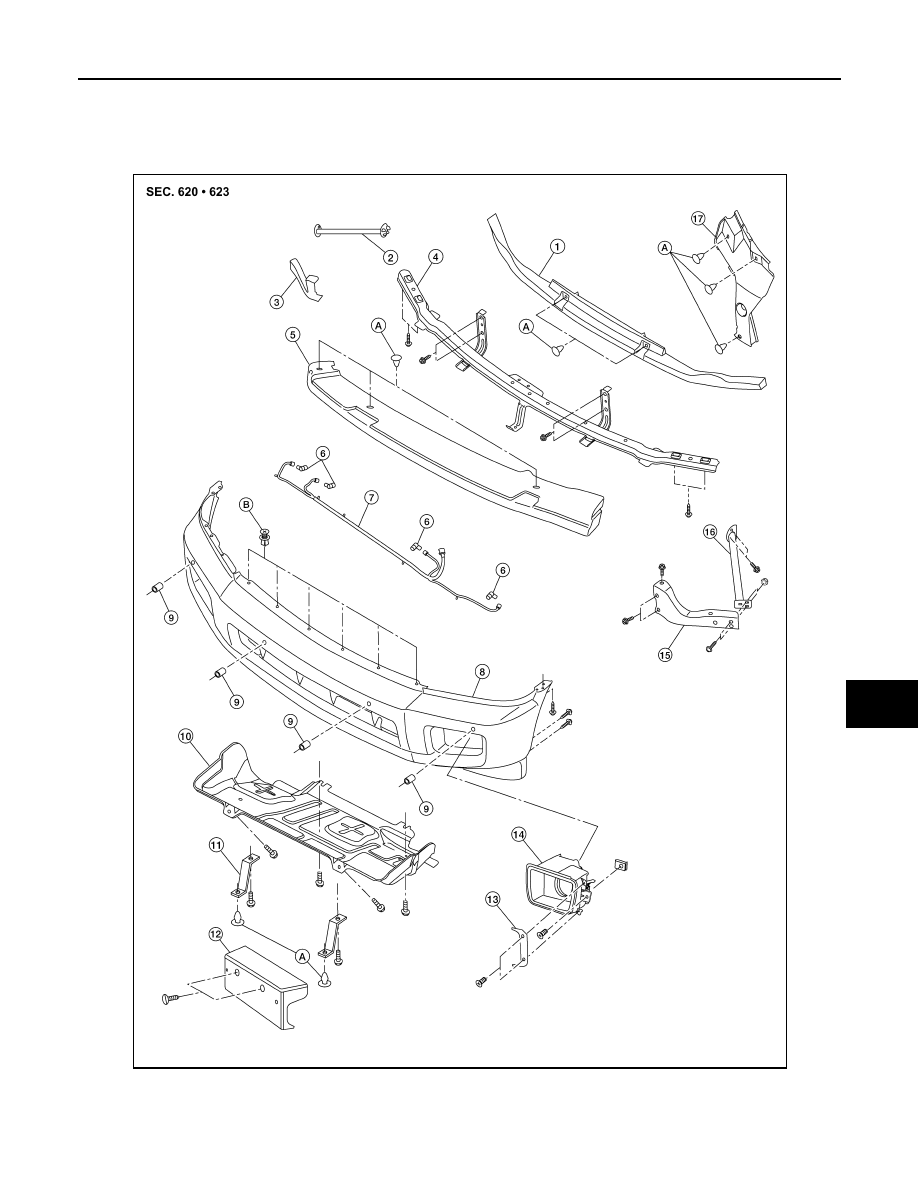

FRONT BUMPER

Removal and Installation

INFOID:0000000005147318

1.

Lower energy absorber

2.

Front bumper side bracket RH

3.

Front bumper stay RH

4.

Upper bumper reinforcement

5.

Upper energy absorber (part of up-
per bumper reinforcement)

6.

Sonar sensors (if equipped)

AWKIA1559ZZ
