Infiniti QX56 (JA60). Manual - part 530





HEADLAMP

EXL-149

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000005146699

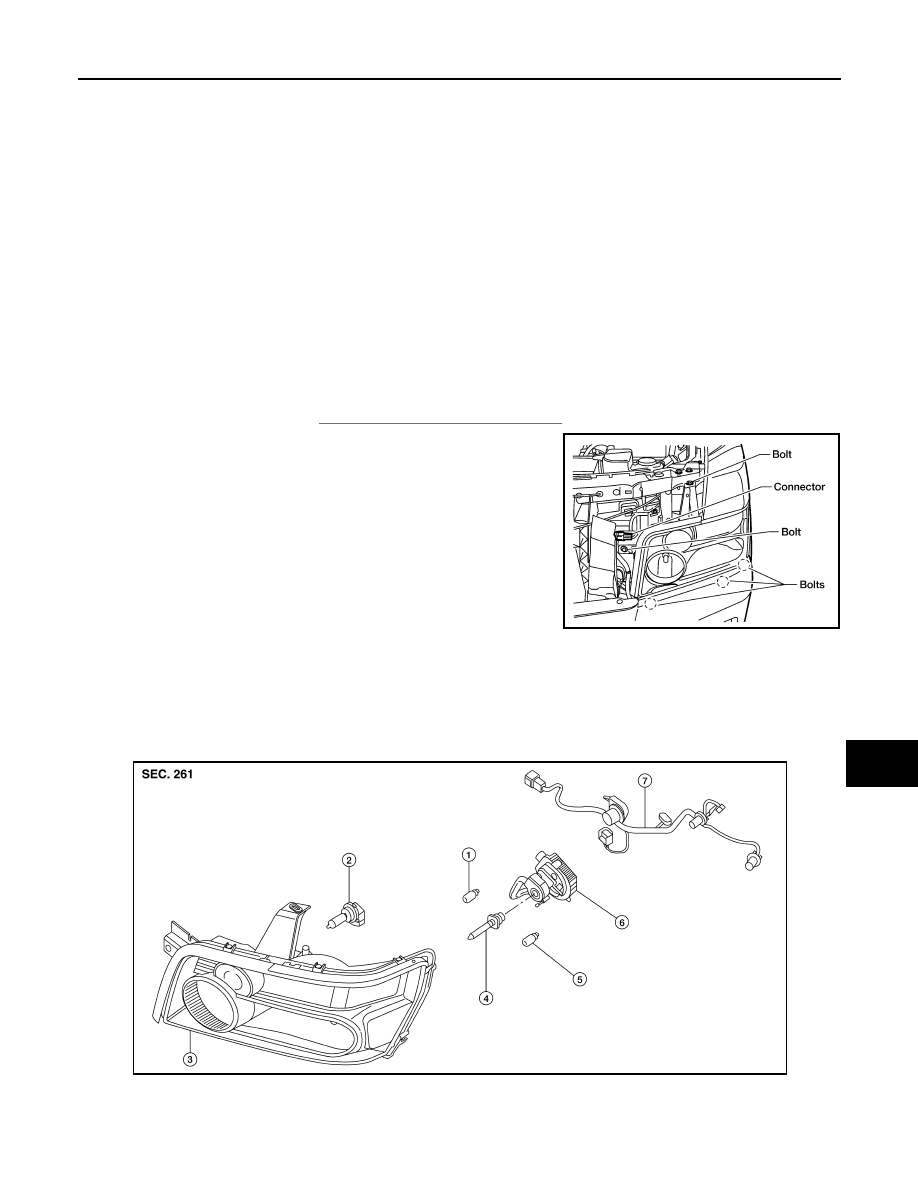

FRONT COMBINATION LAMP ASSEMBLY

CAUTION:

• Disconnect battery negative terminal before touching xenon bulb or headlamp wiring harness

assembly.

• Turn headlamp switch OFF before disconnecting headlamp harness connector.

• Do not touch bulb by hand right after being turned off. Burning may result.

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.

• Do not turn xenon bulb ON when xenon bulb is removed from front combination lamp assembly.

• After installing the bulb, be sure to install the bulb socket securely to ensure watertightness.

• Do not leave bulb out of front combination lamp assembly for a long time because dust, moisture,

smoke, etc. may affect the performance of the lamp. When replacing bulb, be sure to replace it with a

new one.

Removal

1. Disconnect battery negative terminal.
2. Disconnect front combination lamp assembly.
3. Remove front fascia. Refer to

EXT-13, "Removal and Installation"

.

4. Remove front combination lamp assembly bolts.
5. Remove front combination lamp assembly.

Installation

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000005146700

FRONT COMBINATION LAMP ASSEMBLY

WKIA1860E

1. Parking lamp bulb (outer)

2. Headlamp bulb (high beam)

3. Headlamp assembly

ALKIA1536GB

EXL-150

< REMOVAL AND INSTALLATION >

HEADLAMP

Disassembly

1. Remove ballast.
2. Release xenon bulb retaining spring and remove xenon bulb.
3. Turn high beam bulb counterclockwise to unlock and remove high beam bulb.
4. Turn parking lamp bulb (inner) socket counterclockwise to unlock and remove parking lamp bulb.
5. Turn parking lamp bulb (outer) socket counterclockwise to unlock and remove parking lamp bulb.
6. Turn side marker lamp (front) bulb socket counterclockwise to unlock and remove side marker lamp (front)

bulb.

Assembly

Assembly is in the reverse order of disassembly.

4. Xenon bulb (low beam)

5. Side marker lamp (front) bulb

6. Ballast

7. Wiring harness assembly

AUTO LIGHT SYSTEM

EXL-151

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AUTO LIGHT SYSTEM

Removal and Installation

INFOID:0000000005146701

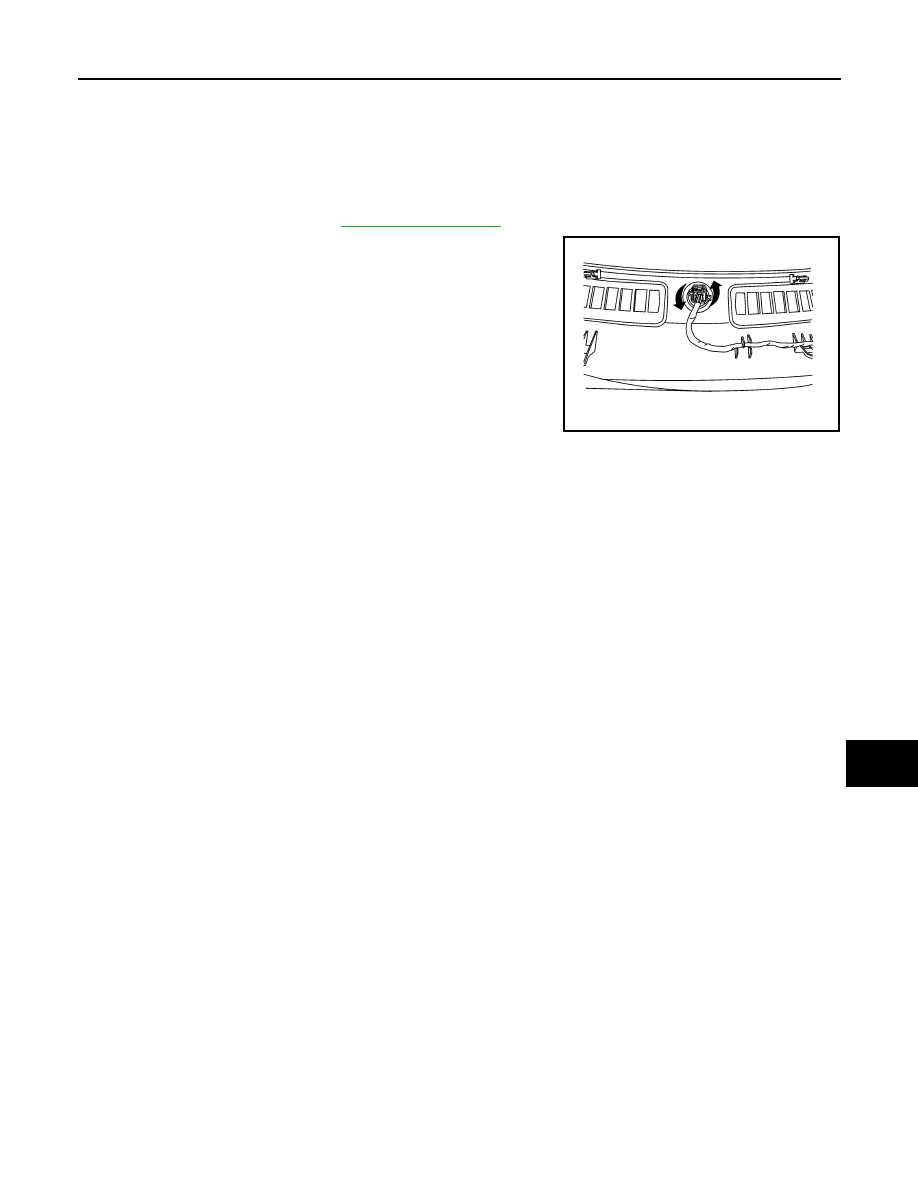

OPTICAL SENSOR

Removal

1. Remove defroster grille. Refer to

IP-11, "Exploded View"

.

2. Disconnect the optical sensor connector.
3. Turn the optical sensor counterclockwise to remove it from

defroster grille.

Installation

Installation is in the reverse order of removal.

WKIA1061E

EXL-152

< REMOVAL AND INSTALLATION >

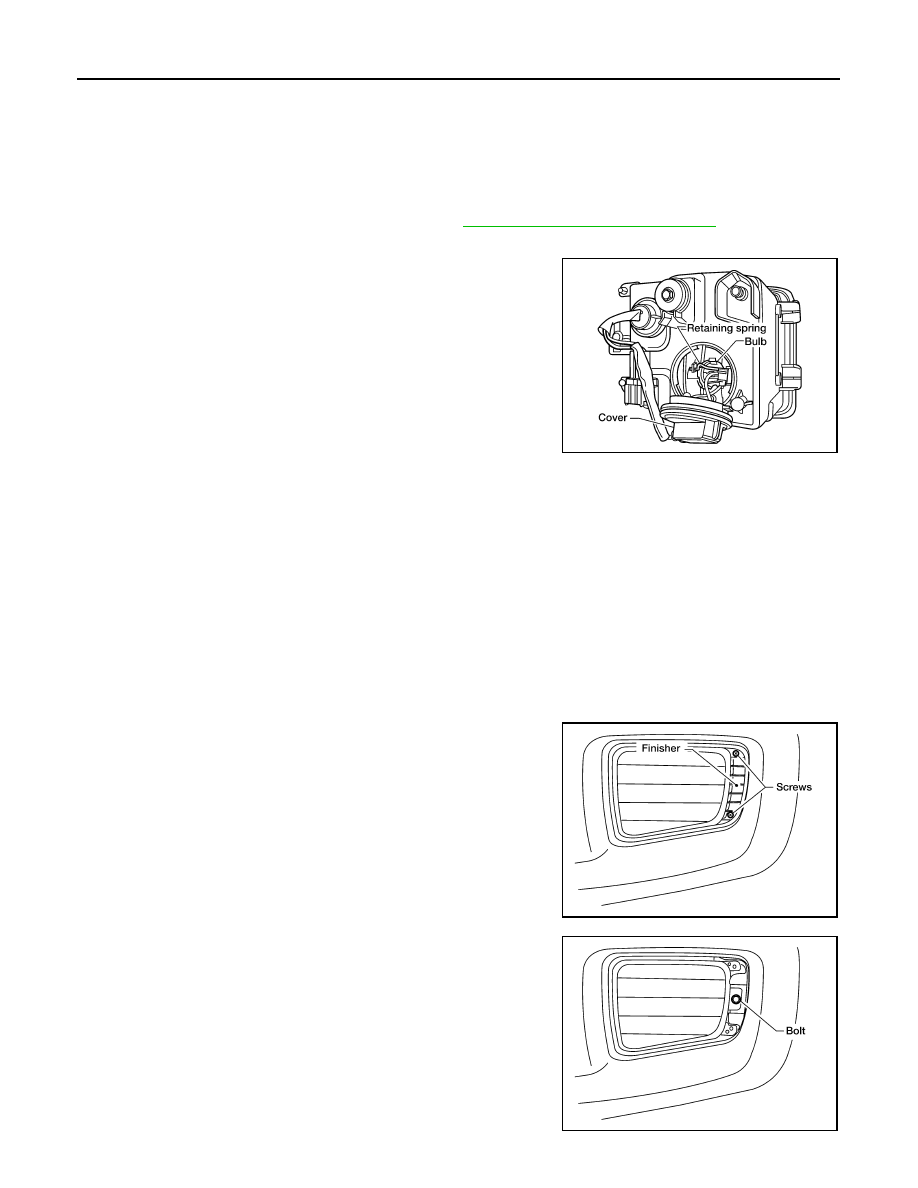

FRONT FOG LAMP

FRONT FOG LAMP

Bulb Replacement

INFOID:0000000005146702

FRONT FOG LAMP

Removal

1. Remove the front turn/fog lamp assembly. Refer to

EXL-152, "Removal and Installation"

.

2. Turn the bulb cover counterclockwise to remove it.
3. Unlatch retaining spring.
4. Remove bulb and disconnect the connector.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep

grease and other oily substances away from it. Do not

touch bulb by hand while it is lit or right after being turned

off. Burning may result.

• Do not leave bulb out of fog lamp reflector for a long time

because dust, moisture smoke, etc. may affect the perfor-

mance of fog lamp. When replacing bulb, be sure to

replace it with new one.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005146703

FRONT FOG LAMP

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

CAUTION:

• Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc.

entering the fog lamp body may affect the performance. Remove the bulb from the headlamp assem-

bly just before replacement bulb is installed.

• Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the

glass could significantly affect the bulb life and/or fog lamp performance.

Removal

1. Remove the front turn/fog lamp finisher.

2. Remove bolt and pull fog lamp out of front fascia.
3. Disconnect electrical connector.

WKIA1886E

WKIA1887E

WKIA1888E
