HEADLAMP AIMING SYSTEM (MANUAL)

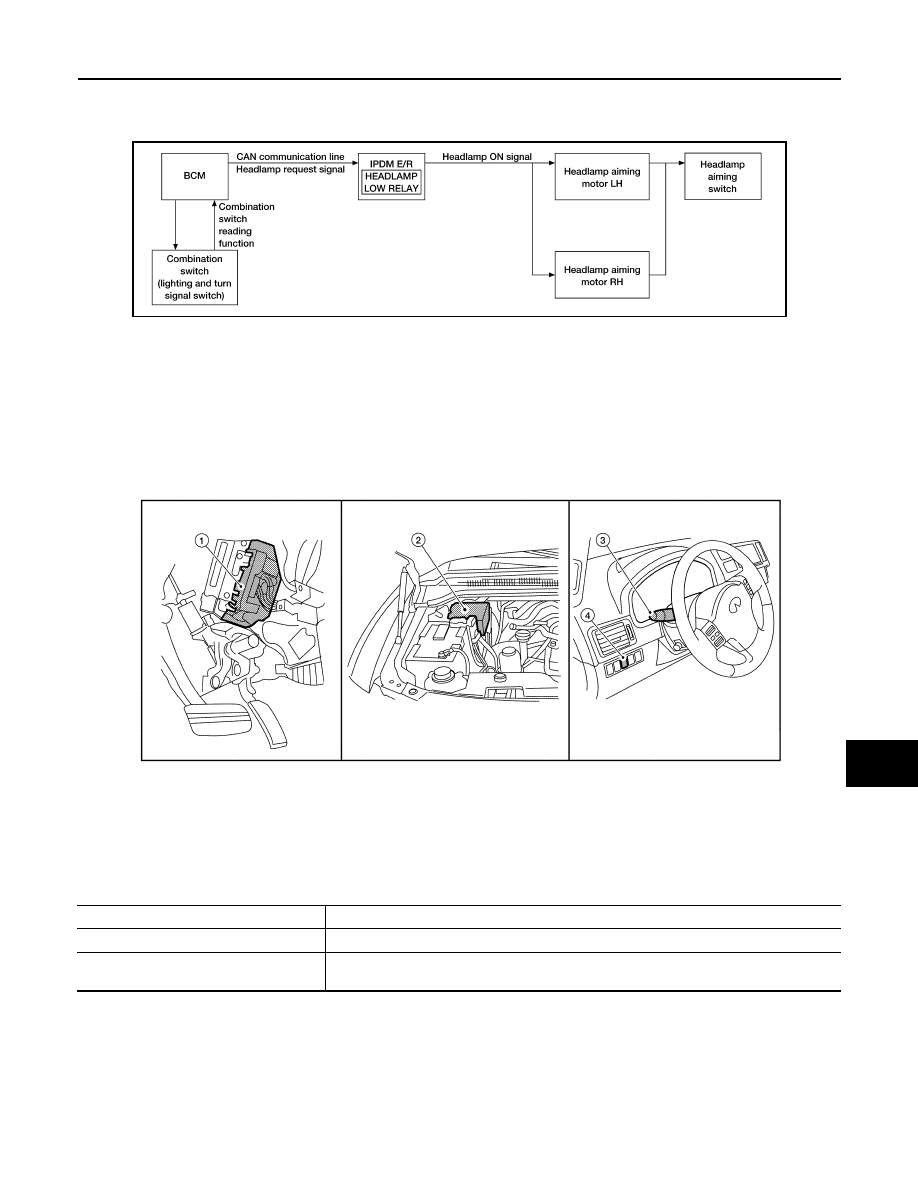

System Diagram

INFOID:0000000005146616

System Description

INFOID:0000000005146617

The headlamp aiming system (manual) controls the headlamp light axis height according to input from the

headlamp aiming switch. The variable internal resistance of the headlamp aiming switch controls the signal

ground of the headlamp aiming motors located on the front combination lamp LH and RH.

Component Parts Location

INFOID:0000000005146618

Component Description

INFOID:0000000005146619

AWLIA1717GB

1.

BCM M18, M20 (view with instrument
panel removed)

2.

IPDM E/R E121, E122, E123, E124

3.

Combination switch (lighting and turn
signal switch) M28

4.

Headlamp aiming switch M148

AWLIA0508ZZ

Part

Description

Headlamp aiming motor

Moves the headlamp up/down based on input from the headlamp aiming switch.

Headlamp aiming switch

Controls variable ground to the headlamp aiming motor signal to move the headlamp aim-
ing motor up/down.

EXL-14

< FUNCTION DIAGNOSIS >

FRONT FOG LAMP

FRONT FOG LAMP

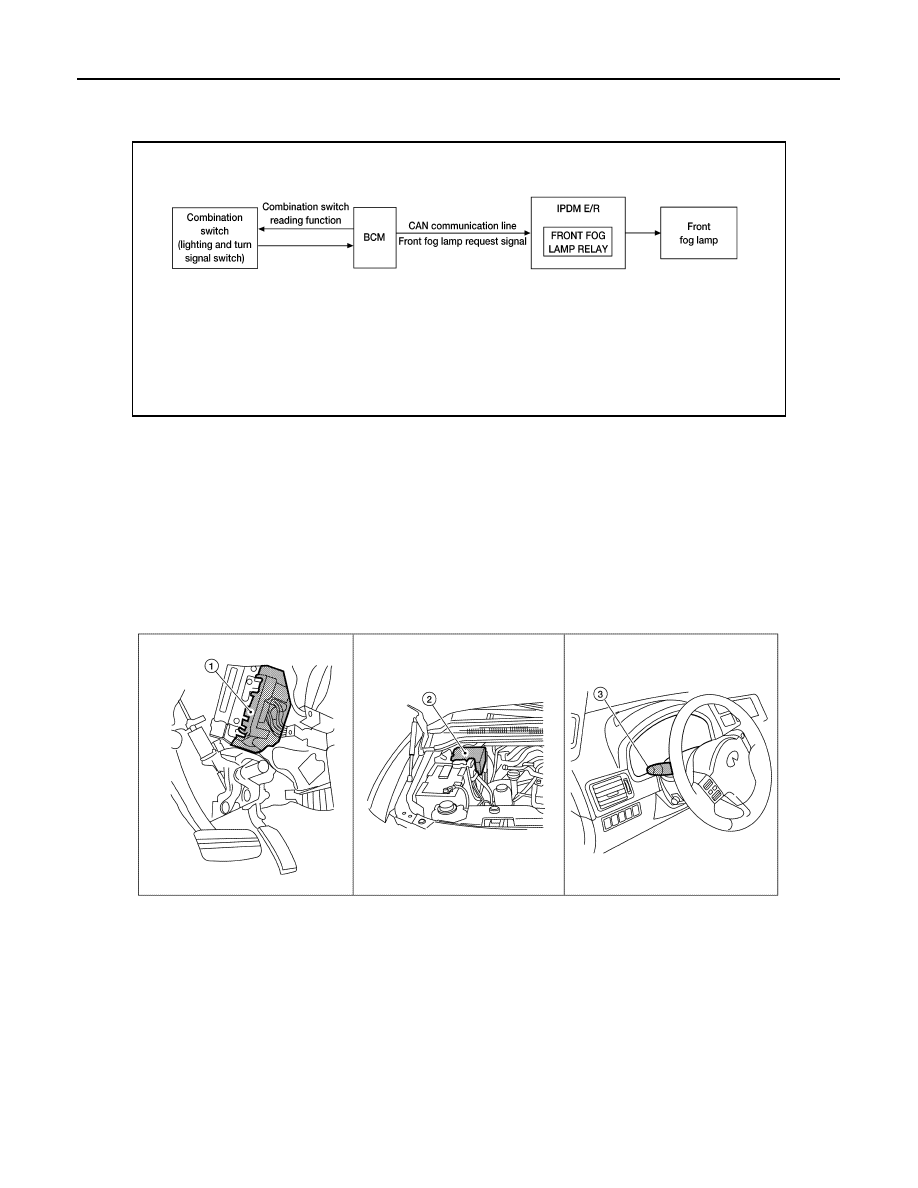

System Diagram

INFOID:0000000005369879

System Description

INFOID:0000000005369880

The front fog lamps are activated with the combination switch (lighting and turn signal switch). The combina-

tion switch (lighting and turn signal switch) signal to the BCM is monitored with the BCM combination switch

reading function. When the fog lamps are turned ON with the combination switch (lighting and turn signal

switch), the BCM sends a front fog lamp request signal via CAN communication lines to the IPDM E/R. The

IPDM E/R grounds the front fog lamp relay coil to activate the front fog lamps.

Component Parts Location

INFOID:0000000005146622

Component Description

INFOID:0000000005369881

FRONT FOG LAMP OPERATION

When the combination switch (lighting and turn signal switch) is in front fog lamp ON position and also in 1ST

or 2ND position or AUTO position (headlamp is ON), the BCM detects FR FOG ON and the HEAD LAMP1, 2

ON or the AUTO LIGHT ON. The BCM sends a front fog lamp request ON signal via the CAN communication

lines to the IPDM E/R. The IPDM E/R then turns ON the front fog lamp relay sending power to the front fog

lamps.

AWLIA1719GB

1.

BCM M18, M20 (view with instrument
panel removed)

2.

IPDM E/R E122, E123, E124

3.

Combination switch (lighting and turn
signal switch) M28

AWNIA0509ZZ

TURN SIGNAL AND HAZARD WARNING LAMPS

EXL-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMPS

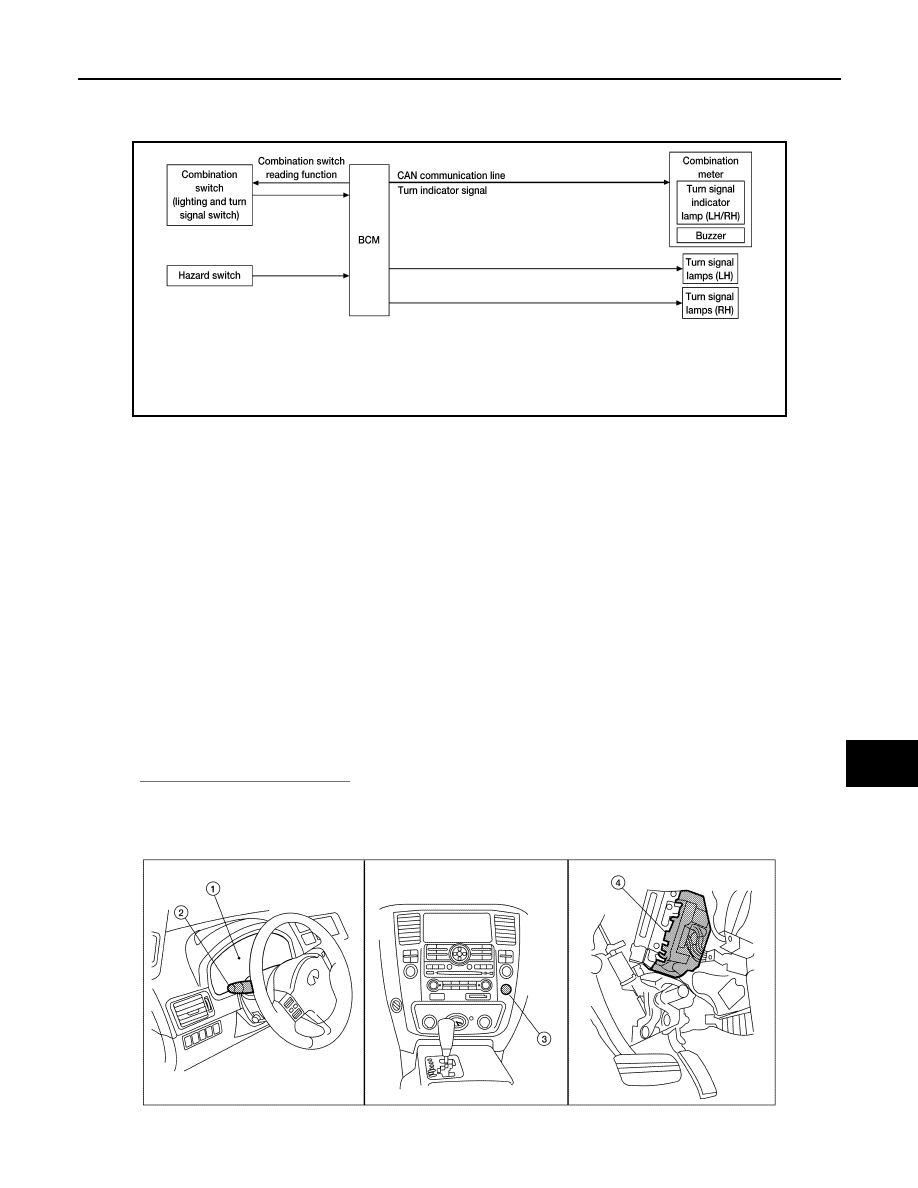

System Diagram

INFOID:0000000005146624

System Description

INFOID:0000000005146625

TURN SIGNAL OPERATION

When the combination switch (lighting and turn signal switch) is in LH or RH position with the ignition switch in

ON position, the BCM detects the TURN RH or TURN LH ON request. The BCM outputs the flasher signal to

the respective turn signal lamp. The BCM also sends a turn indicator signal ON request via the CAN commu-

nication lines to the combination meter. The combination meter then activates the appropriate turn signal indi-

cator and audible buzzer.

HAZARD LAMP OPERATION

When the hazard switch is in ON position, the BCM detects the hazard switch signal ON. The BCM outputs the

flasher signal (right and left). The BCM sends a hazard indicator signal ON request via the CAN communica-

tion lines to the combination meter. The combination meter then activates the hazard indicator and audible

buzzer.

REMOTE KEYLESS ENTRY OPERATION

The remote keyless entry receiver transmits a hazard request signal to the BCM, then BCM controls hazard

lamps.

Refer to

SEC-10, "System Description"

.

Component Parts Location

INFOID:0000000005146626

AWLIA1721GB

AWLIA1628ZZ

EXL-16

< FUNCTION DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMPS

Component Description

INFOID:0000000005146627

1.

Combination meter M23, M24

2.

Combination switch (lighting and turn
signal switch) M28

3.

Hazard switch M55

4.

BCM  M18, M20 (view with instrument
panel removed)

Part name

Description

BCM

Controls turn signal and hazard flasher operation.

Combination switch (lighting and turn signal switch)

Lighting and turn signal switch requests are output to the BCM.

Hazard switch

Hazard flasher request signal is output to the BCM.

Combination meter

Outputs turn and hazard indicator as requested by the BCM.
