Infiniti QX56 (JA60). Manual - part 463





EM-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

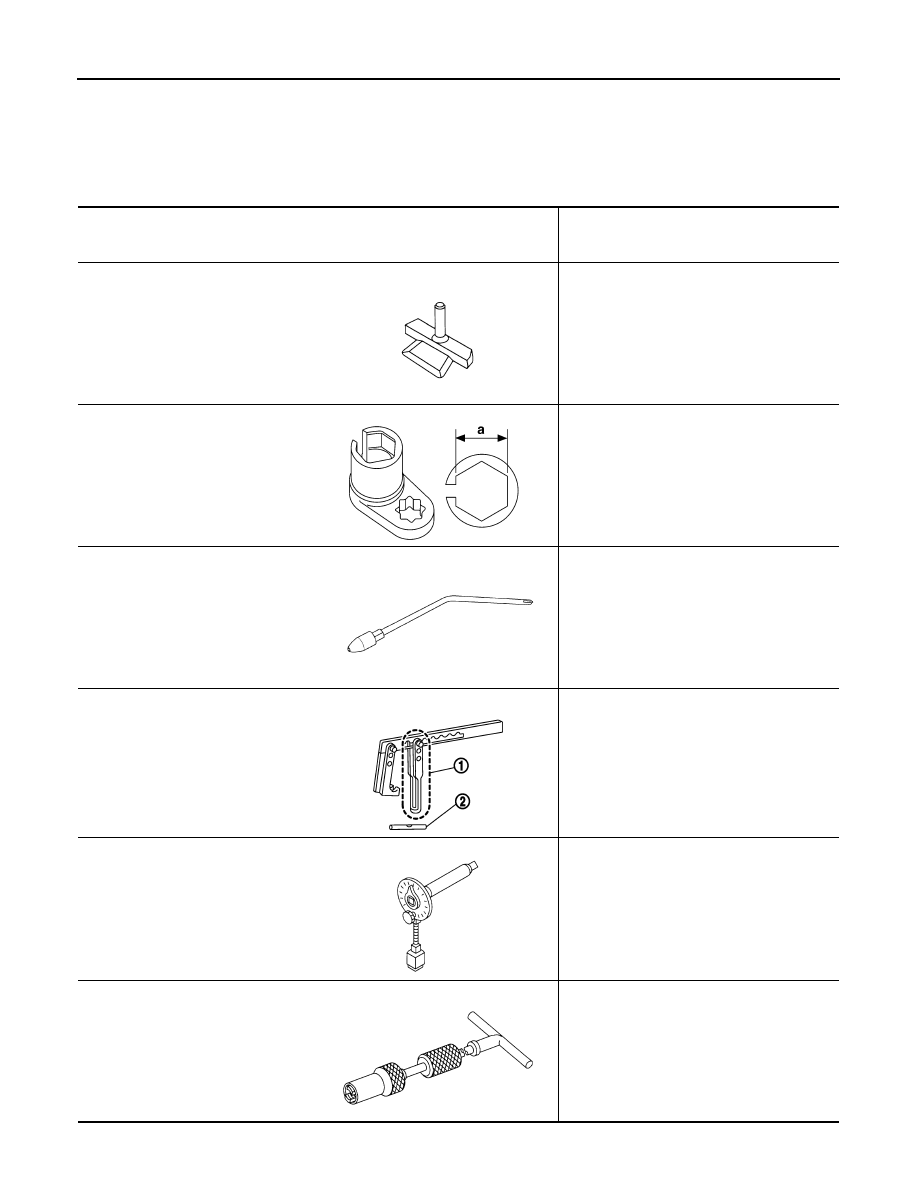

Special Service Tool

INFOID:0000000005148970

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

EG15050500
(J-45402)
Compression gauge adapter

Inspecting compression pressure

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
( — )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200       (J-
26336-A), but part (2) is not.

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for cylinder head, main bear-
ing cap and connecting rod cap

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

S-NT046

LBIA0444E

ZZA1225D

PBIC1650E

S-NT014

S-NT011

PREPARATION

EM-7

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

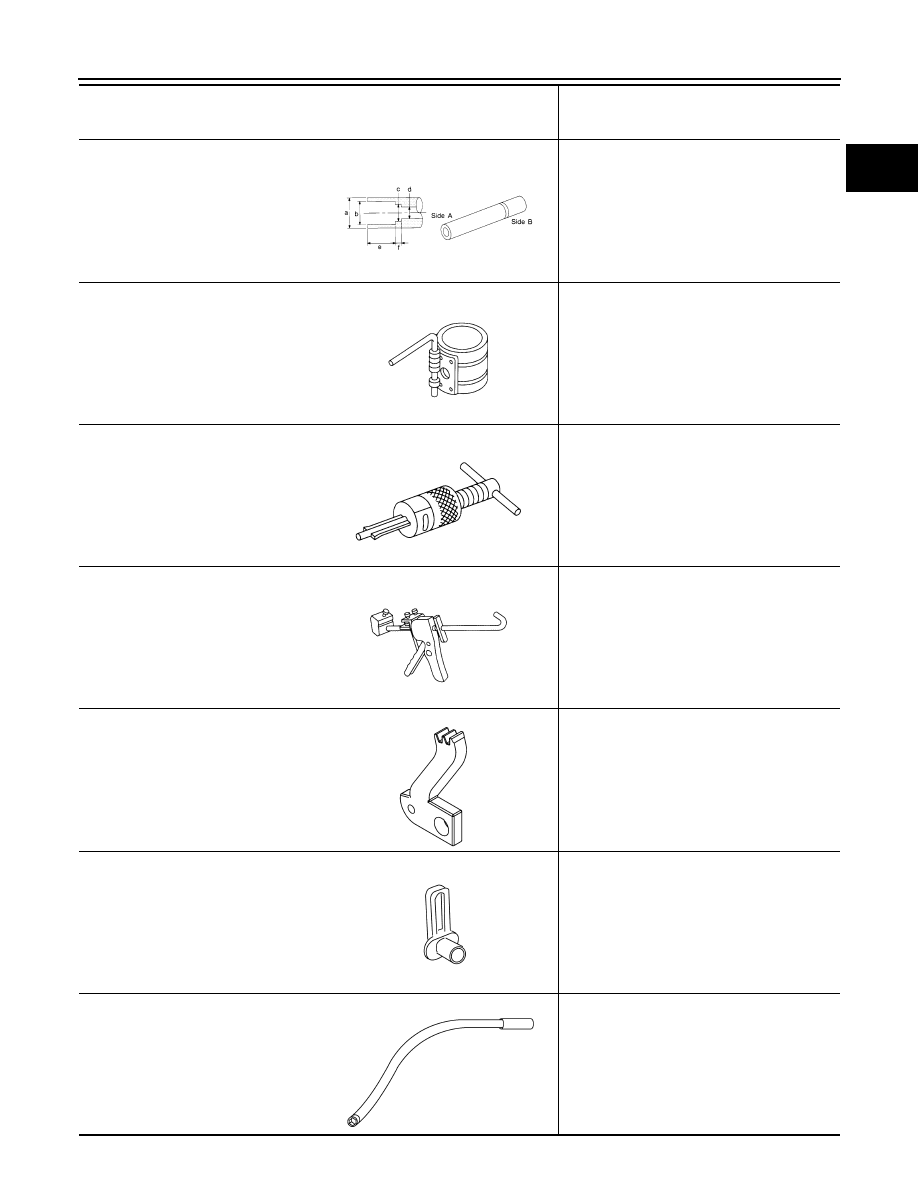

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia.         f: 5 (0.20) dia.
                                                   Unit: mm (in)

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

WS39930000
( — )
Tube presser

Pressing the tube of liquid gasket

(J-47245)
Ring gear stopper

Removing and installing crankshaft pulley

16441 6N210
(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

(J-46535)
Drive belt tension releaser

Releasing drive belt tension

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT603

S-NT044

S-NT045

S-NT052

LBIA0451E

PBIC0198E

WBIA0536E

EM-8

< PREPARATION >

PREPARATION

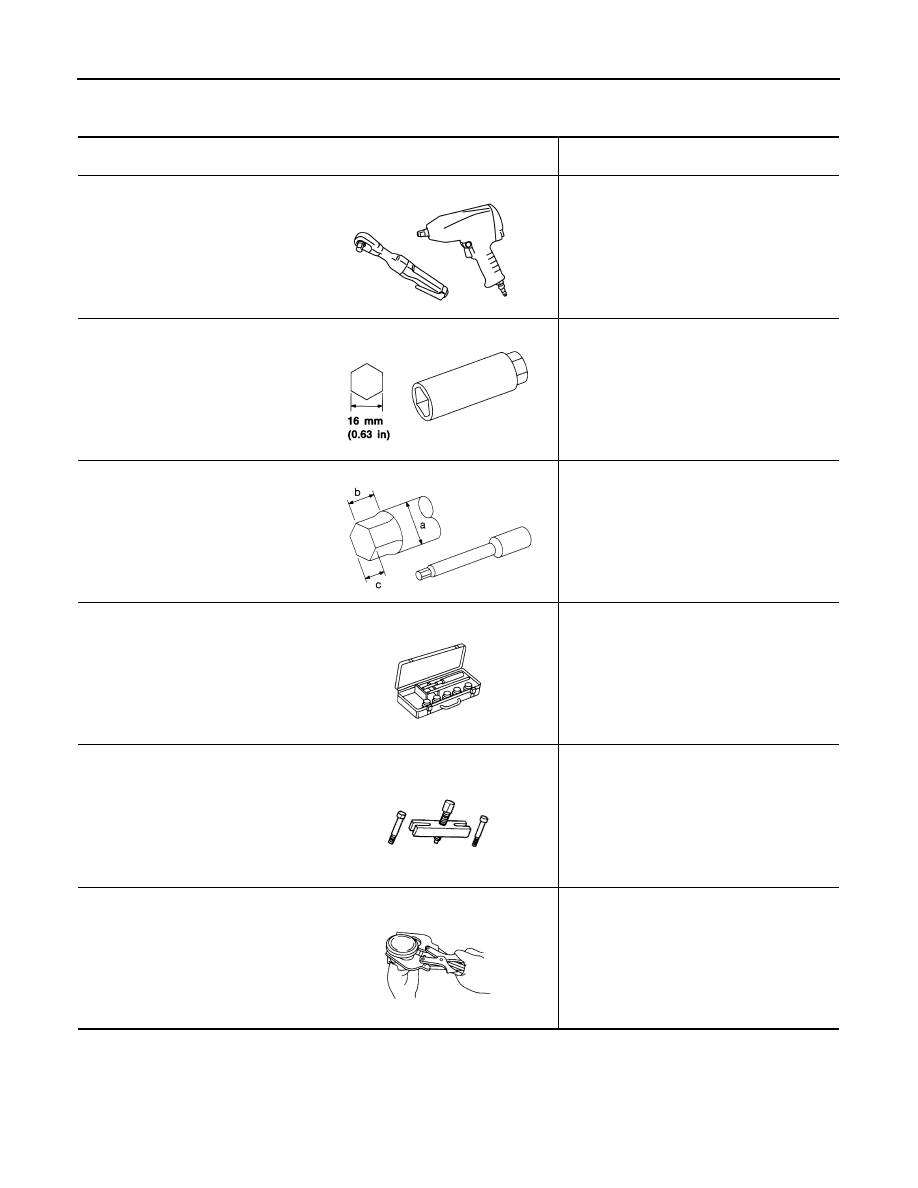

Commercial Service Tool

INFOID:0000000005148971

(Kent-Moore No.)
Tool name

Description

Power tool

Loosening bolts and nuts

Spark plug wrench

Removing and installing spark plug

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and use with angle wrench [SST: KV10112100
(BT-8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

Valve seat cutter set

Finishing valve seat dimensions

Pulley puller

Removing crankshaft pulley

Piston ring expander

Removing and installing piston ring

PBIC0190E

S-NT047

NT583

S-NT048

ZZA0010D

S-NT030

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

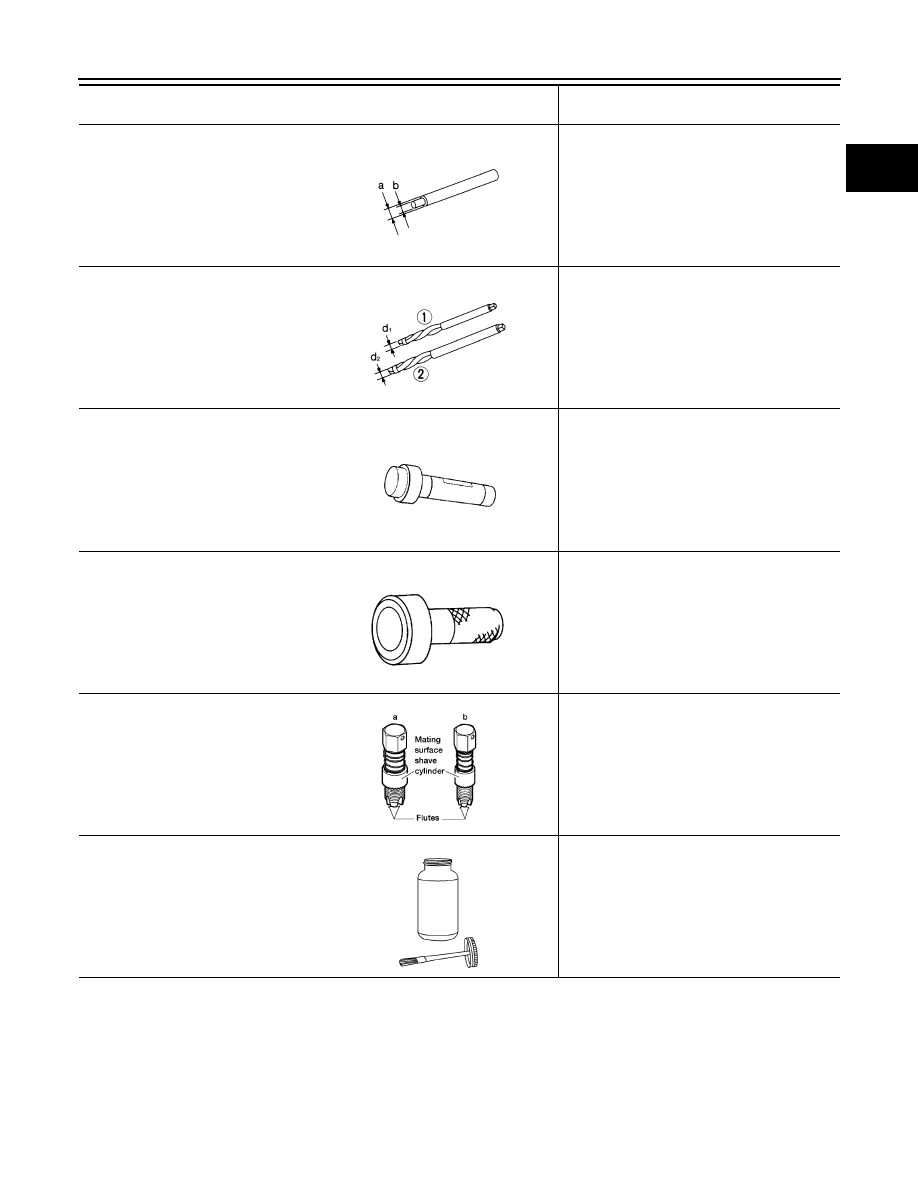

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

Valve guide reamer

1: Reaming valve guide hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.175 - 10.196 mm (0.4006 - 0.4014 in)

dia.

Front oil seal drift

Installing front oil seal

Rear oil seal drift

Installing rear oil seal

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new A/F sensor and heated
oxygen sensor (Use with anti-seize lubricant
shown below.)
a: J-43897-18 (18 mm dia.) (0.71 in) for zir-
conia heated oxygen sensor
b: J-43897-12 (12 mm dia.) (0.55 in) for tita-
nia heated oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating A/F sensors and heated oxygen
sensor thread cleaning tool when recondition-
ing exhaust system threads

(Kent-Moore No.)
Tool name

Description

S-NT015

S-NT016

ZZA0012D

ZZA0025D

AEM488

AEM489
