Infiniti QX56 (JA60). Manual - part 404





EC-268

< COMPONENT DIAGNOSIS >

[VK56DE]

P0456 EVAP CONTROL SYSTEM

NG

>> Replace fuel level sensor unit.

24.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "How to Check Terminal"

 and

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005149285

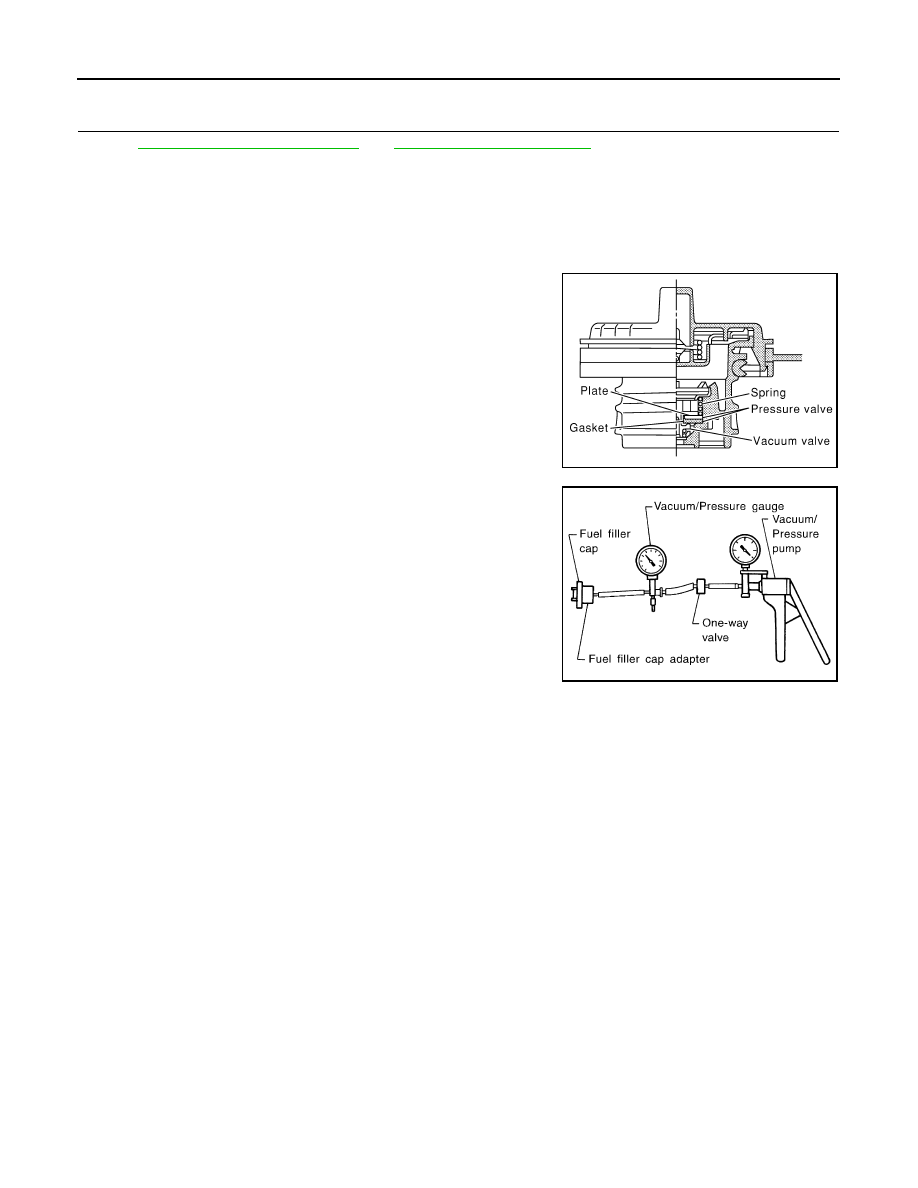

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)

1. Wipe clean valve housing.

2. Check valve opening pressure and vacuum.

3. If out of specification, replace fuel filler cap as an assembly.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incor-

rect fuel filler cap is used, the MIL may come on.

SEF445Y

Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

6.0 to 3.3 kPa (0.061 to 0.034 kg/cm

2

0.87 to 0.48 psi)

SEF943S

P0460 FUEL LEVEL SENSOR

EC-269

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0460 FUEL LEVEL SENSOR

Component Description

INFOID:0000000005149286

The fuel level sensor is mounted in the fuel level sensor unit. The

sensor detects a fuel level in the fuel tank and transmits a signal to

the combination meter. The combination meter sends the fuel level

sensor signal to the ECM through CAN communication line.

It consists of two parts, one is mechanical float and the other is vari-

able resistor. Fuel level sensor output voltage changes depending on

the movement of the fuel mechanical float.

On Board Diagnosis Logic

INFOID:0000000005149287

NOTE:

• If DTC P0460 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

• If DTC P0460 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-288

.

When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the

fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunc-

tion is detected.

DTC Confirmation Procedure

INFOID:0000000005149288

1. If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next step.

a. Turn ignition switch OFF and wait at least 10 seconds.
b. Turn ignition switch ON.
c. Turn ignition switch OFF and wait at least 10 seconds.
2. Start engine and wait maximum of 2 consecutive minutes.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to

EC-269, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005149289

1.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-5, "METER SYSTEM : System Description"

.

OK or NG

OK

>> GO TO 2.

NG

>> Go to

MWI-33, "Component Inspection"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "How to Check Terminal"

 and

GI-38, "Intermittent Incident"

.

BBIA0402E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0460
0460

Fuel level sensor circuit
noise

Even though the vehicle is parked, a signal be-
ing varied is sent from the fuel level sensor to
ECM.

• Harness or connectors

(The CAN communication line is open or
shorted)

• Harness or connectors

(The sensor circuit is open or shorted)

• Combination meter
• Fuel level sensor

EC-270

< COMPONENT DIAGNOSIS >

[VK56DE]

P0460 FUEL LEVEL SENSOR

>> INSPECTION END

P0461 FUEL LEVEL SENSOR

EC-271

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0461 FUEL LEVEL SENSOR

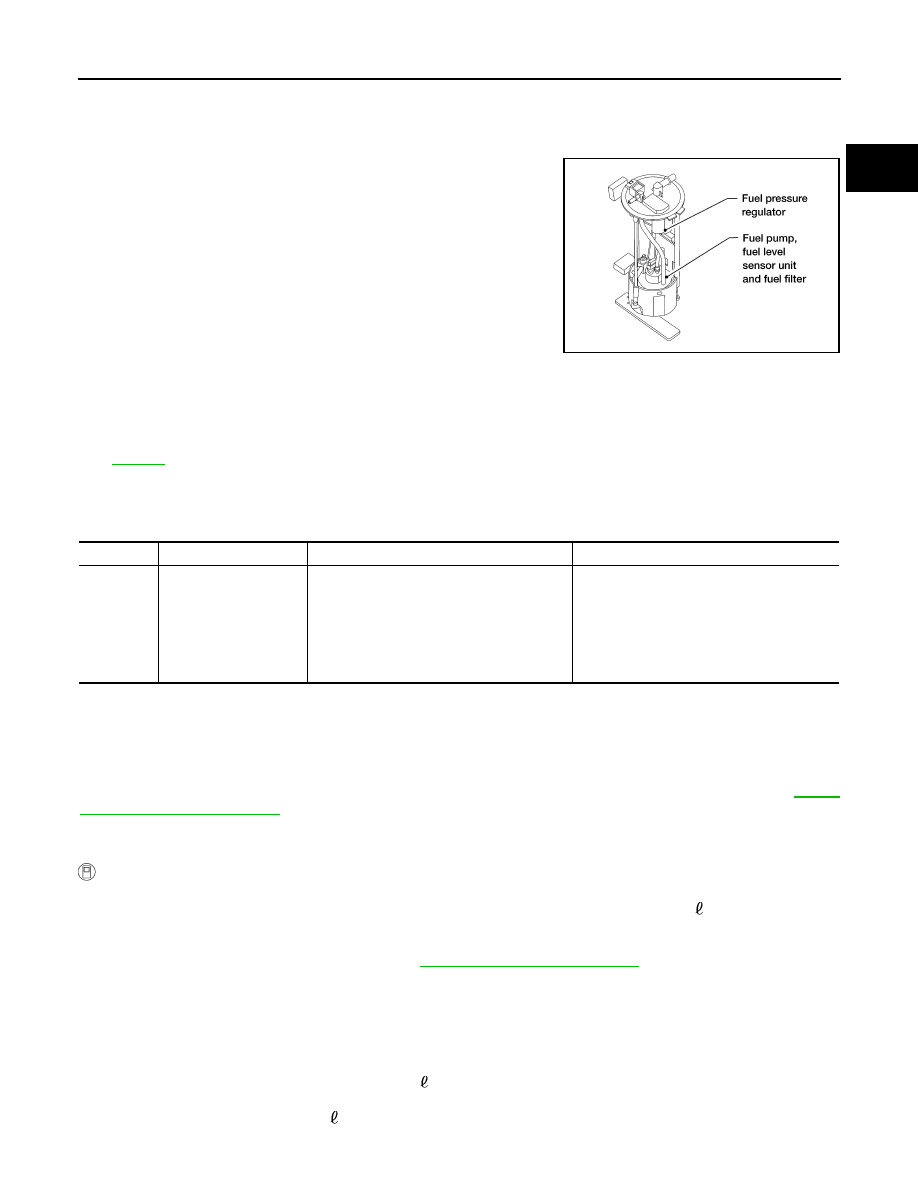

Component Description

INFOID:0000000005149290

The fuel level sensor is mounted in the fuel level sensor unit. The

sensor detects a fuel level in the fuel tank and transmits a signal to

the combination meter. The combination meter sends the fuel level

sensor signal to the ECM through CAN communication line.

It consists of two parts, one is mechanical float and the other is vari-

able resistor. Fuel level sensor output voltage changes depending on

the movement of the fuel mechanical float.

On Board Diagnosis Logic

INFOID:0000000005149291

NOTE:

• If DTC P0461 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

• If DTC P0461 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-288

.

Driving long distances naturally affect fuel gauge level.

This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has

been driven.

Overall Function Check

INFOID:0000000005149292

Use this procedure to check the overall function of the fuel level sensor function. During this check, a 1st trip

DTC might not be confirmed.

WARNING:

When performing following procedure, be sure to observe the handling of the fuel. Refer to

FL-11,

"Removal and Installation"

.

TESTING CONDITION:

Before starting overall function check, preparation of draining fuel and refilling fuel is required.

 WITH CONSULT-III

NOTE:
Start from step 10, if it is possible to confirm that the fuel cannot be drained by 30   (7-7/8 US gal, 6-5/

8 Imp gal) in advance.

1. Prepare a fuel container and a spare hose.

2. Release fuel pressure from fuel line, refer to

EC-489, "Fuel Pressure Check"

.

3. Remove the fuel feed hose on the fuel level sensor unit.

4. Connect a spare fuel hose where the fuel feed hose was removed.

5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.

6. Select “FUEL LEVEL SE” in “DATA MONITOR” mode with CONSULT-III.

7. Check “FUEL LEVEL SE” output voltage and note it.

8. Select “FUEL PUMP” in “ACTIVE TEST” mode with CONSULT-III.
9. Touch “ON” and drain fuel approximately 30   (7-7/8 US gal, 6-5/8 Imp gal) and stop it.

10. Check “FUEL LEVEL SE” output voltage and note it.
11. Fill fuel into the fuel tank for 30   (7-7/8 US gal, 6-5/8 Imp gal).

12. Check “FUEL LEVEL SE” output voltage and note it.

BBIA0402E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0461
0461

Fuel level sensor circuit
range/performance

The output signal of the fuel level sensor does
not change within the specified range even
though the vehicle has been driven a long dis-
tance.

• Harness or connectors

(The CAN communication line is open or
shorted)

• Harness or connectors

(The sensor circuit is open or shorted)

• Combination meter
• Fuel level sensor
