Infiniti QX56 (JA60). Manual - part 319





PROPELLER SHAFT

DLN-199

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

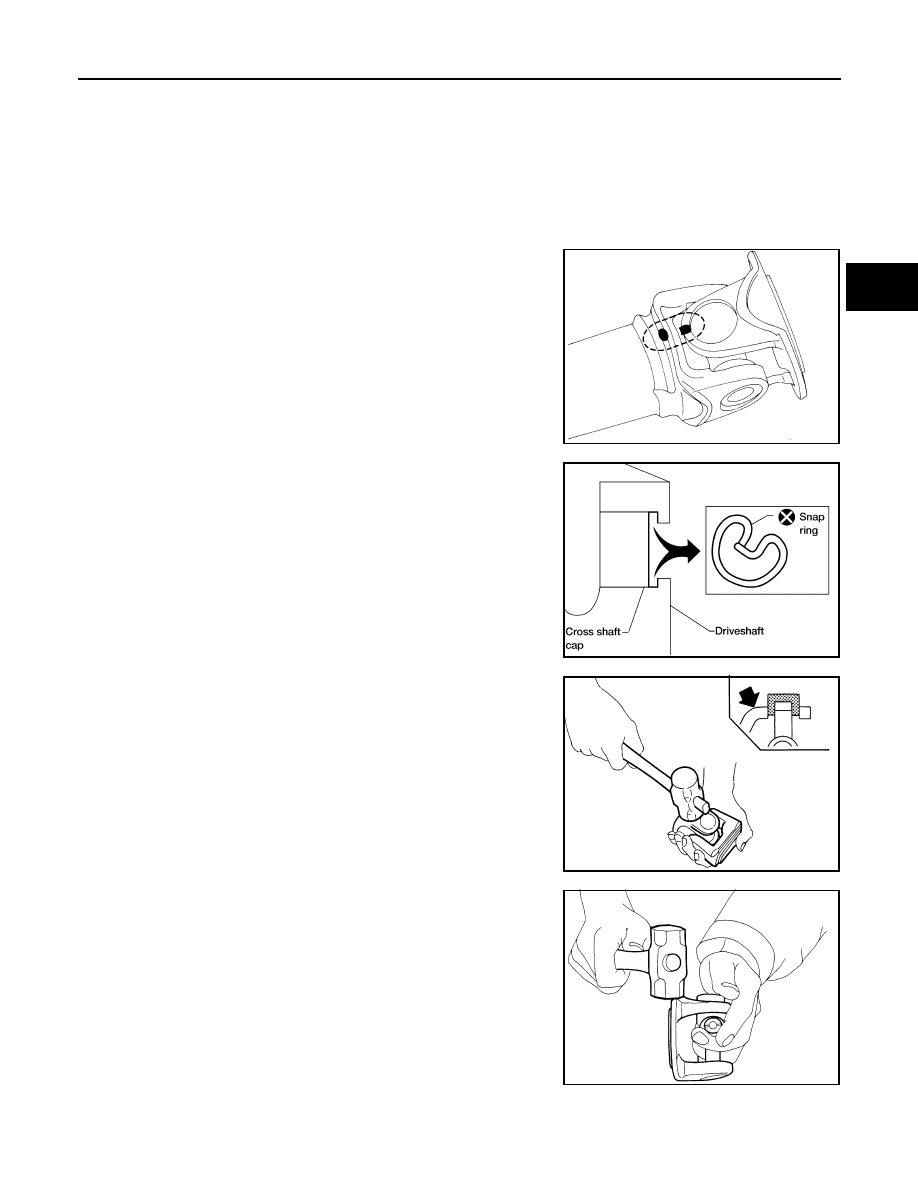

DISASSEMBLY AND ASSEMBLY

PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000005148909

DISASSEMBLY

Journal

1. Put matching marks on the rear propeller shaft and flange yoke

as shown.

CAUTION:

For matching marks use paint. Never damage the rear pro-

peller shaft or flange yoke.

2. Remove the snap rings.

3. Push out and remove the journal bearings by lightly tapping the

flange yoke with a hammer, taking care not to damage the jour-

nal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

4. Push out and remove the remaining journal bearings at the

opposite side by lightly tapping the flange yoke with a hammer,

taking care not to damage the journal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

ASSEMBLY

SPD128

APD011

SPD732

SPD131

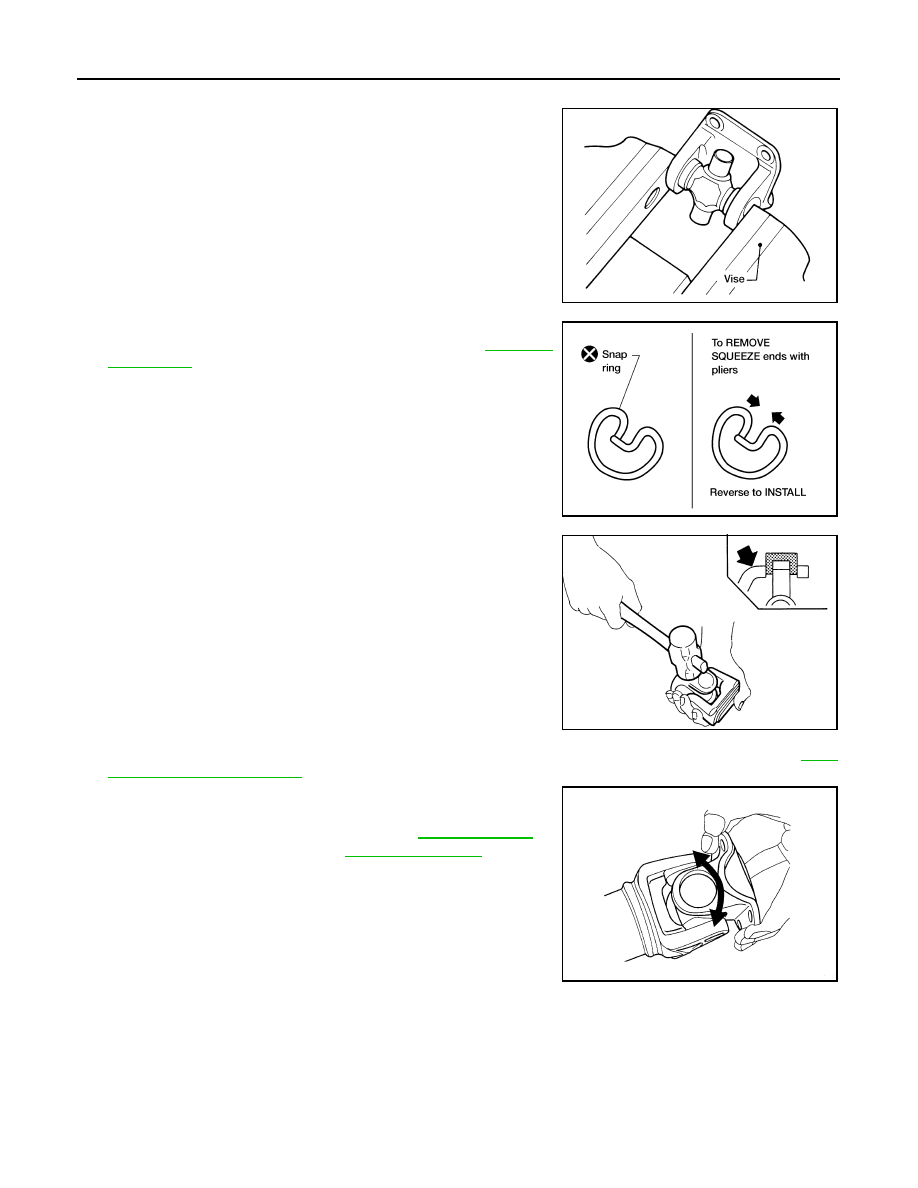

DLN-200

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2S1410]

PROPELLER SHAFT

Journal

1. Assemble the journal bearings. Apply multipurpose grease on

the bearing inner surface.

NOTE:

During assembly, use caution so that the needle bearings do not

fall down.

2. Select new snap rings that will provide the specified play in an

axial direction of the journal, and install them. Refer to

DLN-201,

"Snap Ring"

.

CAUTION:

Do not reuse snap rings

NOTE:

Select snap rings with a difference in thickness at both sides

within 0.02 mm (0.0008 in).

3. Adjust the thrust clearance between the bearing and snap ring

to zero by tapping the yoke.

4. Make sure that the journal moves smoothly and is below the joint flex effort specification. Refer to

DLN-

201, "General Specification"

.

WPD019

APD012

SPD732

Standard
Propeller shaft joint flex ef-
fort

: Refer to

DLN-201, "Gen-

eral Specification"

LDIA0119E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-201

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005148910

Propeller Shaft Runout

Unit: mm (in)

Propeller Shaft Joint Flex Effort

Unit: N·m (kg-m, in-lb)

Journal Axial Play

Unit: mm (in)

Snap Ring

INFOID:0000000005148911

Model (2WD)

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Model (4WD)

Unit: mm (in)

Applied model

2WD

4WD

VK56DE

A/T

Propeller shaft model

2S1410

Number of joints

2

Coupling method with rear final drive

Flange type

Coupling method with transfer

Sleeve type

Shaft length (Spider to spider)

1637.1 (44.35)

1156.8 (45.54)

Shaft outer diameter

127.60 (5.02)

102.46 (4.03)

Item

Limit

Propeller shaft runout

1.02 (0.0402) or less

Item

Limit

Propeller shaft joint flex effort

2.26 (0.23, 20) or less

Item

Limit

Journal axial play

0.02 (0.0008) or less

Thickness

Color

Part Number*

1.600 - 1.638 (0.0630 - 0.0645)

Black

37146-EA500

1.549 - 1.588 (0.0610 - 0.0625)

Black

37147-EA500

1.524 - 1.562 (0.0600 - 0.0615)

Black

37148-EA500

1.499 - 1.537 (0.0590 - 0.0605)

Black

37149-EA500

Thickness

Color

Part Number*

1.99 (0.0783)

White

37146-C9400

 2.02 (0.0795)

Yellow

37147-C9400

2.05 (0.0807)

Red

37148-C9400

2.08 (0.0819)

Green

37149-C9400

2.11 (0.0831)

Blue

37150-C9400

DLN-202

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1410]

SERVICE DATA AND SPECIFICATIONS (SDS)

*Always check with the Parts Department for the latest parts information.

2.14 (0.0843)

Light brown

37151-C9400

2.17 (0.0854)

Black

37152-C9400

2.20 (0.0866)

No paint

37153-C9400

Thickness

Color

Part Number*
