Infiniti QX56 (JA60). Manual - part 316

PROPELLER SHAFT

DLN-187

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2F1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

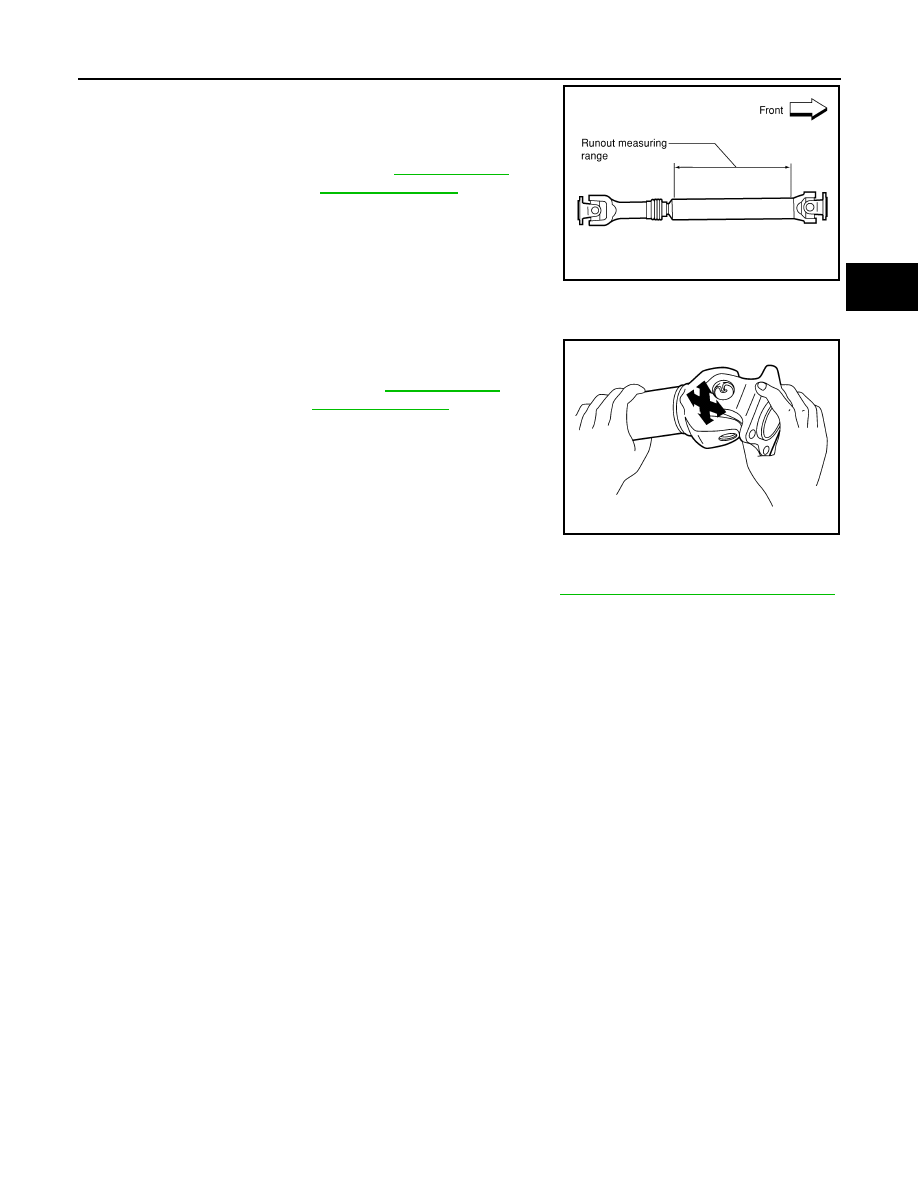

• Inspect the propeller shaft runout. If runout exceeds the limit,

replace the propeller shaft assembly.

• While holding the flange yoke on one side, check axial play of the joint as shown. If the journal axial play

exceeds the specification, repair or replace the journal parts.

• Check the propeller shaft tube surface for dents or cracks. If dam-

age is detected, replace the propeller shaft assembly.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, check for vibration by driving the vehicle. Refer to

DLN-184, "NVH Troubleshooting Chart"

.

CAUTION:

Do not reuse the bolts and nuts. Always install new ones.

Limit
Propeller shaft run out

: Refer to

DLN-190, "Gen-

eral Specification"

LDIA0118E

Standard
Journal axial play

: Refer to

DLN-190, "Gen-

eral Specification"

LDIA0117E

DLN-188

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2F1310]

PROPELLER SHAFT

DISASSEMBLY AND ASSEMBLY

PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000005148902

DISASSEMBLY

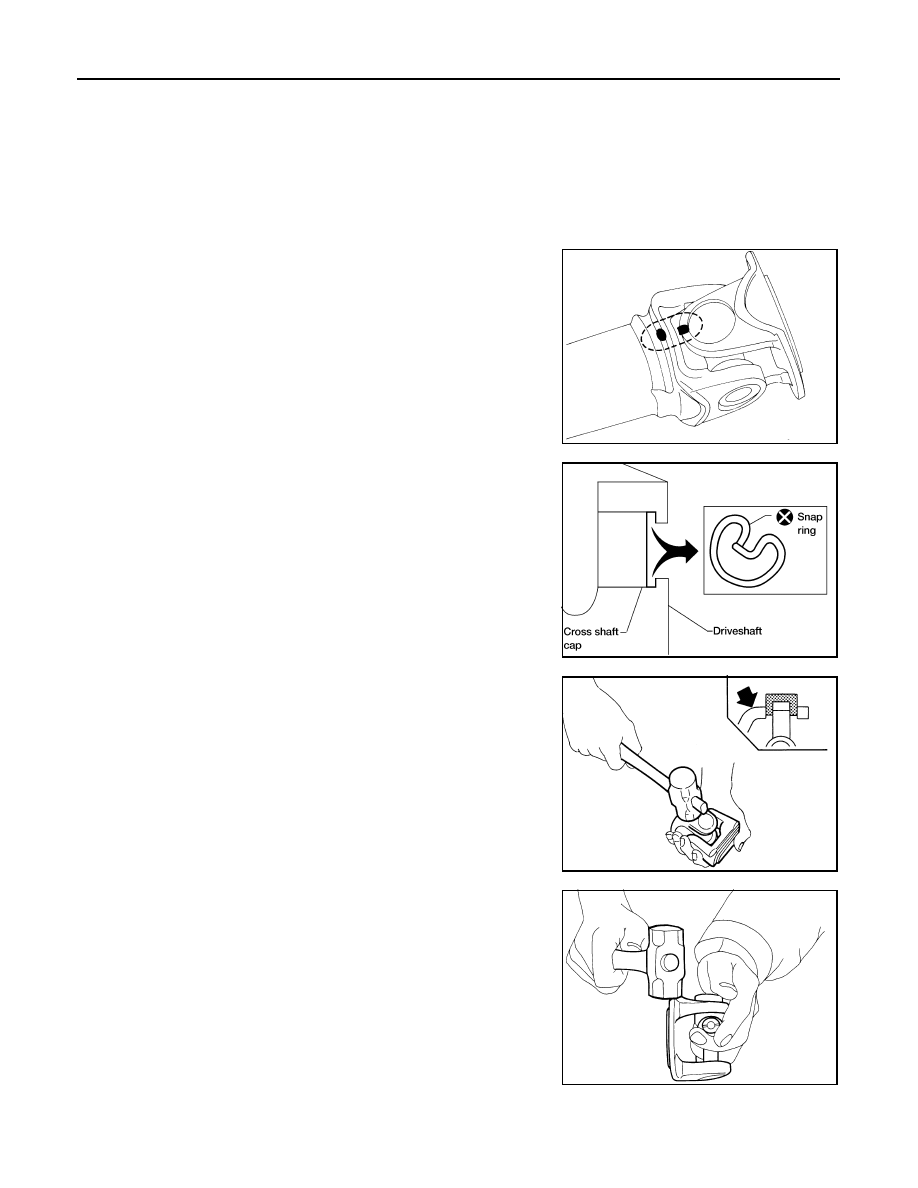

Journal

1. Put matching marks on the front propeller shaft and flange yoke

as shown.

CAUTION:

For matching marks, use paint. Never damage the front pro-

peller shaft or flange yoke.

2. Remove the snap rings.

3. Push out and remove the journal bearings by lightly tapping the

flange yoke with a hammer, taking care not to damage the jour-

nal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

4. Push out and remove the remaining journal bearings at the

opposite side by lightly tapping the flange yoke with a hammer,

taking care not to damage the journal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

ASSEMBLY

SPD128

APD011

SPD732

SPD131

PROPELLER SHAFT

DLN-189

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2F1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

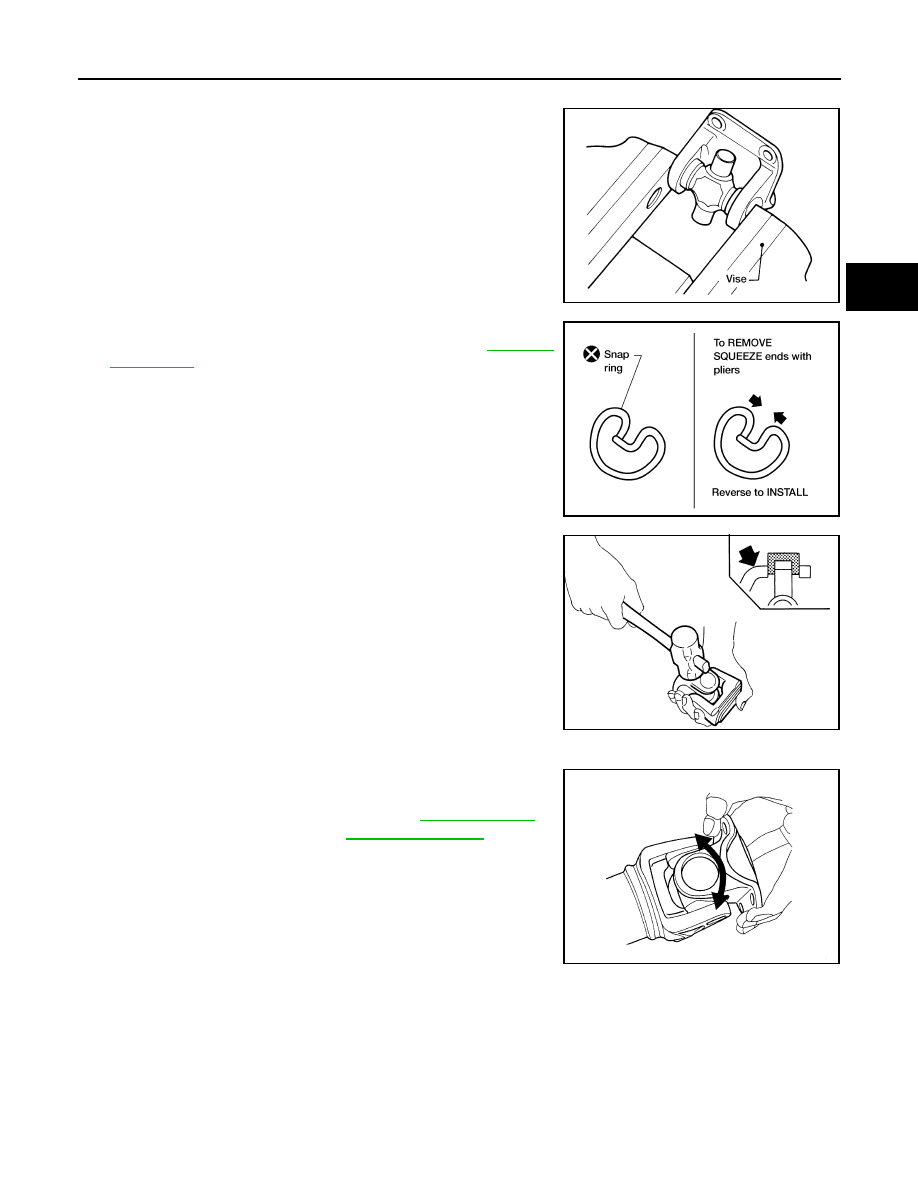

Journal

1. Assemble the journal bearings. Apply multipurpose grease on

the bearing inner surface.

NOTE:

During assembly, use caution so that the needle bearings do not

fall down.

2. Select new snap rings that will provide the specified play in an

axial direction of the journal, and install them. Refer to

DLN-190,

"Snap Ring"

.

CAUTION:

Do not reuse snap rings

NOTE:

Select snap rings with a difference in thickness at both sides

within 0.02 mm (0.0008 in).

3. Adjust the thrust clearance between the bearing and snap ring

to zero by tapping the yoke.

4. Make sure that the journal moves smoothly and is below the propeller shaft joint flex effort specification.

WPD019

APD012

SPD732

Standard
Propeller shaft  joint flex
effort

: Refer to

DLN-190, "Gen-

eral Specification"

LDIA0119E

DLN-190

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2F1310]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005148903

Unit: mm (in)

Propeller Shaft Runout

Unit: mm (in)

Propeller Shaft Joint Flex Effort

Unit: N·m (kg-m,  in-lb)

Journal Axial Play

Unit: mm (in)

Snap Ring

INFOID:0000000005148904

Model 2F1310 (4WD)

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Applied model

4WD

VK56DE

A/T

Propeller shaft model

2F1310

Number of joints

2

Coupling method with front final drive

Flange type

Coupling method with transfer

Flange type

Shaft length (Spider to spider)

696 (27.40)

Shaft outer diameter

63.5 (2.5)

Item

Limit

Propeller shaft runout

0.6  (0.024)

Item

Limit

Propeller shaft joint flex effort

1.96  (0.20, 17) or less

Item

Limit

Journal axial play

0.02 (0.0008)

Thickness

Color

Part Number*

1.99 (0.0783)

White

37146-C9400

 2.02 (0.0795)

Yellow

37147-C9400

2.05 (0.0807)

Red

37148-C9400

2.08 (0.0819)

Green

37149-C9400

2.11 (0.0831)

Blue

37150-C9400

2.14 (0.0843)

Light brown

37151-C9400

2.17 (0.0854)

Black

37152-C9400

2.20 (0.0866)

No paint

37153-C9400
