Infiniti QX56 (JA60). Manual - part 303





SIDE OIL SEAL

DLN-135

< ON-VEHICLE REPAIR >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

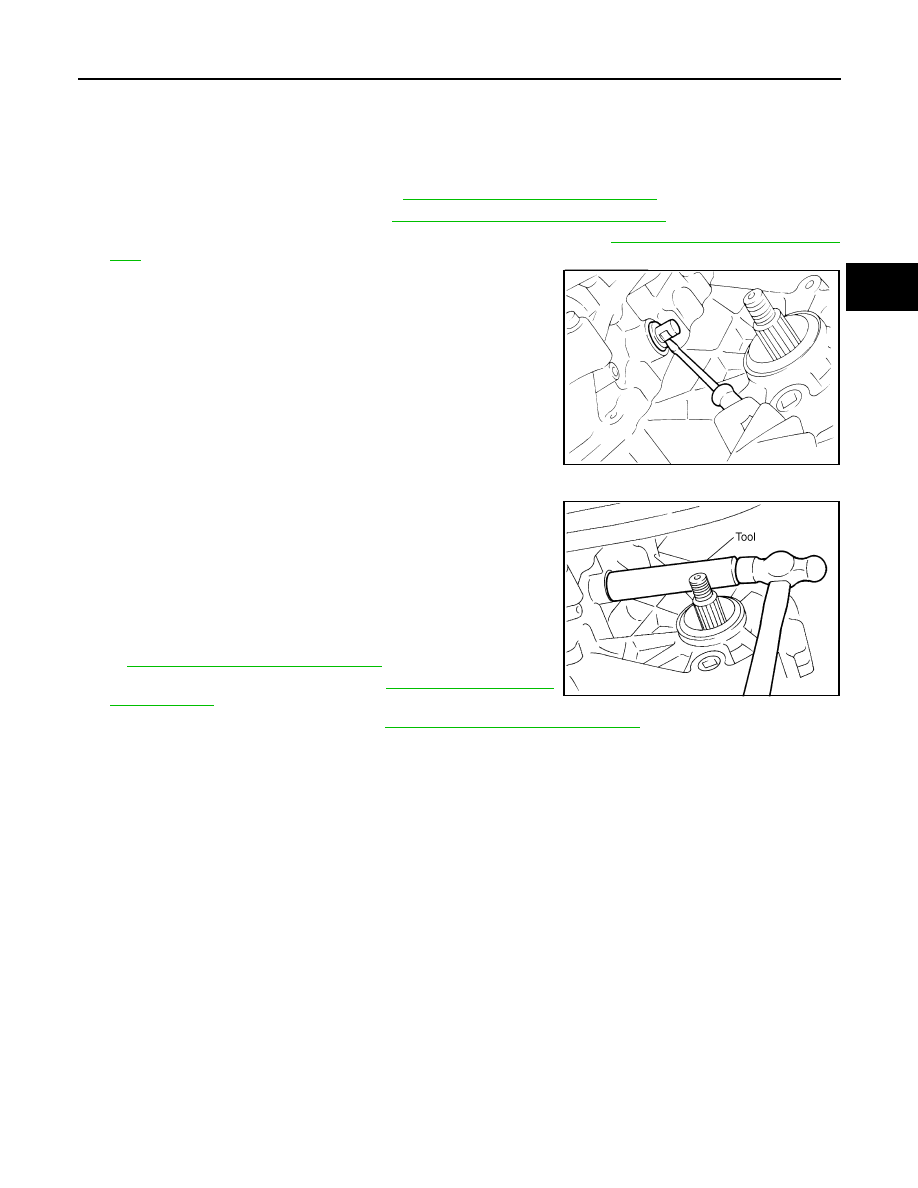

SIDE OIL SEAL

Removal and Installation

INFOID:0000000005148890

REMOVAL

1. Remove the front propeller shaft. Refer to

DLN-186, "Removal and Installation"

.

2. Remove the companion flange. Refer to

DLN-142, "Disassembly and Assembly"

.

3. Remove the transfer control device from the transfer assembly. Refer to

DLN-136, "Removal and Installa-

tion"

.

4. Remove the side oil seal using suitable tool.

CAUTION:

Do not damage shift cross.

INSTALLATION

1. Install the new side oil seal until it is flush with the end face of

case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the transfer control device to the transfer assembly. Refer

to

DLN-136, "Removal and Installation"

.

3. Install the companion flange. Refer to

DLN-142, "Disassembly

and Assembly"

.

4. Install the front propeller shaft. Refer to

DLN-186, "Removal and Installation"

.

SDIA2666E

Tool number

: ST22360002 (J-25679-01)

SDIA2665E

DLN-136

< ON-VEHICLE REPAIR >

[ATX14B]

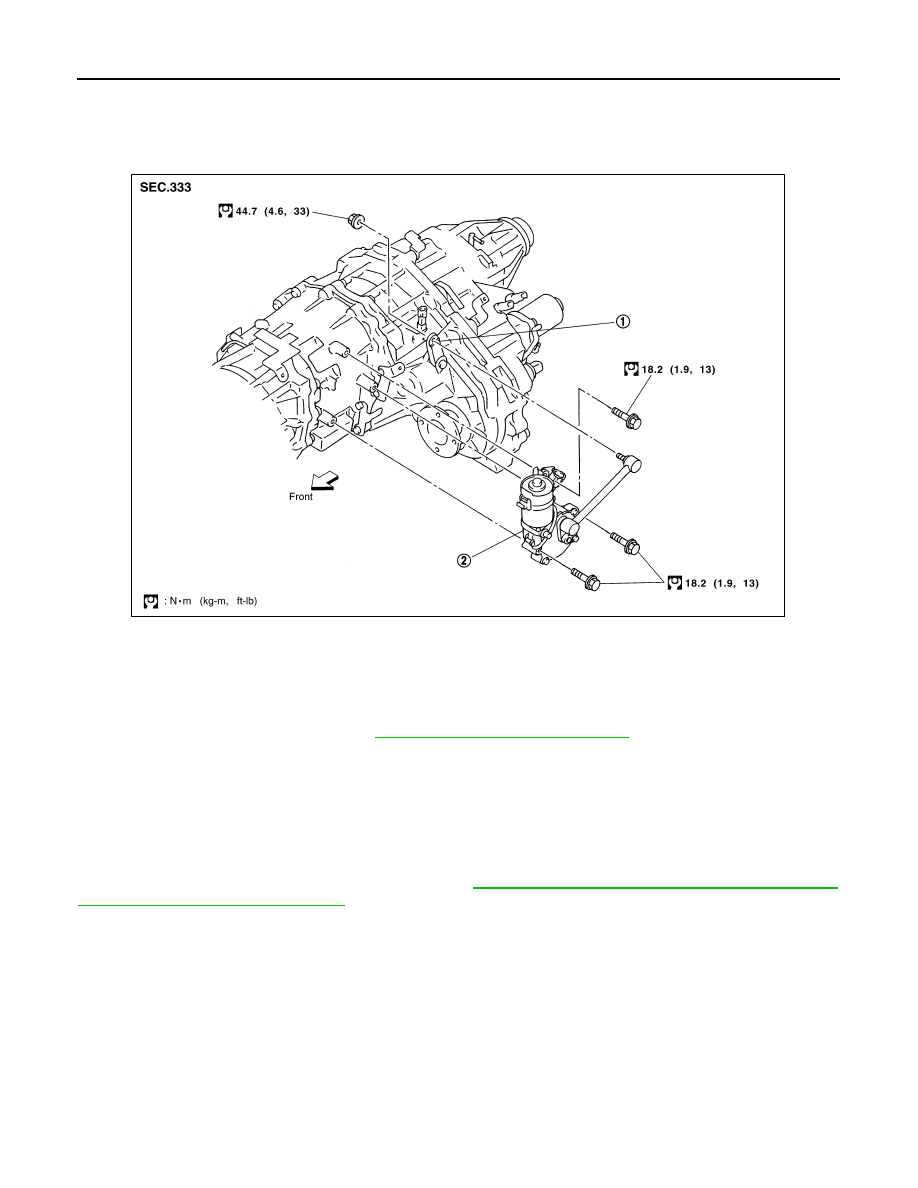

TRANSFER CONTROL DEVICE

TRANSFER CONTROL DEVICE

Removal and Installation

INFOID:0000000005380646

REMOVAL

CAUTION:

Change vehicle state to AUTO, and then remove and install transfer control device.
1. Remove front propeller shaft. Refer to

DLN-186, "Removal and Installation"

.

2. Disconnect the transfer control device connector.
3. Remove transfer control lever.
4. Disconnect vacuum line.
5. Remove transfer control device.

INSTALLATION

CAUTION:

Check 4WD shift indicator after installation. Refer to

DLN-121, "Precaution for Transfer Assembly and

Transfer Control Unit Replacement"

.

Installation is in the reverse order of removal.

1.

Shift lever

2.

Actuator

SDIA2654E

AIR BREATHER HOSE

DLN-137

< ON-VEHICLE REPAIR >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

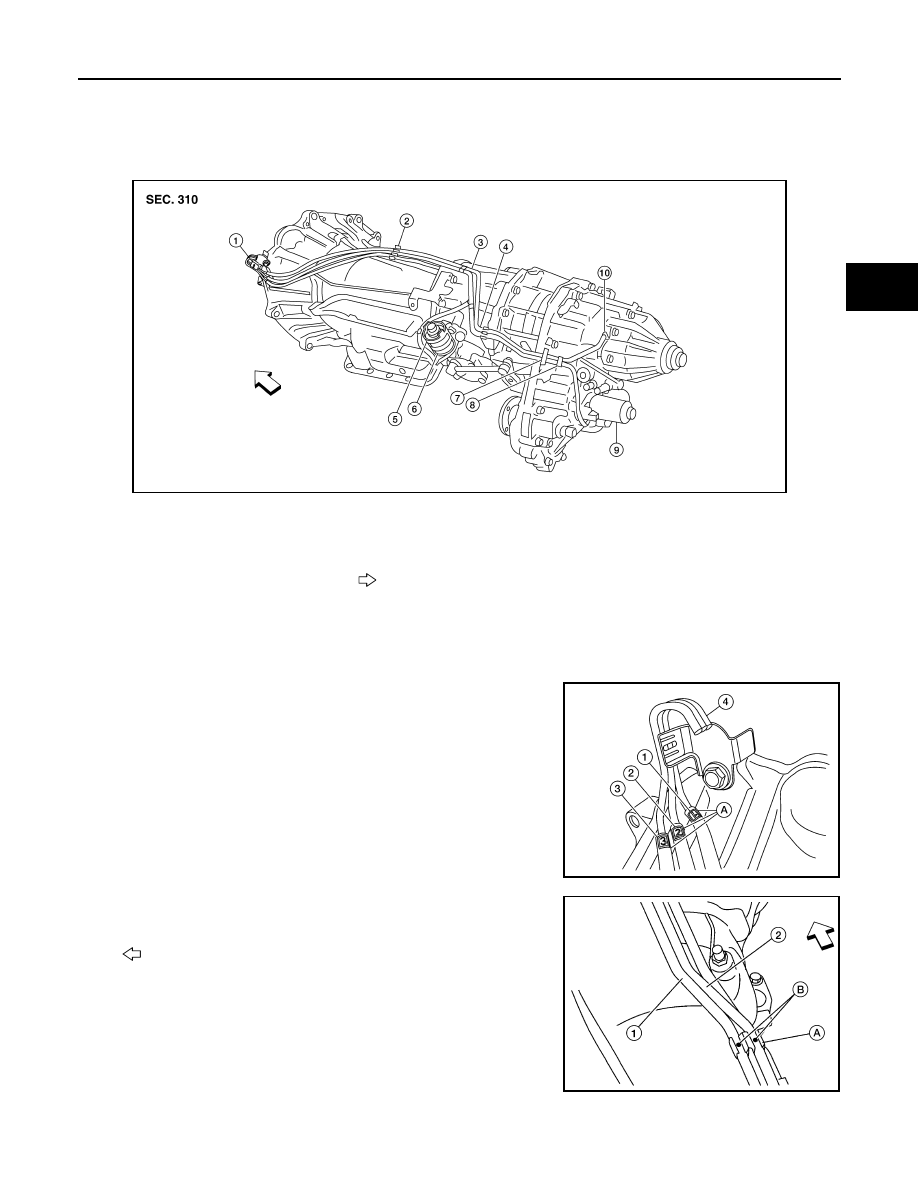

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000005148892

REMOVAL

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.
1. Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

• A/T breather hose (1)

• Transfer breather hose (2)

• Actuator/transfer motor breather hose (3)

• Paint marks (A)

2. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (A) with the paint mark (B) facing

upward.

 :Front

AWDIA0010ZZ

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

ALDIA0110ZZ

ALDIA0111ZZ

DLN-138

< ON-VEHICLE REPAIR >

[ATX14B]

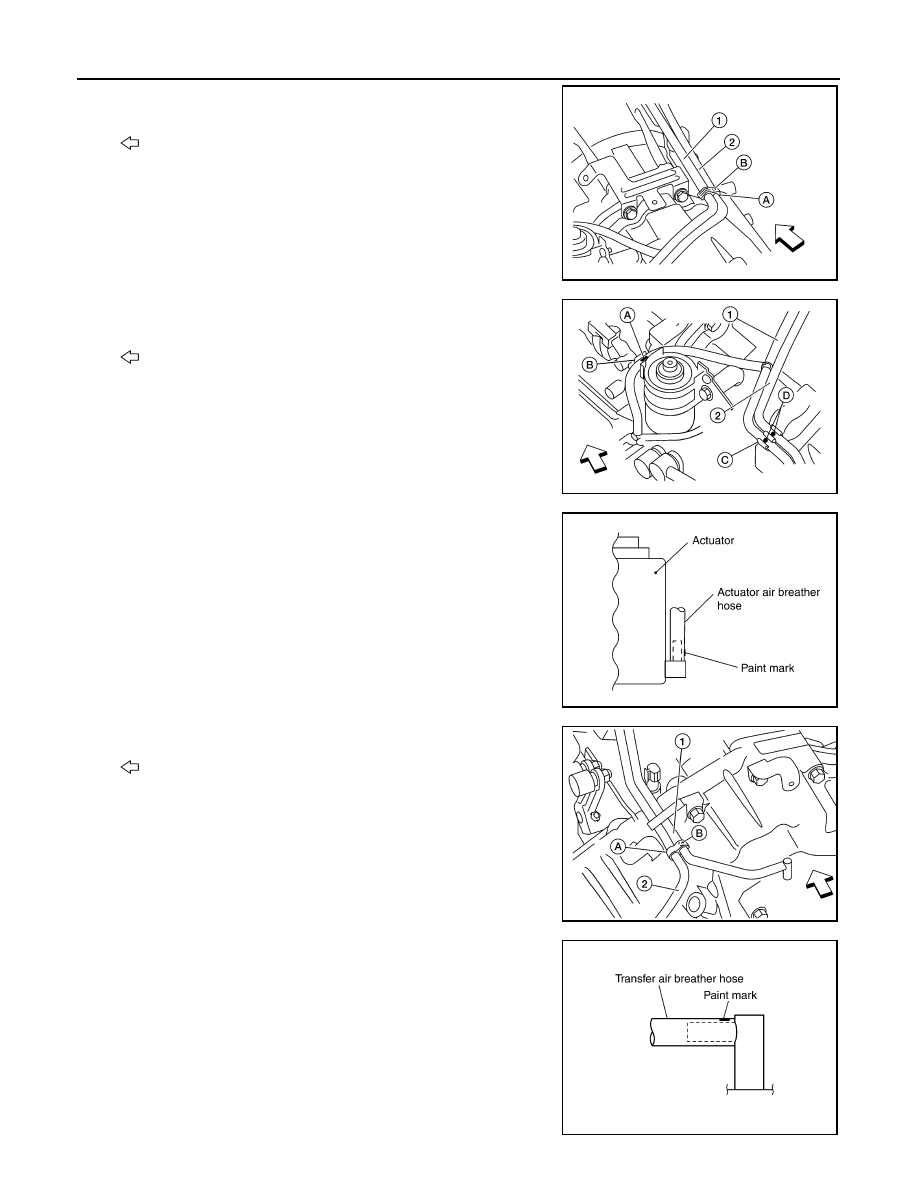

AIR BREATHER HOSE

3. Install clip (B) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (A)

matched.

 :Front

4. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (B) and clip (C) with the paint mark

(A) and (D) facing upward.

 :Front

5. Install the actuator air breather hose into the actuator (case con-

nector) until the hose end reaches the base of the tube. Set

actuator air breather hose with paint mark facing leftward.

6. Install clip (B) on transfer motor air breather hose (2) and trans-

fer air breather hose (1) with the paint mark (A) matched.

 :Front

7. Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark facing

upwards.

AWDIA0011ZZ

AWDIA0012ZZ

SDIA3226E

AWDIA0013ZZ

SDIA3196E
