PREPARATION

DLN-123

< PREPARATION >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

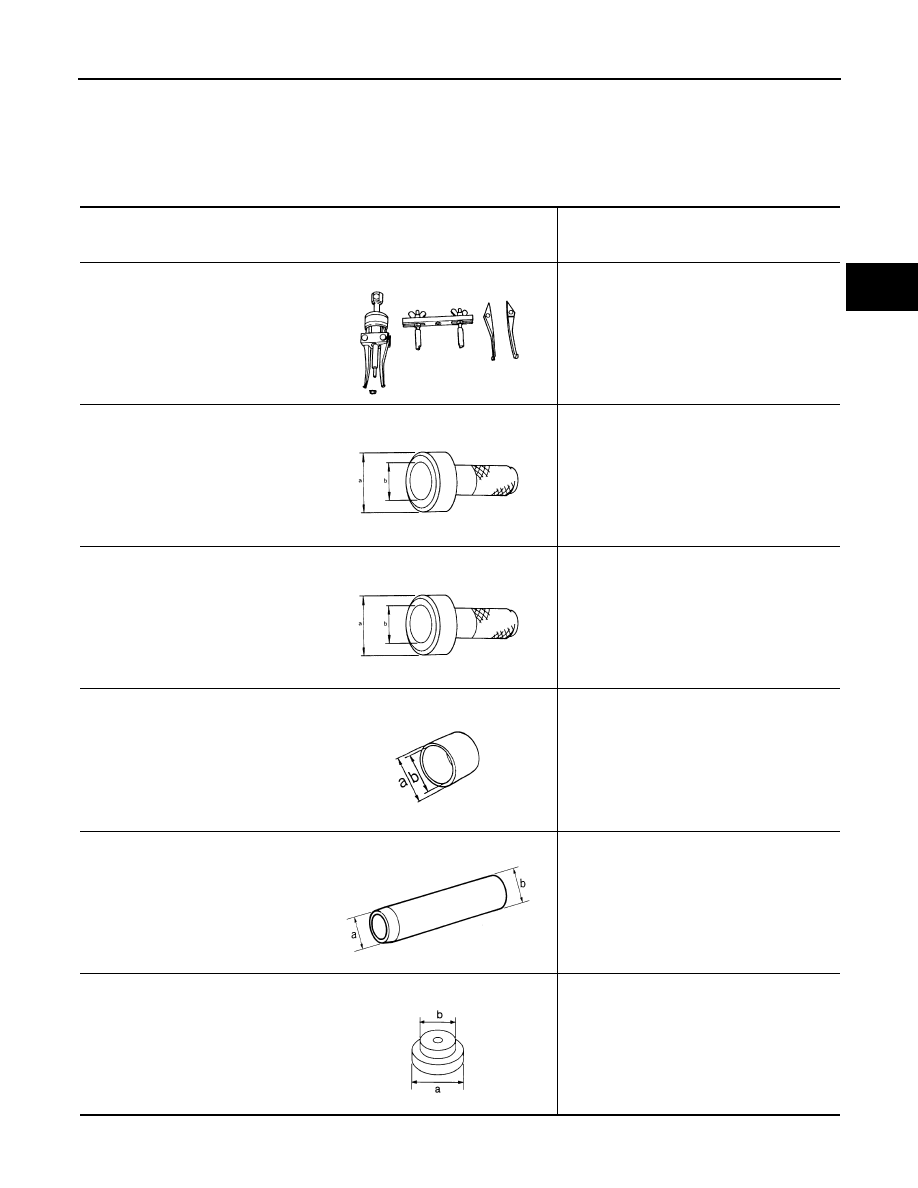

Special Service Tool

INFOID:0000000005148882

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)

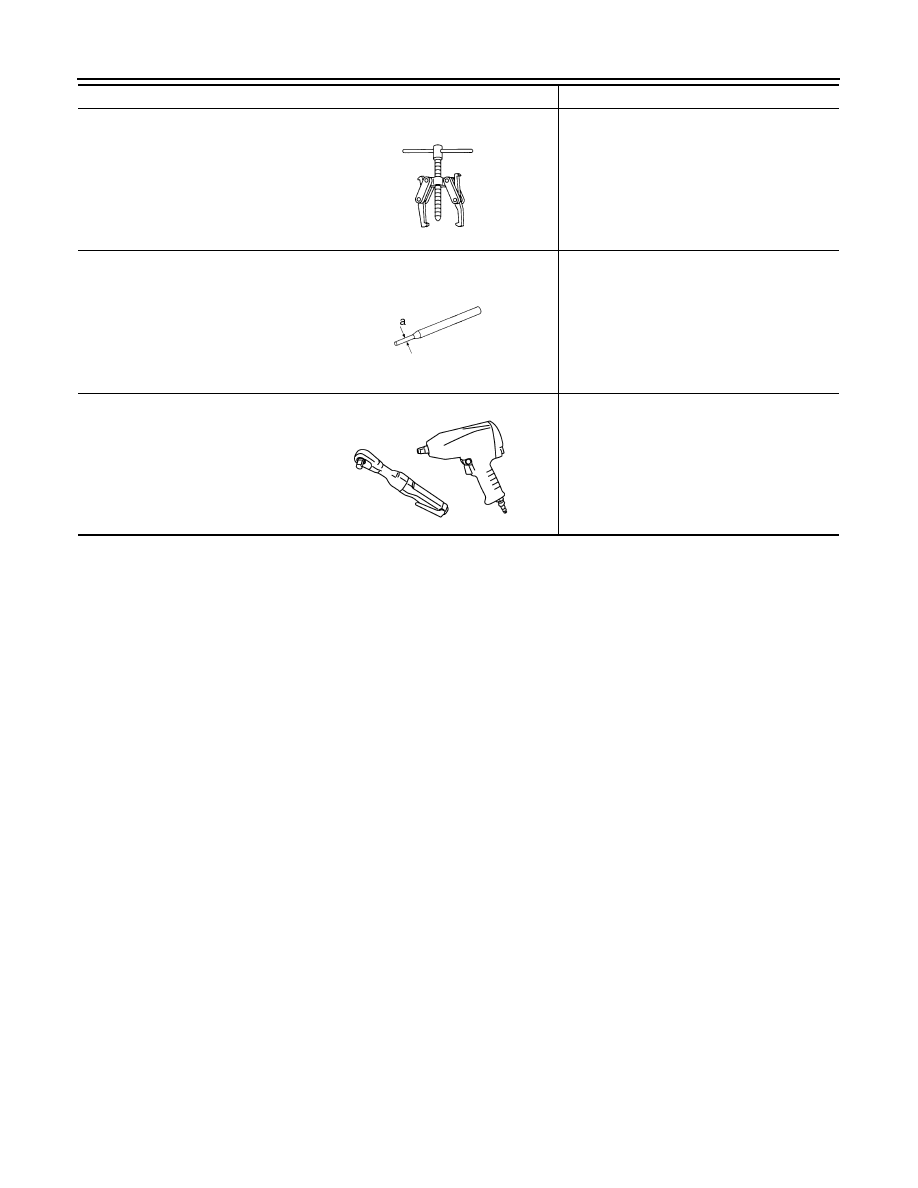

Tool name

Description

KV381054S0
(J-34286)
Puller

• Removing front oil seal
• Removing rear oil seal
• Removing metal bushing

KV38100500
( — )
Drift

• Installing front oil seal
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

ST30720000
(J-25405)
Drift

• Installing rear oil seal
• Installing mainshaft front bearing and oil

seal

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

KV40105310
( — )
Drift

• Installing dust cover
a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

ST22360002
(J-25679-01)
Drift

• Installing side oil seal
a: 23 mm (0.91 in) dia.
b: 32 mm (1.26 in) dia.

ST35300000
( — )
Drift

• Removing sun gear assembly and planetary

carrier assembly

• Removing carrier bearing
• Installing metal bushing
a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

ZZA0601D

ZZA0811D

ZZA0811D

ZZA1003D

ZZA1091D

NT073

DLN-124

< PREPARATION >

[ATX14B]

PREPARATION

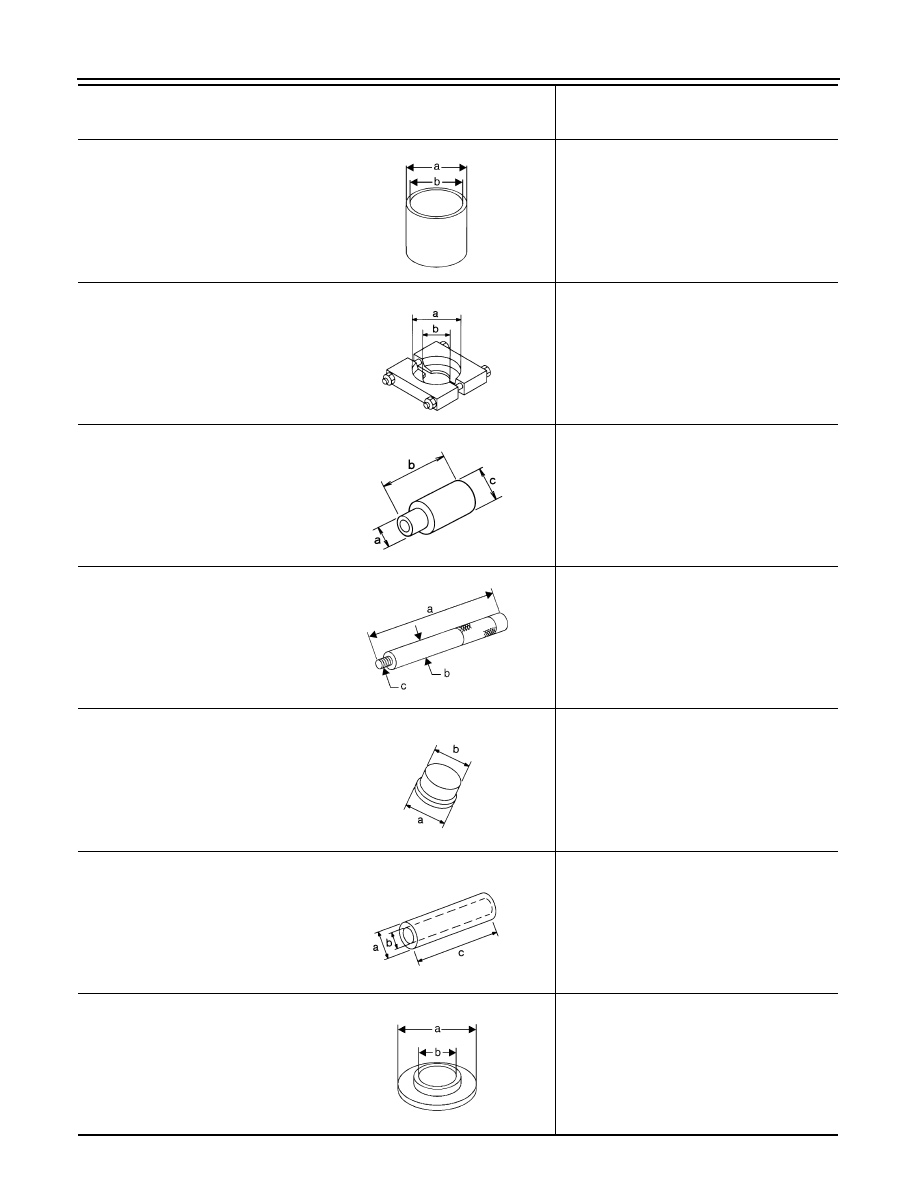

ST33200000
(J-26082)
Drift

• Removing mainshaft front bearing
• Installing sun gear assembly and planetary

carrier assembly

• Installing mainshaft front bearing and oil

seal

a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST30031000
( — )
Puller

• Removing carrier bearing
• Removing front drive shaft front bearing
• Removing front drive shaft rear bearing
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.

ST33710000
( — )
Drift

• Removing needle bearing
• Removing metal bushing
a: 24 mm (0.94 in) dia.
b: 89 mm (3.5 in)
c: 30 mm (1.18 in) dia.

ST35325000
( — )
Drift bar

• Removing metal bushing
a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

× 1.5P

ST33052000
( — )
Adapter

• Removing front drive shaft front bearing
• Removing front drive shaft rear bearing
• Installing mainshaft
a: 28 mm (1.10 in) dia.
b: 22 mm (0.87 in) dia.

ST22452000
(J-34335)
Drift

• Removing press flange snap ring
• Installing press flange snap ring
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
c: 400 mm (15.76 in) dia.

ST30911000
( — )
Puller

• Removing press flange snap ring
• Installing press flange snap ring
• Installing mainshaft
• Installing carrier bearing
a: 98 mm (3.86 in) dia.
b: 40.5 mm (1.594 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT661

NT411

ZZA1057D

NT663

NT431

NT117

NT664

PREPARATION

DLN-125

< PREPARATION >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

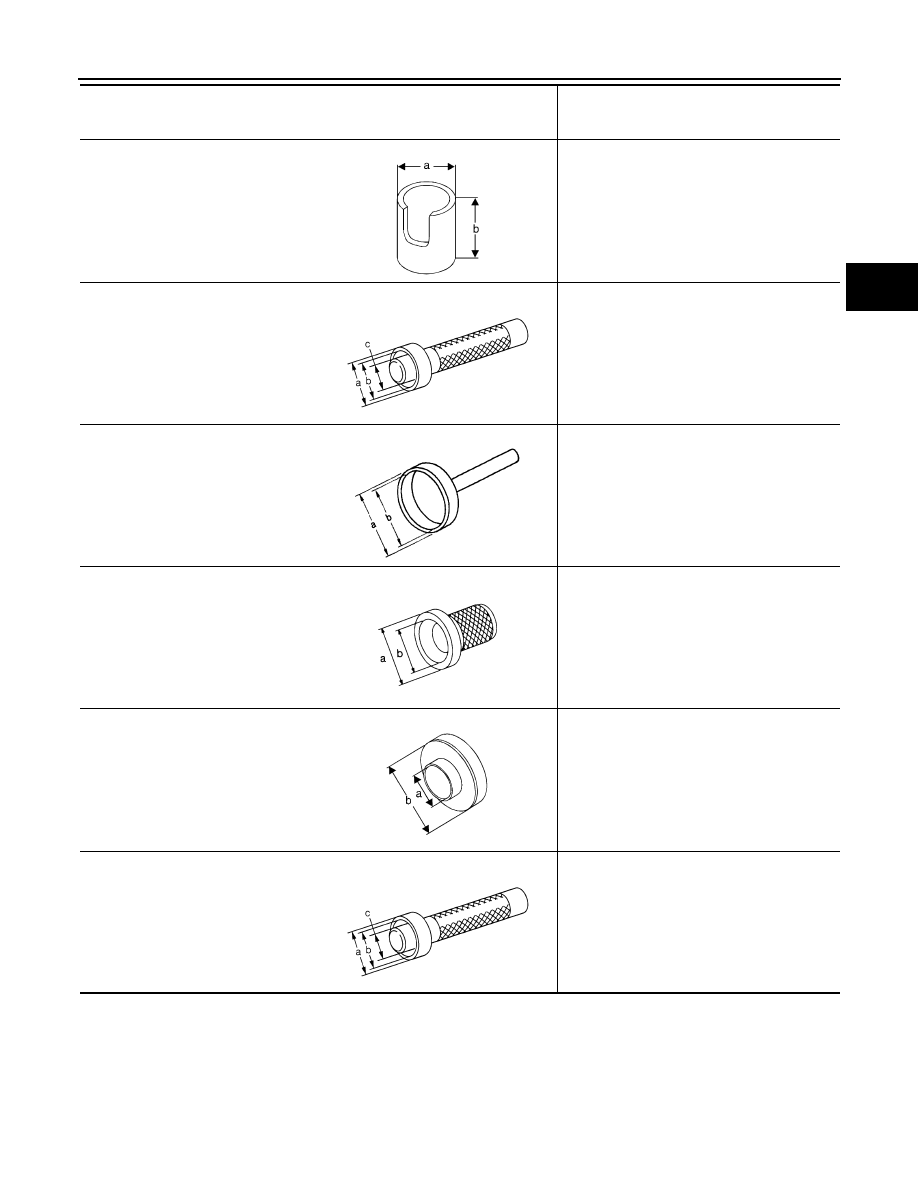

Commercial Service Tool

INFOID:0000000005148883

KV31103300
( — )
Drift

• Removing press flange snap ring
• Installing press flange snap ring
• Installing carrier bearing
a: 76.3 mm (3.004 in) dia.
b: 130 mm (5.12 in)

KV38100300
(J-25523)
Drift

• Removing mainshaft rear bearing
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

ST15310000
(J-25640-B)
Drift

• Installing mainshaft rear bearing
a: 96 mm (3.78 in) dia.
b: 84 mm (3.31 in) dia.

KV40100621
(J-25273)
Drift

• Installing front drive shaft front bearing
• Installing front drive shaft rear bearing
a: 76 mm (2.99 in) dia.
b: 69 mm (2.72 in) dia.

ST30032000
(J-26010-01)
Base

• Installing front drive shaft front bearing
• Installing front drive shaft rear bearing
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.

ST33220000
( — )
Drift

• Installing needle bearing
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT668

ZZA1046D

ZZA0908D

NT086

NT660

ZZA1046D

DLN-126

< PREPARATION >

[ATX14B]

PREPARATION

Tool name

Description

Puller

• Removing companion flange

Pin punch

• Removing retainer pin
• Installing retainer pin
a: 6 mm (0.24 in) dia.

Power tool

• Removing transfer case assembly

NT077

NT410

PBIC0190E
