CCS-72

< ON-VEHICLE REPAIR >

ICC SENSOR INTEGRATED UNIT

ICC SENSOR INTEGRATED UNIT

ICC Sensor

INFOID:0000000005146022

CAUTION:

Perform the laser beam aiming procedure every time the ICC sensor is removed or installed. Refer to

CCS-5

 .

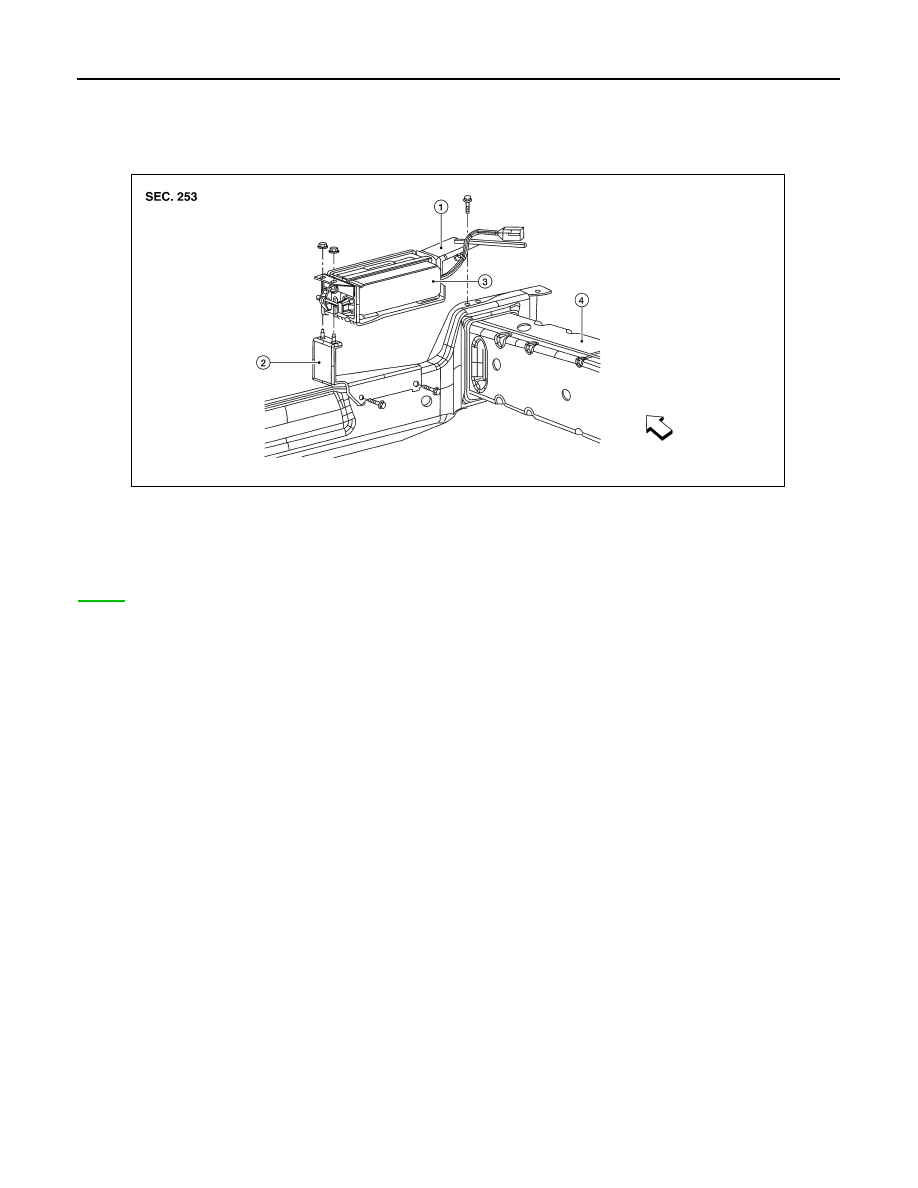

1.

ICC sensor bracket

2.

ICC frame bracket

3.

ICC sensor

4.

Frame side rail

Vehicle front

WKIA4608E

CCS

ICC STEERING SWITCH

CCS-73

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ICC STEERING SWITCH

Removal and Installation

INFOID:0000000005146023

REMOVAL

1. Remove the steering wheel. Refer to

ST-18, "Removal and Installation"

.

2. Remove the steering wheel rear cover.
3. Pull the steering wheel ICC switch out of the steering wheel, disconnect the steering wheel ICC switch

connector.

4. Remove the steering wheel ICC switch finisher screws and remove the steering wheel ICC switch finisher.

INSTALLATION

Installation is in the reverse order of removal.

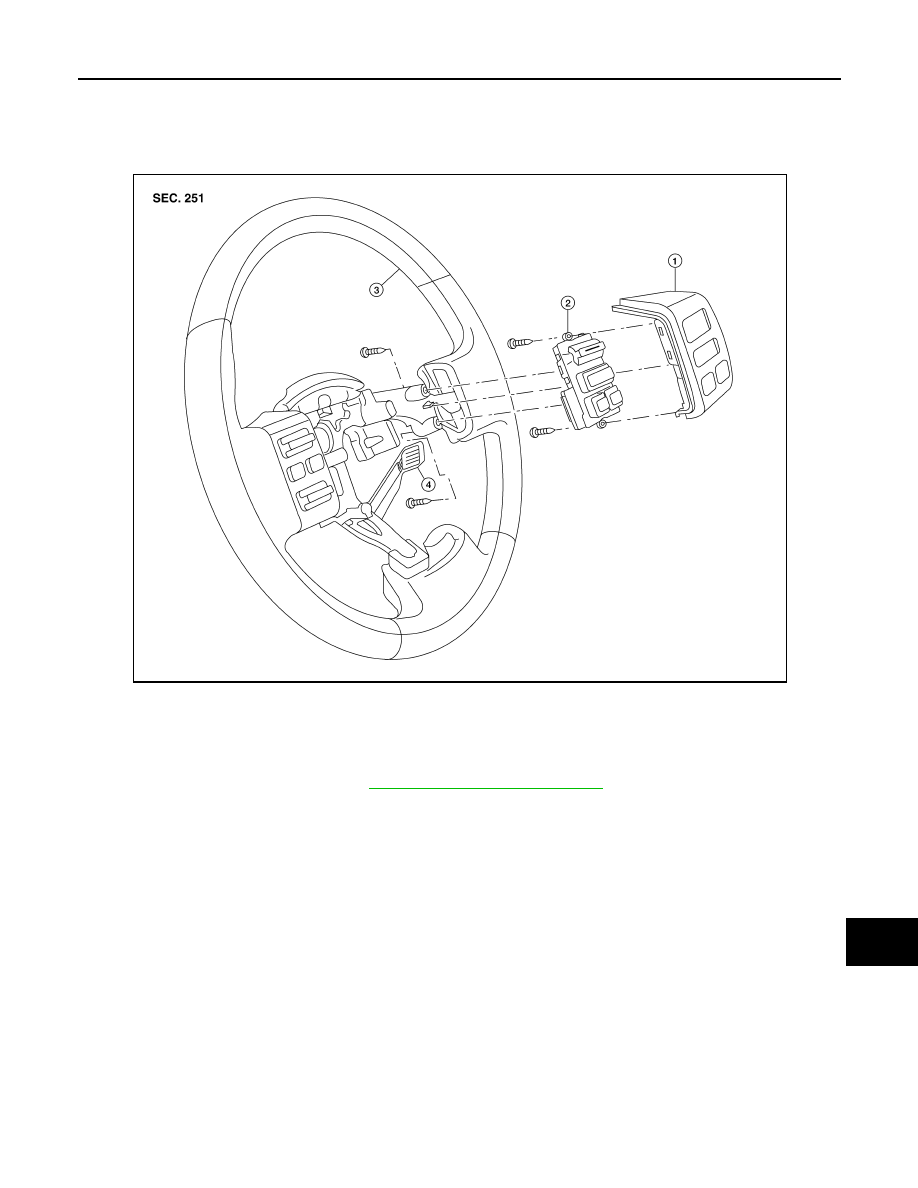

1.

Steering wheel ICC switch finisher

2.

Steering wheel ICC switch

3.

Steering wheel

4.

Steering wheel ICC switch connector

AWOIA0001ZZ

CHG

CHG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

CHG

A

O

P

N

CONTENTS

CHARGING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

2

Precaution for Power Generation Variable Voltage
Control System ........................................................
..

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

BASIC INSPECTION  ....................................

5

DIAGNOSIS AND REPAIR WORKFLOW  ..........

5

Work Flow  .................................................................

5

FUNCTION DIAGNOSIS ...............................

6

CHARGING SYSTEM ..........................................

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Description ............................................

6

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM .................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Description .............................................

7

COMPONENT DIAGNOSIS  ..........................

8

CHARGING SYSTEM PRELIMINARY IN-
SPECTION .........................................................

8

Inspection Procedure ................................................

8

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM OPERATION IN-
SPECTION .........................................................

9

Diagnosis Procedure  ................................................

9

B TERMINAL CIRCUIT  .....................................

11

Description ...............................................................

11

Diagnosis Procedure  ...............................................

11

L TERMINAL CIRCUIT  .....................................

12

Description ...............................................................

12

Diagnosis Procedure  ...............................................

12

S TERMINAL CIRCUIT  .....................................

13

Description ...............................................................

13

Diagnosis Procedure  ...............................................

13

CHARGING SYSTEM  .......................................

14

Wiring Diagram ........................................................

14

SYMPTOM DIAGNOSIS  ..............................

20

CHARGING SYSTEM  .......................................

20

Symptom Table  .......................................................

20

ON-VEHICLE REPAIR .................................

21

GENERATOR ....................................................

21

Removal and Installation  .........................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

GENERATOR ....................................................

22

Generator ................................................................

22

CHG-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005260140

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005260141

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″LOCK″ position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″ACC″ position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.















Content   ..  182  183  184  185   ..
