ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-97

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0222GB

BRC-98

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

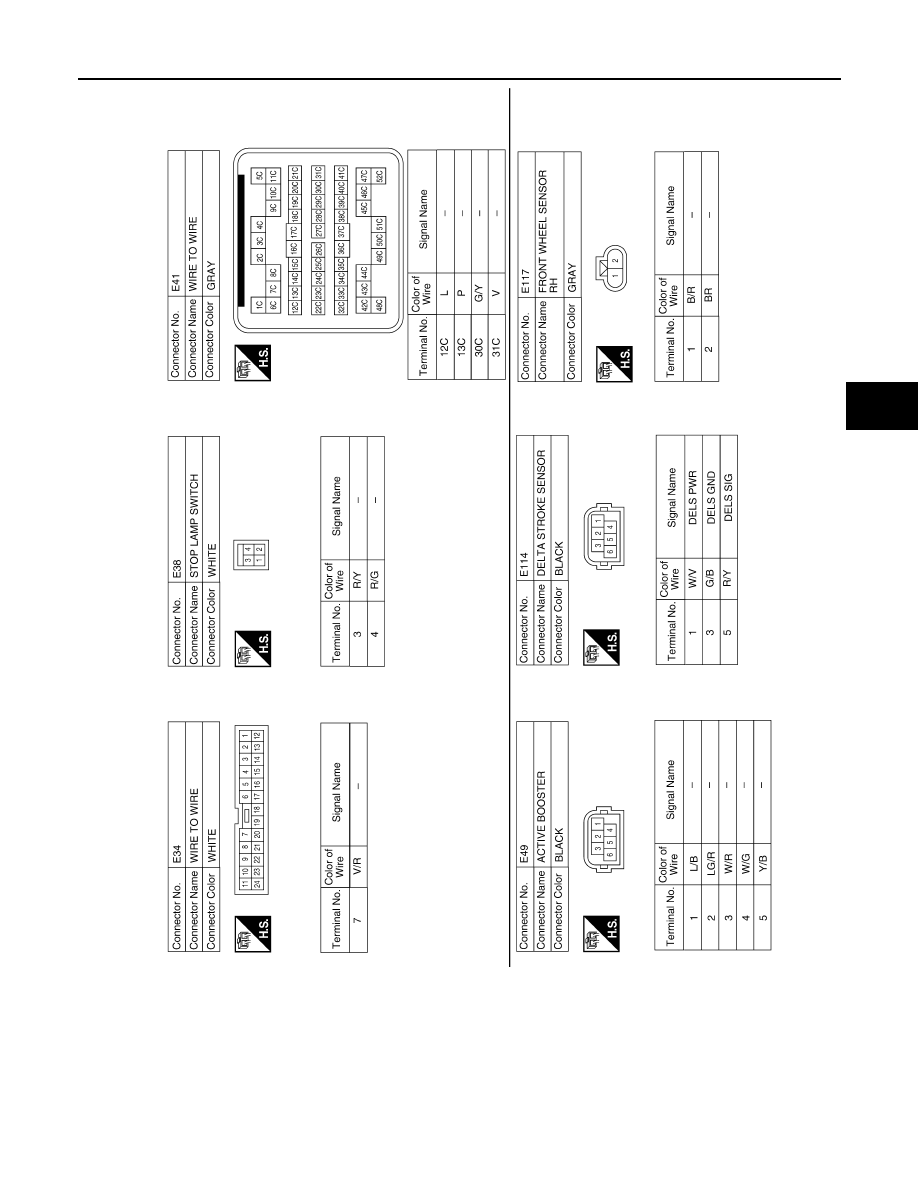

ABFIA0223GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-99

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Fail-Safe

INFOID:0000000005148083

CAUTION:

If the Fail-Safe function is activated, perform Self Diagnosis for ABS/TCS/VDC system.

ABS/EBD SYSTEM

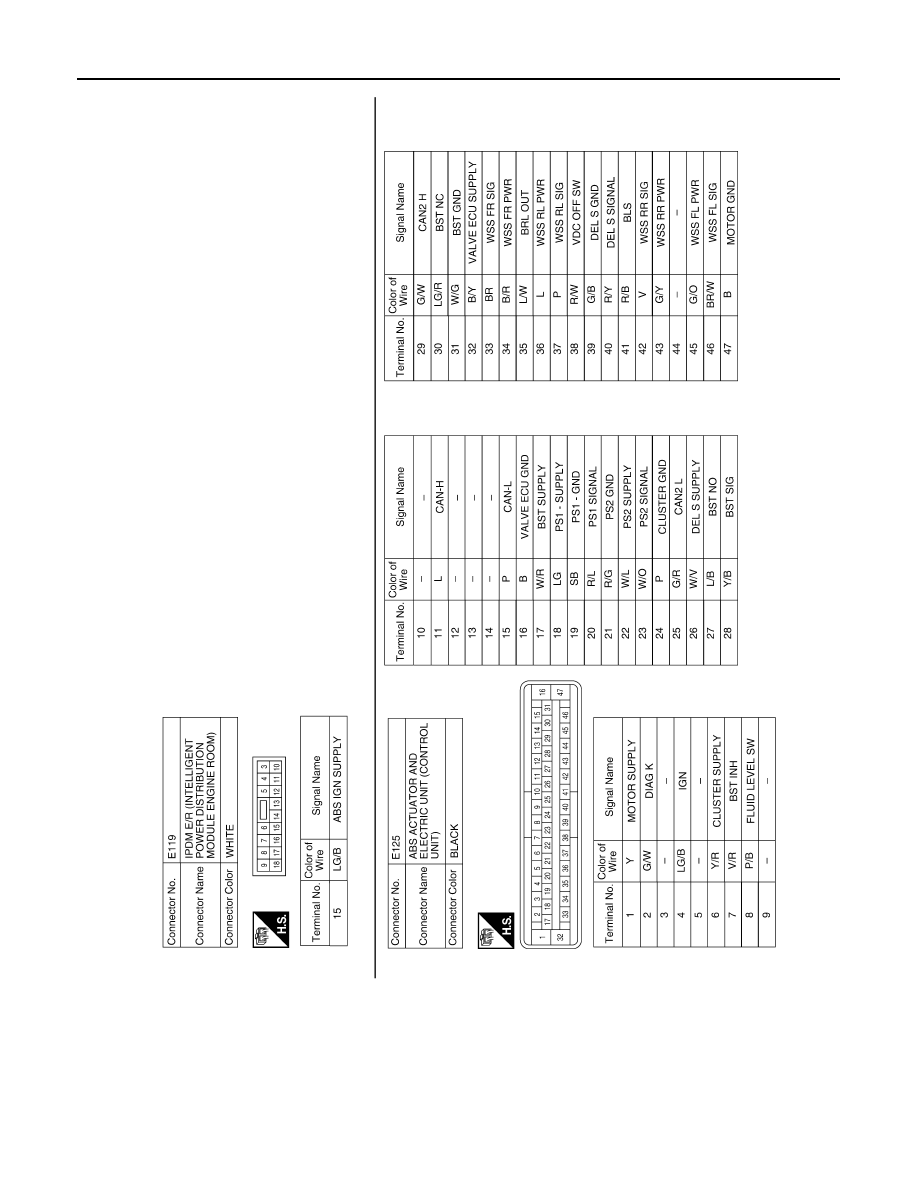

ABFIA0020GB

BRC-100

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP

indicator lamp will turn on. In case of an electrical malfunction with the EBD system, the BRAKE warning lamp,

ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on.

The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of

vehicles without ABS/TCS/VDC system.

2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same

as the condition of vehicles without ABS/TCS/VDC or EBD system.

VDC/TCS SYSTEM

In case of TCS/VDC system malfunction, the VDC OFF indicator lamp and SLIP indicator lamp are turned on

and the condition of the vehicle is the same as the condition of vehicles without TCS/VDC system. In case of

an electrical malfunction with the TCS/VDC system, the ABS control continues to operate normally without

TCS/VDC control.

DTC No. Index

INFOID:0000000005148084

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-28, "Description"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-31, "Description"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-34, "Description"

C1110

CONTROLLER FAILURE

BRC-36, "DTC Logic"

C1111

PUMP MOTOR

BRC-37, "Description"

C1113

G-SENSOR

BRC-39, "Description"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-42, "Description"

C1116

STOP LAMP SW

BRC-45, "Description"

C1120

FR LH IN ABS SOL

BRC-47, "Description"

C1121

FR LH OUT ABS SOL

BRC-50, "Description"

C1122

FR RH IN ABS SOL

BRC-47, "Description"

C1123

FR RH OUT ABS SOL

BRC-50, "Description"

C1124

RR LH IN ABS SOL

BRC-47, "Description"

C1125

RR LH OUT ABS SOL

BRC-50, "Description"

C1126

RR RH IN ABS SOL

BRC-47, "Description"

C1127

RR RH OUT ABS SOL

BRC-50, "Description"

C1130

ENGINE SIGNAL 1

BRC-53, "Description"

C1131

ENGINE SIGNAL 2

C1132

ENGINE SIGNAL 3

C1133

ENGINE SIGNAL 4

C1136

ENGINE SIGNAL 6

C1140

ACTUATOR RLY

BRC-55, "Description"

C1142

PRESS SEN CIRCUIT

BRC-57, "Description"

C1143

ST ANG SEN CIRCUIT

BRC-60, "Description"

C1144

ST ANG SEN SIGNAL
