C1116 STOP LAMP SWITCH

Description

INFOID:0000000005147995

The stop lamp switch transmits the stop lamp switch signal (ON/OFF) to the ABS actuator and electric unit

(control unit).

DTC Logic

INFOID:0000000005147996

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-45, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000005147997

Regarding Wiring Diagram information, refer to

BRC-92, "Wiring Diagram - BRAKE CONTROL SYSTEM -"

.

1.

CONNECTOR INSPECTION

1. Disconnect the ABS actuator and electric unit (control unit) connector and stop lamp switch connector.

2. Check the terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace as necessary.

2.

STOP LAMP SWITCH INSPECTION

1. Connect the stop lamp switch connector.

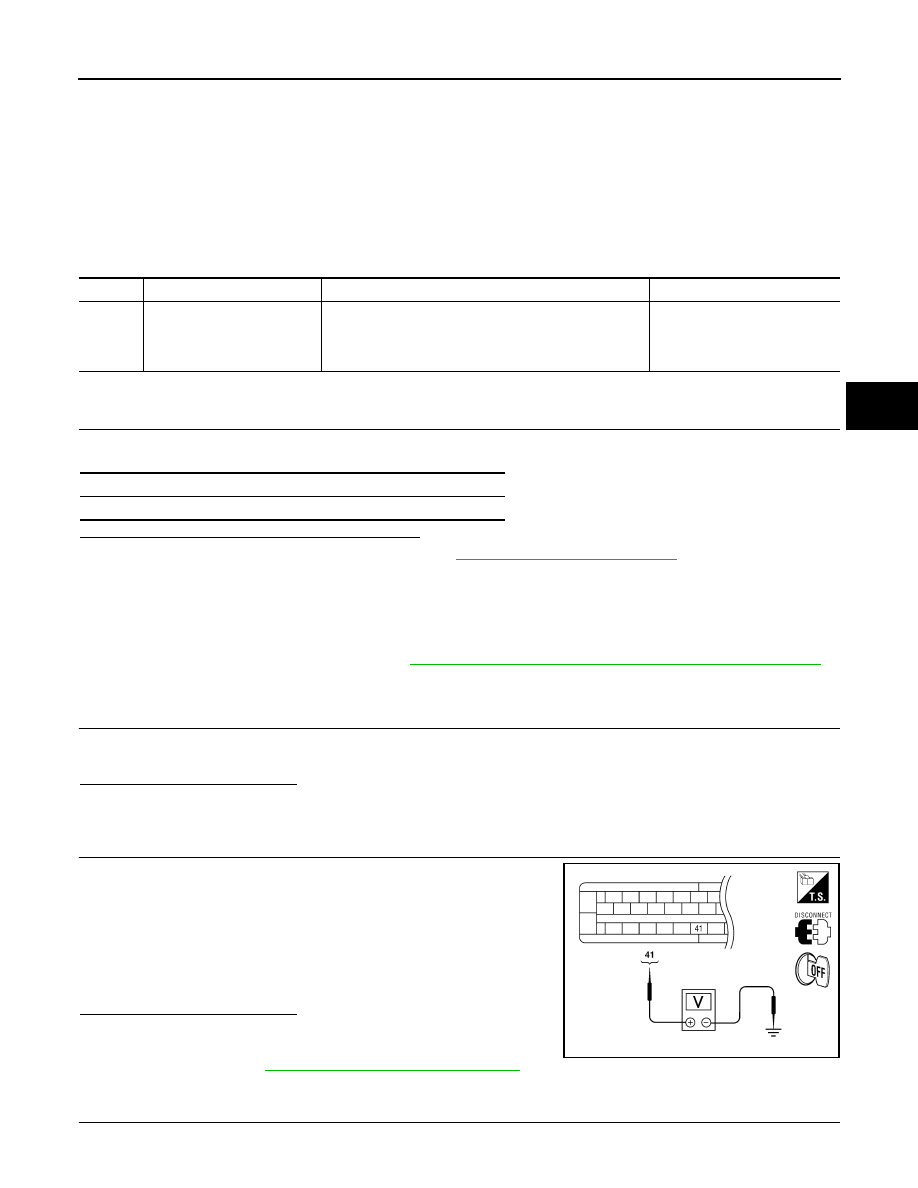

2. Check the voltage between the ABS actuator and electric unit

(control unit) connector E125 terminal 41 and body ground.

Is the inspection result normal?

YES

>> Perform self-diagnosis again. If the same results

appear, replace ABS actuator and electric unit (control

unit). Refer to

BRC-116, "Removal and Installation"

.

NO

>> GO TO 3

3.

STOP LAMP RELAY CIRCUIT INSPECTION

DTC

Display item

Malfunction detected condition

Possible cause

C1116

STOP LAMP SW

When stop lamp switch circuit is open.

• Harness or connector
• Stop lamp switch
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

STOP LAMP SW

Brake pedal applied

: Battery voltage
(approx. 12V)

Brake pedal released

: Approx. 0V

AWFIA0019ZZ

BRC-46

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1116 STOP LAMP SWITCH

1. Disconnect the stop lamp relay harness connector E12.

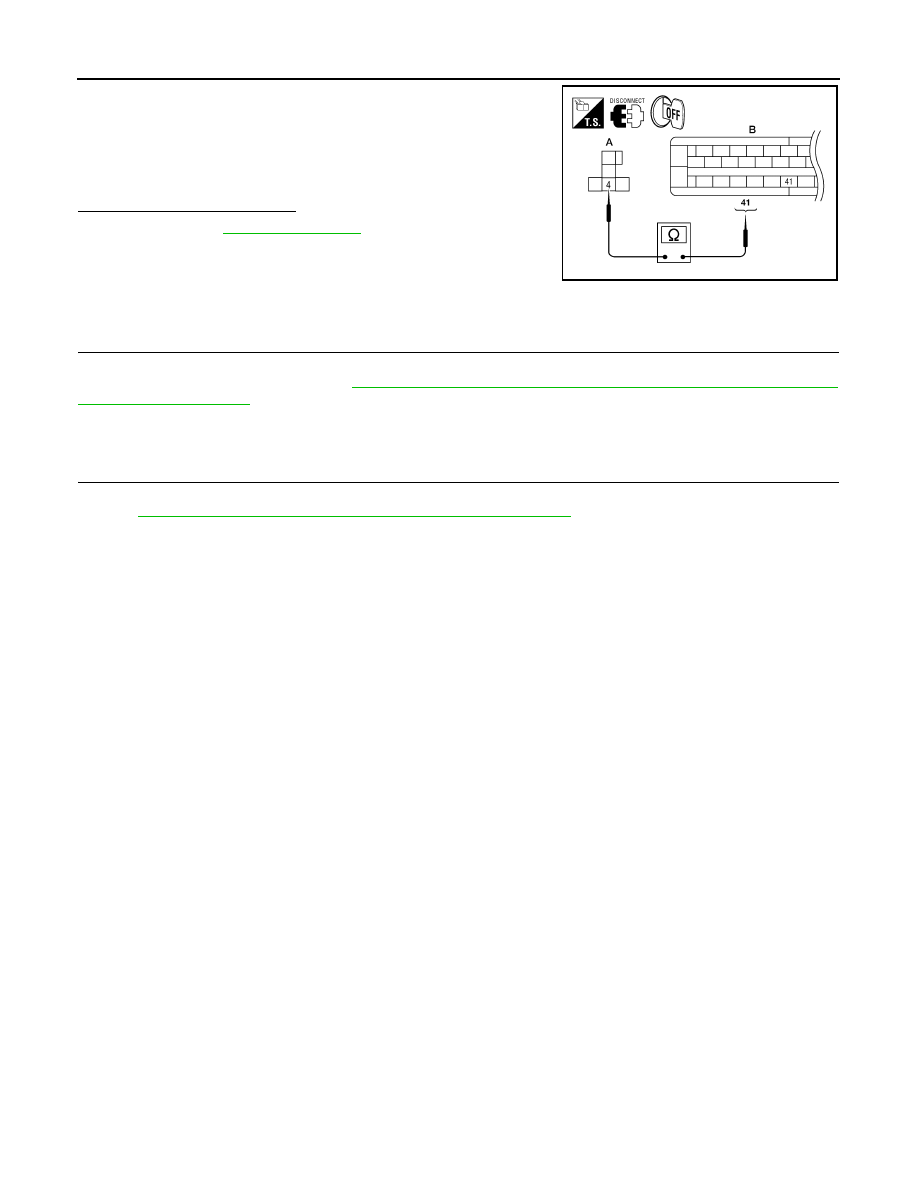

2. Check the continuity between the ABS actuator and electric unit

(control unit) connector E125 (B) terminal 41 and stop lamp

relay connector E12 (A) terminal 4.

Is the inspection result normal?

YES

>> Refer to

EXL-4, "Work Flow"

.

NO

>> Repair or replace malfunctioning components.

Special Repair Requirement

INFOID:0000000005194913

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Continuity should exist.

AWFIA0020ZZ

C1120, C1122, C1124, C1126 IN ABS SOL

BRC-47

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1120, C1122, C1124, C1126 IN ABS SOL

Description

INFOID:0000000005147999

The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-

nals transmitted by the ABS actuator and electric unit (control unit).

DTC Logic

INFOID:0000000005148000

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-47, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000005148001

Regarding Wiring Diagram information, refer to

BRC-92, "Wiring Diagram - BRAKE CONTROL SYSTEM -"

.

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF.

2. Disconnect ABS actuator and electric unit (control unit) connector.

3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or

replace terminal.

4. Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-23, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminal. Repair or replace connector.

2.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT

DTC

Display item

Malfunction detected condition

Possible cause

C1120

FR LH IN ABS SOL

When the control unit detects a malfunction in the front
LH inlet solenoid circuit.

• ABS actuator and electric unit

(control unit)

C1122

FR RH IN ABS SOL

When the control unit detects a malfunction in the front
RH inlet solenoid circuit.

C1124

RR LH IN ABS SOL

When the control unit detects a malfunction in the rear LH
inlet solenoid circuit.

C1126

RR RH IN ABS SOL

When the control unit detects a malfunction in the rear
RH inlet solenoid circuit.

Self-diagnosis results

FR LH IN ABS SOL

FR RH IN ABS SOL

RR LH IN ABS SOL

RR RH IN ABS SOL

BRC-48

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1120, C1122, C1124, C1126 IN ABS SOL

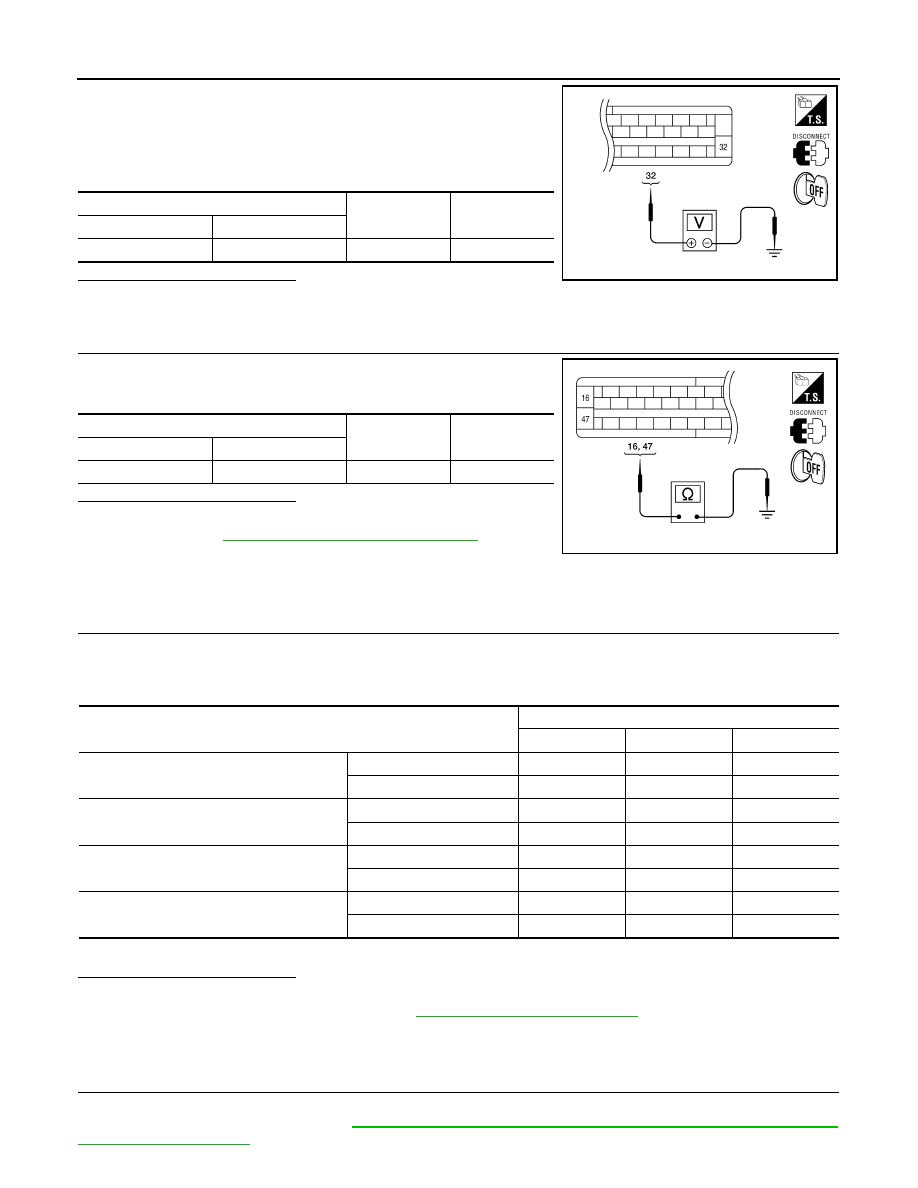

1. Turn ignition switch OFF.

2. Disconnect ABS actuator and electric unit (control unit) connec-

tor.

3. Check voltage between ABS actuator and electric unit (control

unit) connector E125 terminal 32 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control

unit) connector E125 terminals 16, 47 and ground.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit).

Refer to

BRC-116, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning components.

Component Inspection

INFOID:0000000005148002

1.

CHECK ACTIVE TEST

1. Select each test menu item on “ACTIVE TEST”.

2. On the display, touch “Up”, “Keep”, and “Down”, and check that the system operates as shown in the table

below.

*: On for 1 to 2 seconds after the touch, and then Off

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-47, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000005194914

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

ABS actuator and electric unit (control unit)

—

Voltage

Connector

Terminal

E125

32

Ground

Battery voltage

AWFIA0018ZZ

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E125

16, 47

Ground

Yes

AWFIA0016ZZ

Operation

ABS solenoid valve

Up

Keep

Down

FR RH SOL

FR RH IN SOL

Off

On

On

FR RH OUT SOL

Off

Off

On*

FR LH SOL

FR LH IN SOL

Off

On

On

FR LH OUT SOL

Off

Off

On*

RR RH SOL

RR RH IN SOL

Off

On

On

RR RH OUT SOL

Off

Off

On*

RR LH SOL

RR LH IN SOL

Off

On

On

RR LH OUT SOL

Off

Off

On*
