Infiniti QX56 (JA60). Manual - part 125





VDC

BRC-13

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000005147949

7.

VDC OFF switch M253

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11. Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-37, "Description"

Motor

Actuator relay

BRC-55, "Description"

Solenoid valve

BRC-47, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-69, "Description"

Wheel sensor

BRC-28, "Description"

Yaw rate/side/decel G sensor

BRC-39, "Description"

Steering angle sensor

BRC-60, "Description"

VDC OFF switch

BRC-80, "Description"

ABS warning lamp

BRC-82, "Description"

Brake warning lamp

BRC-83, "Description"

VDC OFF indicator lamp

BRC-84, "Description"

SLIP indicator lamp

BRC-86, "Description"

Front pressure sensor

BRC-57, "Description"

Rear pressure sensor

Active booster

BRC-72, "Description"

Delta stroke sensor

BRC-75, "Description"

BRC-14

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

TCS

TCS

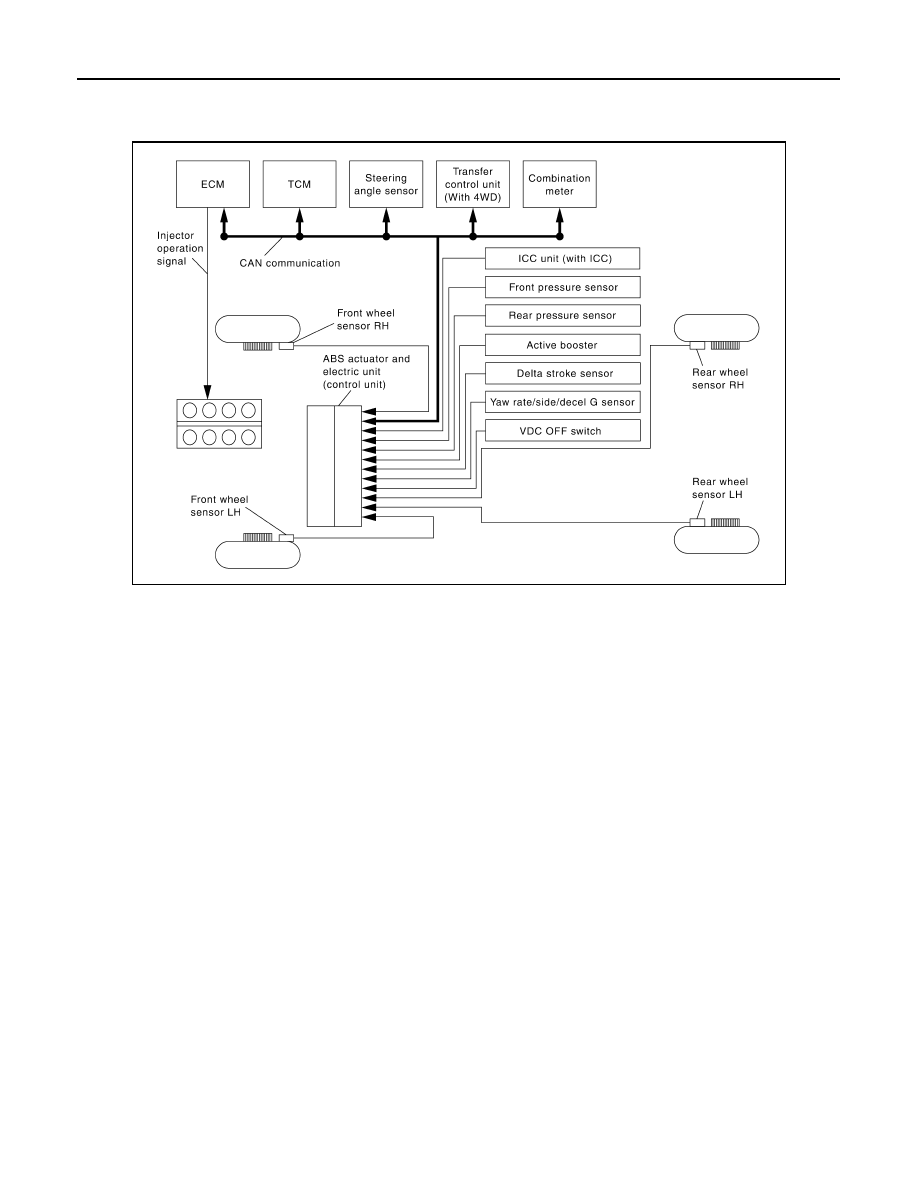

System Diagram

INFOID:0000000005147950

System Description

INFOID:0000000005147951

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4

wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear

wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-

sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by

the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine

torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0065GB

TCS

BRC-15

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

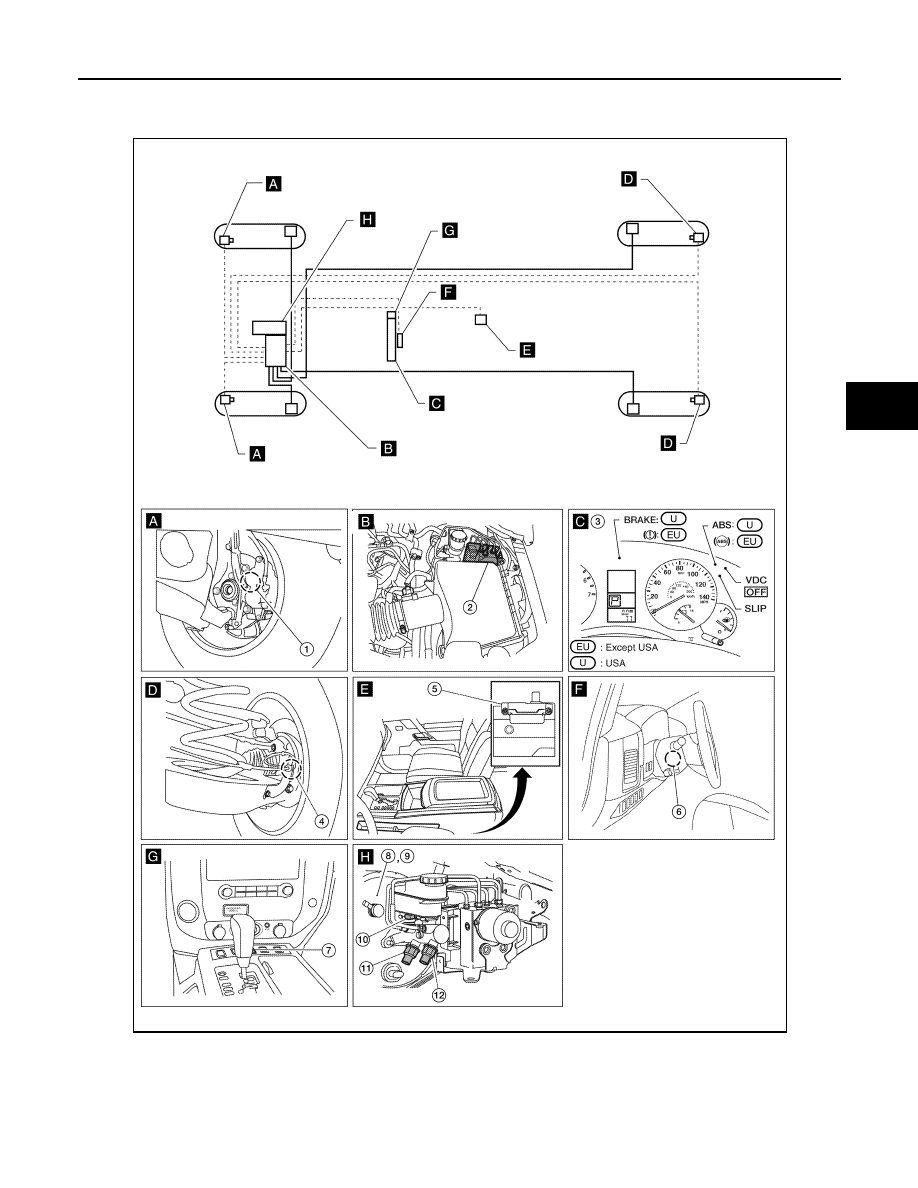

Component Parts Location

INFOID:0000000005206964

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Combination meter M23, M24

4.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

5.

Yaw rate/side/decel G sensor M108 6.

Steering angle sensor M17

AWFIA0572GB

BRC-16

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

TCS

Component Description

INFOID:0000000005206965

7.

VDC OFF switch M253

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11. Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-37, "Description"

Motor

Actuator relay

BRC-55, "Description"

Solenoid valve

BRC-47, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-69, "Description"

Wheel sensor

BRC-28, "Description"

Yaw rate/side/decel G sensor

BRC-39, "Description"

Steering angle sensor

BRC-60, "Description"

VDC OFF switch

BRC-80, "Description"

ABS warning lamp

BRC-82, "Description"

Brake warning lamp

BRC-83, "Description"

VDC OFF indicator lamp

BRC-84, "Description"

SLIP indicator lamp

BRC-86, "Description"

Front pressure sensor

BRC-57, "Description"

Rear pressure sensor

Active booster

BRC-72, "Description"

Delta stroke sensor

BRC-75, "Description"
