BR-28

< ON-VEHICLE REPAIR >

VACUUM LINES

VACUUM LINES

Removal and Installation

INFOID:0000000005147911

REMOVAL

1. Remove engine room cover. Refer to

EM-24, "Removal and Installation"

.

2. Disconnect vacuum hose from hose clip.
3. Release clamps and disconnect vacuum hose.
4. Remove check valve from brake booster.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Insert vacuum hose for at least 24 mm (0.94 in).

• Do not use lubricating oil during assembly.

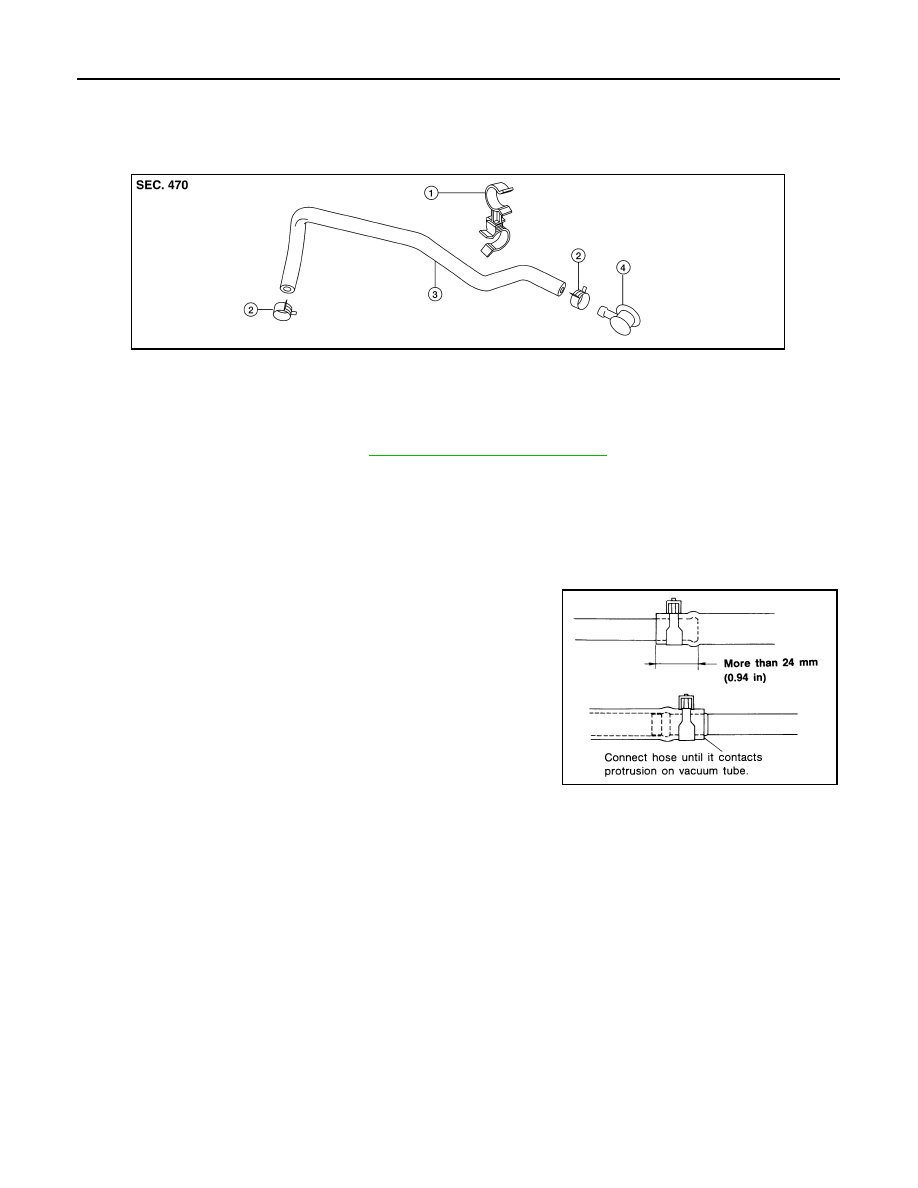

1.

Hose clip

2.

Clamp

3.

Vacuum hose

4.

Check valve

LFIA0216E

SBR225B

FRONT DISC BRAKE

BR-29

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

FRONT DISC BRAKE

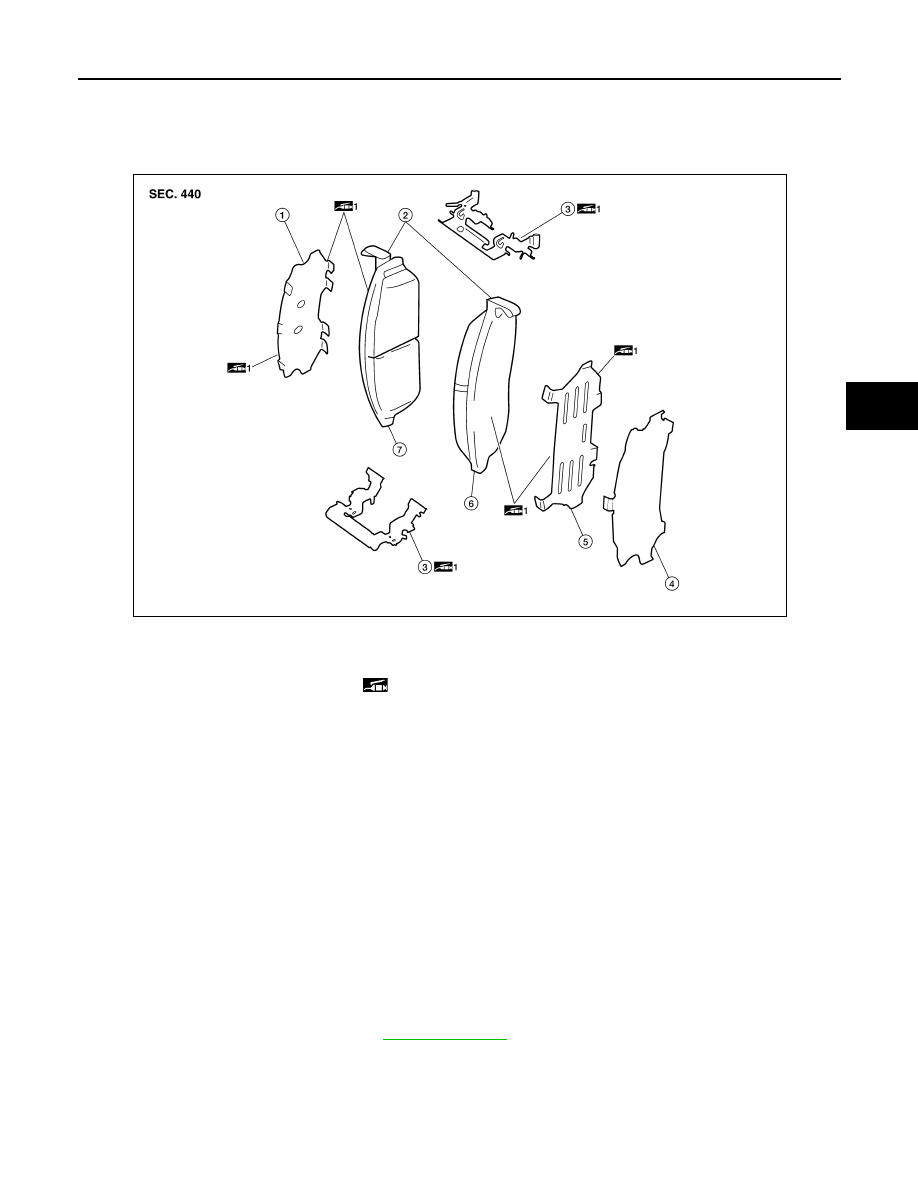

Exploded View of Brake Pads

INFOID:0000000005147912

Removal and Installation of Brake Pads

INFOID:0000000005147913

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of air borne

particles or other materials.

CAUTION:

• While removing cylinder body, do not depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper assembly. In this case, hang cylinder body with a wire so as not to stretch

brake hose.

• Do not damage piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace shim and shim cover as a set when replacing brake pads.

• Keep rotor free from brake fluid.

• Burnish the brake pads and disc rotor mutually contacting surfaces, after refinishing or replacing

rotors, after replacing pads, or if a soft pedal occurs at very low mileage.

REMOVAL

1. Remove front wheel and tires. Refer to

WT-49, "Rotation"

.

2. Partially drain some brake fluid from the reservoir.
3. Remove the sliding pin bolts.

1.

Inner multi-layered shim

2.

Pad wear sensor

3.

Pad retainer

4.

Outer shim cover

5.

Outer shim

6.

Outer pad

7.

Inner pad

1: Molykote M-77 grease

AWFIA0291GB

BR-30

< ON-VEHICLE REPAIR >

FRONT DISC BRAKE

4. Hang cylinder body with a wire, and remove pads, pad retainers,

shims, and shim cover from torque member.

CAUTION:

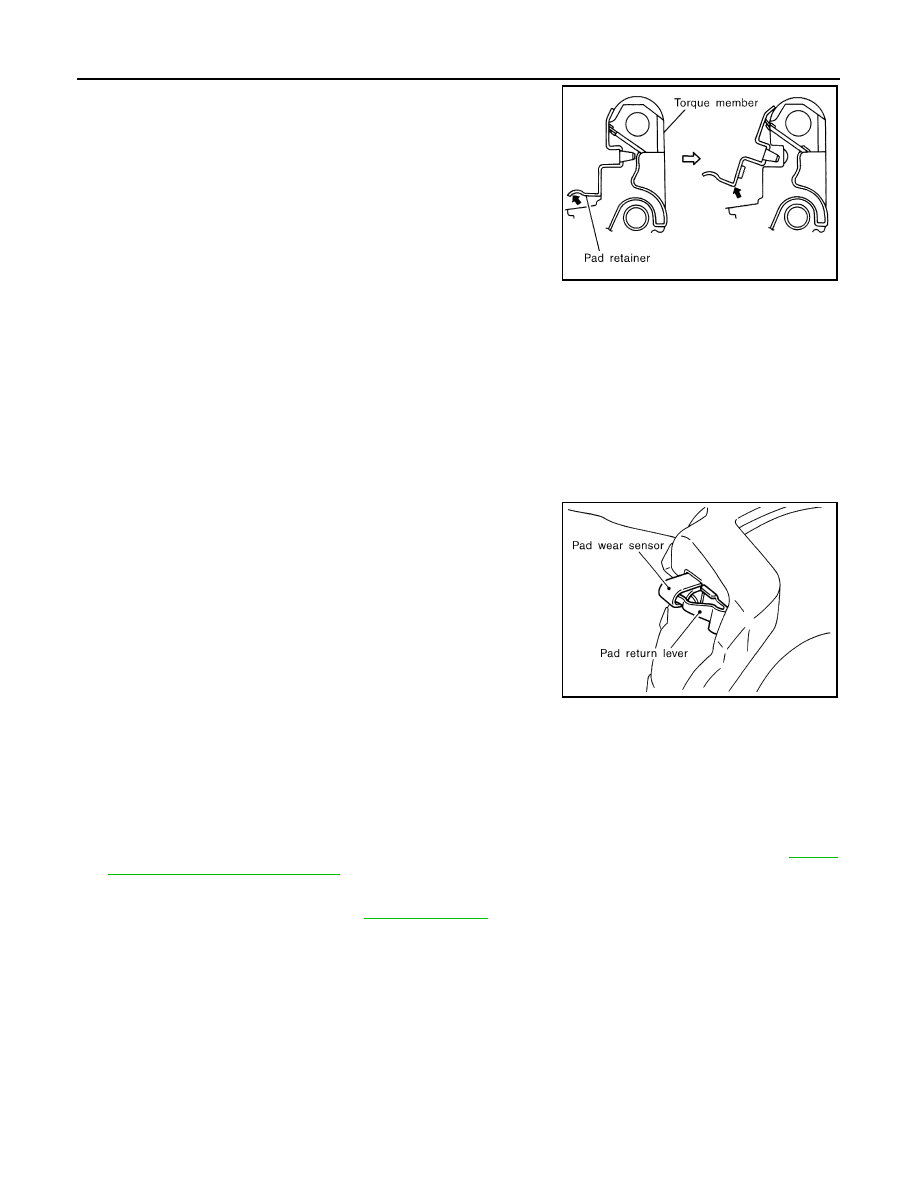

When removing the pad retainer from the torque member,

lift it in the direction indicated by the arrow as shown so

that it does not deform.

INSTALLATION

1. Push pistons in using suitable tool.

CAUTION:

By pushing in pistons, brake fluid returns to master cylinder reservoir tank. Watch the brake fluid

level in the reservoir tank.

NOTE:

Using a suitable tool, makes it easier to push in the pistons.

2. Apply Molykote M-77 grease or equivalent to between shim cover and shim. Install outer shim, outer shim

cover to inner pad, and inner multi-layered shim to outer pad.

3. Apply Molykote M-77 grease or equivalent to between pad retainer and pad. Install pad retainers and pads

to torque member.

4. Apply Molykote M-77 grease or equivalent to the piston face.

Install pad return lever securely to pad wear sensor as shown.

CAUTION:

• Securely assemble pad retainers so that they are not

being lifted up from torque member.

• Both inner and outer pads have a pad return system on

the pad retainer. Install pad return lever securely to pad

wear sensor.

5. Install pads to cylinder body.
6. Install cylinder body to torque member.

CAUTION:

In the case of replacing a pad with new one, check the brake fluid level in the reservoir tank

because brake fluid returns to reservoir tank when pressing piston in.

NOTE:

Use a suitable tool to easily press piston.

7. Apply rubber grease and install sliding pin bolts, and tighten to the specified torque. Refer to

BR-31,

"Exploded View of Brake Caliper"

.

8. Check front disc brake for drag.
9. Install front wheel and tires. Refer to

WT-49, "Rotation"

.

Brake Burnishing Procedure

INFOID:0000000005147914

Burnish contact surfaces between disc rotors and pads according to following procedure after refinishing or

replacing rotors, after replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate easily until pad and disc rotor are

securely seated.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1. Drive vehicle on straight, flat road.

2. Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3. Drive without depressing brake for a few minutes to cool the brake.

4. Repeat steps 1 through 3 until pad and disc rotor are securely seated.

SBR556E

SBR557E

FRONT DISC BRAKE

BR-31

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

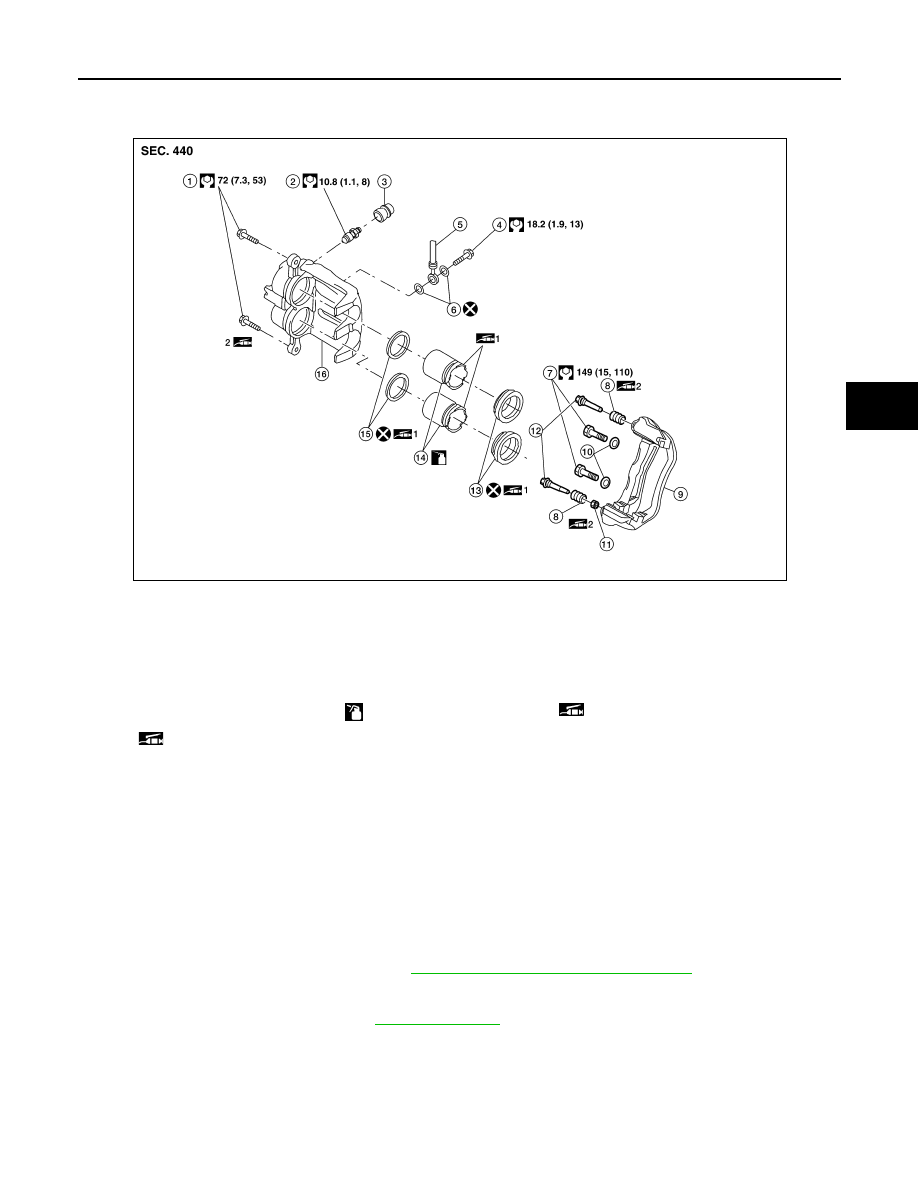

Exploded View of Brake Caliper

INFOID:0000000005147915

Removal and Installation of Brake Caliper and Rotor

INFOID:0000000005147916

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of air borne

particles or other materials.

CAUTION:

• While removing cylinder body, do not depress brake pedal because piston will pop out.

• Do not damage piston boot.

• Keep rotor free from brake fluid.

• Refill with new specified brake fluid.

• Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft

pedal occurs at very low mileage. Refer to

BR-30, "Brake Burnishing Procedure"

.

REMOVAL

1. Remove front wheel and tire. Refer to

WT-49, "Rotation"

.

2. Fasten disc rotor using wheel nut.
3. Remove brake reservoir cap.
4. Remove union bolt, and then disconnect brake hose from caliper assembly.

NOTE:

Discard the copper washers, do not reuse.

1.

Sliding pin bolt

2.

Bleed valve

3.

Cap

4.

Union bolt

5.

Brake hose

6.

Copper washer

7.

Torque member bolt

8.

Sliding pin boot

9.

Torque member

10. Washers

11. Bushing

12. Sliding pin

13. Piston boot

14. Piston

15. Piston seal

16. Cylinder body

Brake fluid

1: Molykote M-77 grease

2: Rubber grease

AWFIA0573GB
