Infiniti QX56 (JA60). Manual - part 114





BR-16

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

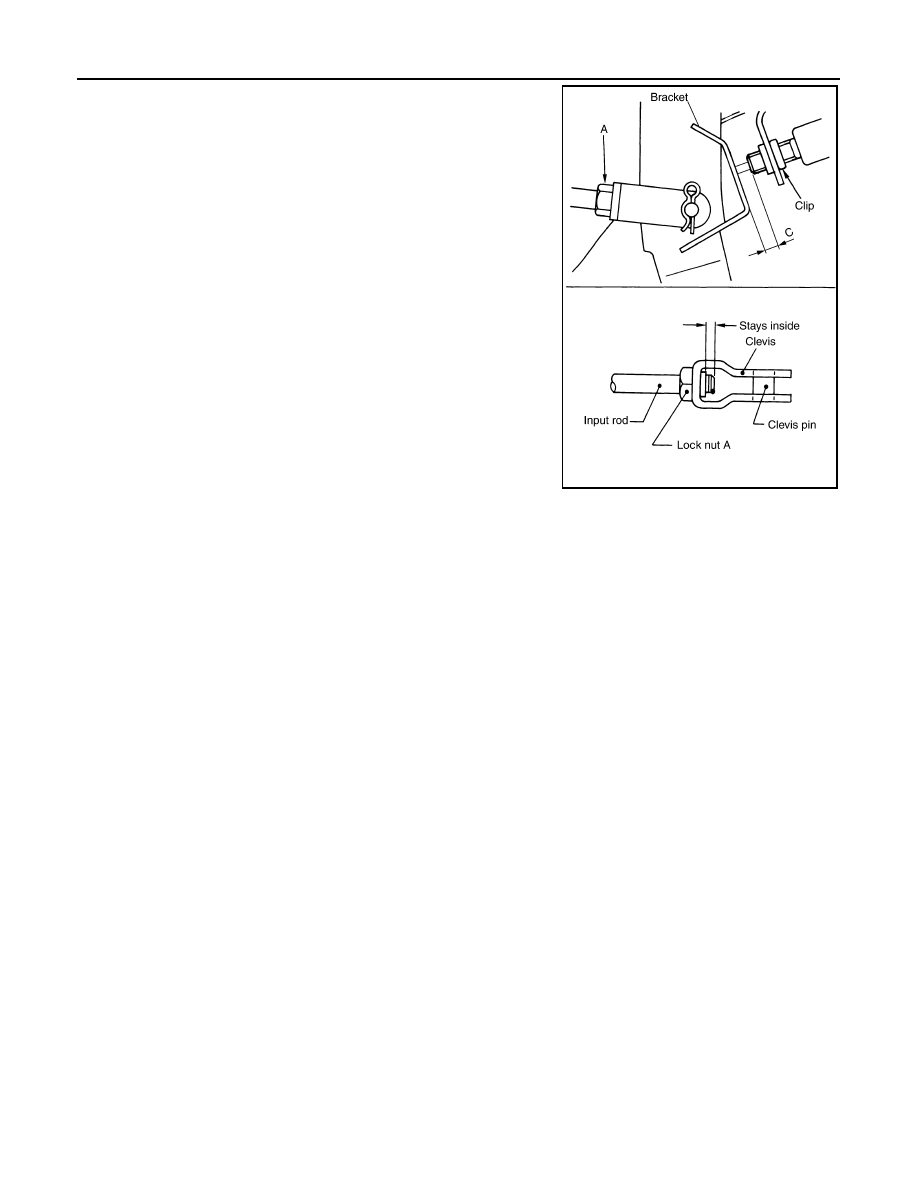

2. Loosen lock nut (A) on the input rod, then turn input rod to adjust

the brake pedal to the specified height. When finished adjusting,

tighten the lock nut (A) to specification.

CAUTION:

Make sure that the screw portion of the end of input rod is

located inside the clevis.

3. With the brake pedal pulled up and held by hand, press the stop

lamp switch and the ASCD cancel switch in until the threaded

ends contact the brake pedal bracket.

4. With the threaded ends of the stop lamp switch and ASCD

switch contacting the pedal bracket, turn the switches 45

° clock-

wise to lock in place. Check that the stop lamp switch and ASCD

cancel switch threaded end to brake pedal bracket gap (C) is

within specifications.

CAUTION:

Make sure that the gap (C) between the brake pedal bracket

and stop lamp switch and ASCD cancel switch threaded

ends are within specification.

5. Check the brake pedal for smooth operation.

CAUTION:

Make sure that the stop lamp goes off when the brake pedal

is released.

6. Start the engine and check the height of the brake pedal when depressing it.

Lock nut (A)

: 18.7 N·m (1.9 kg-m, 14 ft-lb)

PFIA0436E

BRAKE FLUID

BR-17

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE FLUID

On Board Inspection

INFOID:0000000005147901

LEVEL CHECK

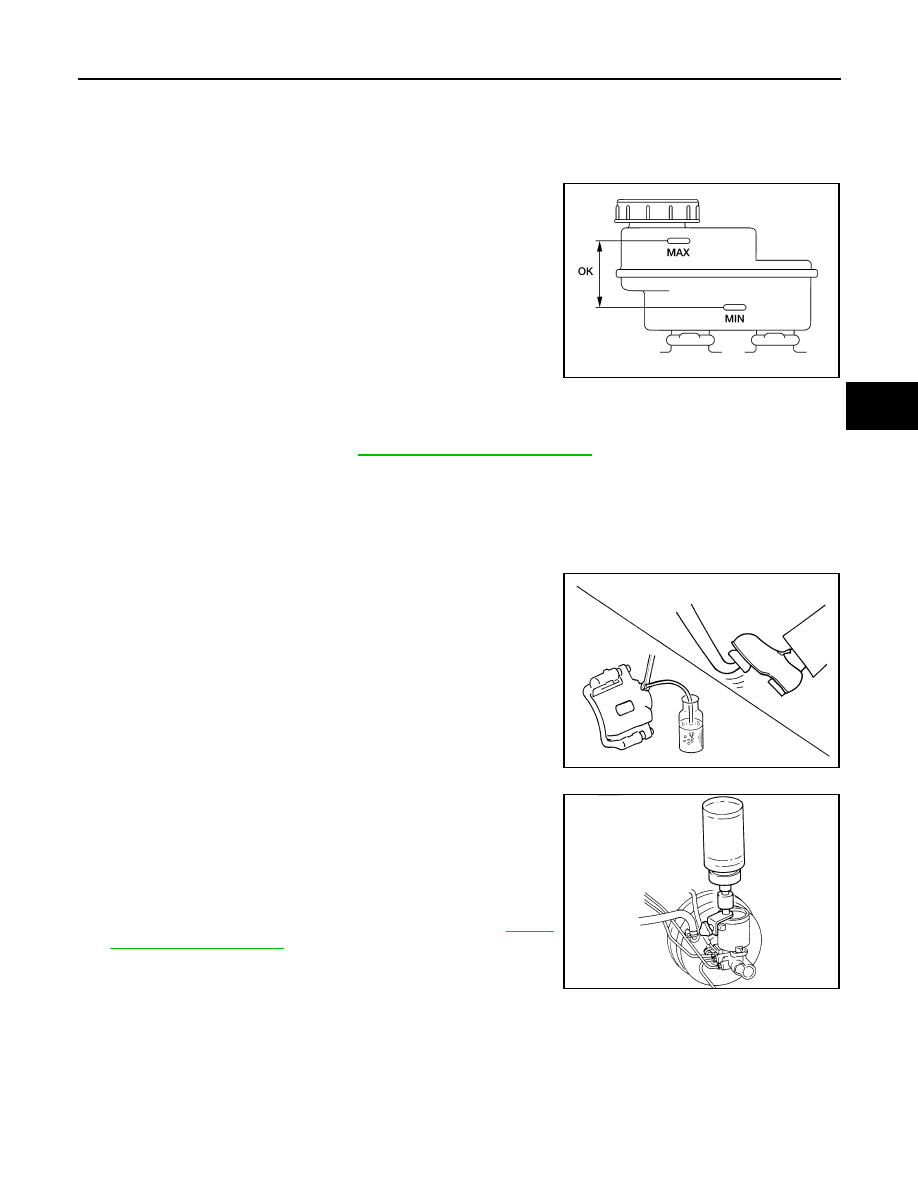

• Make sure the fluid level in reservoir tank is between MAX and MIN

lines as shown.

• Visually check around reservoir tank for fluid leaks.

• If fluid level is excessively low, check brake system for leaks.

• If brake warning lamp remains illuminated after parking brake

pedal is released, check brake system for fluid leaks.

Drain and Refill

INFOID:0000000005147902

CAUTION:

• Refill with new brake fluid. Refer to

MA-13, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

• Do not let brake fluid splash on the painted surfaces of the body. This might damage the paint, so if

splashing it, immediately wipe off the area and wash away with water.

• Before servicing, disconnect ABS actuator and electric unit (control unit) connector or battery nega-

tive terminal.

1. Connect a vinyl tube to each bleed valve.
2. Depress brake pedal, loosen each bleed valve, and gradually

remove brake fluid.

3. Make sure there is no foreign material in reservoir tank, and refill

with new brake fluid.

4. Rest foot on brake pedal. Loosen bleed valve. Slowly depress

pedal until it stops. Tighten bleed valve. Release brake pedal.

Repeat this process a few times, then pause to add new brake

fluid to master cylinder. Continue until new brake fluid flows out

of the bleed valve.

Bleed the air out of the brake hydraulic system. Refer to

BR-17,

"Bleeding Brake System"

.

Bleeding Brake System

INFOID:0000000005147903

CAUTION:

While bleeding, pay attention to master cylinder fluid level.
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or battery

negative terminal.

2. Connect a vinyl tube to the rear right bleed valve.

LFIA0225E

SBR419C

SBR995

BR-18

< ON-VEHICLE MAINTENANCE >

BRAKE FLUID

3. Fully depress brake pedal 4 to 5 times.
4. With brake pedal depressed, loosen bleed valve to let the air out, and then tighten it immediately.
5. Repeat steps 3 and 4 until no more air comes out.
6. Tighten bleed valve to the specified torque. Refer to

BR-31, "Exploded View of Brake Caliper"

 (front disc

brake),

BR-35, "Exploded View of Brake Caliper"

 (rear disc brake).

7. Repeat steps 2 through 6 at each wheel, with master cylinder reservoir tank filled at least half way, bleed-

ing air in order from the front left, rear left, and front right bleed valves.

BRAKE PEDAL

BR-19

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE REPAIR

BRAKE PEDAL

Removal and Installation

INFOID:0000000005147904

REMOVAL

CAUTION:

• Before removal and installation, the accelerator and brake pedals must be in the forward most posi-

tion (closest to the floor). This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the brake pedal adjusting mechanism.

• Avoid damage from dropping the brake pedal assembly during handling.

• Keep the brake pedal assembly away from water.
1. Remove the lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove the stop lamp switch and ASCD cancel switch from the pedal assembly.

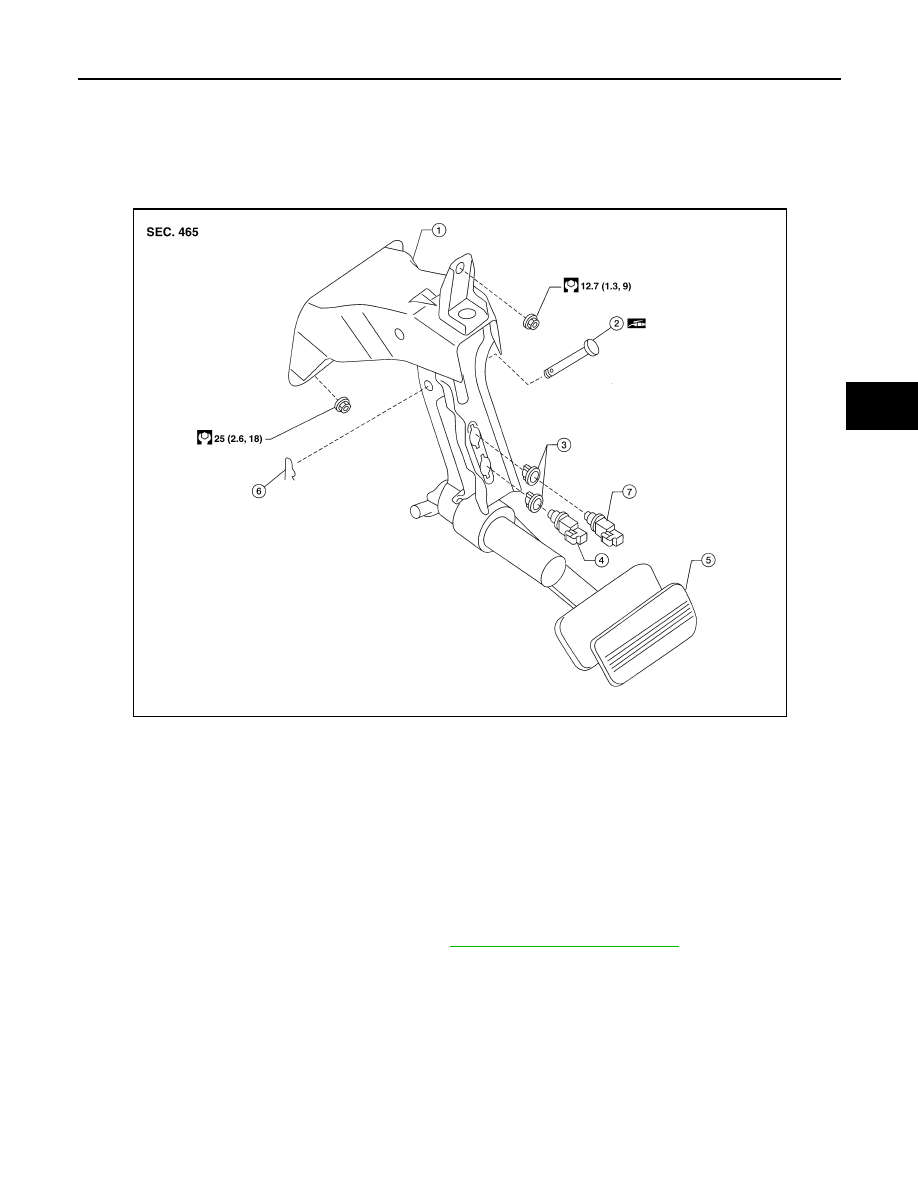

1.

Brake pedal assembly

2.

Clevis pin

3.

Clip

4.

Stop lamp switch

5.

Pedal pad

6.

Snap pin

7.

ASCD cancel switch

AWFIA0582GB
