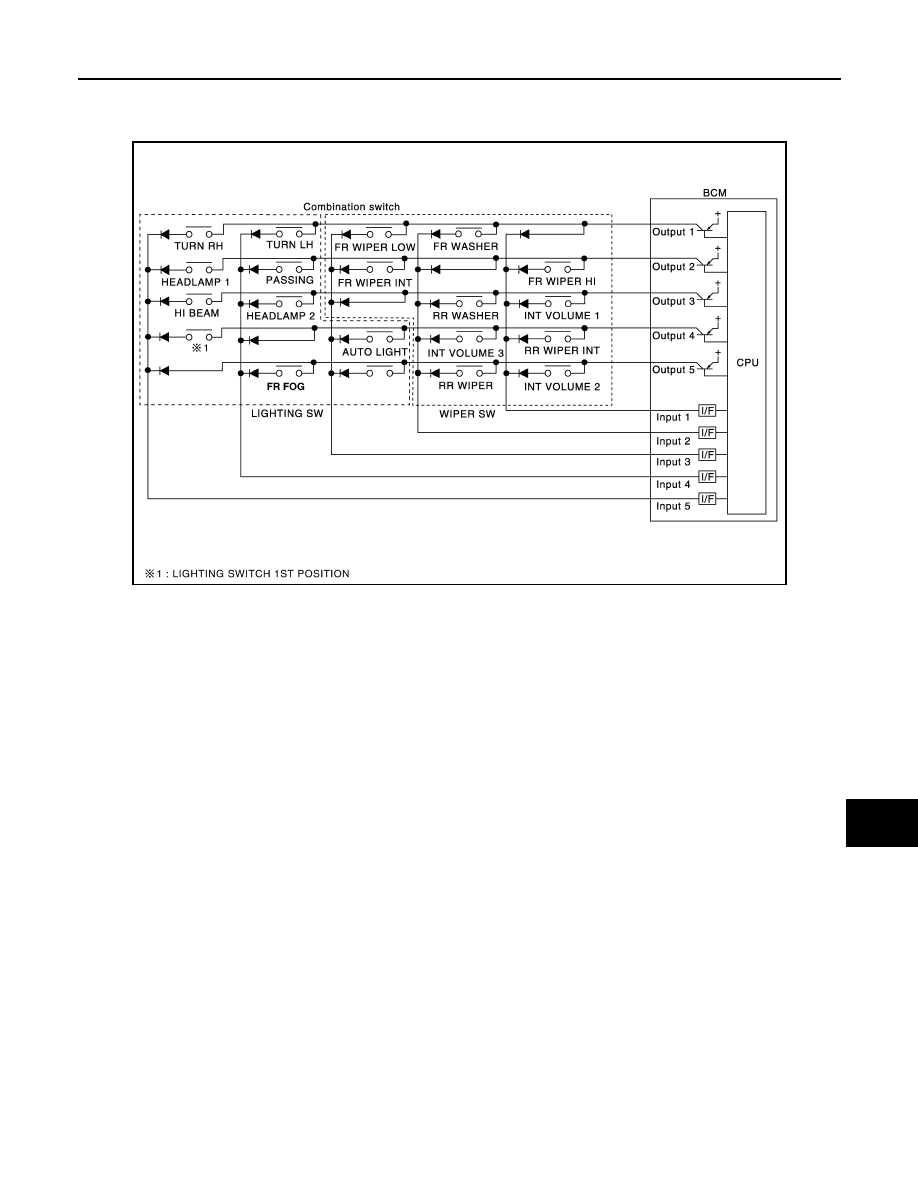

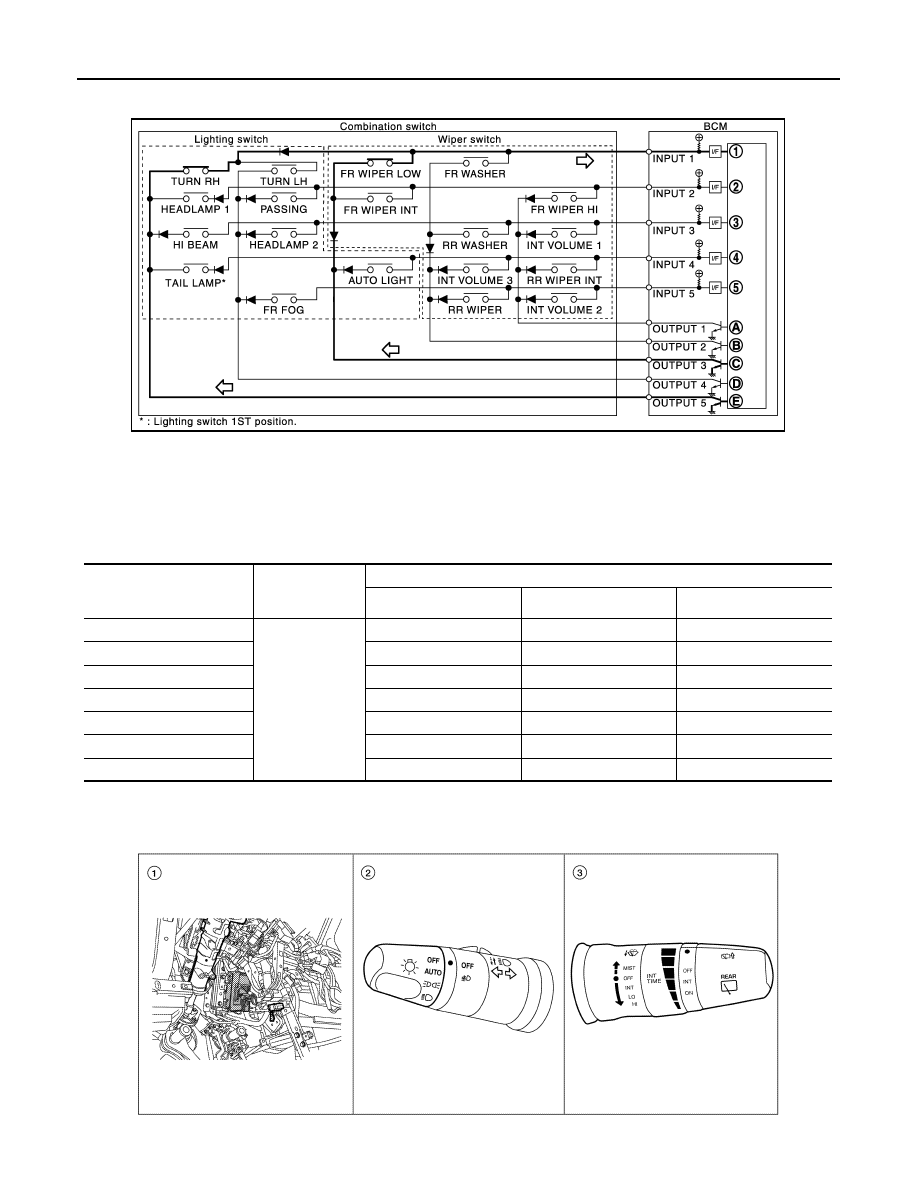

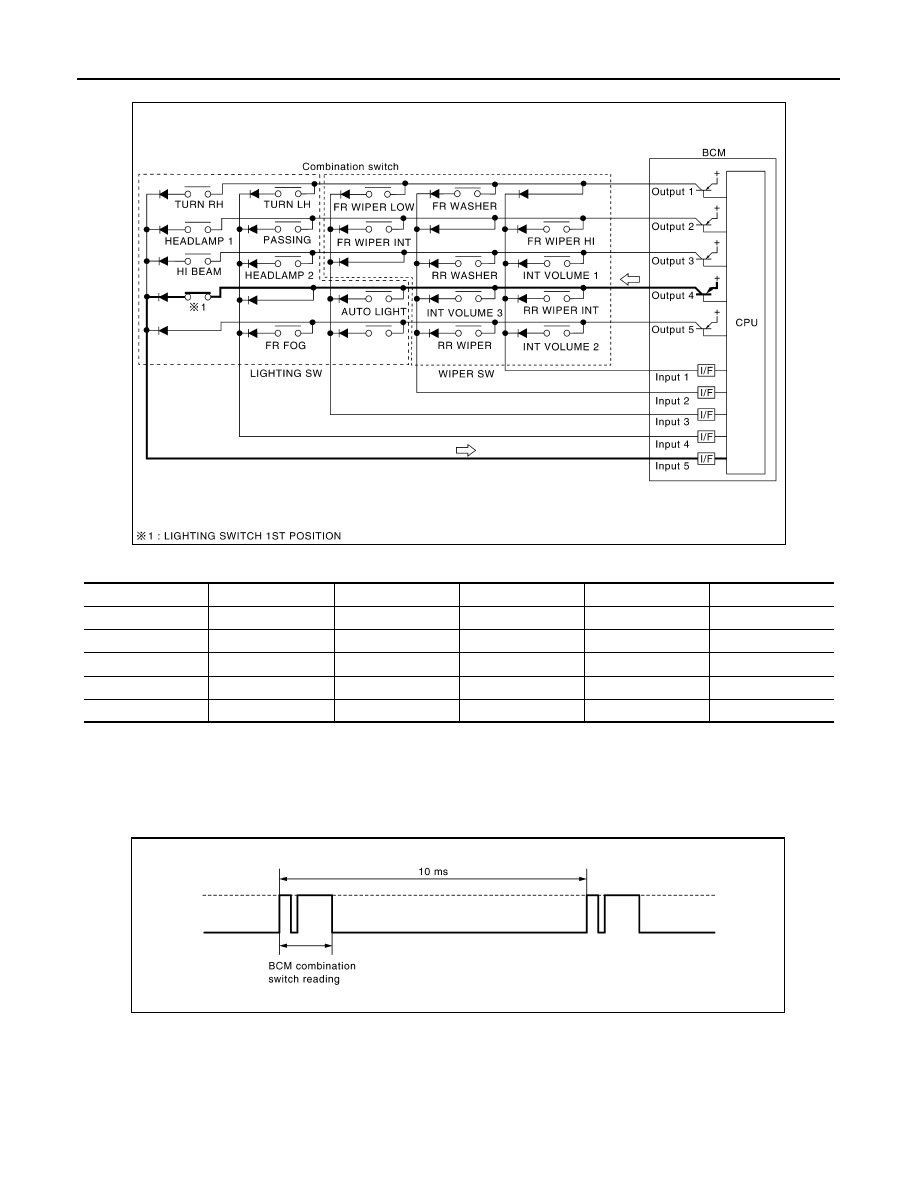

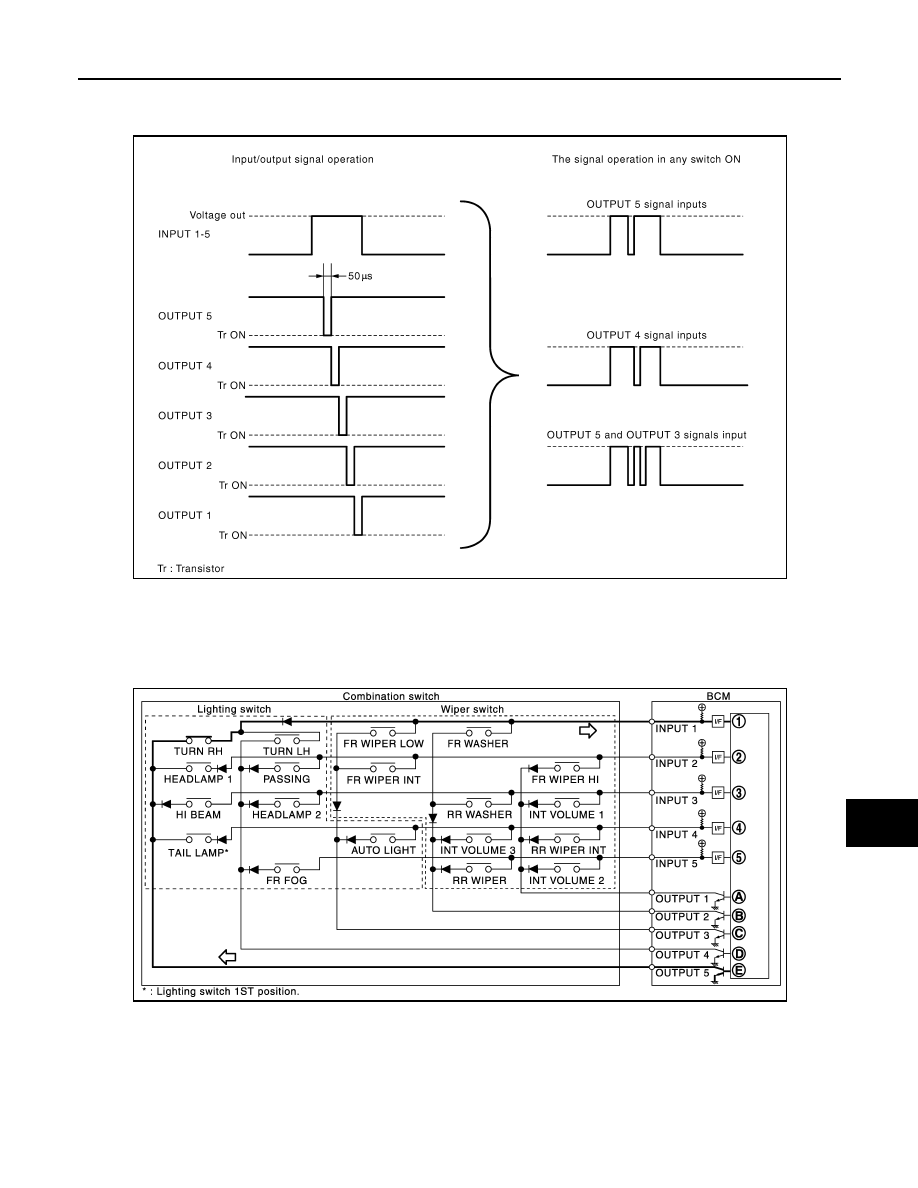

BCS COMBINATION SWITCH READING SYSTEM BCS-7 < FUNCTION DIAGNOSIS > [BCM] C D E F G H I J K L B A O P N COMBINATION SWITCH READING SYSTEM System Diagram INFOID:0000000005146386 System Description INFOID:0000000005146387 OUTLINE • BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the status of each switch. • BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a maximum of 20 switch status. COMBINATION SWITCH MATRIX LIIA0757E |
