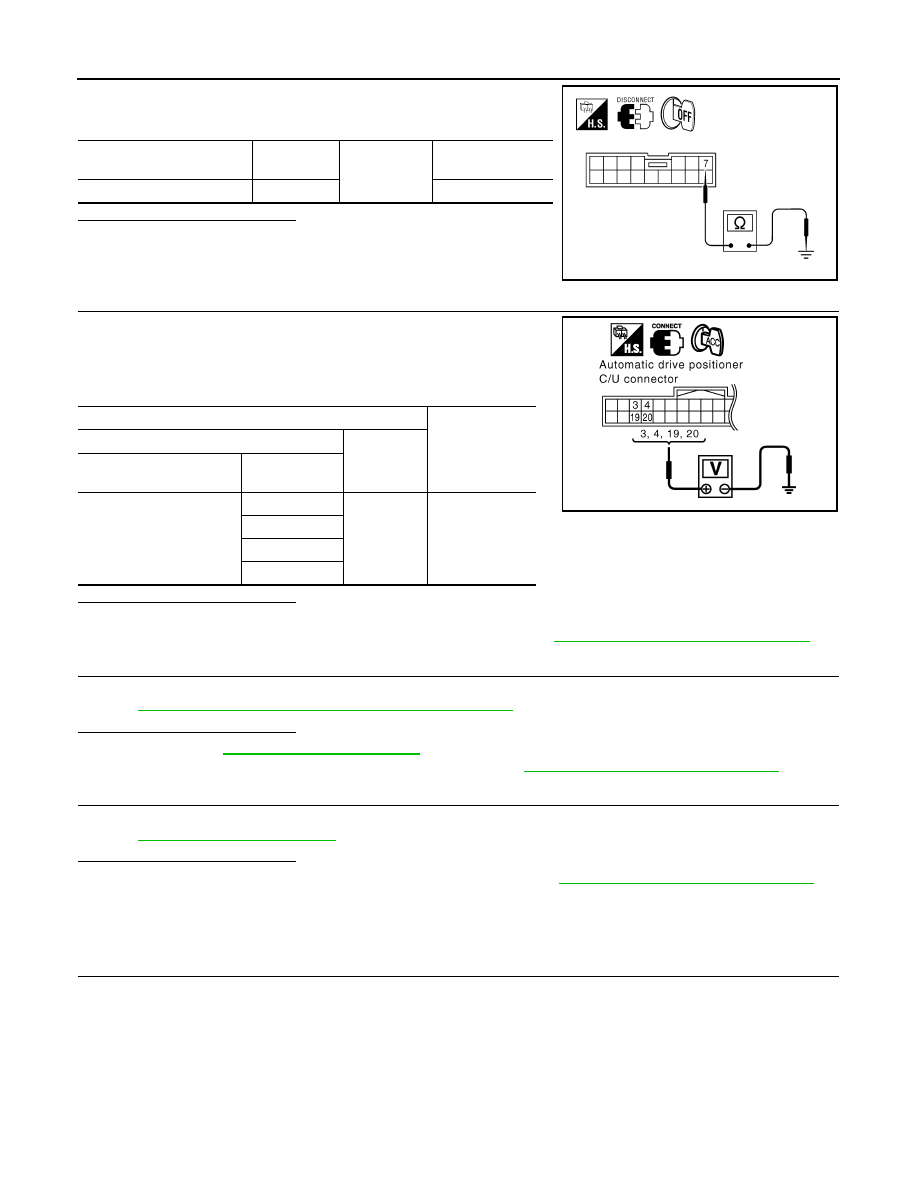

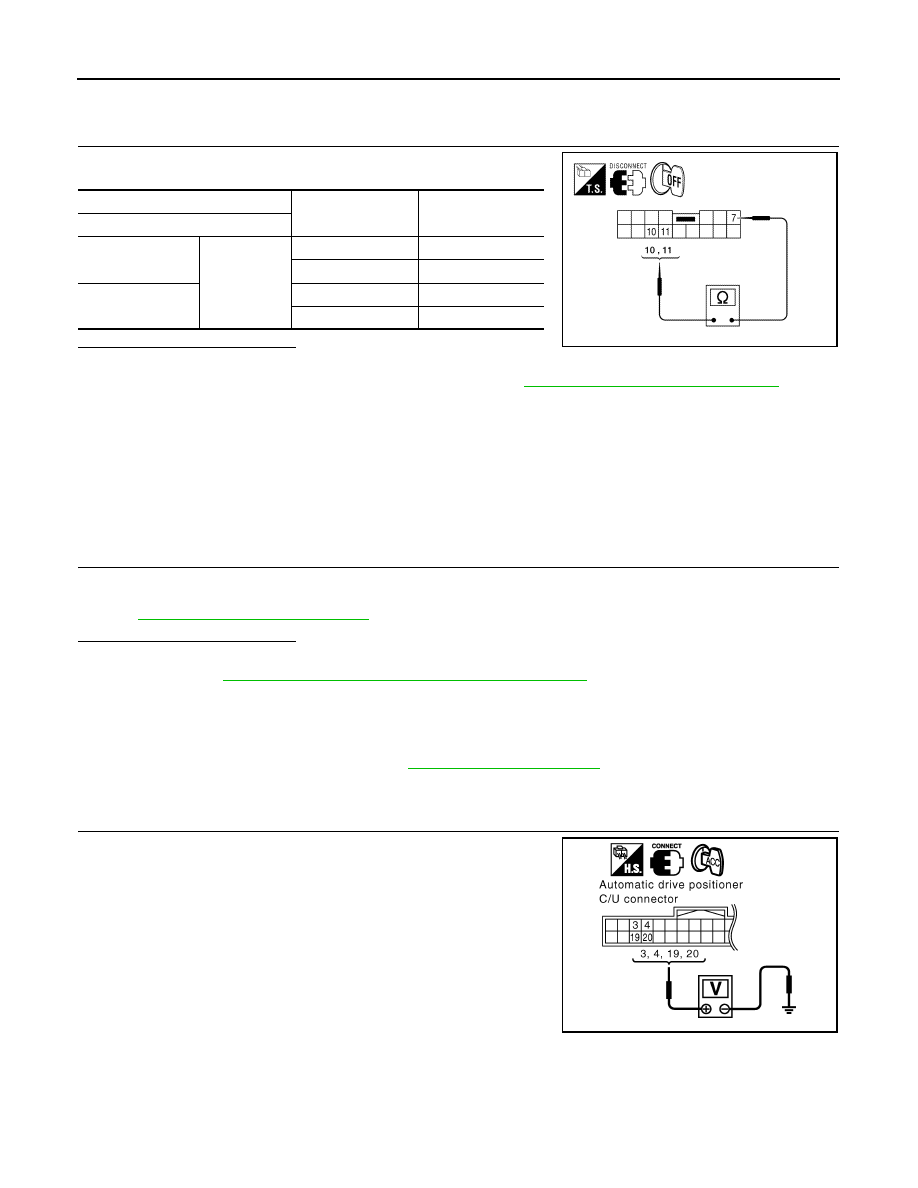

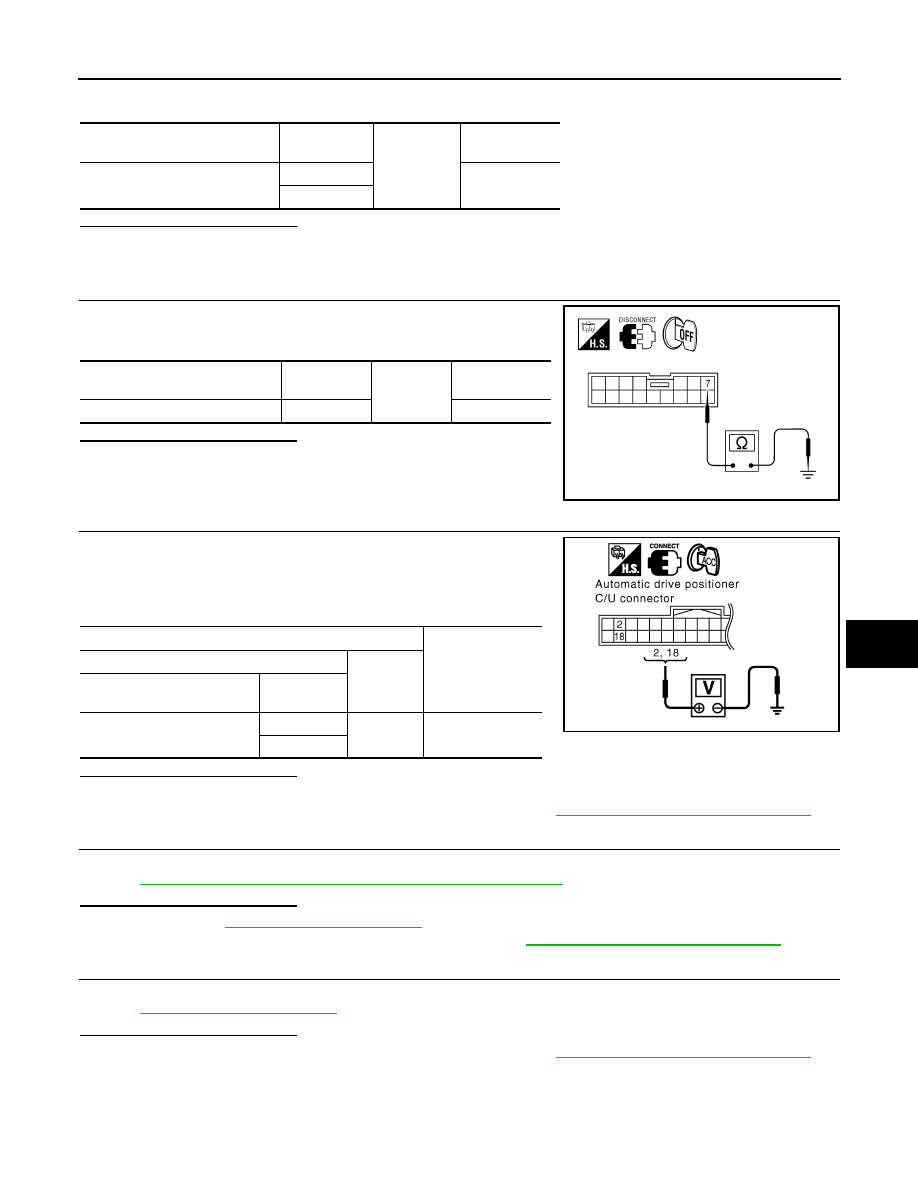

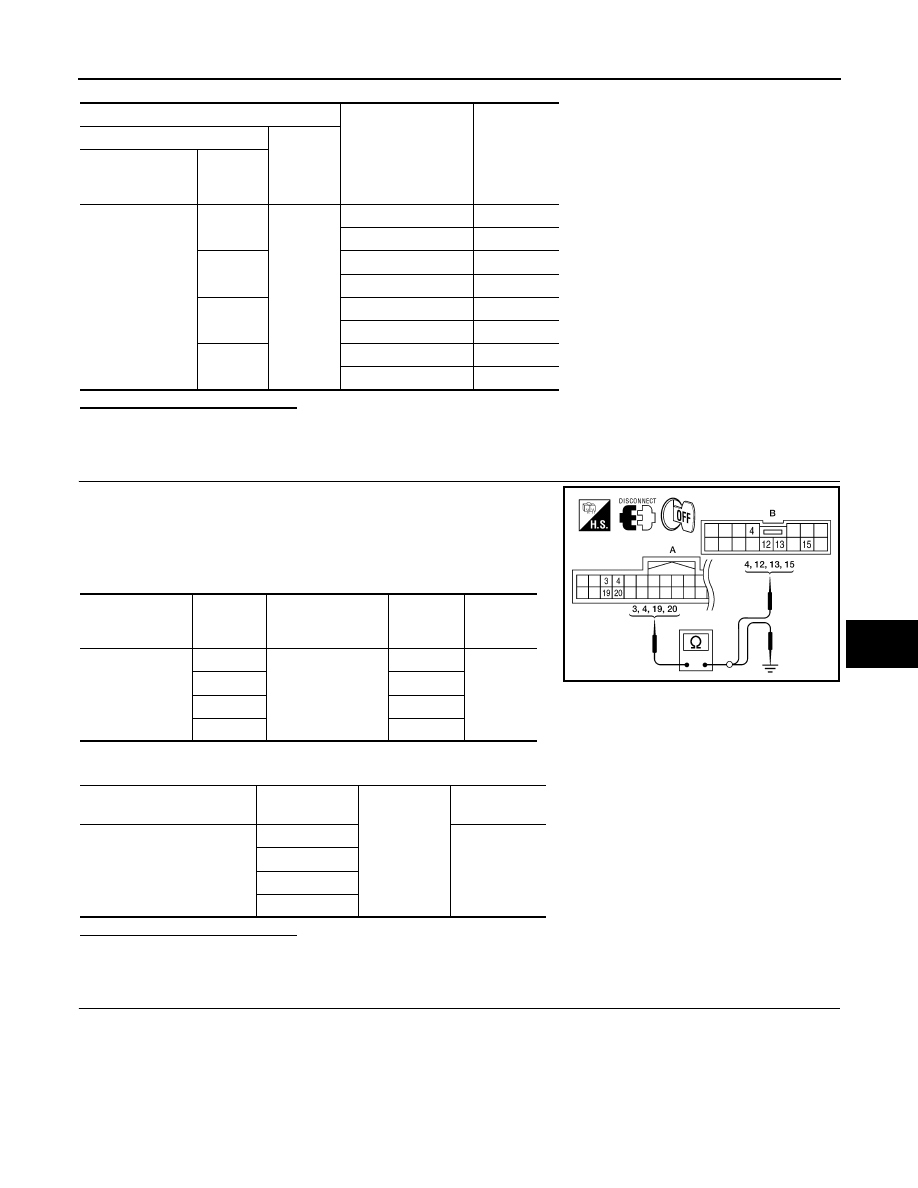

DOOR MIRROR REMOTE CONTROL SWITCH ADP-71 < COMPONENT DIAGNOSIS > C D E F G H I K L M A B ADP N O P 4. Check continuity between automatic drive positioner control unit connector and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT Check continuity between door mirror remote control switch connec- tor and ground. Is the inspection result normal? YES >> GO TO 4 NO >> Repair or replace harness. 4. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL 1. Connect automatic drive positioner control unit. 2. Turn ignition switch to ACC. 3. Check voltage between automatic drive positioner control unit connector and ground. Is the inspection result normal? YES >> GO TO 5 NO >> Replace automatic drive positioner control unit. Refer to ADP-175, "Removal and Installation" . 5. CHECK CHANGEOVER SWITCH Check changeover switch. ADP-72, "CHANGEOVER SWITCH : Component Inspection" . Is the inspection result normal? YES >> Refer to GI-38, "Intermittent Incident" . NO >> Replace door mirror remote control switch. Refer to ADP-177, "Removal and Installation" 6. CHECK INTERMITTENT INCIDENT Check intermittent incident. GI-38, "Intermittent Incident" . Is the inspection result normal? YES >> Replace automatic drive positioner control unit. Refer to ADP-175, "Removal and Installation" . NO >> Repair or replace the malfunctioning parts. Automatic drive positioner control unit connector Terminal Ground Continuity M33 (A) 2 No 18 Door mirror remote control switch connector Terminal Ground Continuity D10 7 Yes ALJIA0189ZZ Terminals Voltage (V) (Approx.) (+) (-) Automatic drive positioner control unit connector Terminal M33 2 Ground 5 18 PIIA4767E |
