PCS-44

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

LOCK INDICATOR

This test is able to check LOCK indicator (push-button ignition switch) operation
• On: Operate
• Off: Non-operation

ACC INDICATOR

This test is able to check ACC indicator (push-button ignition switch) operation
• On: Operate
• Off: Non-operation

IGNITION ON IND

This test is able to check ON indicator (push-button ignition switch) operation
• On: Operate
• Off: Non-operation

HORN

This test is able to check horn operation
• On: Operate
• Off: Non-operation

TRUNK/BACK DOOR

NOTE:
This item is displayed, but cannot be used

Test item

Description

PCS

BCM

PCS-45

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000006220200

ECU

Reference

BCM

BCS-33, "Reference Value"

BCS-54, "Fail-safe"

BCS-56, "DTC Inspection Priority Chart"

BCS-57, "DTC Index"

PCS-46

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

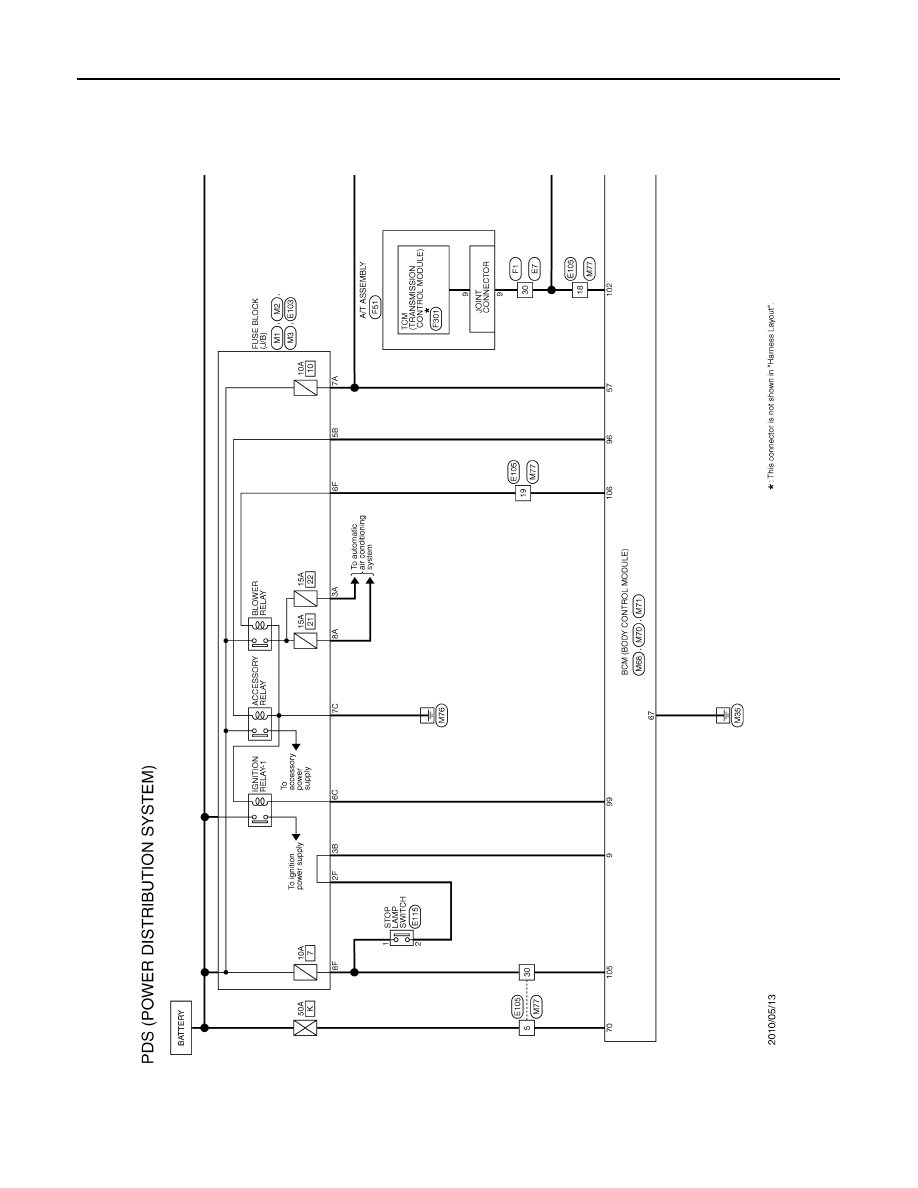

POWER DISTRIBUTION SYSTEM

WIRING DIAGRAM

POWER DISTRIBUTION SYSTEM

Wiring Diagram

INFOID:0000000006220201

JCMWM8329GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-47

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8330GB
