Infiniti QX56 (Z62). Manual - part 967

PCS-24

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

WIRING DIAGRAM

IPDM E/R

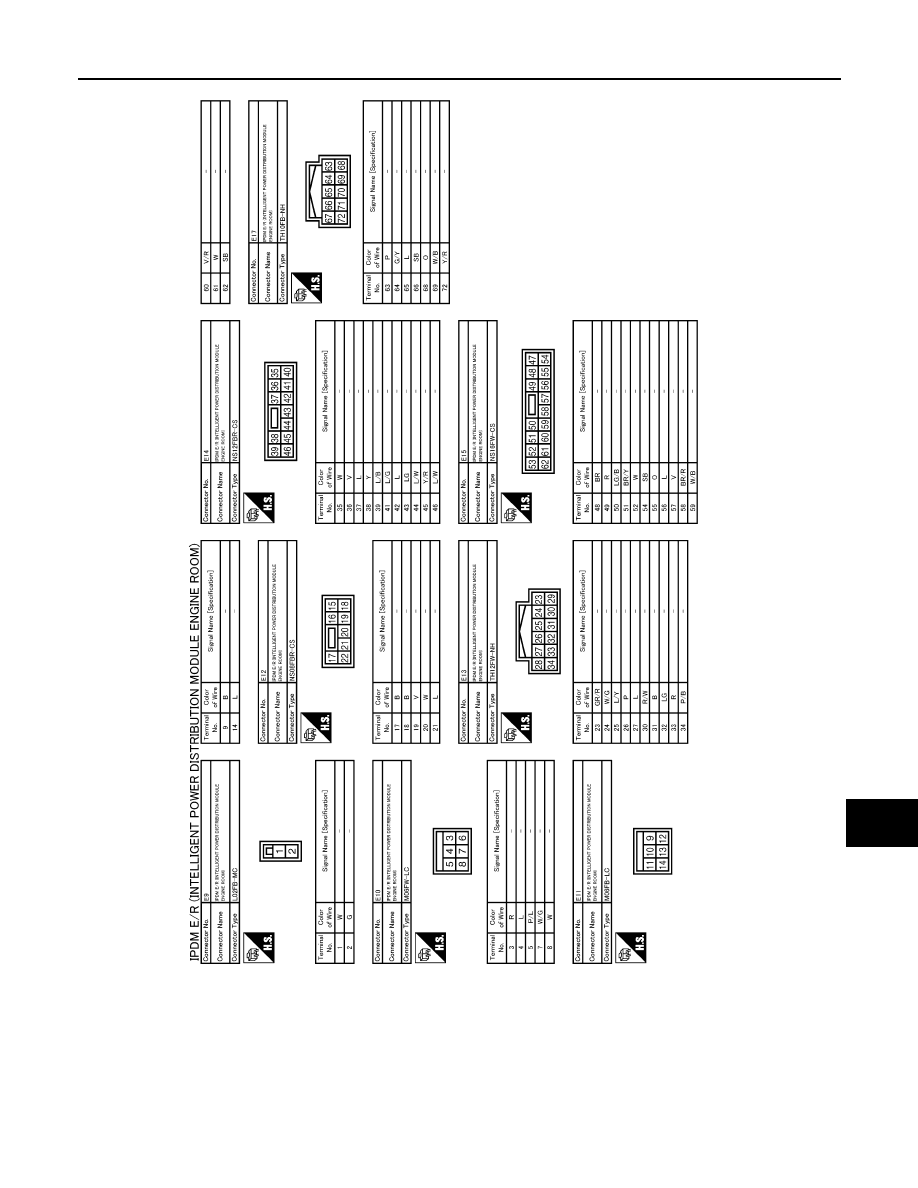

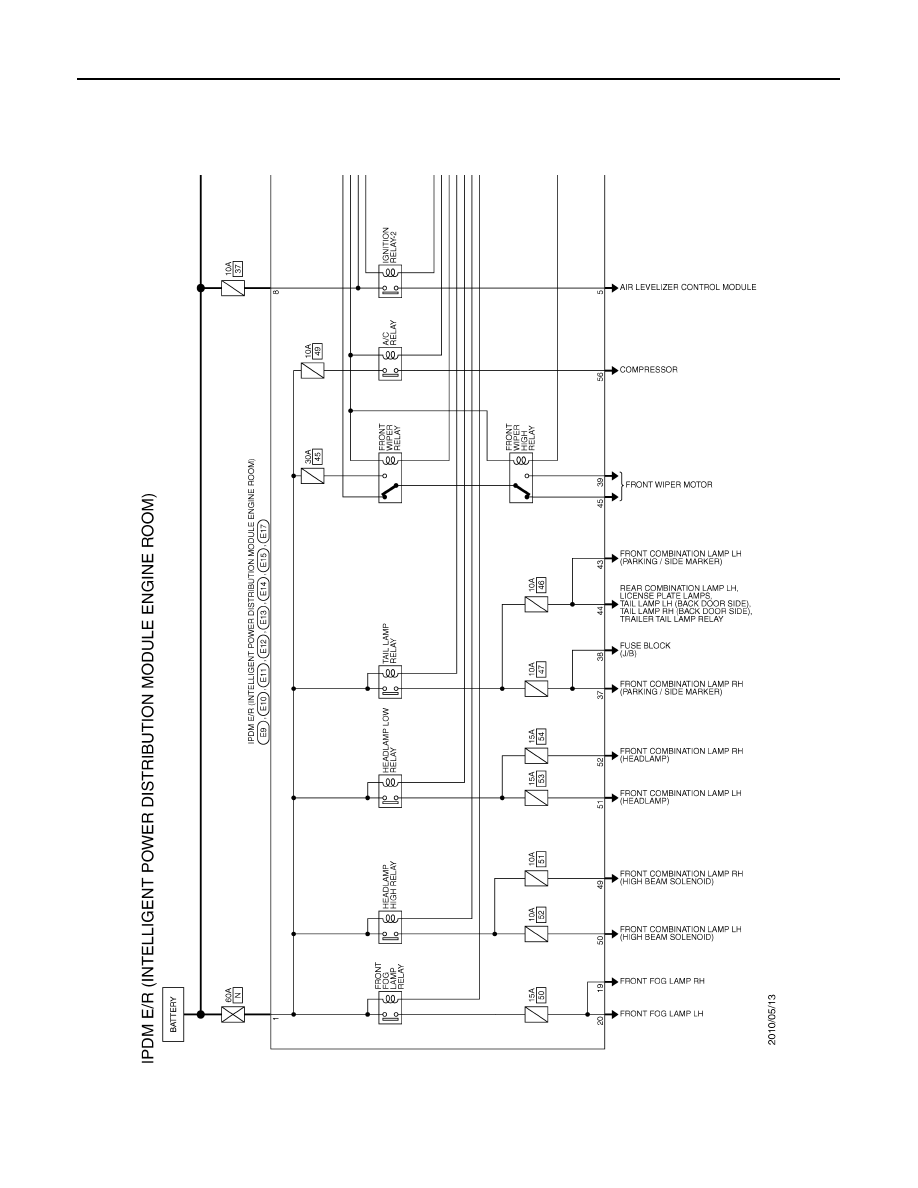

Wiring Diagram

INFOID:0000000006220175

JCMWM8325GB

PCS

IPDM E/R

PCS-25

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8326GB

PCS-26

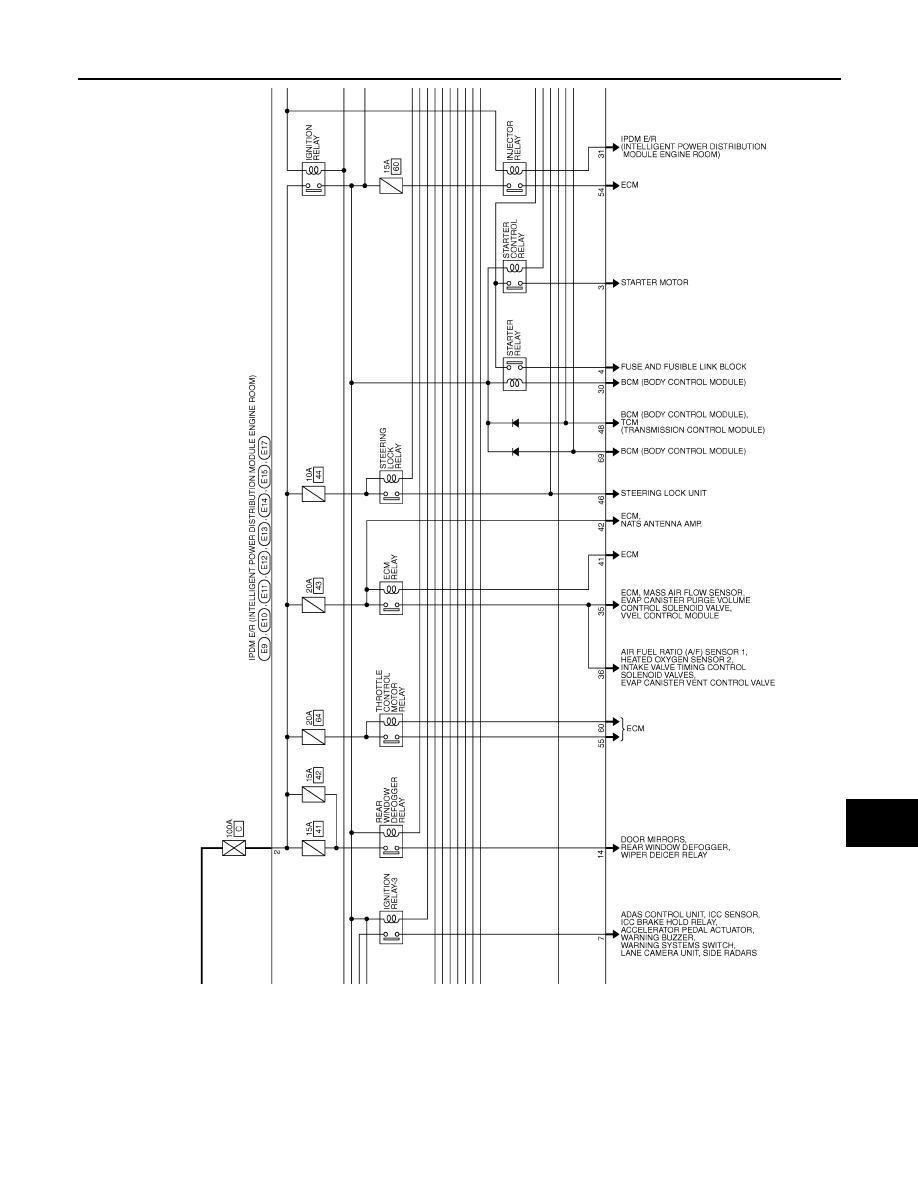

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

JCMWM8327GB

PCS

IPDM E/R

PCS-27

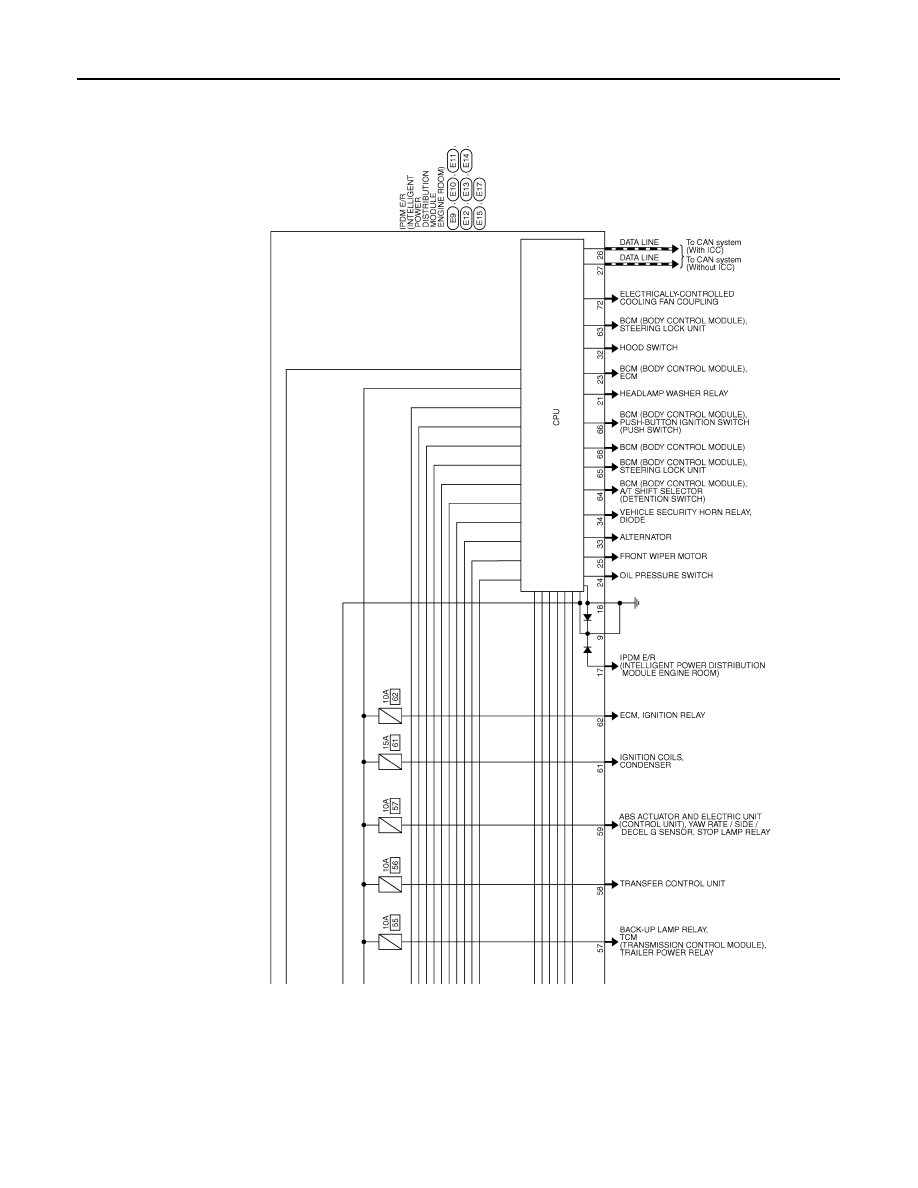

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8328GB
