SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

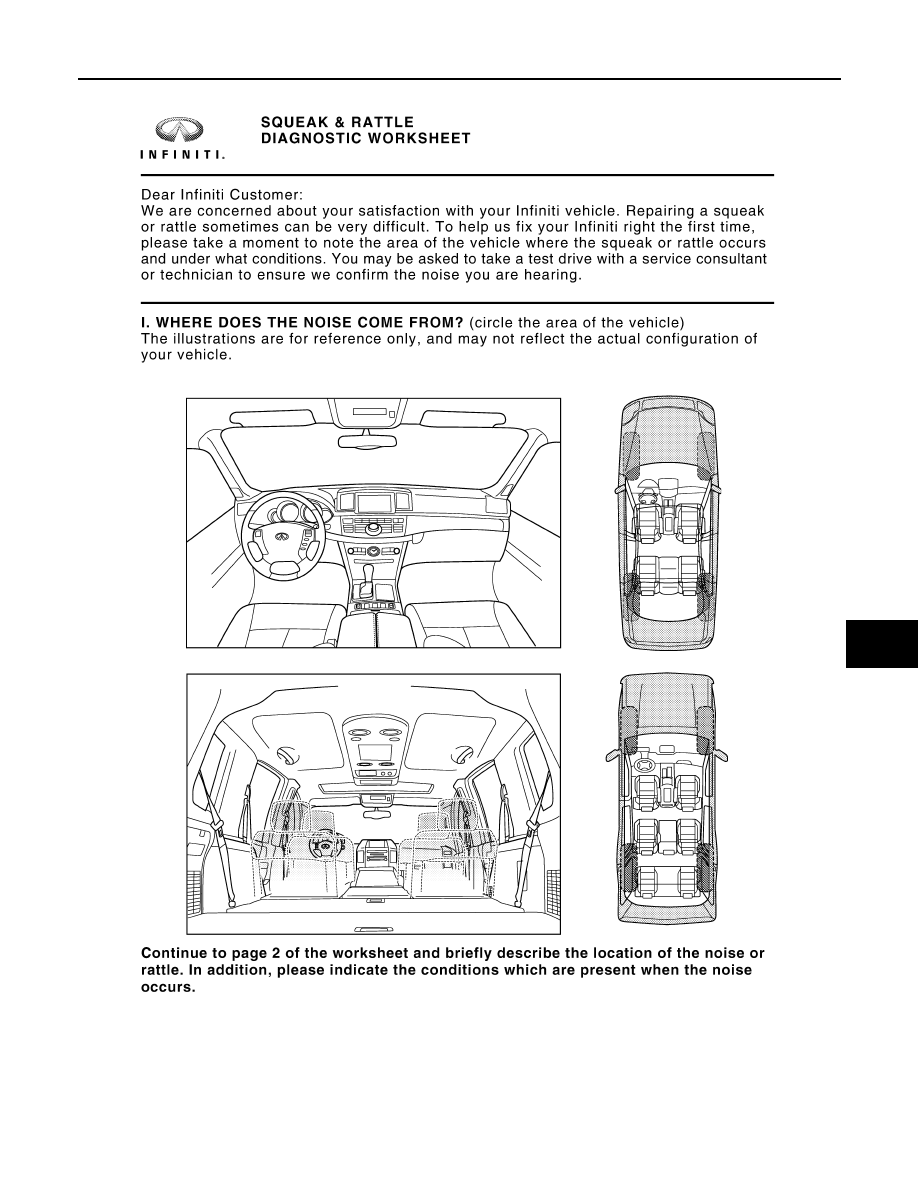

Diagnostic Worksheet

INFOID:0000000006425525

PIIB8741E

IP-12

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

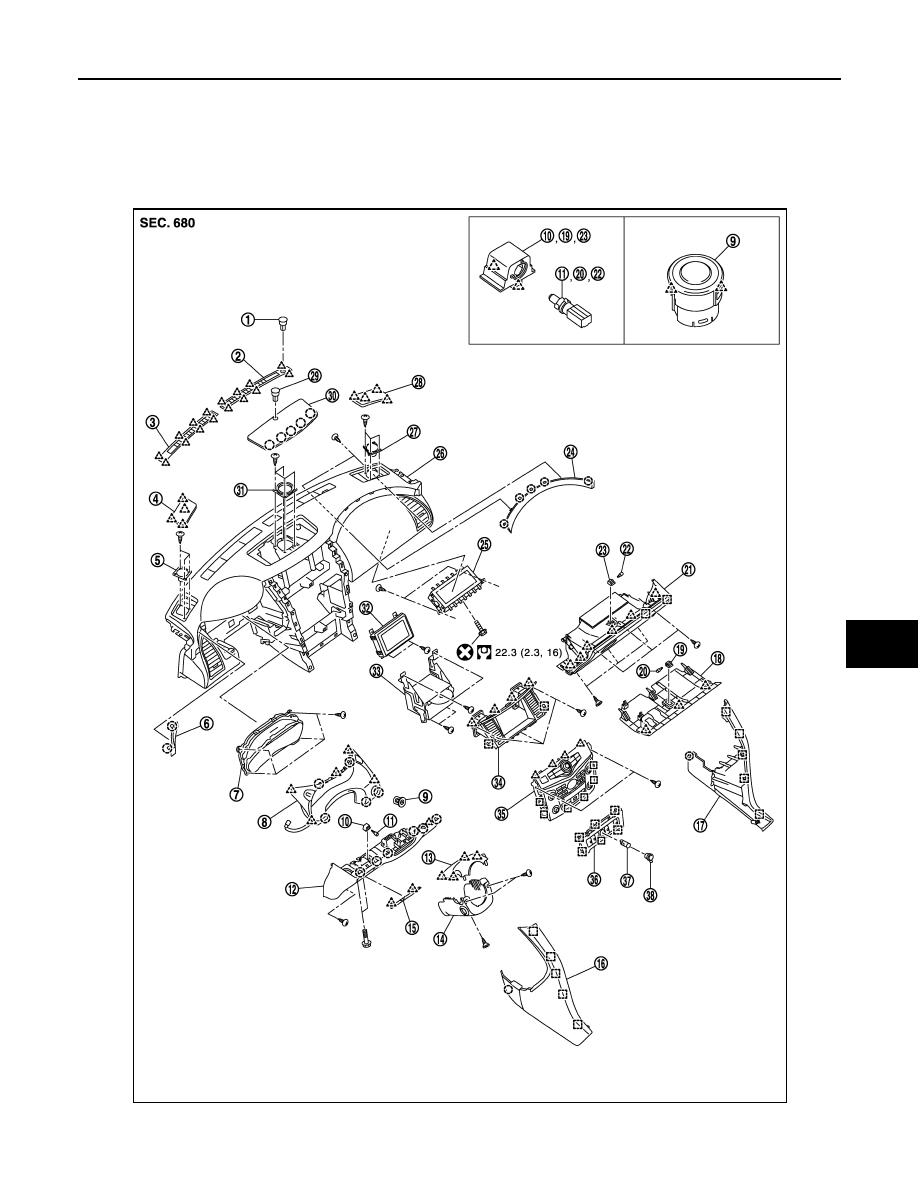

Exploded View

INFOID:0000000006113097

JMJIA4492GB

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000006113098

WORK STEP

When removing instrument panel assembly, combination meter, front display unit, AV control unit, instrument
finisher A, instrument finisher B, and center console assembly take steps as per the order shown in the follow-
ing chart.

1.

Optical sensor

2.

Front defroster grille RH

3.

Front defroster grille LH

4.

Speaker grille LH

5.

Squawker LH

6.

Instrument finisher A

7.

Combination meter

8.

Cluster lid A

9.

Push-button ignition switch

10. Illumination lamp

11.

Socket and bulb

12. Instrument lower panel LH

13. Steering column upper cover

14. Steering column lower cover

15. Fuse block lid

16. Instrument center finisher LH

17. Instrument center finisher RH

18. Instrument lower cover

19. Illumination lamp

20. Socket and bulb

21. Glove box assembly

22. Socket and bulb

23. Illumination lamp

24. Instrument finisher B

25. Front passenger air bag module

26. Instrument panel assembly

27. Squawker RH

28. Speaker grille RH

29. Sunload sensor

30. Upper ventilator grille

31. Center speaker

32. Front display unit

33. AV control unit

34. Cluster lid D

35. Cluster lid C

36. Cluster lid C lower

37. Inner socket

38. Socket knob

: Clip

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

PARTS

INSTRU-

MENT

PANEL

ASSEMBLY

COMBINA-

TION

METER

FRONT

DISPLAY

UNIT

AV control

unit

INSTRU-

MENT

FINISHER

A

INSTRU-

MENT

FINISHER

B

CENTER

CONSOLE

ASSEMBLY

Instrument lower cover

[1]

[1]

[1]

[1]

[1]

Glove box assembly

[2]

[2]

Front passenger air bag module
harness connector

[3]

[3]

Front passenger air bag module
mounting bolt

[4]

[4]

Selector lever knob

[5]

[2]

[2]

[5]

[2]

Console finisher assembly

[6]

[3]

[3]

[6]

[3]

Instrument center finisher RH

[7]

[4]

[4]

[7]

[4]

Front body side welt RH

[8]

[8]

Front pillar garnish RH

[9]

[9]

Speaker grille RH

[10]

[10]

Squawker RH

[11]

[11]

Front defroster grille RH

[12]

[12]

Front defroster grille LH

[13]

[13]

Instrument center finisher LH

[14]

[5]

[5]

[14]

[5]

Console rear finisher

[15]

[15]

[6]

Center console assembly

[16]

[16]

[7]

Front body side welt LH

[17]

[1]

[1]

[17]

Front pillar garnish LH

[18]

[18]

Speaker grille LH

[19]

[19]
