PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006377028

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

INL-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

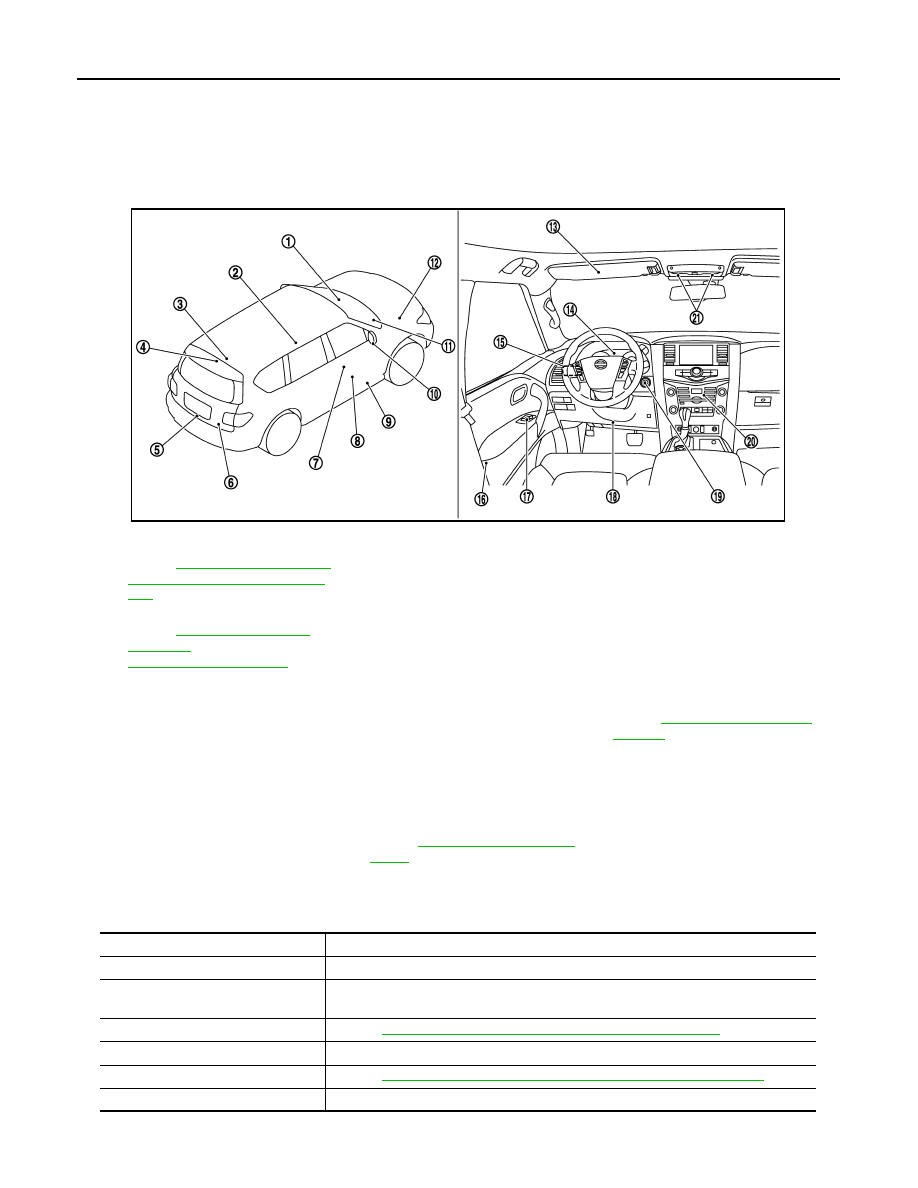

Component Parts Location

INFOID:0000000006216048

Component Description

INFOID:0000000006216049

1.

BCM
Refer to

BCS-4, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

2.

Personal lamp

3.

Luggage room lamp

4.

Remote keyless entry receiver
Refer to

DLK-11, "DOOR LOCK

SYSTEM :
Component Parts Location"

5.

Back door lock assembly
(back door switch)

6.

Automatic back door close switch

7.

Door request switch

8.

Door switch

9.

Step lamp

10. Paddle lamp

11.

Optical sensor

12. IPDM E/R

Refer to

PCS-4, "Component Parts

Location"

13. Vanity mirror lamp

14. Combination meter

15. Combination switch

16. Front door lock assembly (driver

side) (door key cylinder switch, un-
lock sensor)

17. Door lock and unlock switch

18. Foot lamp

19. Push-button ignition switch

20. AV control unit

Refer to

AV-9, "Component Parts Lo-

cation"

21. Map lamp

JMLIA0837ZZ

Part

Description

BCM

Controls the interior lighting system.

IPDM E/R

Controls the integrated relay according to the request signal from BCM (via CAN com-
munication).

Remote keyless entry receiver

Refer to

DLK-12, "DOOR LOCK SYSTEM : Component Description"

.

AV control uni

Receives the dimmer signal from BCM via CAN communication.

Optical sensor

Refer to

EXL-7, "EXTERIOR LIGHTING SYSTEM : Component Description"

.

Unlock sensor

Detects door lock condition of driver side door.

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-7, "COMBINATION SWITCH READING SYSTEM : System Description"

.

• Door lock and unlock switch
• Door request switch
• Door key cylinder switch

Inputs the lock/unlock signal to BCM.

• Door switch
• Back door switch

Inputs the door switch signal to BCM.

Part

Description
