EXHAUST GAS/OUTSIDE ODOR SENSOR

HAC-151

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

EXHAUST GAS/OUTSIDE ODOR SENSOR

Removal and Installation

INFOID:0000000006276007

REMOVAL

1.

Remove bumper molding. Refer to

EXT-13, "Removal and Installation"

.

2.

Remove bolt, and then remove exhaust gas/outside odor sensor.

INSTALLATION

Install in the reverse order of removal.

HAC-152

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

DOOR MOTOR

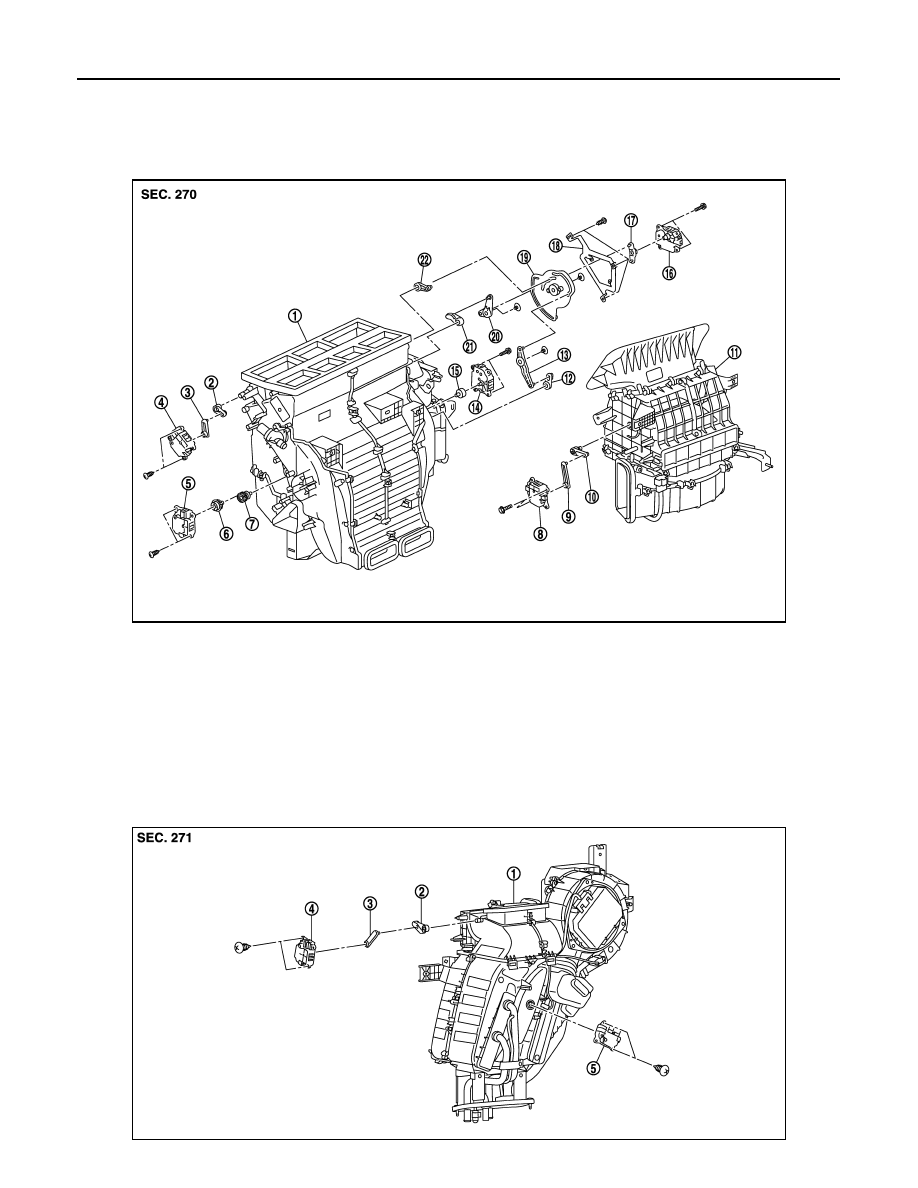

Exploded View

INFOID:0000000006276008

Front A/C unit

Rear A/C unit

JMIIA0645ZZ

1.

A/C unit assembly

2.

Upper ventilator door lever

3.

Upper ventilator door link

4.

Upper ventilator door motor

5.

Air mix door motor LH

6.

Air mix door adaptor B

7.

Air mix door adaptor A

8.

Intake door motor

9.

Intake door motor lever

10. Intake door lever

11.

Blower unit assembly

12. Foot door lever

13. Foot door link

14.

Air mix door motor RH

15. Air mix door adaptor

16. Mode door motor

17.

Mode door motor lever

18. Mode door motor bracket

19. Main link

20.

Ventilator door link

21

Ventilator door lever

22. Defroster lever

JMIIA0646ZZ

DOOR MOTOR

HAC-153

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

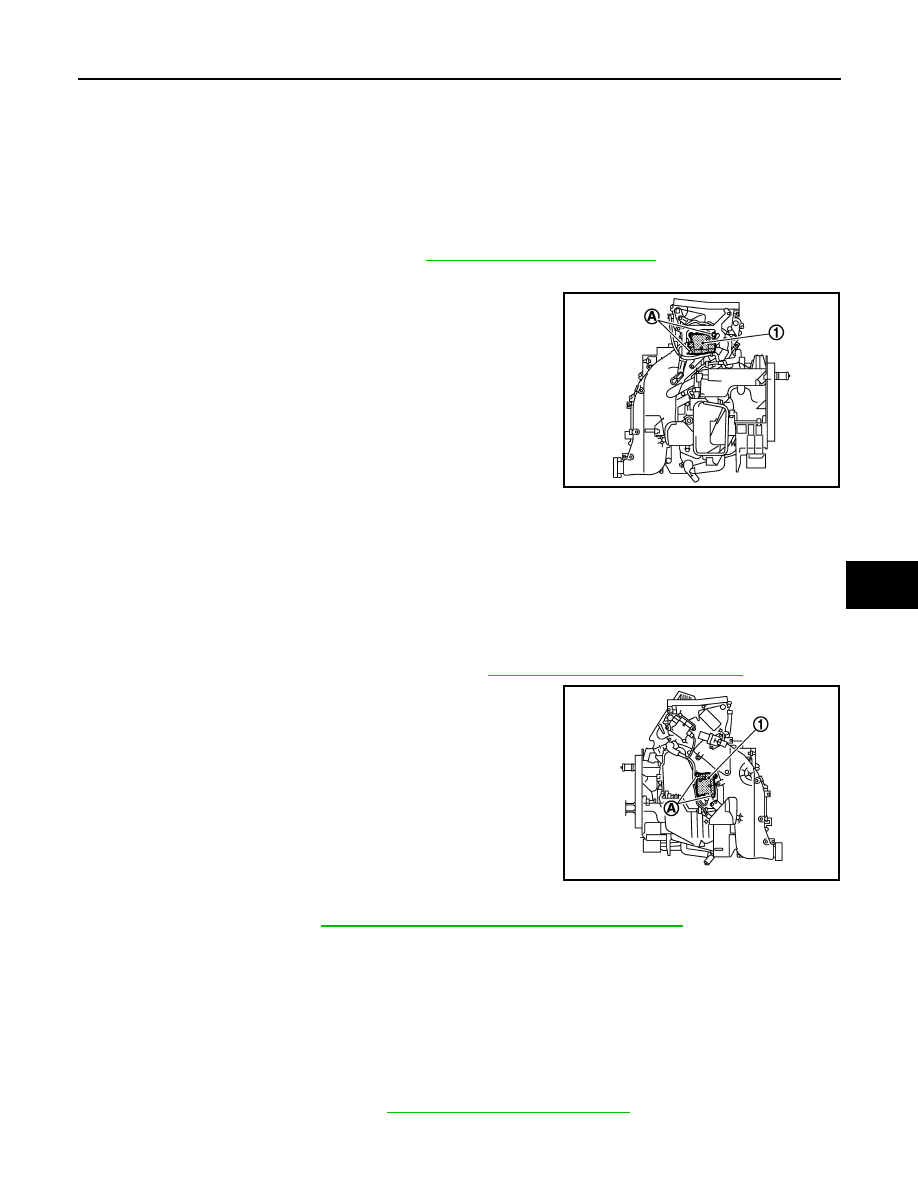

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000006276009

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

2.

Remove power steering control unit bracket.

3.

Remove fixing screws (A), and then remove mode door motor
(1).

4.

Disconnect mode door motor connector.

INSTALLATION

Install in the reverse order of removal.

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000006276010

REMOVAL

Driver side

1.

Remove automatic drive position control unit. Refer to

ADP-136, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove air door motor LH
(1).

3.

Disconnect air mix door motor connector.

Passenger side

1.

Remove heater core. Refer to

HA-44, "HEATER CORE : Removal and Installation"

.

2.

Remove fixing screws, and then remove air mix door motor RH.

INSTALLATION

Install in the reverse order of removal.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000006276011

REMOVAL

1.

Remove blower unit assembly. Refer to

VTL-15, "Removal and Installation"

.

2.

Remove fixing screws, and then remove intake door motor.

1.

Rear A/C unit assembly

2.

Rear mode door lever 2

3.

Rear mode door lever 1

4.

Rear mode door motor

5.

Rear air mix door motor

JMIIA0790ZZ

JMIIA0788ZZ

HAC-154

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

3.

Disconnect intake door motor connector.

INSTALLATION

Install in the reverse order of removal.

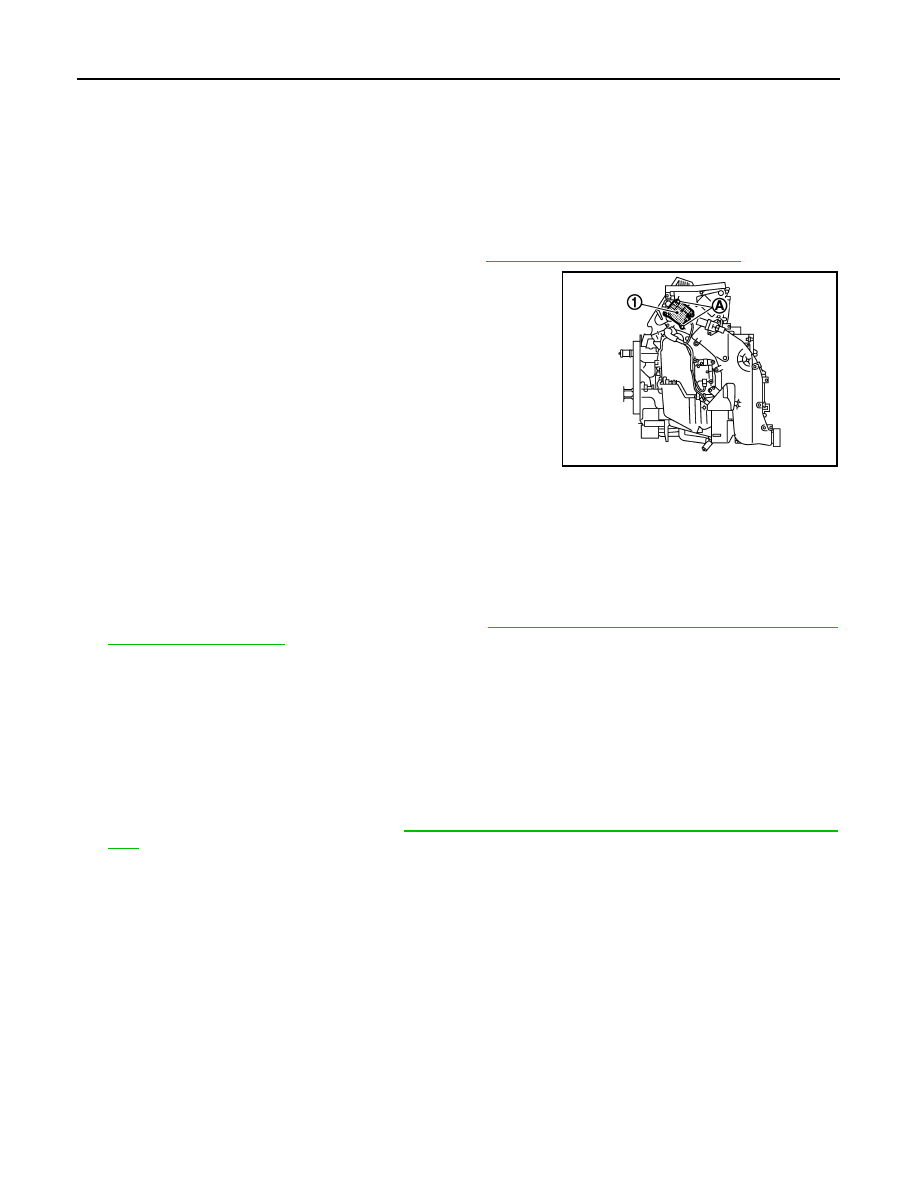

UPPER VENTILATOR DOOR MOTOR

UPPER VENTILATOR DOOR MOTOR : Removal and Installation

INFOID:0000000006276012

REMOVAL

1.

Remove automatic drive position control unit. Refer to

ADP-136, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove intake door motor
(1).

3.

Disconnect intake door motor connector.

INSTALLATION

Install in the reverse order of removal.

REAR MODE DOOR MOTOR

REAR MODE DOOR MOTOR : Removal and Installation

INFOID:0000000006276013

REMOVAL

1.

Remove luggage side lower finisher RH. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Remove fixing screws, and then remove rear mode door motor.

INSTALLATION

Install in the reverse order of removal.

REAR AIR MIX DOOR MOTOR

REAR AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000006276014

REMOVAL

1.

Remove rear A/C unit assembly. Refer to

HA-47, "REAR A/C UNIT ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove fixing screws, and then remove air mix door motor.

INSTALLATION

Install in the reverse order of removal.

JMIIA0789ZZ
