Infiniti QX56 (Z62). Manual - part 685





EXL-32

< SYSTEM DESCRIPTION >

[XENON TYPE]

DIAGNOSIS SYSTEM (AFS)

DIAGNOSIS SYSTEM (AFS)

CONSULT-III Function (ADAPTIVE LIGHT)

INFOID:0000000006213915

APPLICATION ITEM

WORK SUPPORT

*: Adjusts the steering angle sensor neutral position on ABS actuator and electrical unit (control unit) side. Refer to

BRC-64, "Work Pro-

cedure"

.

DATA MONITOR

*: The swivel angle "0

°

" (feedback value) of the swivel position sensor signal may differ from the swivel angle "0

°

" of the swivel motor

(AFS control unit command value). This causes that the swivel motor initializes the value based on the step number from the stopper.

ACTIVE TEST

Diagnostic mode

Description

Ecu Identification

Allows confirmation of AFS control unit part number.

Self Diagnostic Result

Displays the diagnosis results judged by AFS control unit.

Work support

Sets each sensor.

Data monitor

Indicates AFS control unit input data in real time.

Active test

Provides the drive signal to the load. Checks operation.

Service item

Description

ST ANG SEN ADJUSTMENT

*

LEVELIZER ADJUSTMENT

Adjusts the height sensor signal output value (AFS control unit recognized) in the un-
loaded vehicle condition.

Monitor item

[Unit]

Description

STR ANGLS SIG
[deg]

The steering angle value judged by the steering angle sensor signal received from
the steering angle sensor via CAN communication

VHCL SPD
[km/h]

The vehicle speed signal value from the combination meter via CAN communication

SLCT LVR POSI
[P/R/N/D/M/FF]

The selector lever status judged by the position indicator signal received from TCM
via CAN communication

HEAD LAMP
[On/Off]

The headlamp On/Off status judged by the low beam headlamp (ON) signal received
from IPDM E/R via CAN communication

AFS SW
[On/Off]

The AFS On/Off status judged by AFS control unit

HI SEN OTP RR
[V]

The rear height sensor signal voltage value input from the rear height sensor

HI SEN OTP FR
[V]

The front height sensor signal voltage value input from the front height sensor

LEV ACTR VLTG
[%]

The ratio value to the battery voltage generated by the levelizer activation signal con-
trol value judged by AFS control unit

SWVL SEN RH

*

[deg]

The head lamp swivel angle value judged by AFS control unit received from the swiv-
el position sensor signal input from the swivel actuator

SWVL SEN LH

*

[deg]

SWVL ANGLE RH

*

[deg]

The swivel angle command value to the swivel motor judged by AFS control unit

SWVL ANGLE LH

*

[deg]

DIAGNOSIS SYSTEM (AFS)

EXL-33

< SYSTEM DESCRIPTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAUTION:

Start the engine when using “ACTIVE TEST”.

NOTE:

“Fast” operation speed is as three times fast as “Slow”.

Test item

Operation Item

Description

LOW BEAM TEST RIGHT

Origin Fast

Swivels the right headlamp to the swivel angle 0

°

 in the normal speed.

Peak Fast

Swivels the right headlamp to the swivel angle approximately 15

°

 in the nor-

mal speed.

Origin Slow

Swivels the right headlamp to the swivel angle 0

°

 in the speed at the initial-

ization.

Peak Slow

Swivels the right headlamp to the swivel angle approximately 15

°

 in the

speed at the initialization.

LOW BEAM TEST LEFT

Origin Fast

Swivels the left headlamp to the swivel angle 0

°

 in the normal speed.

Peak Fast

Swivels the left headlamp to the swivel angle approximately 17

°

 in the nor-

mal speed.

Origin Slow

Swivels the left headlamp to the swivel angle 0

°

 in the speed at the initializa-

tion.

Peak Slow

Swivels the left headlamp to the swivel angle approximately 17

°

 in the speed

at the initialization.

LEVELIZER TEST

Origin

Changes the aiming motor drive signal to approximately 70% of the battery
voltage. Moves the headlamp upward and downward.

Peak

Changes the aiming motor drive signal to approximately 15% of the battery
voltage. Moves the headlamp upward and downward.

EXL-34

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

BCM, IPDM E/R

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000006213916

ECU

Reference

BCM

BCS-33, "Reference Value"

BCS-54, "Fail-safe"

BCS-56, "DTC Inspection Priority Chart"

BCS-57, "DTC Index"

IPDM E/R

PCS-15, "Reference Value"

PCS-21, "Fail-Safe"

PCS-22, "DTC Index"

AFS CONTROL UNIT

EXL-35

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AFS CONTROL UNIT

Reference Value

INFOID:0000000006213917

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

STR ANGLE SIG

Steering

Straight-forward

Approx. 0

°

Steering

Approx. -900

°

 - +900

°

VHCL SPD

Driving at 40 km/h (25 MPH)

40 km/h

SLCT LVR POSI

Selector lever operation

P - 1

HEAD LAMP

Light switch

2ND

On

Other than 2ND

Off

AFS SW

AFS switch

ON

On

OFF

Off

HI SEN OTP FR

Vehicle front height

Unloaded vehicle condition

Approx. 3.5 V

Low (Leveling operation
downward edge)

Approx. 1.6 V

HI SEN OTP RR

Vehicle rear height

Unloaded vehicle condition

Approx. 3.2 V

Low (Leveling operation
downward edge)

Approx. 1.5 V

LEV ACTR VLTG

Headlamp leveling

Unloaded vehicle condition

Approx. 60.0%

Low (Leveling operation
downward edge)

Approx. 58.7%

SWVL SEN RH

Right headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL SEN LH

Left headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL ANGLE RH

Right headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL ANGLE LH

Left headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

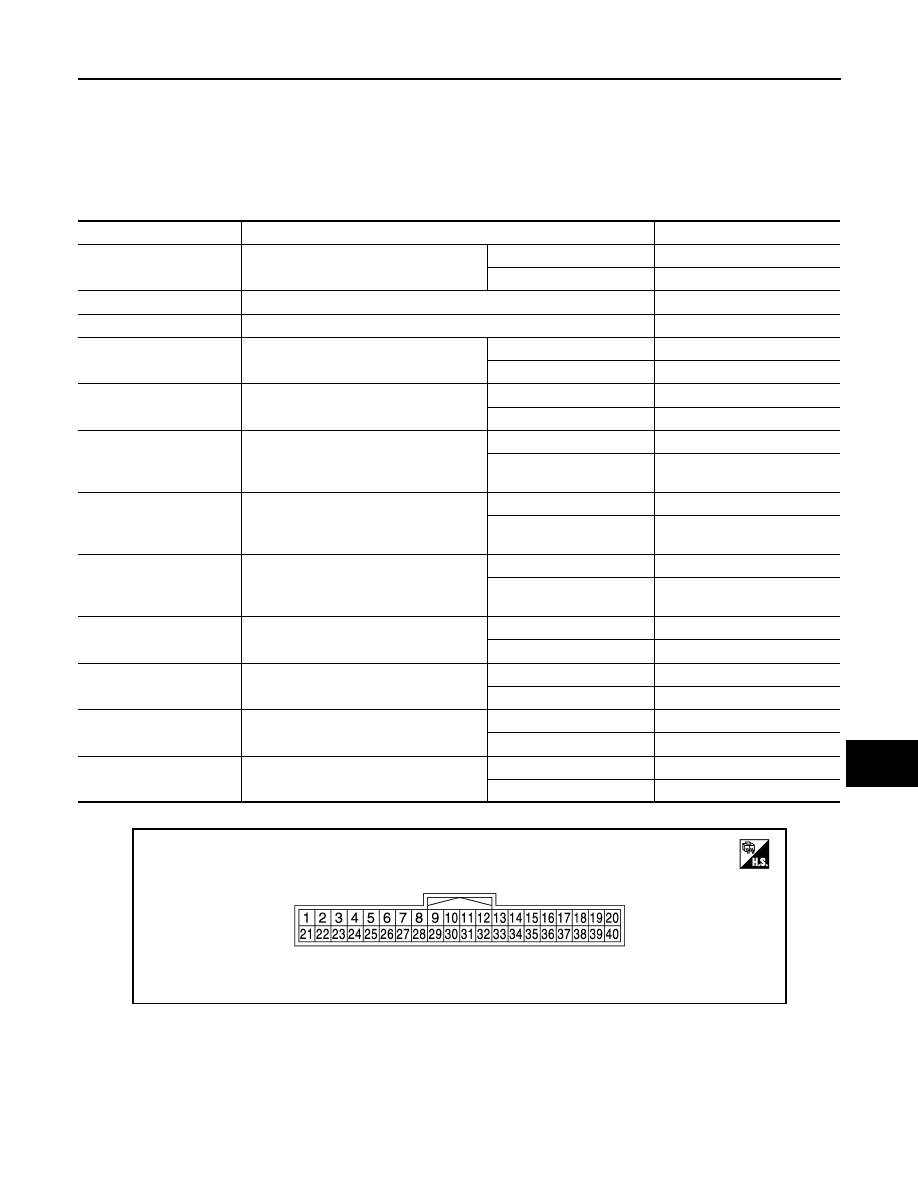

JMLIA0753ZZ
