EM-36

< REMOVAL AND INSTALLATION >

VVEL ACTUATOR ASSEMBLY

VVEL ACTUATOR ASSEMBLY

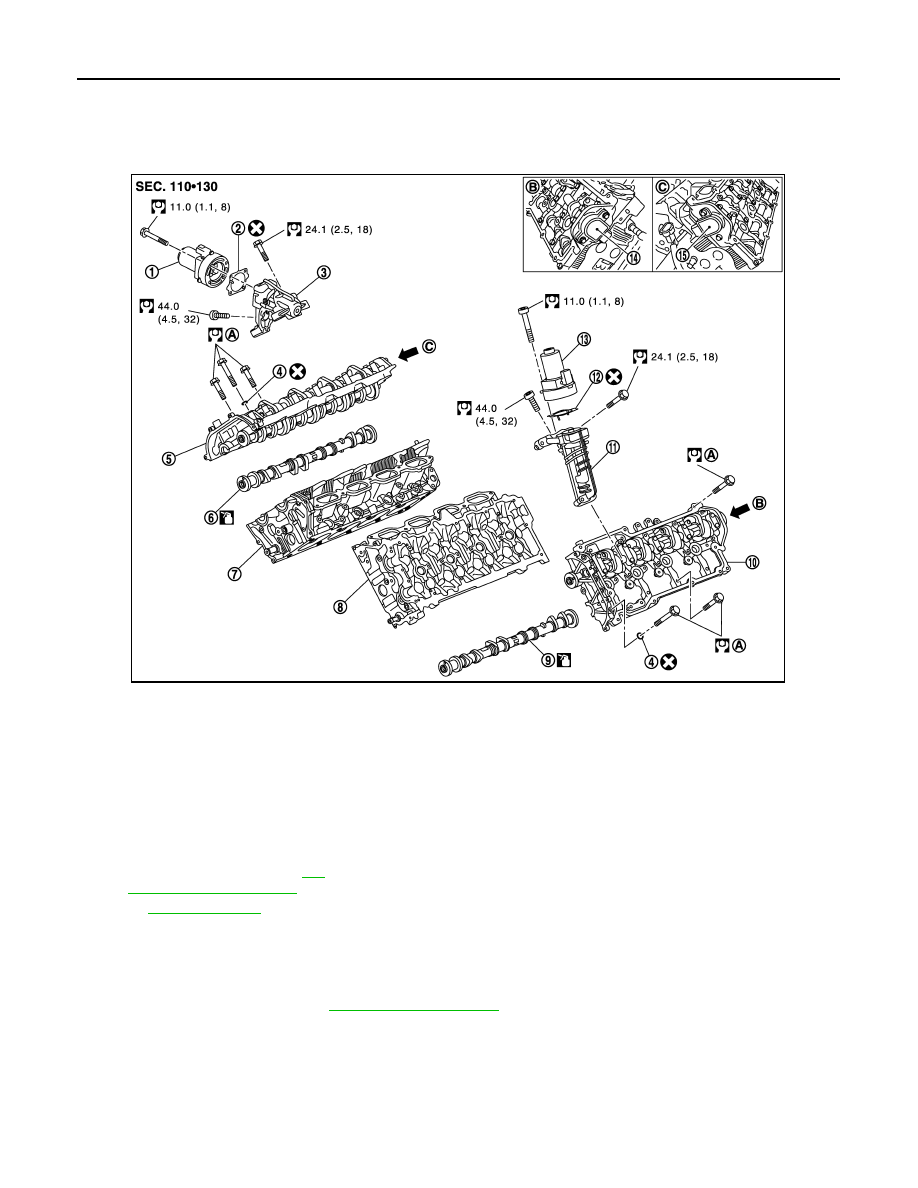

Exploded View

INFOID:0000000006289547

Removal and Installation

INFOID:0000000006289548

REMOVAL

1.

Remove engine cover. Refer to

EM-25, "Exploded View"

.

1.

VVEL actuator motor assembly
(bank 2)

2.

Gasket

3.

VVEL actuator housing assembly
(bank 2)

4.

Washer

5.

VVEL ladder assembly (bank 2)

6.

Exhaust camshaft (bank 2)

7.

Cylinder head (bank 2)

8.

Cylinder head (bank 1)

9.

Exhaust camshaft (bank 1)

10. VVEL ladder assembly (bank 1)

11.

VVEL actuator housing assembly
(bank 1)

12. Gasket

13.

VVEL actuator motor assembly
(bank 1)

14.

VVEL control shaft position sensor
(bank 1)

15.

VVEL control shaft position sensor
(bank 2)

A.

Comply with the installation proce-
dure when tightening. Refer to

EM-

75, "Removal and Installation"

.

B.

View B

C.

View C

Refer to

GI-4, "Components"

 for symbols in the figure.

JSBIA0403GB

VVEL ACTUATOR ASSEMBLY

EM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Loosen mounting bolts (C), and then remove VVEL actuator
motor assembly (1).

CAUTION:

Never loosen screws (A) of VVEL actuator motor assembly.

3.

Remove rocker cover. Refer to

EM-33, "Exploded View"

.

4.

Insert mounting bolt (A) removed at step 2 into VVEL actuator
housing assembly.

5.

Loosen mounting bolt (C) to disengage the control shaft and the actuator arm.

A

:  Bank  2

B

:  Bank  1

: Engine front

JPBIA3487ZZ

JPBIA3866ZZ

JSBIA0529ZZ

EM-38

< REMOVAL AND INSTALLATION >

VVEL ACTUATOR ASSEMBLY

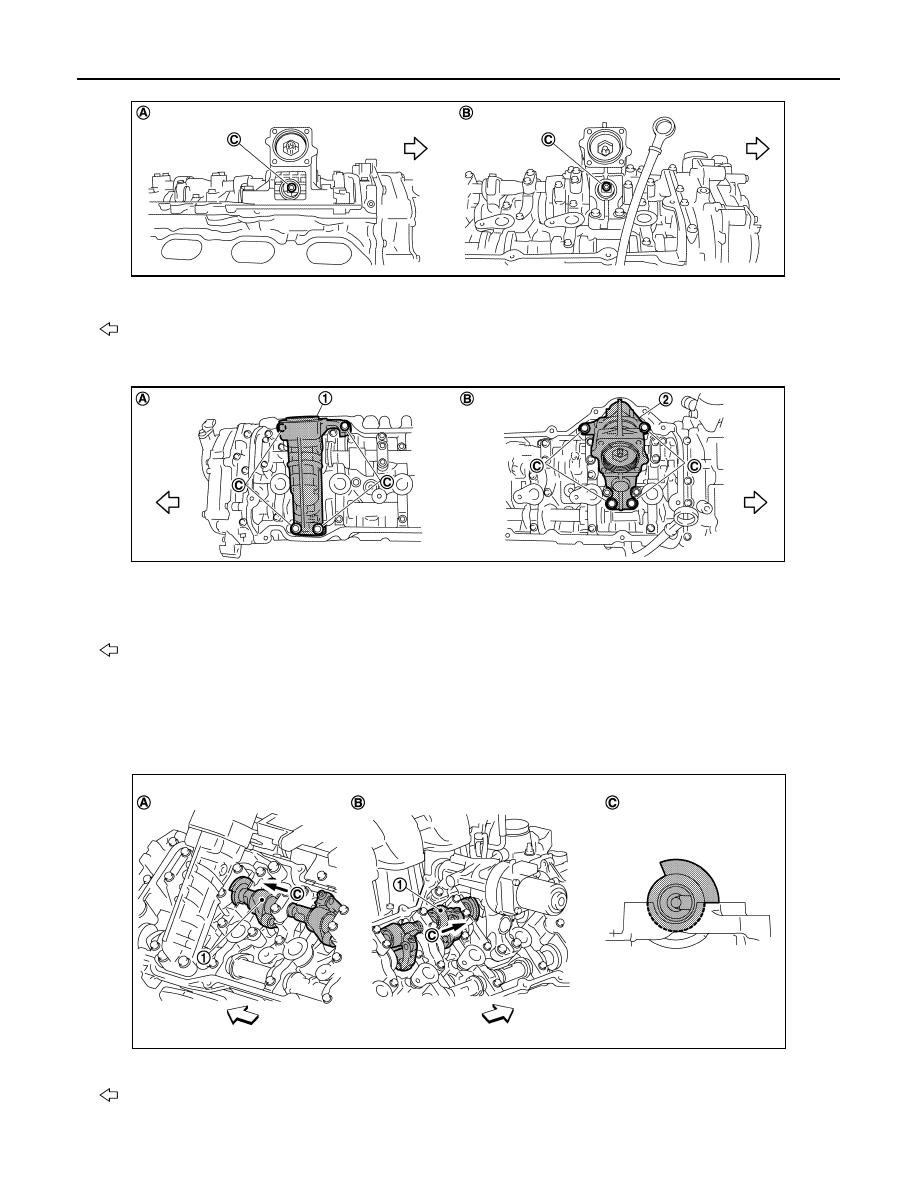

6.

Loosen mounting bolts (C), and then remove VVEL actuator housing assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When disengaging the control shaft (1) and the actuator arm, hold the stopper of the control shaft in the posi-

tion shown in the figure.

A.

Bank 1

B.

Bank 2

: Engine front

1.

VVEL actuator housing assembly
(bank 1)

2.

VVEL actuator housing assembly
(bank 2)

A.

Bank 1

B.

Bank 2

: Engine front

JPBIA3498ZZ

JPBIA3499ZZ

JSBIA0530ZZ

A.

Bank 1

B.

Bank 2

C.

View C

: Engine front

VVEL ACTUATOR ASSEMBLY

EM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

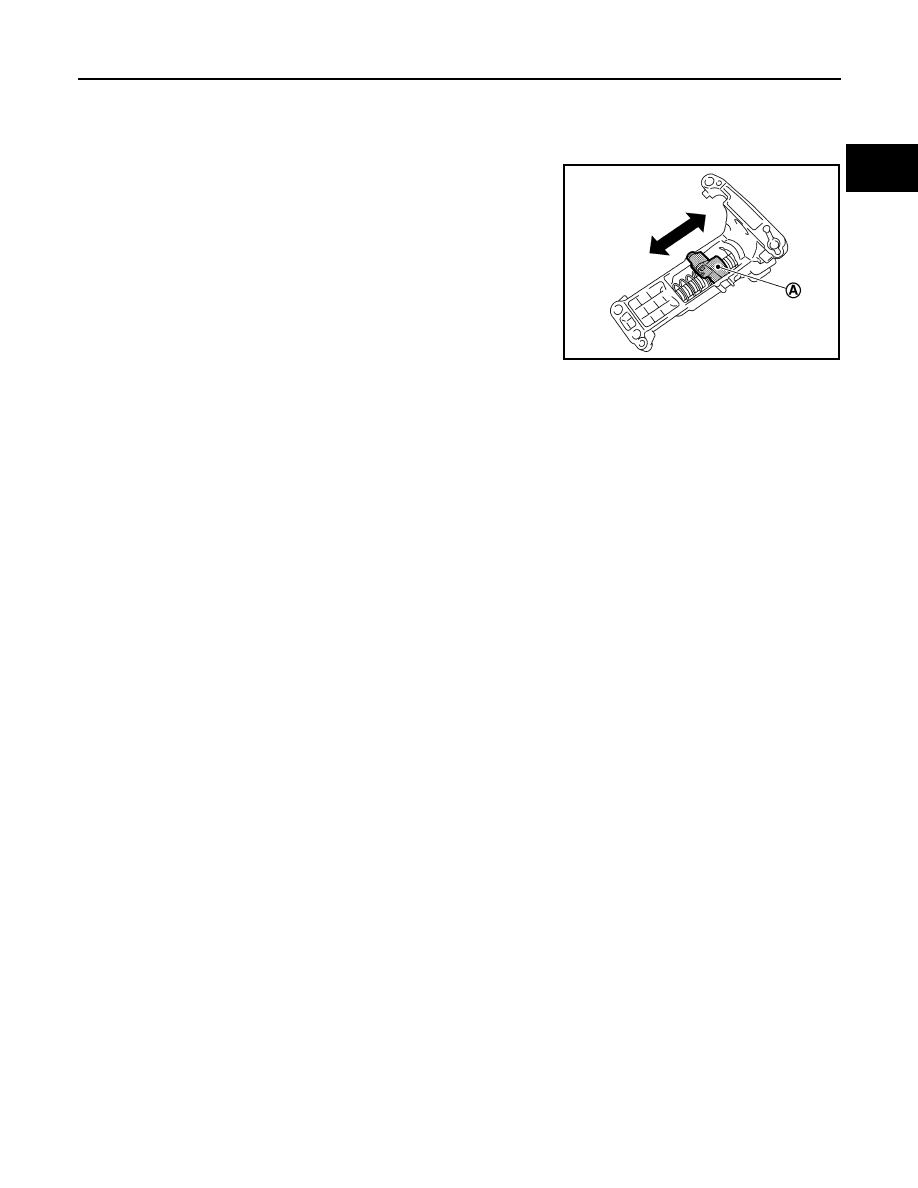

Inspection

INFOID:0000000006289549

INSPECTION AFTER REMOVAL

VVEL actuator housing assembly
• Move the ball nut (A) in the axial direction to check the smooth

rotation.

JSBIA0531ZZ
