DIAGNOSIS SYSTEM (ECM)

NOTE:
Wait until the same DTC (or 1st trip DTC) appears to completely confirm all DTCs.

How to Read Self-diagnostic Results

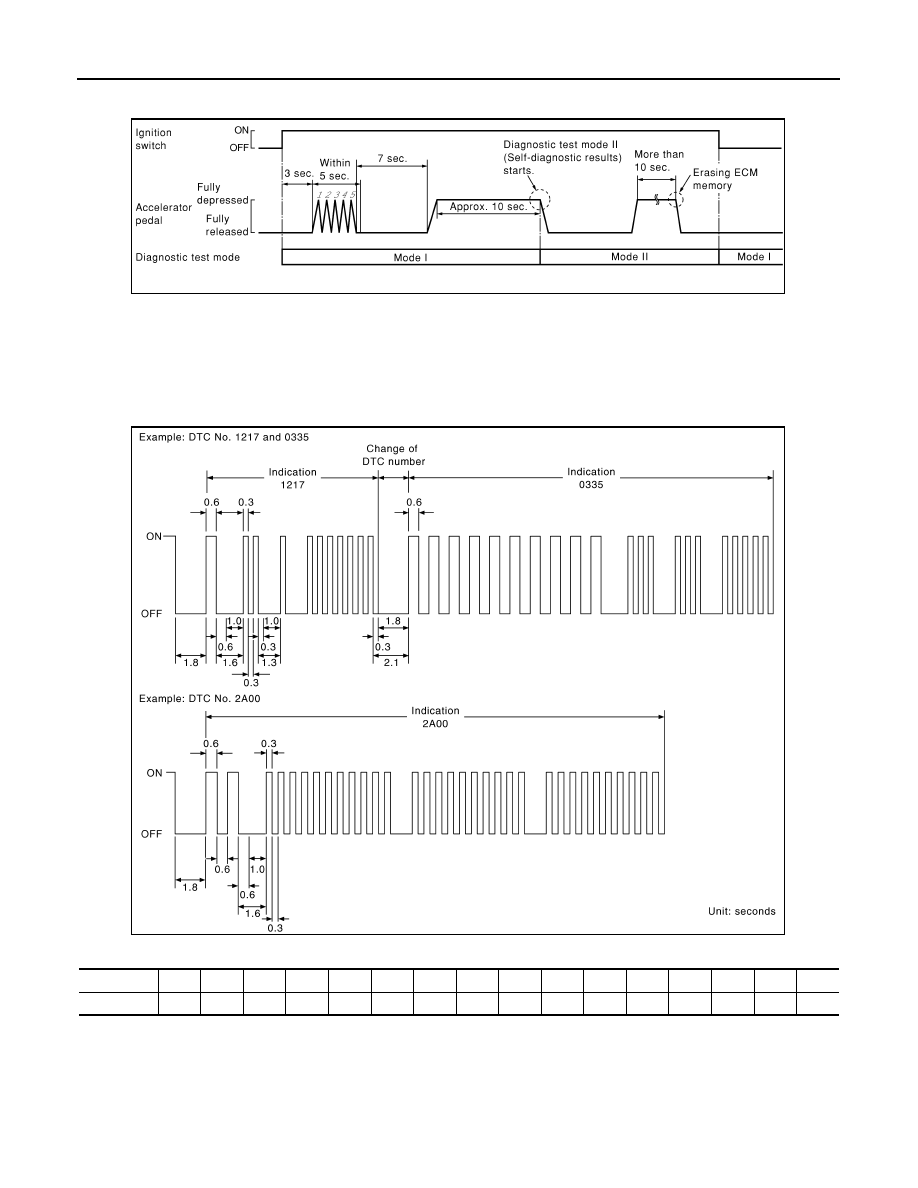

The DTC and 1st trip DTC are indicated by the number of blinks of the MIL as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displayed items are 1st trip DTCs. If only one code is displayed when the MIL
illuminates in “malfunction warning” mode, it is a DTC; if two or more codes are displayed, they may be either
DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified codes can be identified by
using the CONSULT-III or GST. A DTC will be used as an example for how to read a code.

A particular trouble code can be identified by the number of four-digit numeral flashes per the following.

The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds consisting of an ON (0.6-sec-
onds) - OFF (0.6-seconds) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-seconds ON and 0.3-seconds OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-seconds OFF.

PBIB0092E

PBIB3005E

Number

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

Flashes

10

1

2

3

4

5

6

7

8

9

11

12

13

14

15

16

DIAGNOSIS SYSTEM (ECM)

EC-63

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. Refer to

EC-98, "DTC Index"

.

How to Erase Self-diagnostic Results

By performing this procedure, ECM memory is erased and the following diagnostic information is erased as
well.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values
NOTE:
Also, if a battery terminal is disconnected, ECM memory is erased and the diagnostic information as listed
above is erased. (The amount of time required for erasing may vary from a few seconds to several hours.)

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON.

5.

Set ECM in Self-diagnostic results.

6.

The diagnostic information has been erased from the backup memory in the ECM.
Fully depress the accelerator pedal and keep it depressed for more than 10 seconds.

7.

Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.

CONSULT-III Function

INFOID:0000000006217729

FUNCTION

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

• Diagnostic trouble codes

• 1st trip diagnostic trouble codes

• Freeze frame data

• 1st trip freeze frame data

• System readiness test (SRT) codes

• Test  values

WORK SUPPORT MODE

Work Item

Diagnostic test mode

Function

Work support

This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.

Self diagnostic result

Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*

Data monitor

Input/Output data in the ECM can be read.

Active test

Diagnostic Test Mode in which CONSULT-III drives some actuators apart from the ECMs and also shifts
some parameters in a specified range.

DTC & SRT confirmation

The status of system monitoring tests and the self-diagnosis status/results can be confirmed.

Function test

This mode is used to inform customers when the vehicle requires periodic maintenance.

ECU identification

ECM part number can be read.

EC-64

< SYSTEM DESCRIPTION >

[VK56VD]

DIAGNOSIS SYSTEM (ECM)

*: This function is not necessary in the usual service procedure.

SELF-DIAG RESULTS MODE

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-98, "DTC Index"

.

How to Read DTC and 1st Trip DTC

DTCs and 1st trip DTCs related to the malfunction are displayed in “Self-diag results”.
• When ECM detects a 1st trip DTC, “1t” is displayed for “TIME”.
• When ECM has detected a current DTC, “0” is displayed for “TIME”.
• If “TIME” is neither “0” nor “1t”, the DTC occurred in the past and ECM shows the number of times the vehi-

cle has been driven since the last detection of the DTC.

How to Erase DTC and 1st Trip DTC

NOTE:
• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10

seconds and then turn it ON (engine stopped) again.

• If the DTC is not for A/T related items (see

EC-98, "DTC Index"

), skip step 1.

1.

Erase DTC in TCM. Refer to

TM-60, "Diagnosis Description"

.

2.

Select “ENGINE” with CONSULT-III.

3.

Select “SELF-DIAG RESULTS”.

4.

Touch “ERASE”. (DTC in ECM will be erased.)

WORK ITEM

CONDITION

USAGE

IDLE AIR VOL LEARN

• THE IDLE AIR VOLUME THAT KEEPS THE ENGINE

WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.

When learning the idle air volume

EVAP SYSTEM CLOSE

CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
• IGN SW ON
• ENGINE NOT RUNNING
• AMBIENT TEMPERATURE IS ABOVE 0

°

C (32

°

F).

• NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-

TEM

• FUEL TANK TEMP. IS MORE THAN 0

°

C (32

°

F).

• WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-

TEM CLOSE”

• WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”

UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
III WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-III MAY DIS-
PLAY “BATTERY VOLTAGE IS LOW. CHARGE BAT-
TERY”, EVEN WHEN USING A CHARGED BATTERY.

When detecting EVAP vapor leak
in the EVAP system

FUEL PRESSURE RELEASE

• FUEL PUMP WILL STOP BY TOUCHING “START” DUR-

ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.

When releasing fuel pressure from
fuel line

SELF-LEARNING CONT

• THE COEFFICIENT OF SELF-LEARNING CONTROL

MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.

When clearing mixture ratio self-
learning value

TARGET IDLE RPM ADJ*

• IDLE CONDITION

When setting target idle speed

VIN REGISTRATION

• IN THIS MODE, VIN IS REGISTERED IN ECM.

When registering VIN in ECM

TARGET IGN TIM ADJ*

• IDLE CONDITION

When adjusting target ignition tim-
ing

CLSD THL POS LEARN

• IGNITION ON AND ENGINE STOPPED.

When learning the throttle valve
closed position

VVEL POS SEN ADJ PREP

• USE THIS ITEM ONLY WHEN REPLACING VVEL ACTU-

ATOR SUB ASSEMBLY.

• IGNITION ON AND ENGINE STOPPED.

When adjusting VVEL control
shaft position sensor

DIAGNOSIS SYSTEM (ECM)

EC-65

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Freeze Frame Data and 1st Trip Freeze Frame Data

*: The items are the same as those of 1st trip freeze frame data.

DATA MONITOR MODE

Monitored Item

×

: Applicable

Freeze frame data

item*

Description

DIAG TROUBLE
CODE
[PXXXX]

• The engine control component part/control system has a trouble code the is displayed as PXXXX. (Refer to

EC-98, "DTC Index"

.)

CAL/LD VALUE [%]

• The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP [

°

C]

or [

°

F]

• The engine coolant temperature at the moment a malfunction is detected is displayed.

L-FUEL TRM-B1 [%]

• “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than

short-term fuel trim.

L-FUEL TRM-B2 [%]

S-FUEL TRM-B1 [%]

• “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-

ule.

S-FUEL TRM-B2 [%]

ENGINE SPEED [rpm]

• The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED
[km/h] or [mph]

• The vehicle speed at the moment a malfunction is detected is displayed.

INT MANI PRES [kPa]

• These items are displayed but are not applicable to this model.

ABSOL TH·P/S [%]

• The throttle valve opening angle at the moment a malfunction is detected is displayed.

B/FUEL SCHDL
[msec]

• The base fuel schedule at the moment a malfunction is detected is displayed.

INT/A TEMP SE [

°

C]

or [

°

F]

• The intake air temperature at the moment a malfunction is detected is displayed.

FUEL SYS-B1

• “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One of the following mode is displayed.

Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop

FUEL SYS-B2

COMBUST CONDI-
TION

• These items are displayed but are not applicable to this model.

Monitored item

Unit

Description

Remarks

ENG SPEED

rpm

• Indicates the engine speed computed from the sig-

nal of the crankshaft position sensor and camshaft
position sensor.

• Accuracy becomes poor if

engine speed drops below
the idle rpm.

• If the signal is interrupted

while the engine is running,
an abnormal value may be
indicated.

MAS A/F SE-B1

V

• The signal voltage of the mass air flow sensor is

displayed.

• When the engine is stopped,

a certain value is indicated.

• When engine is running,

specification range is indicat-
ed in “SPEC”.

B/FUEL SCHDL

ms

• “Base fuel schedule” indicates the fuel injection

pulse width programmed into ECM, prior to any
learned on board correction.

• When engine is running,

specification range is indicat-
ed in “SPEC”.
