EC-42

< SYSTEM DESCRIPTION >

[VK56VD]

SYSTEM

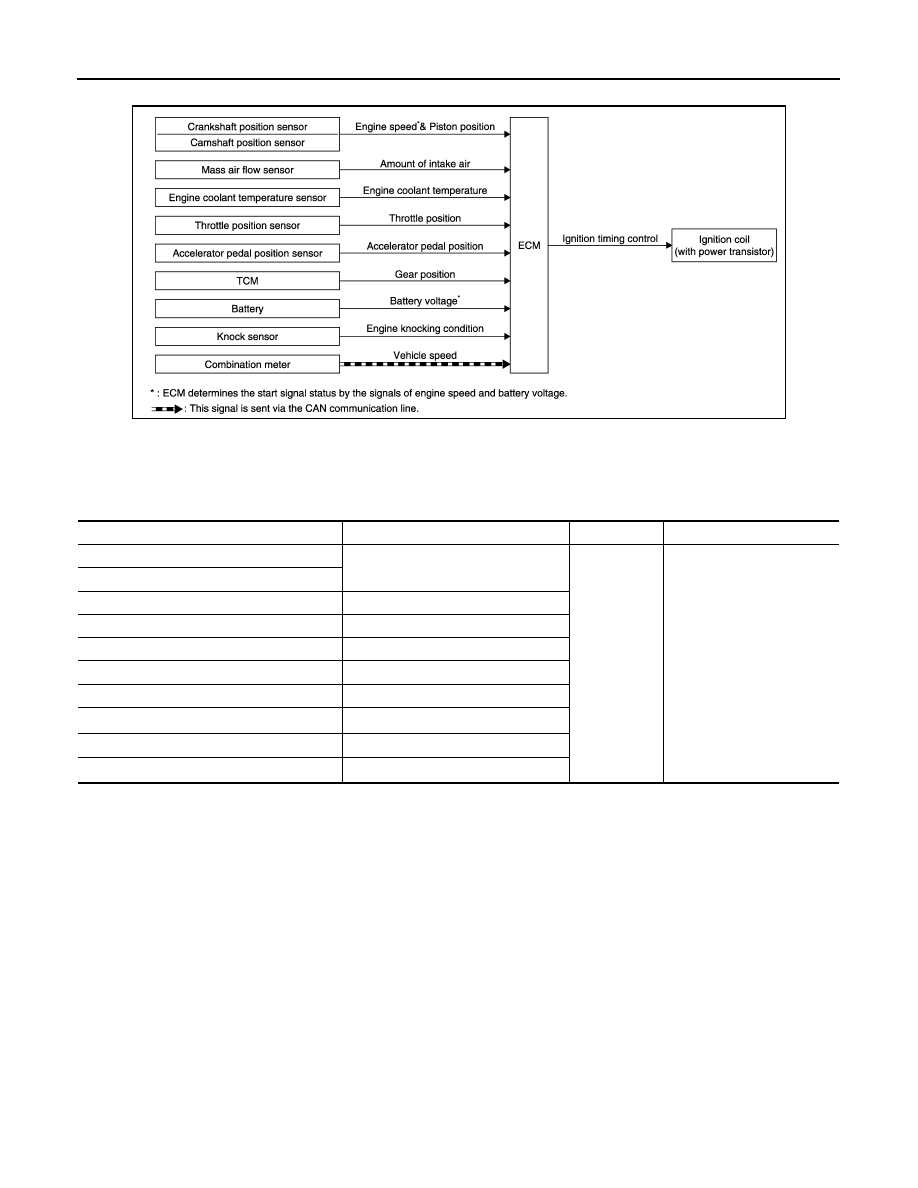

ELECTRIC IGNITION SYSTEM : System Diagram

INFOID:0000000006217705

ELECTRIC IGNITION SYSTEM : System Description

INFOID:0000000006217706

INPUT/OUTPUT SIGNAL CHART

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This signal is sent to the ECM via the CAN communication line.

SYSTEM DESCRIPTION

Ignition order: 1 - 8 - 7 - 3 - 6 - 5 - 4 - 2
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor signal. Comput-
ing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
• At starting
• During warm-up
• At idle
• At low battery voltage
• During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

JPBIA3271GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor

Engine speed*

1

Piston position

Ignition timing
control

Ignition coil
(with power transistor)

Camshaft position sensor

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

TCM

Gear position

Battery

Battery voltage*

1

Knock sensor

Engine knocking condition

Combination meter

Vehicle speed*

2

SYSTEM

EC-43

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

INTAKE VALVE TIMING CONTROL

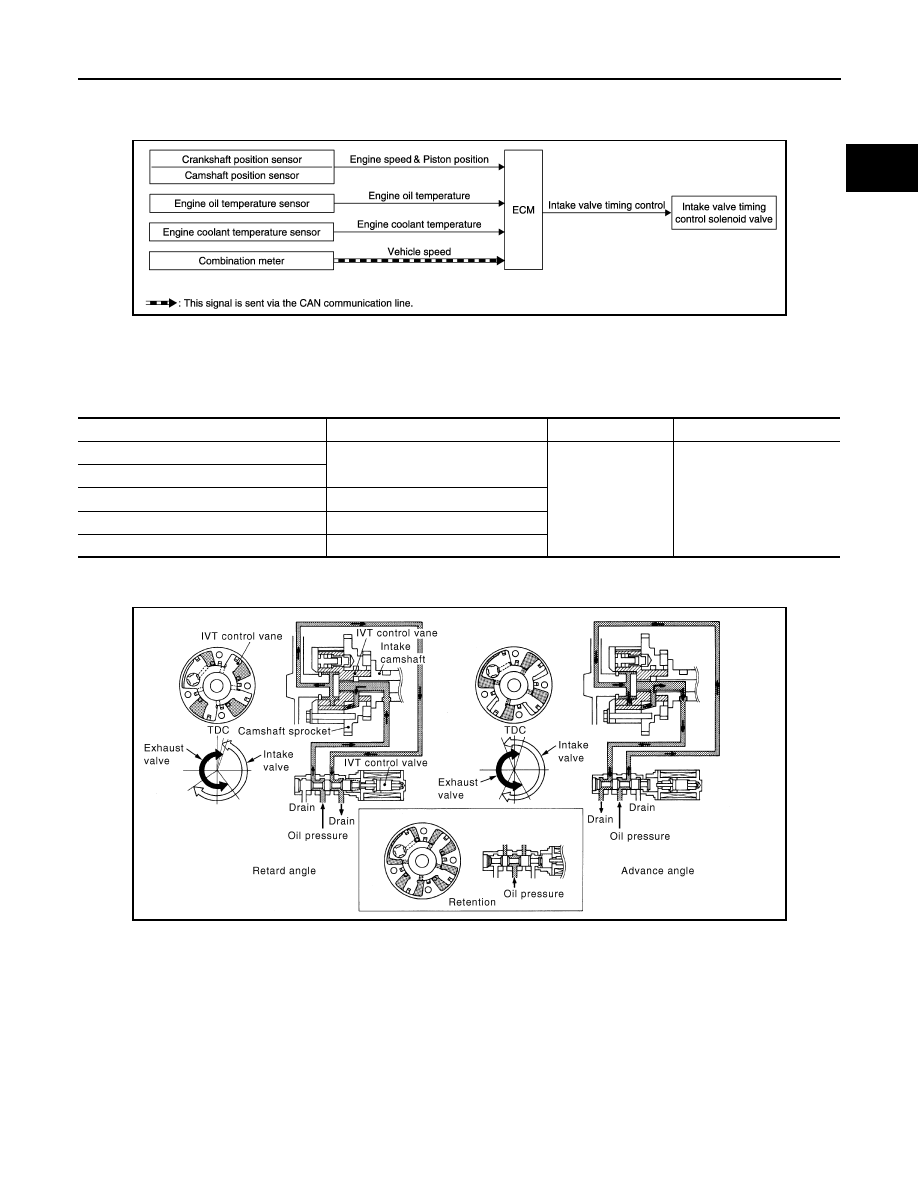

INTAKE VALVE TIMING CONTROL : System Diagram

INFOID:0000000006217707

INTAKE VALVE TIMING CONTROL : System Description

INFOID:0000000006217708

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM via the CAN communication line.

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high speed range.

VVEL SYSTEM

JMBIA2174GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor

Engine speed and piston position

Intake valve timing
control

Intake valve timing control
solenoid valve

Camshaft position sensor

Engine oil temperature sensor

Engine oil temperature

Engine coolant temperature sensor

Engine coolant temperature

Combination meter

Vehicle speed*

PBIB3276E

EC-44

< SYSTEM DESCRIPTION >

[VK56VD]

SYSTEM

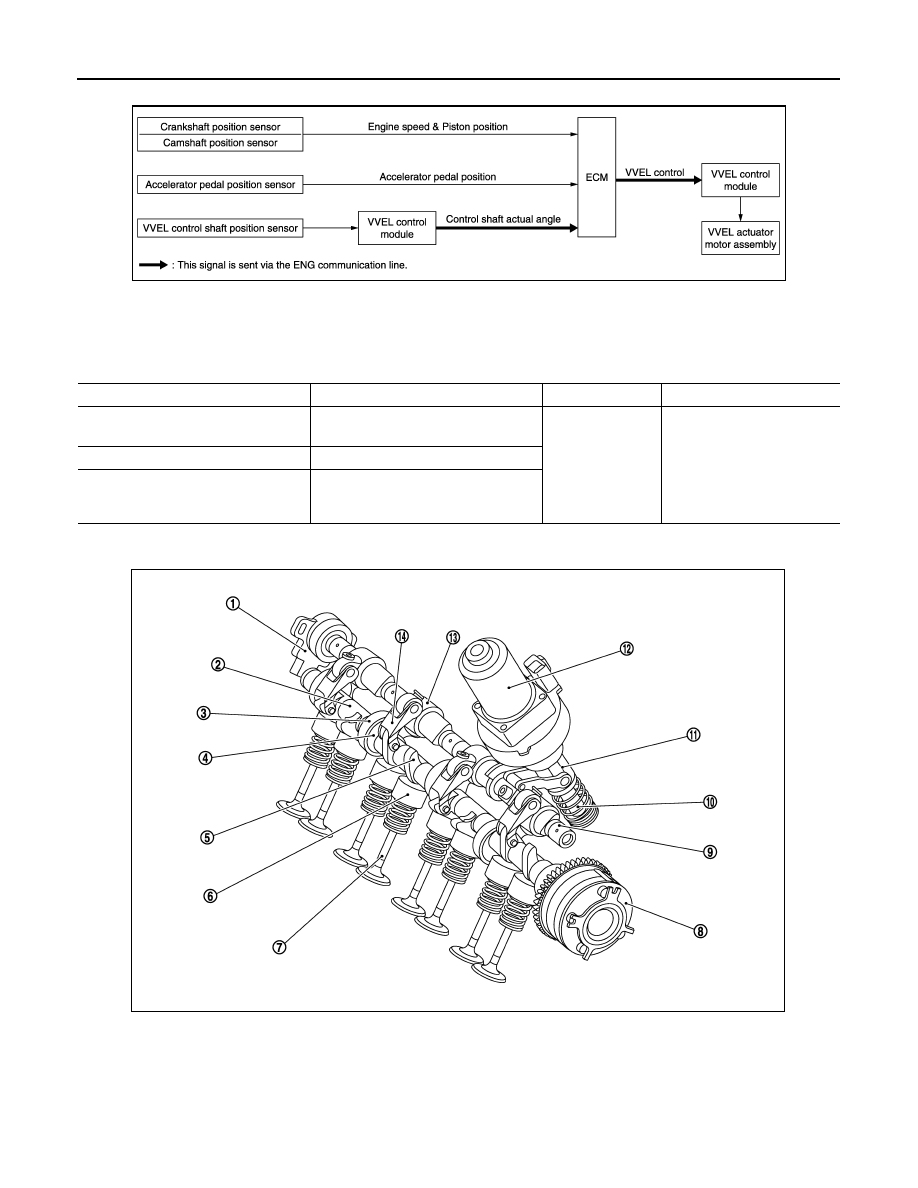

VVEL SYSTEM : System Diagram

INFOID:0000000006217709

VVEL SYSTEM : System Description

INFOID:0000000006217710

INPUT/OUTPUT SIGNAL CHART

SYSTEM DESCRIPTION

JSBIA0539GB

Sensor

Input signal to ECM

ECM function

Actuator

Camshaft position sensor
Crankshaft position sensor

Engine speed and piston position

VVEL control

VVEL control module

VVEL actuator motor assem-
bly

Accelerator pedal position sensor

Accelerator pedal position

VVEL control shaft position sensor

VVEL control module

Control shaft actual angle

1.

VVEL control shaft position sensor

2.

Drive shaft

3.

Link A

4.

Eccentric cam

5.

Output cam

6.

Valve lifter

7.

Intake valve

8.

Intake camshaft sprocket

9.

Control shaft

10. Ball screw shaft

11.

Ball screw nut

12. VVEL actuator motor assembly

13. Rocker arm

14. Link B

JSBIA0463ZZ

SYSTEM

EC-45

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

VVEL (Variable Valve Event & Lift) is a system that controls valve event and valve lift continuously.
ECM decides the target valve lift according to the driving condition and sends the command signal to the
VVEL control module via ENG communication line.

VALVE LIFT OPERATION

Rotational movement of the drive shaft equipped with eccentric cam
is transmitted to output cam via the rocker arm and two kinds of links
to depress the intake valve.

VARIABLE OPERATION

VVEL control module controls the rotation of the control shaft using
the VVEL actuator motor assembly and changes the movement of
the output cam by shifting the link supporting point. As a result, valve
lift changes continuously to improve engine output and response.

EVAPORATIVE EMISSION SYSTEM

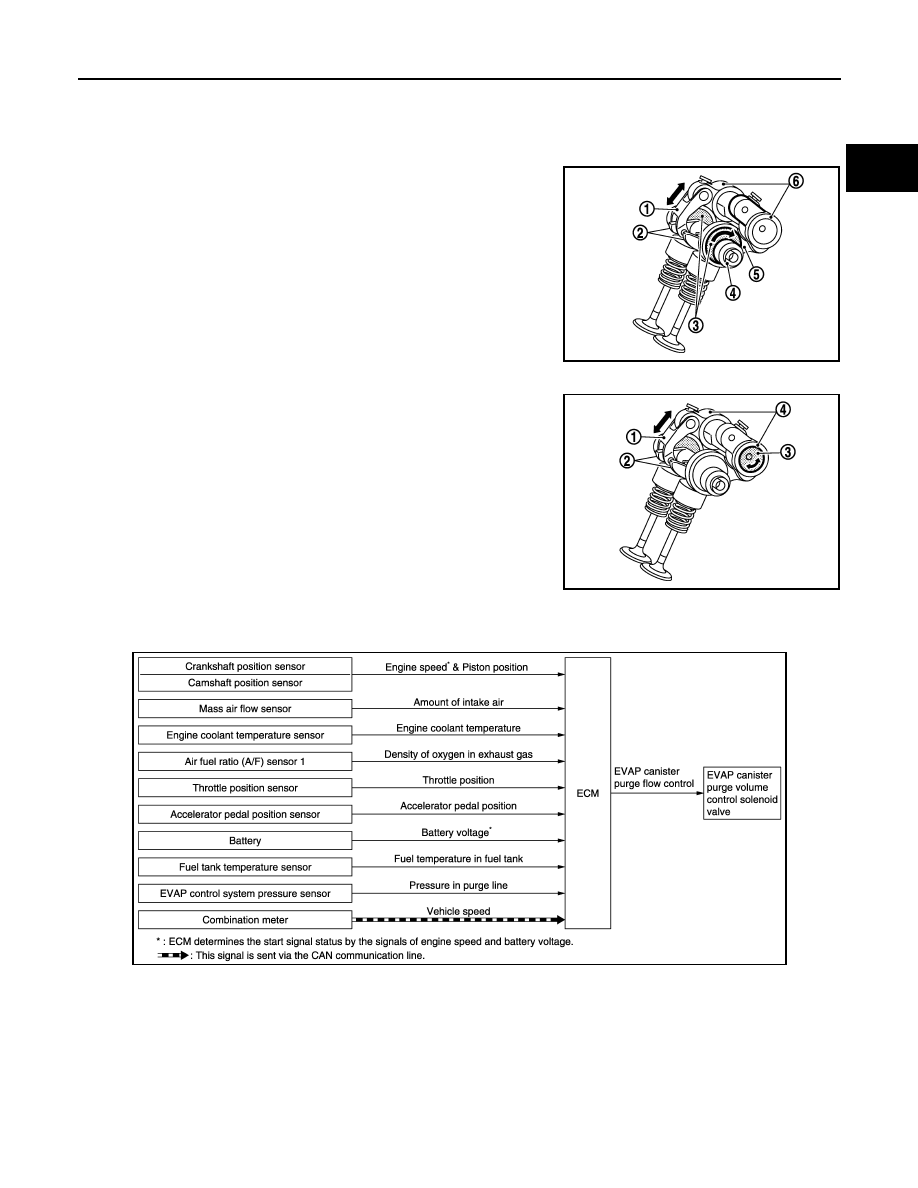

EVAPORATIVE EMISSION SYSTEM : System Diagram

INFOID:0000000006256911

EVAPORATIVE EMISSION SYSTEM : System Description

INFOID:0000000006256912

INPUT/OUTPUT SIGNAL CHART

1.

Link B

2.

Output cam

3.

Eccentric cam

4.

Drive shaft

5.

Link A

6.

Rocker arm

JSBIA0464ZZ

1.

Link B

2.

Output cam

3.

Control shaft

4.

Rocker arm

JSBIA0465ZZ

JSBIA0371GB
