[REAR PROPELLER SHAFT: 2S1410]

REAR PROPELLER SHAFT

Removal and Installation

INFOID:0000000006222439

REMOVAL

1.

Shift the transmission to the neutral position, and then release the parking brake.

2.

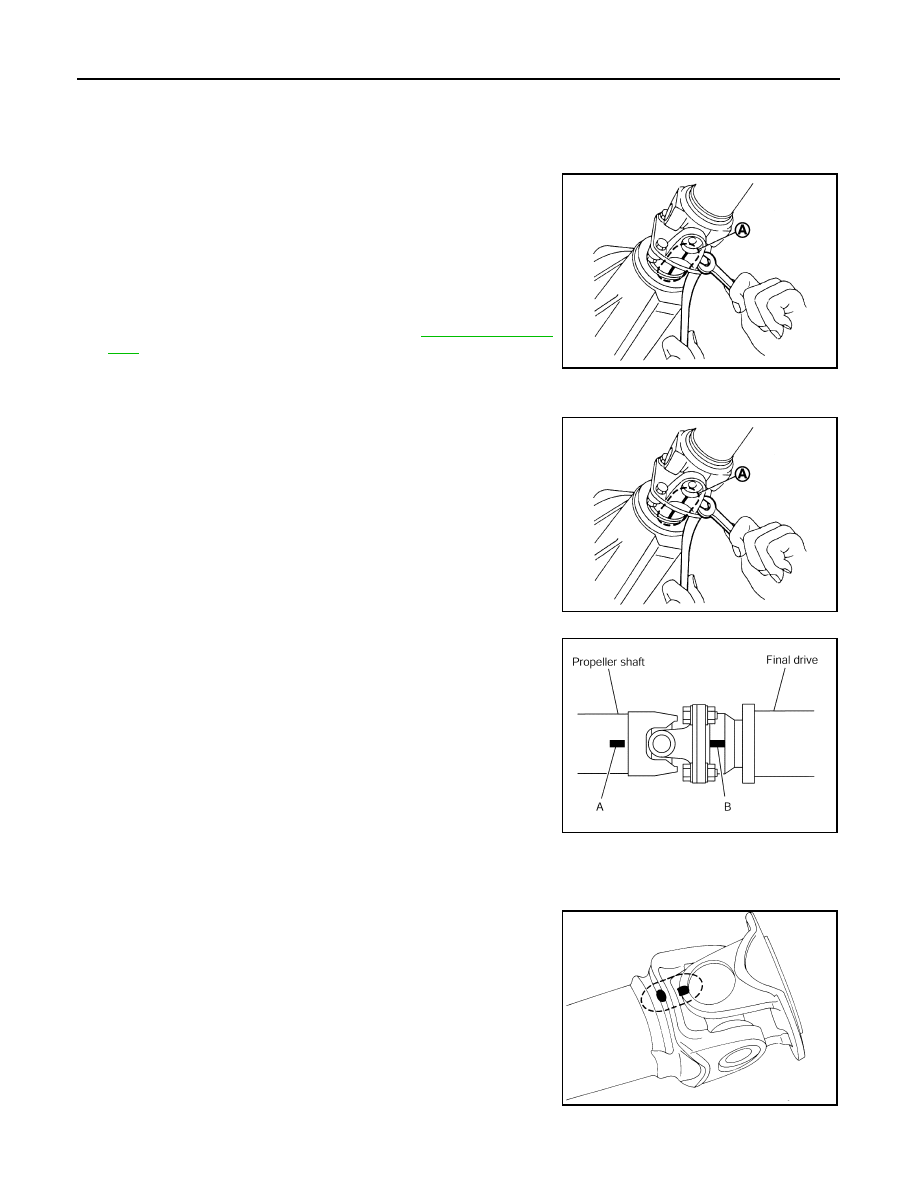

Put matching mark (A) on rear propeller shaft flange yoke and
rear drive companion flange.

CAUTION:

For matching mark, use paint. Never damage propeller shaft
flange and final drive companion flange.

3.

Remove the propeller shaft assembly fixing bolts.

4.

Remove propeller shaft assembly from the rear final drive and
transfer.

5.

Perform inspection after removal. Refer to

DLN-146, "Inspec-

tion"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align matching mark (A) to install propeller shaft flange yoke and

transfer companion flange.

• Align matching mark (A) to install propeller shaft flange yoke and

rear final drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 90, 180, 270
degrees. Then perform driving test and check propeller shaft vibra-
tion again at each point.

• If propeller shaft or final drive has been replaced, connect them as

follows:

- Install the propeller shaft while aligning its matching mark (A) with

the matching mark (B) on the joint as close as possible.

Disassembly and Assembly

INFOID:0000000006222440

DISASSEMBLY

1.

Put a matching mark between propeller shaft and flange yoke as
shown.

CAUTION:

For matching mark, use paint. Never damage the surface.

JPDID0207ZZ

JPDID0207ZZ

PDIA0423E

SPD128

REAR PROPELLER SHAFT

DLN-145

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 2S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

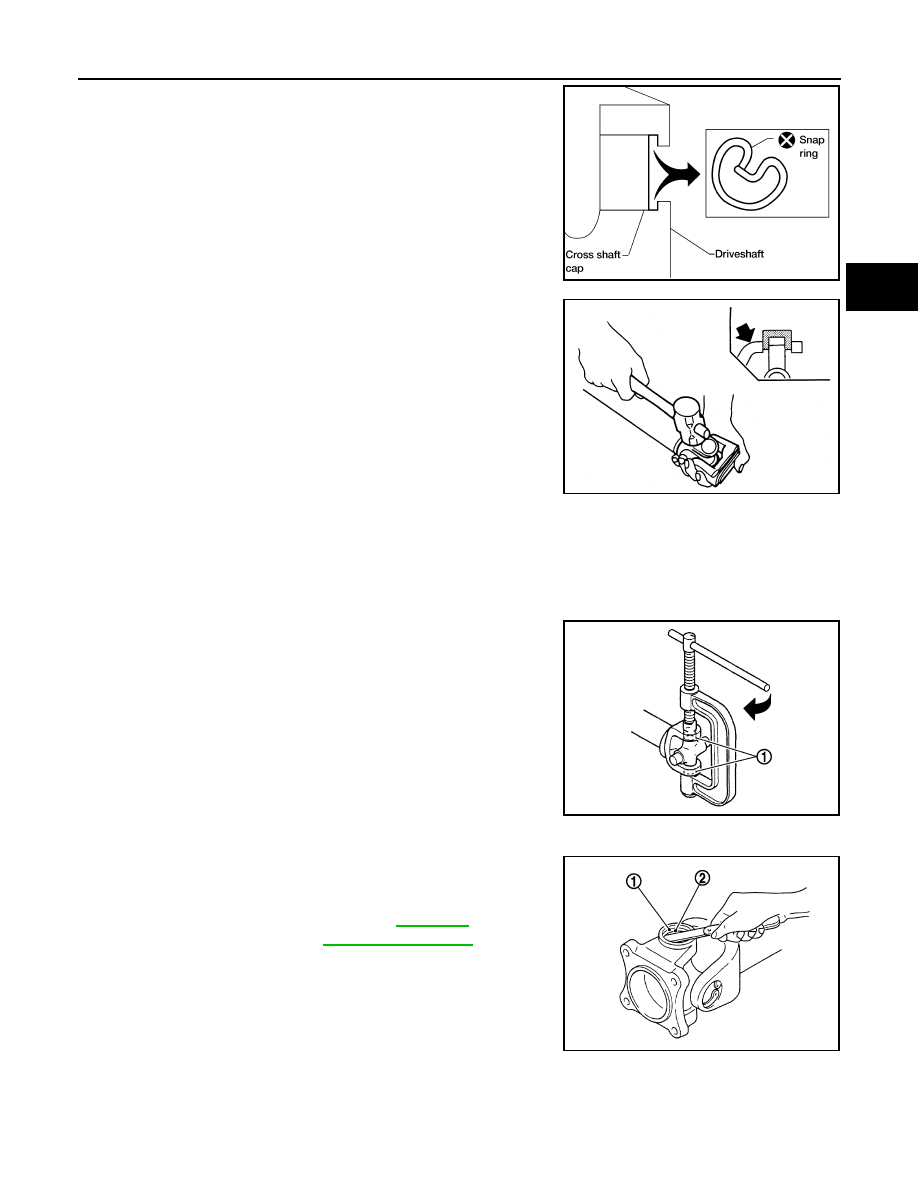

2.

Remove snap ring.

3.

Lightly tap bottom of yoke using a copper hammer and remove
journal bearing.

CAUTION:

Never damage the yoke.

ASSEMBLY

1.

Install journal bearing to journal.

CAUTION:

• Never reuse journal or journal bearing.
• Always replace journal, journal bearing, and snap rings as a set.
• Apply multi-purpose grease to journal bearing.

2.

Install bearing (1) using a vise.

CAUTION:

Never damage bearing or flange yoke.

3.

Measure journal axial play. If necessary, select the appropriate snap ring.

a.

While pushing to 98 N·m (10 kg-m, 72 ft-lb), check the clearance
between snap ring (1) and needle bearing (2).

b.

If journal axial play is outside the specification, use a thicker/
thinner snap ring to adjust.

CAUTION:

• Never reuse snap ring.
• Select snap rings so that thickness difference between LH

and RH is within 0.02 mm (0.0008 in).

APD011

PDA0034D

JSDIA0370ZZ

Journal axial play

: Refer to

DLN-147,

"Journal Axial Play"

JPDID0331ZZ

DLN-146

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 2S1410]

REAR PROPELLER SHAFT

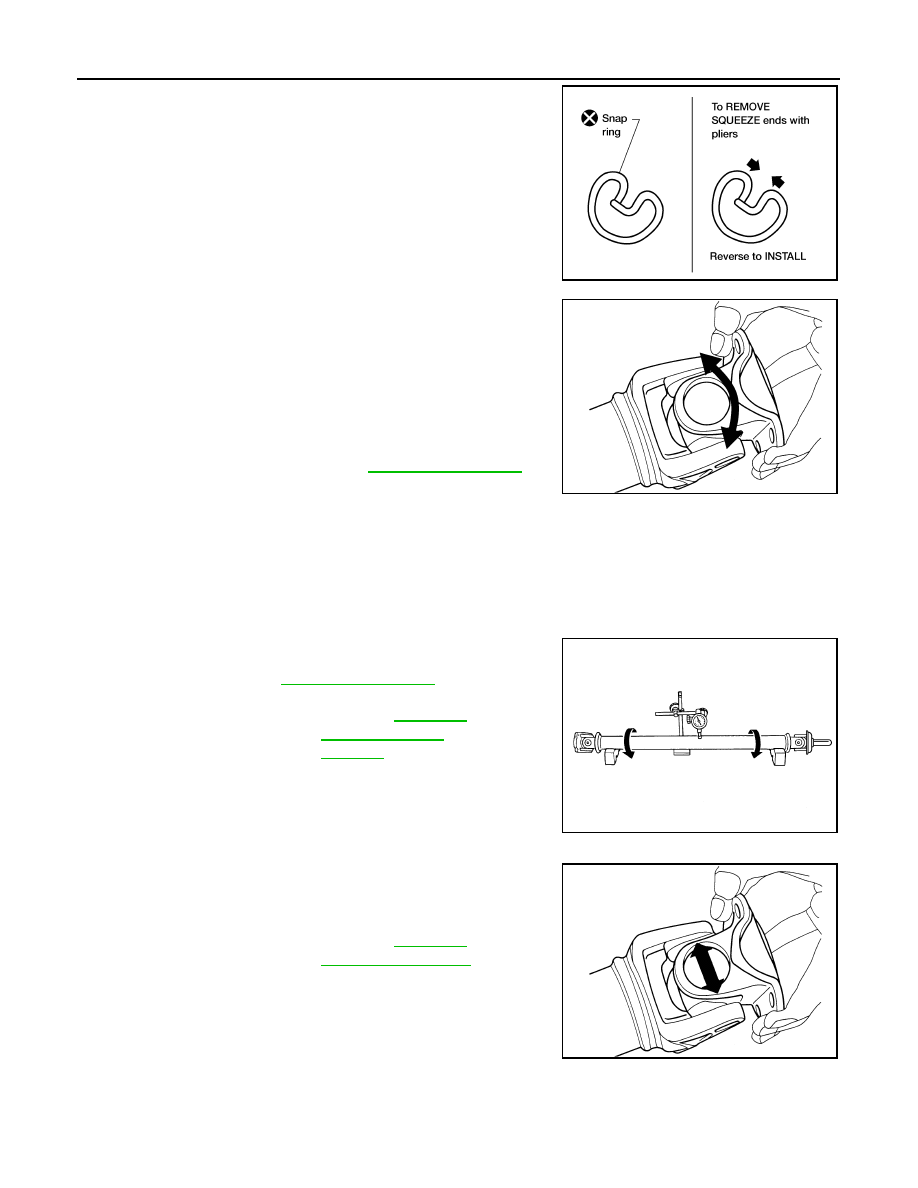

4.

Install snap ring (1).

5.

Check that joint moves smoothly.

NOTE:
The bending resistance [2.26 N.m (0.23 kg-m, 20 in-lb) or less]
may not be satisfied soon after the installation.

6.

Check the journal axial play. Refer to

DLN-146, "Inspection"

.

Inspection

INFOID:0000000006222441

INSPECTION AFTER REMOVAL

Appearance

Check the propeller shaft for dents or cracks. If damage is detected, replace the propeller shaft assembly.

Propeller Shaft Runout

Check propeller shaft runout at measuring point with a dial indicator.
If runout exceeds specifications, replace propeller shaft assembly.
For measuring point, refer to

DLN-142, "Inspection"

.

Journal Axial Play

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If axial play exceeds specifications, replace propeller
shaft assembly.

APD012

Reference value (After adaptation)

Bending resistance

: 2.26 N·m (0.23 kg-m, 20 in-lb)
or less

SDIA0856J

Propeller shaft runout

: Refer to

DLN-147,

"Propeller Shaft
Runout"

JSDIA0083ZZ

Journal axial play

: Refer to

DLN-147,

"Journal Axial Play"

PDA0005D

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-147

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: 2S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006222442

Propeller Shaft Runout

INFOID:0000000006222443

Unit: mm (in)

Journal Axial Play

INFOID:0000000006222444

Unit: mm (in)

Applied model

 2WD

 VK56VD

 A/T

Propeller shaft model

2S1410

Number of joints

2

Type of journal bearings

1st joint

Shell type

2rd joint

Shell type

Coupling method with transfer

Sleeve type

Coupling method with rear final drive

Flange type

Shaft length (Spider to spider)

1590.4 mm (62.61 in)

Shaft outer diameter

127.6 mm (5.02 in)

Item

Limit

Propeller shaft runout

1.02 (0.0402)

Item

Standard

Journal axial play

0.02 (0.0008)
