DLN-128

< REMOVAL AND INSTALLATION >

[FRONT PROPELLER SHAFT: 2F P15]

FRONT PROPELLER SHAFT

REMOVAL AND INSTALLATION

FRONT PROPELLER SHAFT

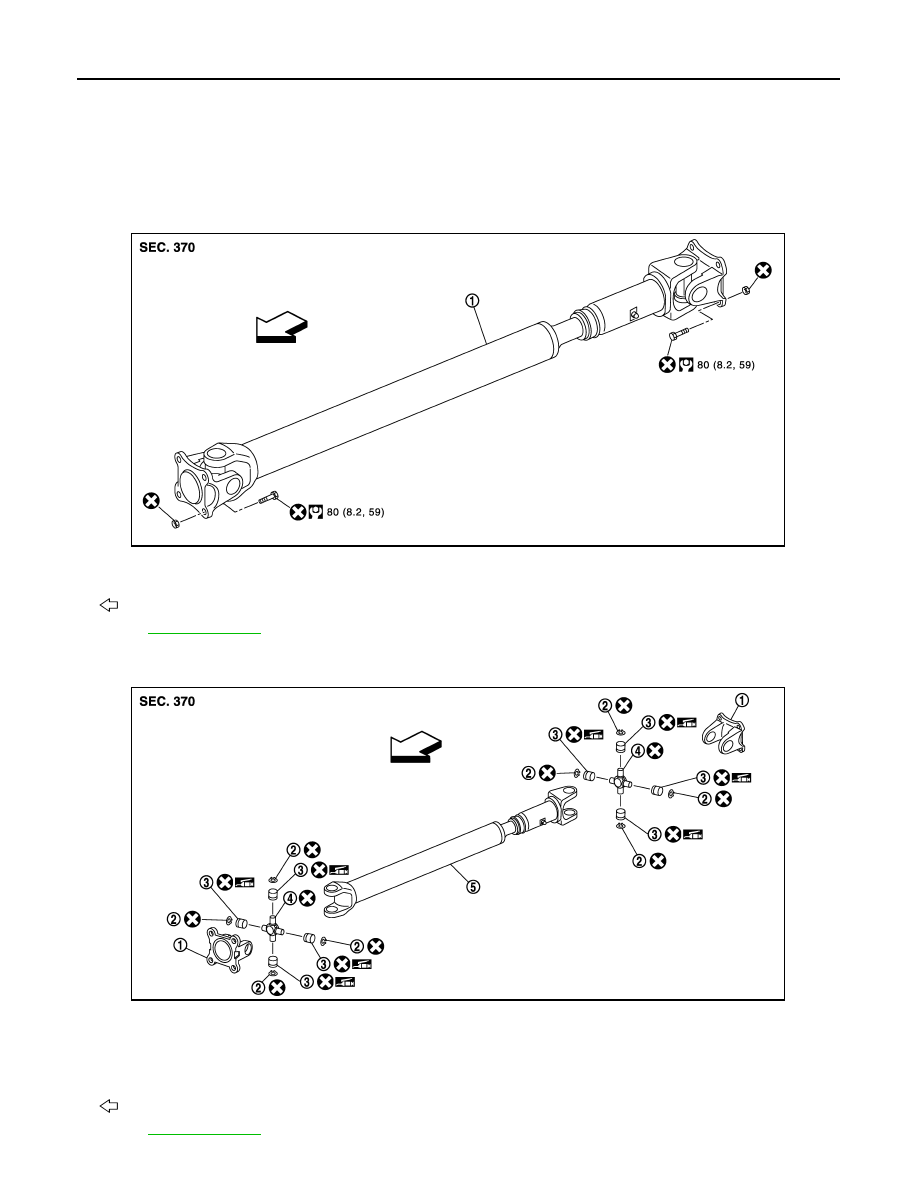

Exploded View

INFOID:0000000006222356

REMOVAL

DISASSEMBLY

1.

Propeller shaft assembly

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described above.

JPDID0323GB

1.

Flange yoke

2.

Snap ring

*

3.

Bearing

*

4.

Journal

*

5.

Propeller shaft

*: Replace “2”, “3” and “4” as a set.

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described above.

JPDID0325ZZ

FRONT PROPELLER SHAFT

DLN-129

< REMOVAL AND INSTALLATION >

[FRONT PROPELLER SHAFT: 2F P15]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Removal and Installation

INFOID:0000000006222357

REMOVAL

1.

Shift the transmission to the neutral position, and then release the parking brake.

2.

Remove protector A and B with power tool. Refer to

SCS-39, "PPMU, MIDDLE TUBE ASSEMBLY, PPMU

PIPE : Removal and Installation"

.

3.

Remove rear engine mount cross member with a power tool. Refer to

TM-208, "4WD : Removal and

Installation"

.

4.

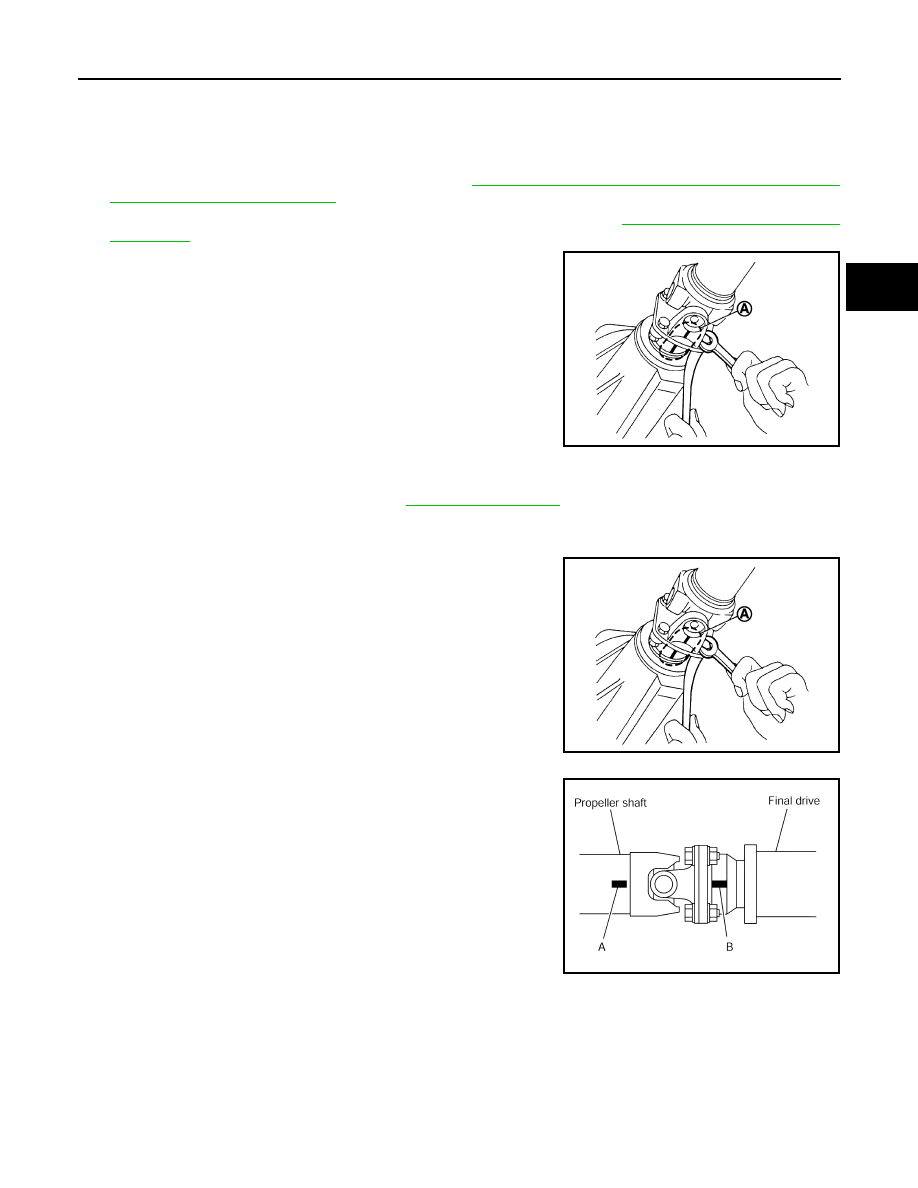

Put matching mark (A) on front propeller shaft flange yoke and
final drive companion flange.

CAUTION:

For matching mark, use paint. Never damage propeller shaft
flange and final drive companion flange.

5.

Put matching mark (A) on front propeller shaft flange yoke and
transfer companion flange.

CAUTION:

For matching mark, use paint. Never damage propeller shaft
flange and transfer companion flange.

6.

Remove the propeller shaft assembly fixing bolts.

7.

Remove propeller shaft assembly from the front final drive and
transfer.

8.

Perform inspection after removal. Refer to

DLN-131, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align matching mark (A) to install propeller shaft flange yoke and

transfer companion flange.

• Align matching mark (A) to install propeller shaft flange yoke and

front final drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 90, 180, 270
degrees. Then perform driving test and check propeller shaft vibra-
tion again at each point.

• If propeller shaft or final drive has been replaced, connect them as

follows:

- Install the propeller shaft while aligning its matching mark (A) with

the matching mark (B) on the joint as close as possible.

Disassembly and Assembly

INFOID:0000000006222358

DISASSEMBLY

JPDID0207ZZ

JPDID0207ZZ

PDIA0423E

DLN-130

< REMOVAL AND INSTALLATION >

[FRONT PROPELLER SHAFT: 2F P15]

FRONT PROPELLER SHAFT

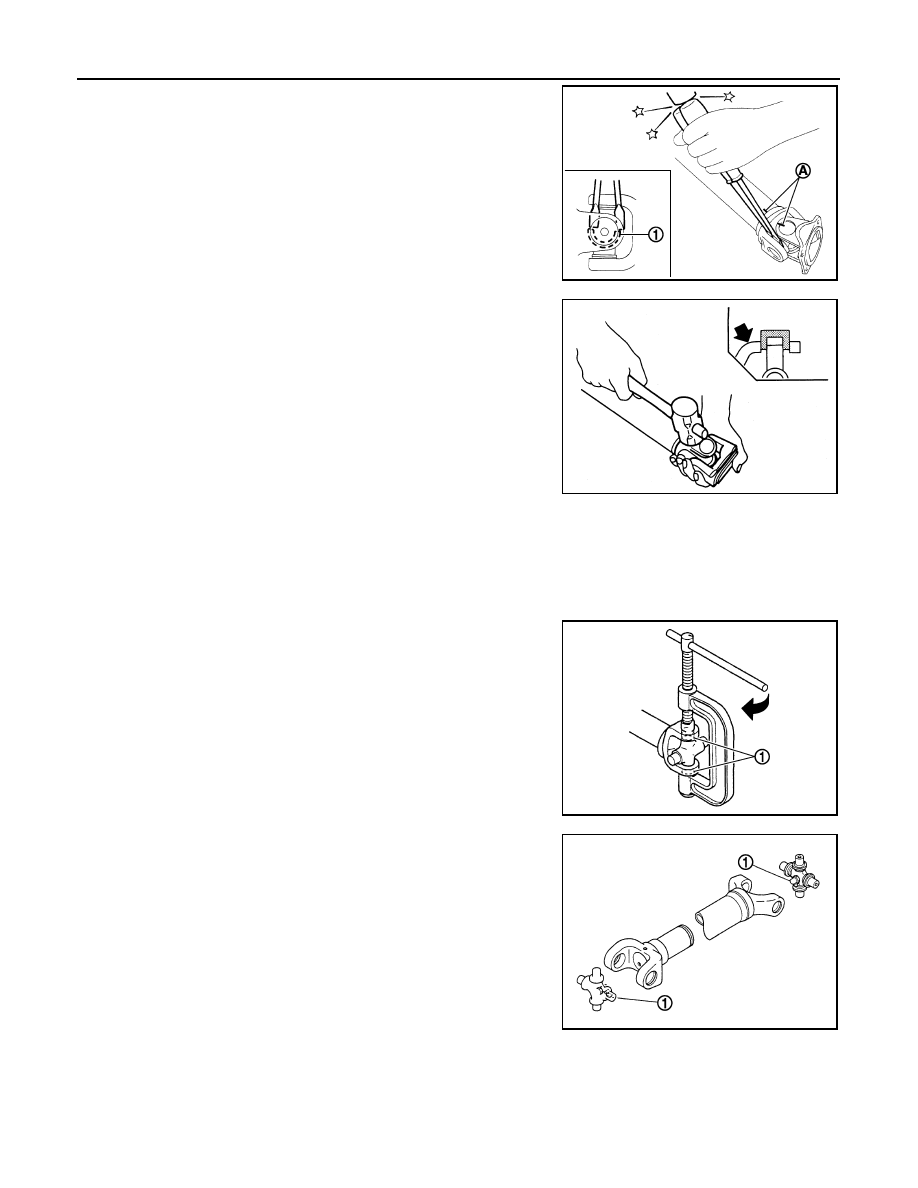

1.

Put a matching mark (A) between propeller shaft and flange
yoke and remove snap rings (1).

CAUTION:

For matching mark, use paint. Never damage the surface.

2.

Lightly tap bottom of yoke using a copper hammer and remove
journal bearing.

CAUTION:

Never damage the yoke.

ASSEMBLY

1.

Install journal bearing to journal.

CAUTION:

• Never reuse journal or journal bearing.
• Always replace journal, journal bearing, and snap rings as a set.
• Apply multi-purpose grease to journal bearing.

2.

Install bearing (1) using a vise.

CAUTION:

Never damage bearing or flange yoke.

3.

Install journal to propeller shaft so that grease nipple (1) on jour-
nal portion is in the same direction.

CAUTION:

Never reuse journal.

4.

Measure journal axial play. If necessary, select the appropriate snap ring.

JPDID0375ZZ

PDA0034D

JSDIA0370ZZ

JPDID0327ZZ

FRONT PROPELLER SHAFT

DLN-131

< REMOVAL AND INSTALLATION >

[FRONT PROPELLER SHAFT: 2F P15]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

a.

While pushing to 98 N·m (10 kg-m, 72 ft-lb), check the clearance
between snap ring (1) and flange yoke (2).

b.

If journal axial play is outside the specification, use a thicker/
thinner snap ring to adjust.

CAUTION:

• Never reuse snap ring.
• Select snap rings so that thickness difference between LH

and RH is within 0.06 mm.

5.

Install selected snap ring as shown in the figure.

6.

Check that joint moves smoothly.

NOTE:
The bending resistance [1.96 N.m (0.20 kg-m, 17 in-lb) or less]
may not be satisfied soon after the installation.

7.

Check the journal axial play. Refer to

DLN-131, "Inspection"

.

Inspection

INFOID:0000000006222359

INSPECTION AFTER REMOVAL

Appearance

Check the propeller shaft for dents or cracks. If damage is detected, replace the propeller shaft assembly.

Propeller Shaft Runout

Check propeller shaft runout at measuring point with a dial indicator.
If runout exceeds specifications, replace propeller shaft assembly.
For measuring point, refer to

DLN-127, "Inspection"

.

Journal Axial Play

Journal axial play

: Refer to

DLN-133,

"Journal Axial Play"

JPDID0373ZZ

PDA0035D

Reference value (After adaptation)

Bending resistance

: 1.96 N·m (0.20 kg-m, 17 in-lb)
or less

SDIA0856J

Propeller shaft runout

: Refer to

DLN-133,

"Propeller Shaft
Runout"

JSDIA0083ZZ
