Infiniti QX56 (Z62). Manual - part 449





DLK-262

< REMOVAL AND INSTALLATION >

AUTOMATIC BACK DOOR CONTROL MODULE

AUTOMATIC BACK DOOR CONTROL MODULE

Removal and Installation

INFOID:0000000006226129

REMOVAL

1.

Remove the luggage side finisher lower LHD. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Remove the automatic back door control unit bracket mounting bolt and nats, and then remove the auto-
matic back door control unit bracket.

3.

Remove the automatic back door control unit mounting bolt, and then remove the automatic back door
control unit.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing back door control unit, perform additional service when replace control unit. Refer to

DLK-80,

"ADDITIONAL SERVICE WHEN REPLACING (AUTOMATIC BACK DOOR CONTROL MODULE) : Work Pro-
cedure"

.

AUTOMATIC BACK DOOR WARNING BUZZER

DLK-263

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR WARNING BUZZER

Removal and Installation

INFOID:0000000006226130

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-39, "Removal and Installation"

.

2.

Remove the automatic back door warning buzzer mounting nut, and then remove the automatic back door
warning buzzer.

INSTALLATION

Install in the reverse order of removal.

DLK-264

< REMOVAL AND INSTALLATION >

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

Removal and Installation

INFOID:0000000006226131

REMOVAL

1.

Remove the instrument driver lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Widen the pawl, and remove the automatic back door main switch from switch bracket.

INSTALLATION

Install in the reverse order of removal.

AUTOMATIC BACK DOOR CLOSE SWITCH

DLK-265

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CLOSE SWITCH

Removal and Installation

INFOID:0000000006226132

REMOVAL

1.

Remove the automatic back door close switch finisher.

2.

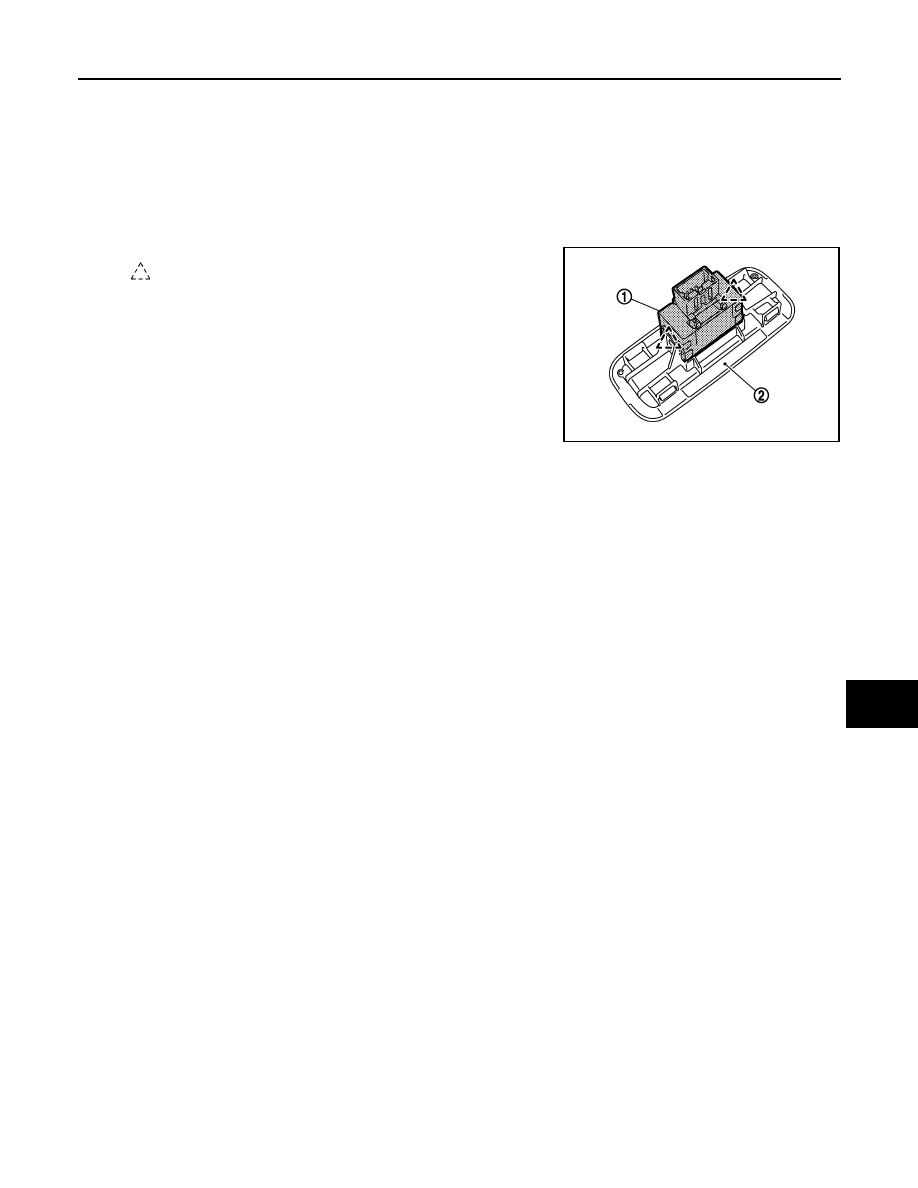

Widen the pawl, and remove the automatic back door close switch (1) from automatic back door close
switch finisher (2).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMKIA1847ZZ
