SYSTEM (INTELLIGENT KEY SYSTEM)

• The back door open function can open the back door by pressing the back door opener switch while carrying

the Intelligent Key and all doors (except back door) are locked.

• The back door open function enables the back door to be opened by pressing back door opener switch after

BCM transmits UNLOCK signal to each door.Refer to

DLK-31, "System Description"

.

BACK DOOR OPEN

While back door open in the permitted state, back door opens when back door opener switch is pressed after
back door request switch is operated. Back door open also can be operated according to the following proce-
dure.
• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (back

door) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that the
Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM transmits the back door open request signal to automatic back door con-

trol unit via CAN communication.

• Automatic back door control unit transmits back door open request signal to back door lock assembly and

back door is open.

• When the back door is open, automatic back door system performs waiting operation for next back door

close operation.
The operation of then back door open is the same as the automatic back door system, refer to

DLK-31,

"System Description"

.

OPERATION CONDITION

If the following conditions are not satisfied, back door open operation is not performed even if the back door
opener switch is operated.

OUTSIDE KEY ANTENNA DETECTION AREA

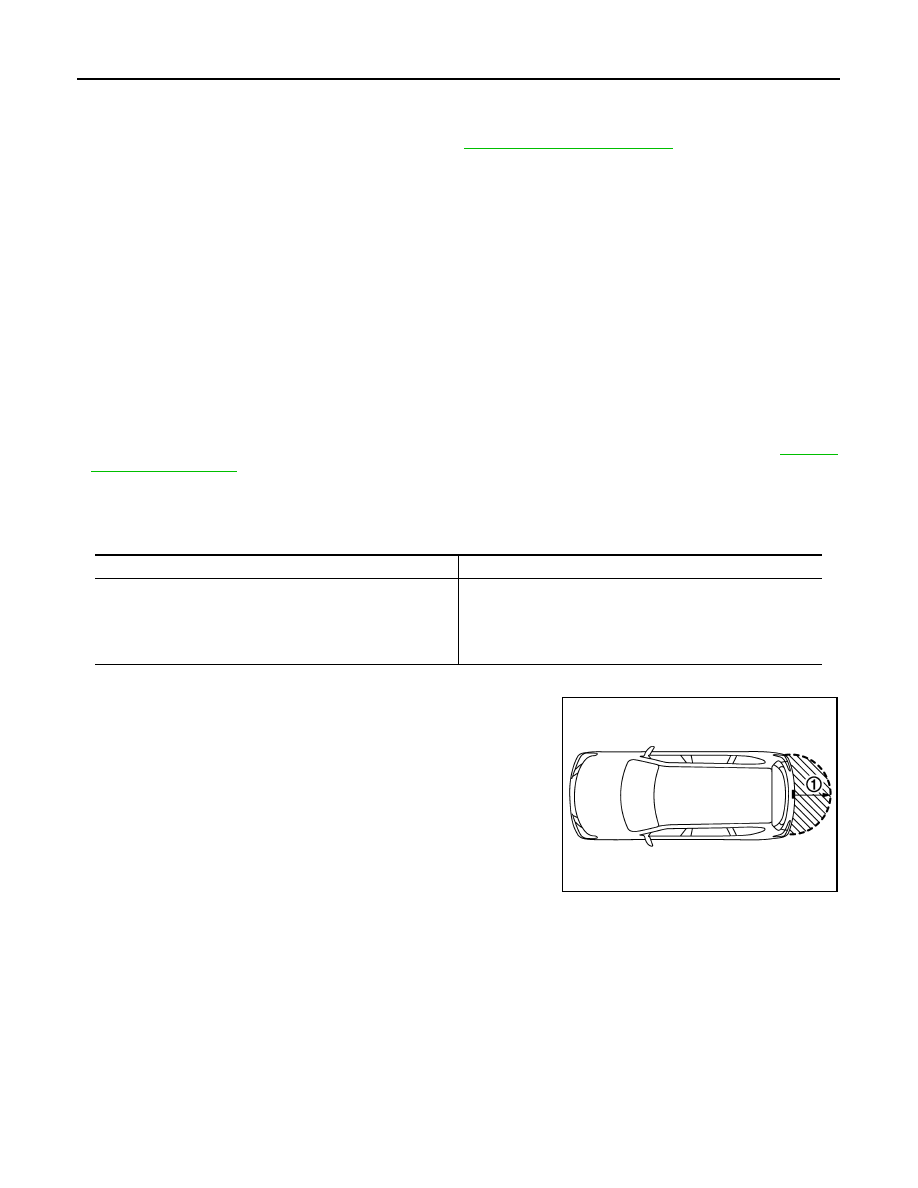

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding the
outside key antenna (back door) (1). However, this operating range
depends on the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Back door opener switch operation

Operation condition

Back door open

• Vehicle speed is less than 5 km/h (3 MPH)
• Intelligent Key is within outside key antenna (back door) de-

tection area

• Back door is closed
• Panic alarm is not activated

JMKIA5225ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY FUNCTION

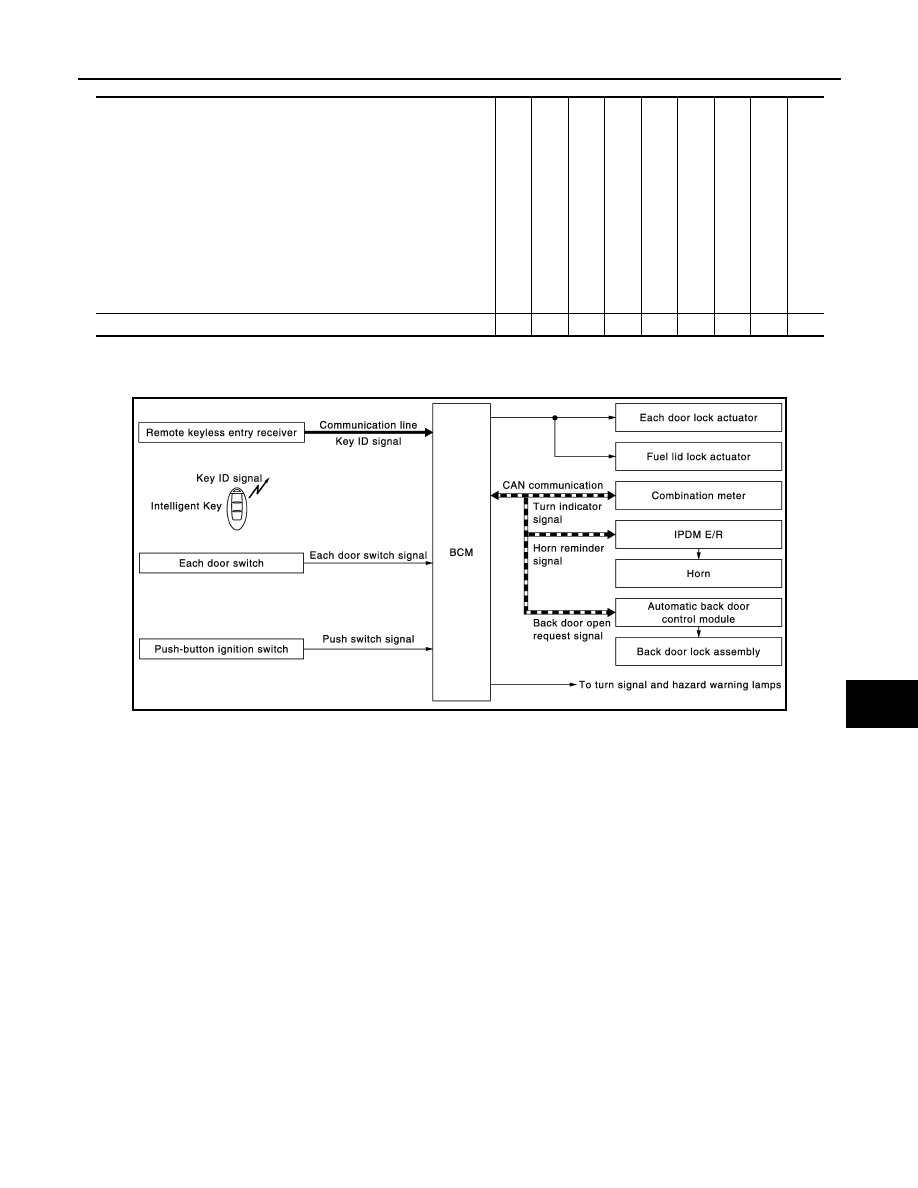

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000006225845

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000006225846

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock function
• Selective unlock function
• Auto door lock function
• Hazard and horn reminder function
• Automatic back door open/close function

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• When BCM receives the door lock/unlock signal, it operates all door lock actuators and fuel lid lock actuator,

blinks the hazard lamp (lock: 2 time, unlock: 1 times) and horn chirp signal to IPDM E/R at the same time as
a reminder.

• IPDM E/R honks horn (lock: 1 time) as a reminder.

Function

In

te

lli

ge

nt Key

Re

mo

te

 ke

yless

en

try recei

v

e

r

Bac

k

 do

or

op

ene

r s

w

itc

h

Bac

k do

or l

o

c

k a

sse

mb

ly

In

si

de

 k

ey

 an

te

nn

a

Out

s

id

e k

e

y

 a

n

te

nn

a

(ba

c

k

 do

or)

CAN co

mm

un

ic

ati

o

n

 sy

s

tem

BCM

Aut

o

m

a

ti

c ba

ck

 do

or co

ntro

l

m

o

du

le

Back door open function

×

×

×

×

×

×

×

×

×

JMKIA5435GB

DLK-24

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

SELECTIVE UNLOCK FUNCTION

• When an LOCK signal is transmitted from Intelligent Key, all doors and fuel filler lid are locked.
• When an UNLOCK signal is transmitted from Intelligent Key once, driver side door and fuel filler lid are

unlocked.

• Then, if an UNLOCK signal is transmitted from Intelligent Key again within 60 seconds, all other doors

(except for back door) are unlocked.

How to change selective unlock operation mode.
Selective unlock operation mode can be changed using CONSULT-III.
Refer to

DLK-39, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 60 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

How to change auto door lock operation mode.
Auto door lock mode can be changed using CONSULT-III.
Refer to

DLK-41, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

Hazard and horn reminder does not operate in the following conditions.
• Ignition switch position is ON.
• Door is open (only lock operation)

How to Change Hazard and Horn Reminder Mode

With CONSULT-III

Hazard and horn reminder operation mode can be changed using CONSULT-III.
Refer to

DLK-41, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT-III

Remote controller operation

Operation condition

Lock

• Panic alarm is not activated
• P position warning is not activated

Unlock

Panic alarm is not activated

Operating condition

• Door switch is ON (door is open)
• Door  is  locked
• Push switch is pressed

C mode

S mode

Intelligent Key operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp blinks

Twice

Once

Twice

—

Horn sound

Once

—

—

—

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

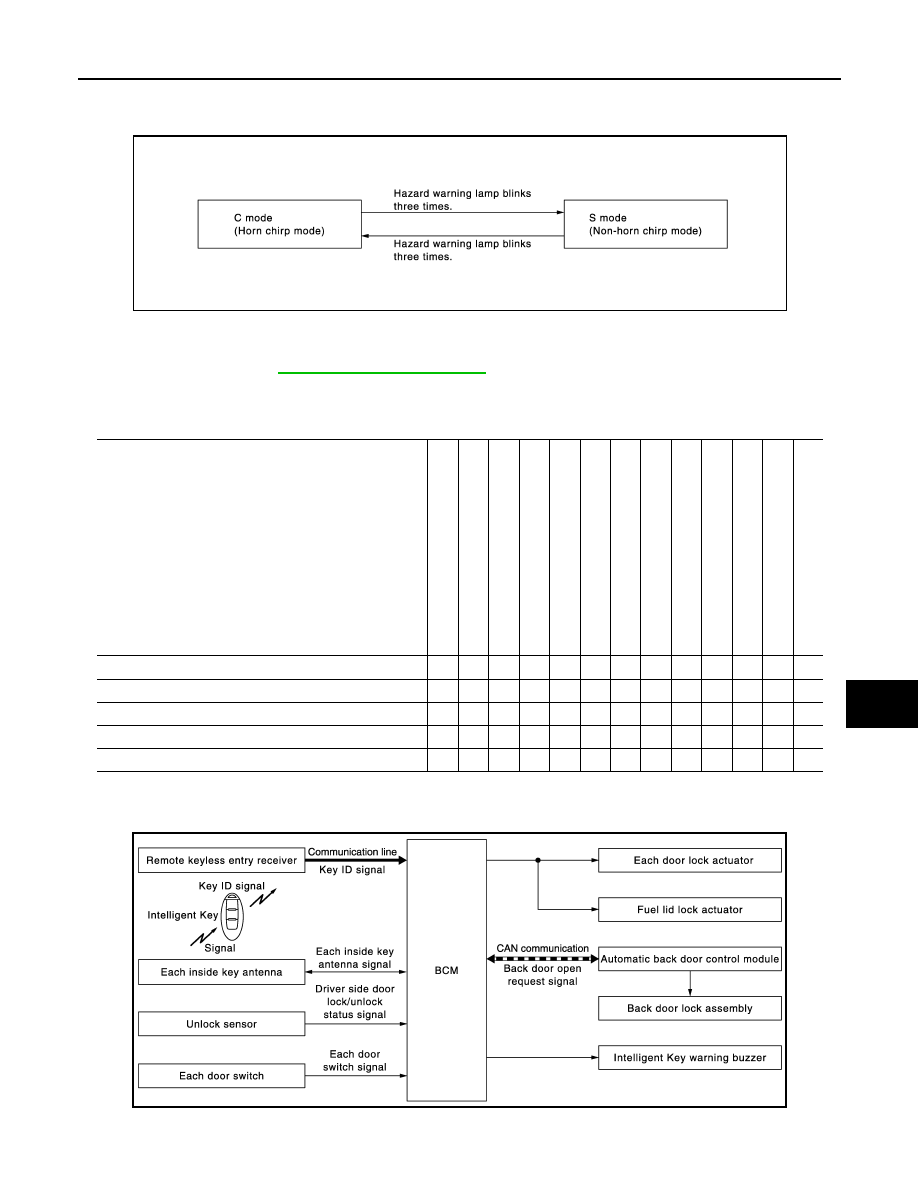

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the
following items:

AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION

When back door button of Intelligent Key is pressed for 0.4 second or more, back door open automatically for
detailed description, refer to

DLK-31, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION : System Diagram

INFOID:0000000006225847

JMKIA2755GB

Function

In

te

lli

ge

nt Key

Do

or sw

itch

Do

or l

o

c

k

 ac

tu

a

to

r

F

uel

 li

d l

oc

k

 ac

tua

to

r

Pu

sh

-bu

tto

n i

g

n

iti

on

 swi

tch

CAN c

o

m

m

u

n

ica

ti

on

sy

st

em

BCM

IPDM

 E/R

Ho

rn

Co

mb

in

ati

o

n

 me

te

r

Hazard warning lamp

Aut

o

m

a

ti

c b

a

c

k

 do

or

co

ntro

l m

o

d

u

le

Ba

ck

 do

or

loc

k

 as

se

m

b

ly

Door lock/unlock function

×

×

×

×

×

Selective unlock function

×

×

×

×

×

Auto door lock function

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

Automatic back door open/close function

×

×

×

×

×

JMKIA5084GB
