Infiniti QX56 (Z62). Manual - part 229





CHG

PREPARATION

CHG-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

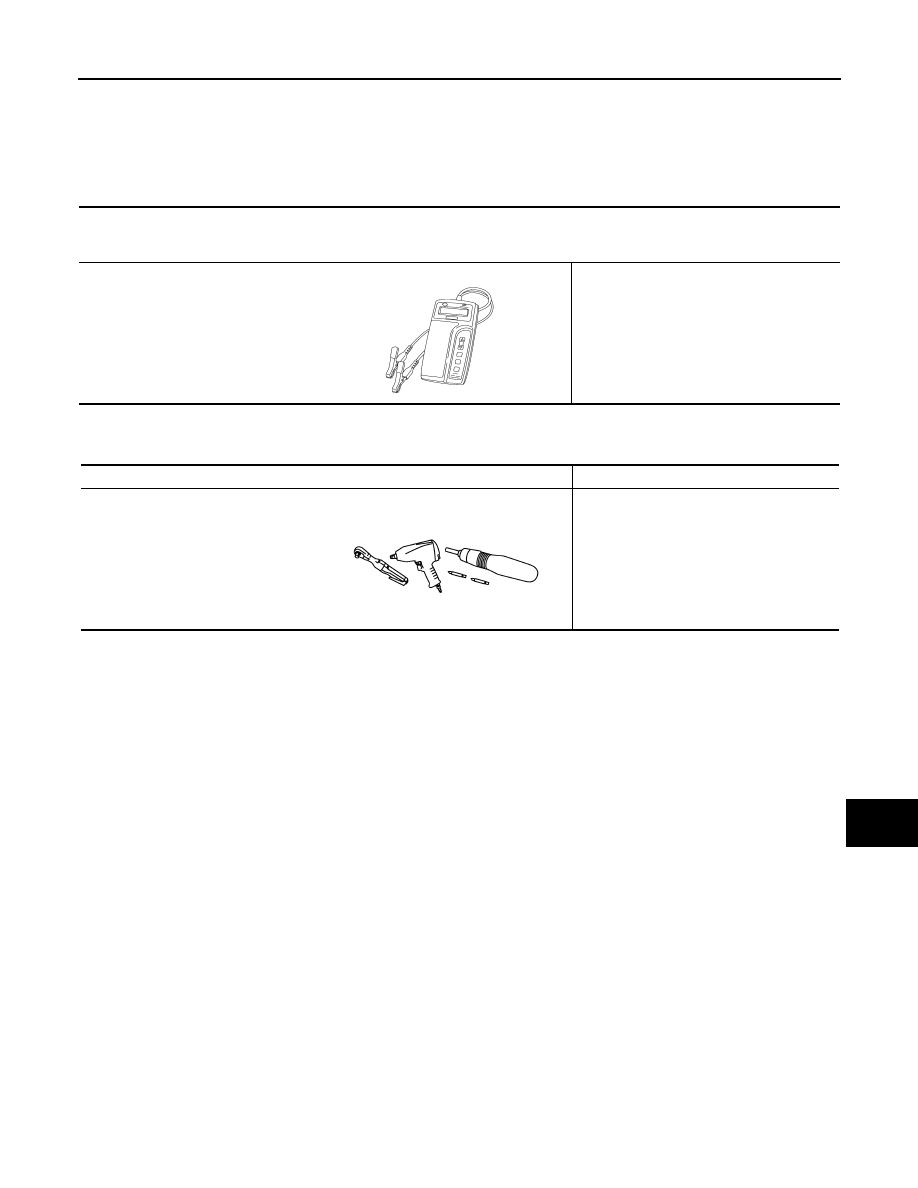

Special Service Tools

INFOID:0000000006274882

Commercial Service Tools

INFOID:0000000006274883

Tool number

(Kent-Moore No.)

Tool name

Description

(J-44373 Model MCR620)
Starting/Charging System Tester

Tests starting and charging systems.
For operating instructions, refer to Technical
Service Bulletin.

SEL403X

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

CHG-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

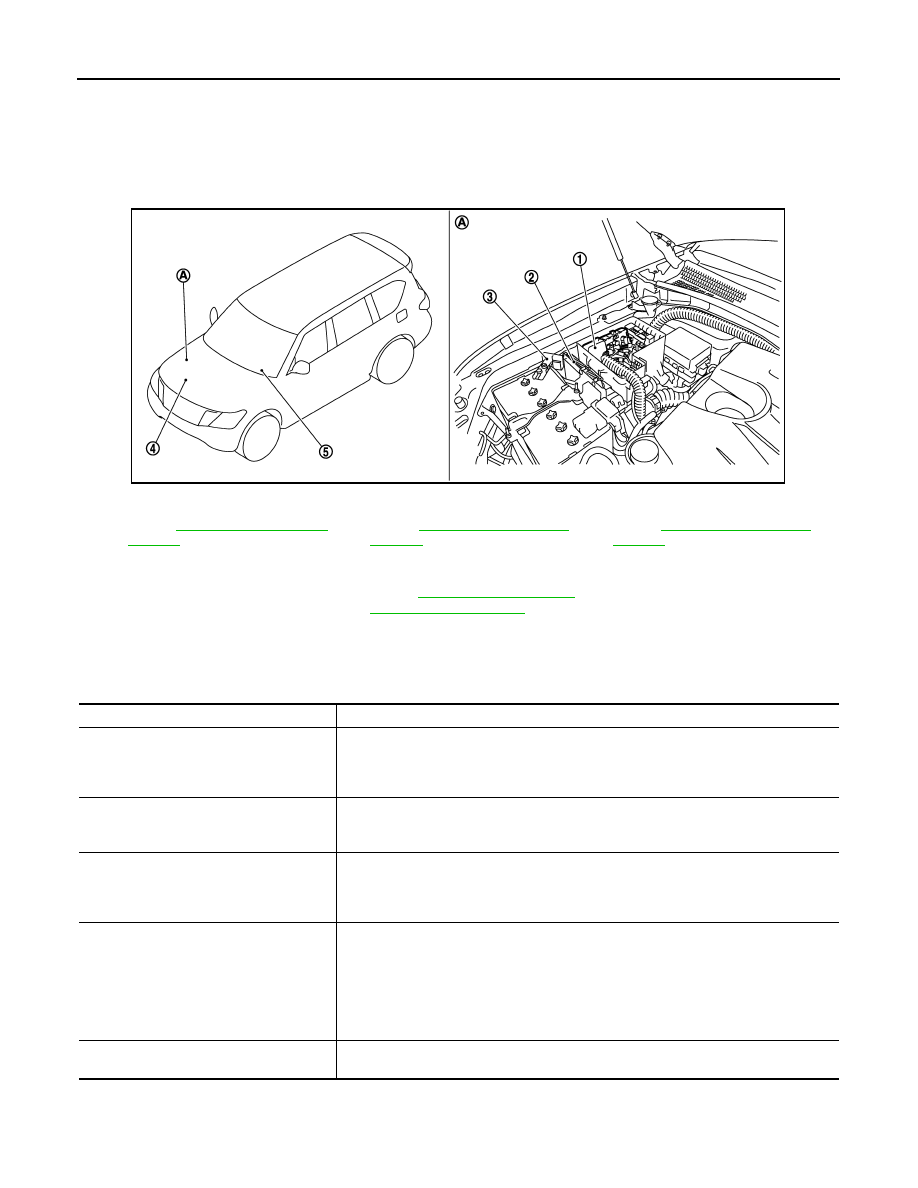

Component Parts Location

INFOID:0000000006274858

Component Description

INFOID:0000000006274859

1.

IPDM E/R
Refer to

PCS-4, "Component Parts

Location"

.

2.

ECM
Refer to

EC-16, "Component Parts

Location"

.

3.

Battery current sensor
Refer to

EC-16, "Component Parts

Location"

.

4.

Alternator

5.

Combination meter (charge warning
lamp)
Refer to

MWI-6, "METER SYSTEM :

Component Parts Location"

.

A.

Engine room (RH)

JMMIA0411ZZ

Component part

Description

Alternator (IC voltage regulator)

IC voltage regulator controls the power generation voltage by the target power genera-
tion voltage based on the received power generation command signal.
When there is no power generation command signal, the alternator performs the normal
power generation according to the characteristic of the IC voltage regulator.

Battery current sensor

Battery current sensor is installed to the battery cable at the negative terminal, and it de-
tects the charging/discharging current of the battery and sends the voltage signal to ECM
according to the current value.

Combination meter (Charge warning lamp)

The IC voltage regulator warning function activates to illuminate the charge warning
lamp, if any of the following symptoms occur while alternator is operating:
• Excessive voltage is produced.
• No voltage is produced.

ECM

Battery current sensor detects the charging/discharging current of the battery. ECM judg-
es the battery condition based on this signal.
ECM judges whether to perform the power generation voltage variable control according
to the battery condition.
When performing the power generation voltage variable control, ECM calculates the tar-
get power generation voltage according to the battery condition and sends the calculated
value as the power generation command value to IPDM E/R.

IPDM E/R

IPDM E/R converts the received power generation command value into the power gen-
eration command signal (PWM signal) and sends it to the IC voltage regulator.

CHG

SYSTEM

CHG-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

CHARGING SYSTEM

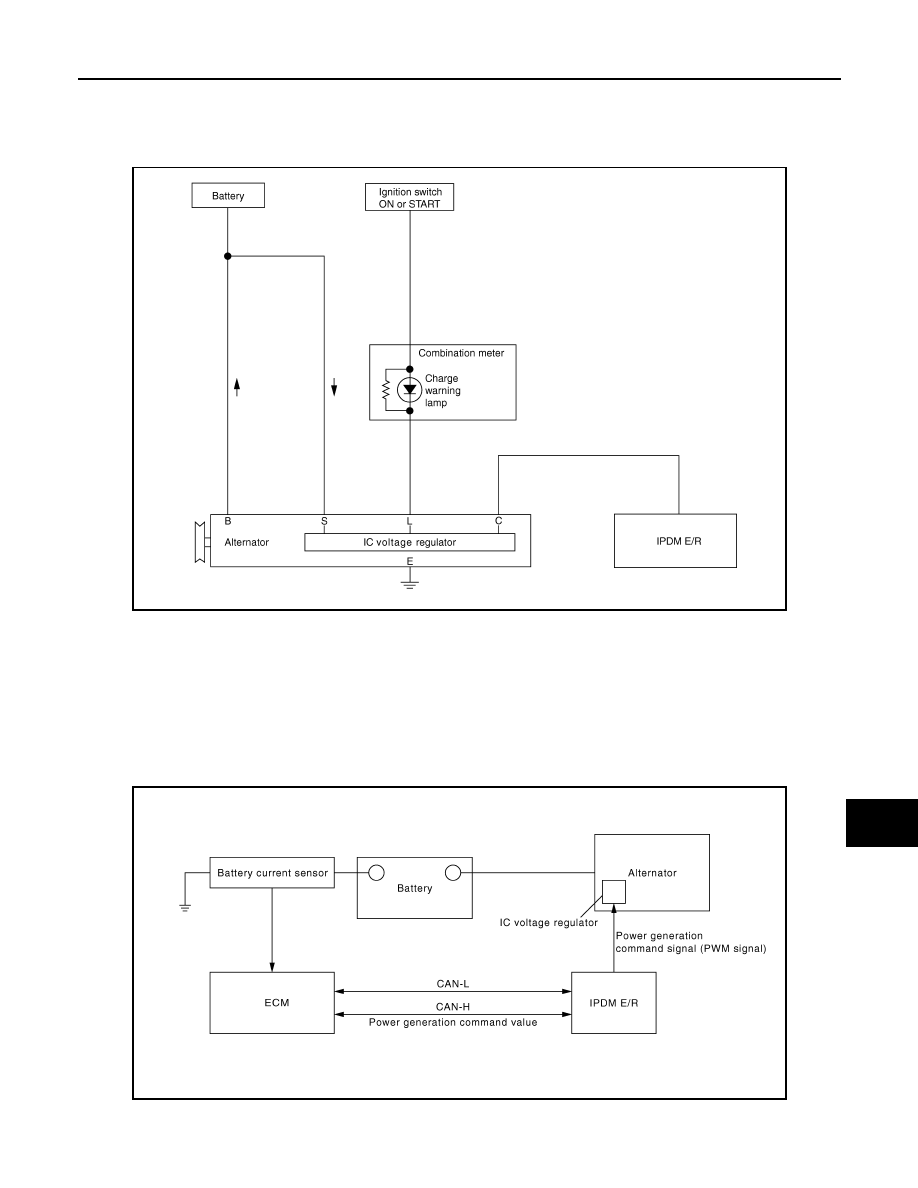

CHARGING SYSTEM : System Diagram

INFOID:0000000006274860

CHARGING SYSTEM : System Description

INFOID:0000000006274861

The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC voltage regulator.

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System Dia-
gram

INFOID:0000000006274862

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System De-

JPMIA0633GB

JPMIA0632GB

CHG-8

< SYSTEM DESCRIPTION >

SYSTEM

scription

INFOID:0000000006274863

By performing the power generation voltage variable control, the engine load due to the power generation of
the alternator is reduced and fuel consumption is decreased.
NOTE:
When any malfunction is detected in the power generation voltage variable control system, the power genera-
tion is performed according to the characteristic of the IC voltage regulator of the alternator.
