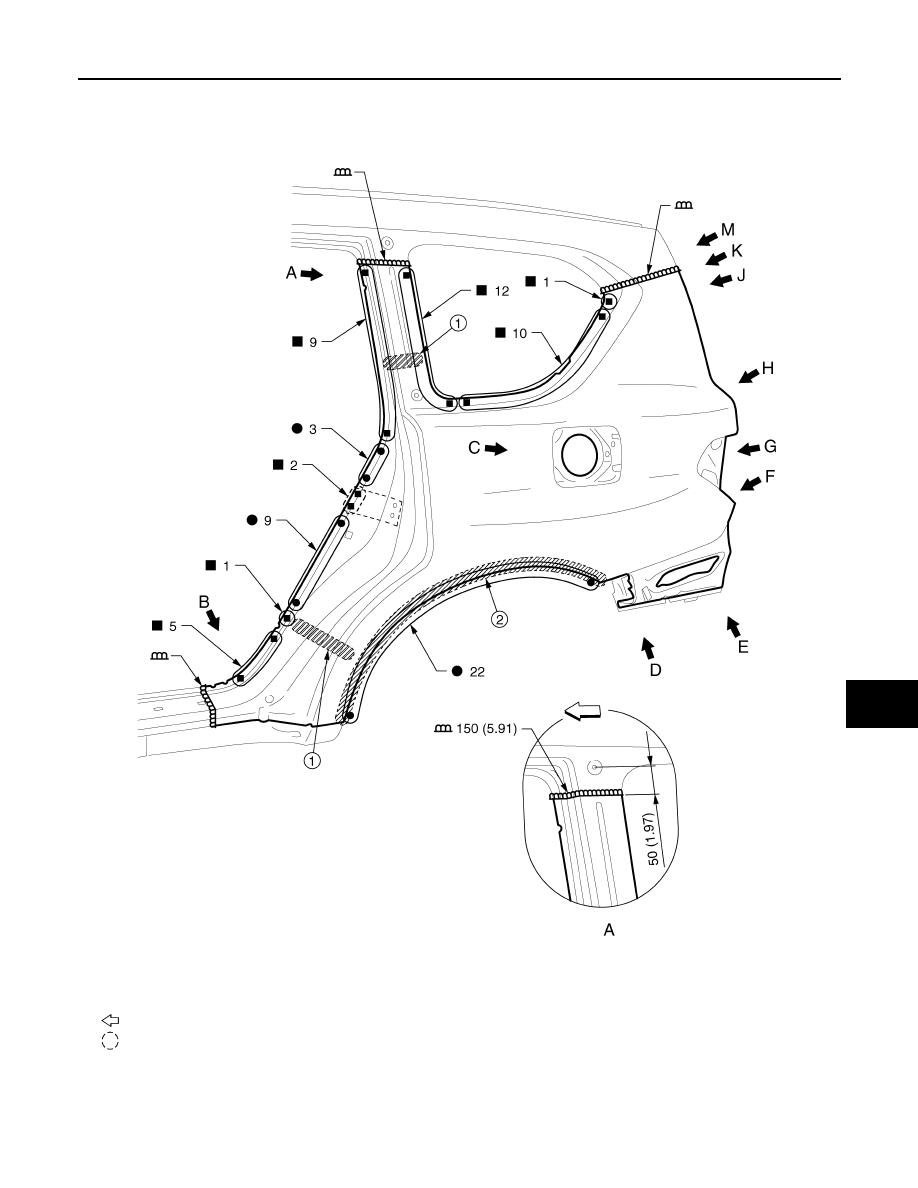

Rear Fender

INFOID:0000000006248503

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear fender (LH)

JSKIA1835GB

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

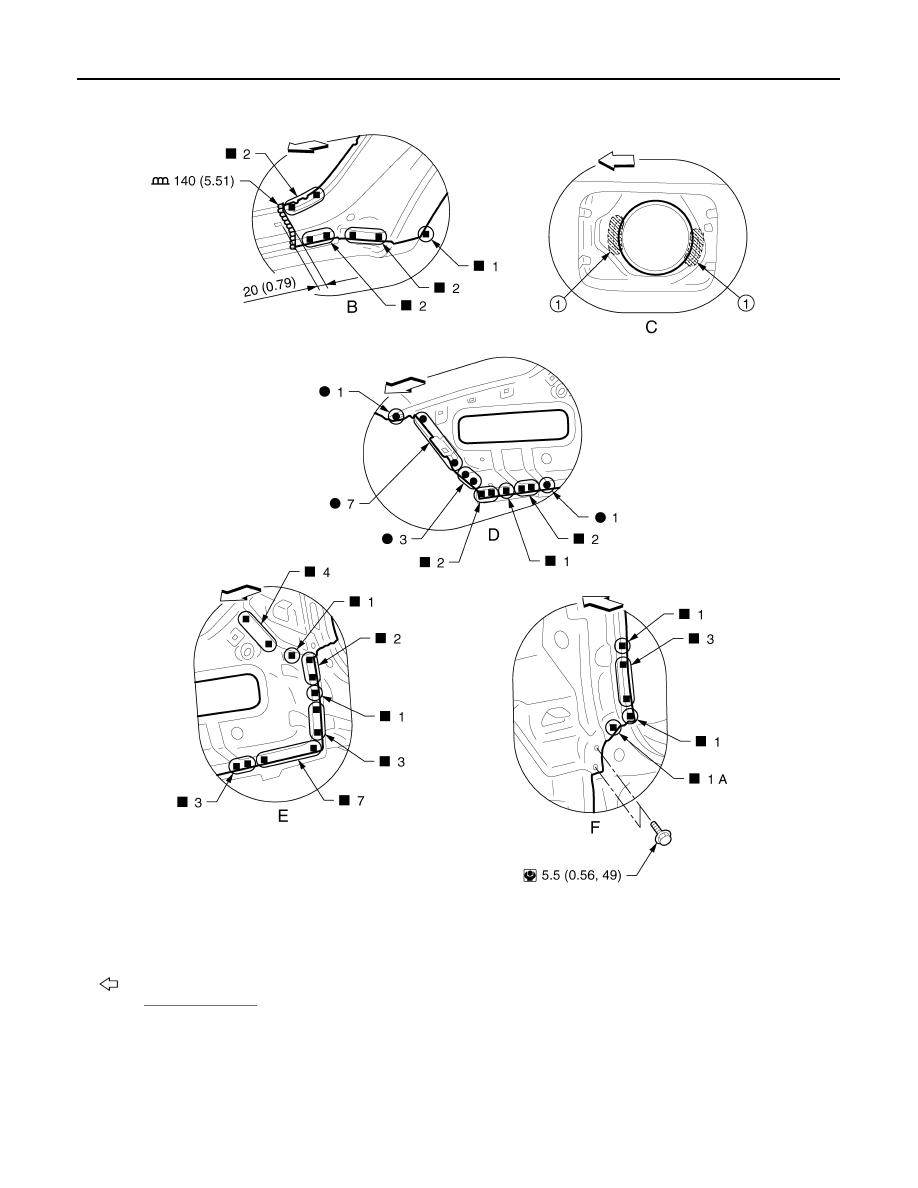

1.

Adhesive

Unit: mm (in)

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSKIA1836GB

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

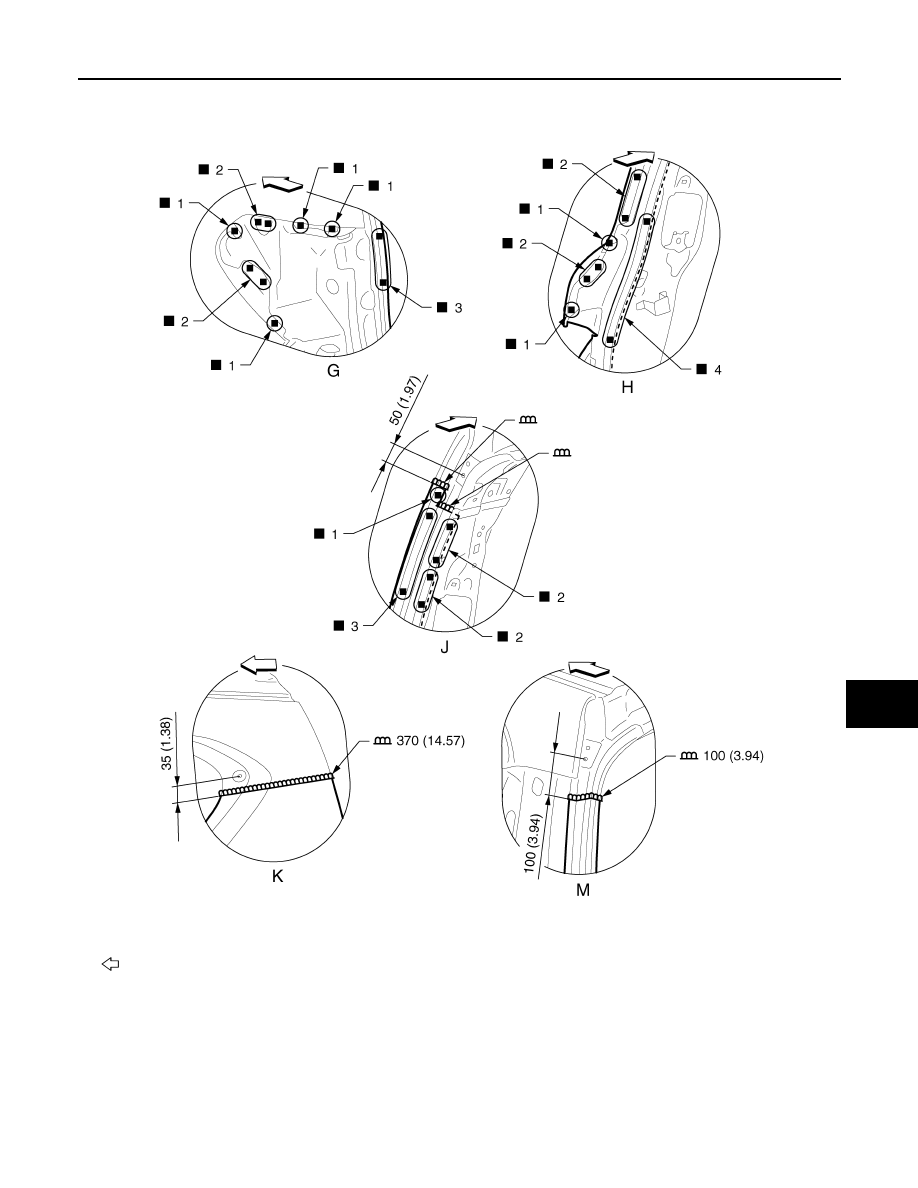

View M: Before installing rear fender

Unit: mm (in)

: Vehicle front

JSKIA1837GB

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Fender Extension

INFOID:0000000006248504

Rear Panel and Rear End Crossmember

INFOID:0000000006248505

Remove the rear side member (reusable) and the rear end cross bracket (reusable) for easier installation.

Unit: mm (in)

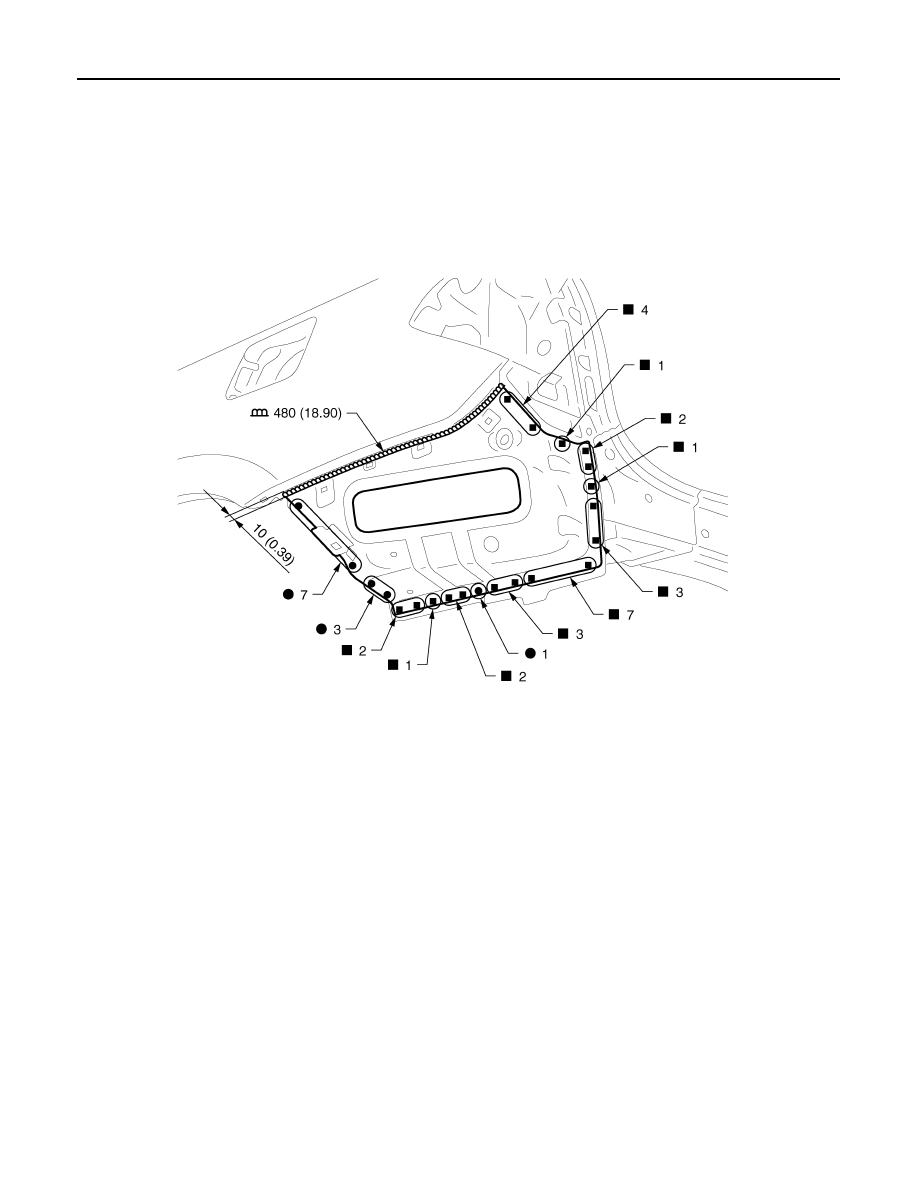

Replacement parts

z

Rear fender extension (LH)

JSKIA1838GB
