10. Lower dash reinforcement

11.

Lower dash

12. Lower hinge plate (Front)

13. Lower front pillar hinge brace

14. Front floor

15. 2nd body mounting member

16. 2nd body mounting bracket

17. Inner sill

18. Center sill reinforcement

19. Outer sill reinforcement

20. Side member outrigger

21. Inner center pillar

22. Inner center pillar reinforcement

23. Upper outer center pillar reinforce-

ment

24. Center pillar hinge brace

25. Center pillar plate

26. Lower hinge plate (Rear)

27. Lower center pillar bracket

28. 3rd body mounting bracket

29. Rear floor front

30. Outer sill rear reinforcement

31. Anchor plate

32. Outer rear wheelhouse

33. Sill closing plate

34. Inner rear pillar

35. Inner side panel reinforcement

36. Roof rail rear brace

37. Inner back pillar

38. Inner rear roof side rail

39. Back pillar reinforcement

40. Upper back pillar main

41. Back pillar seat belt anchor

BRM-24

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

REPLACEMENT OPERATIONS

Description

INFOID:0000000006248496

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle are maintained. The Body Repair Manual (Fundamentals) con-
tains additional information, including cautions and warnings, that are not including in this manual. Techni-
cians should refer to both manuals to ensure proper repair.

• Please note that this information is prepared for worldwide usage, and as such, certain procedures might not

apply in some regions or countries.

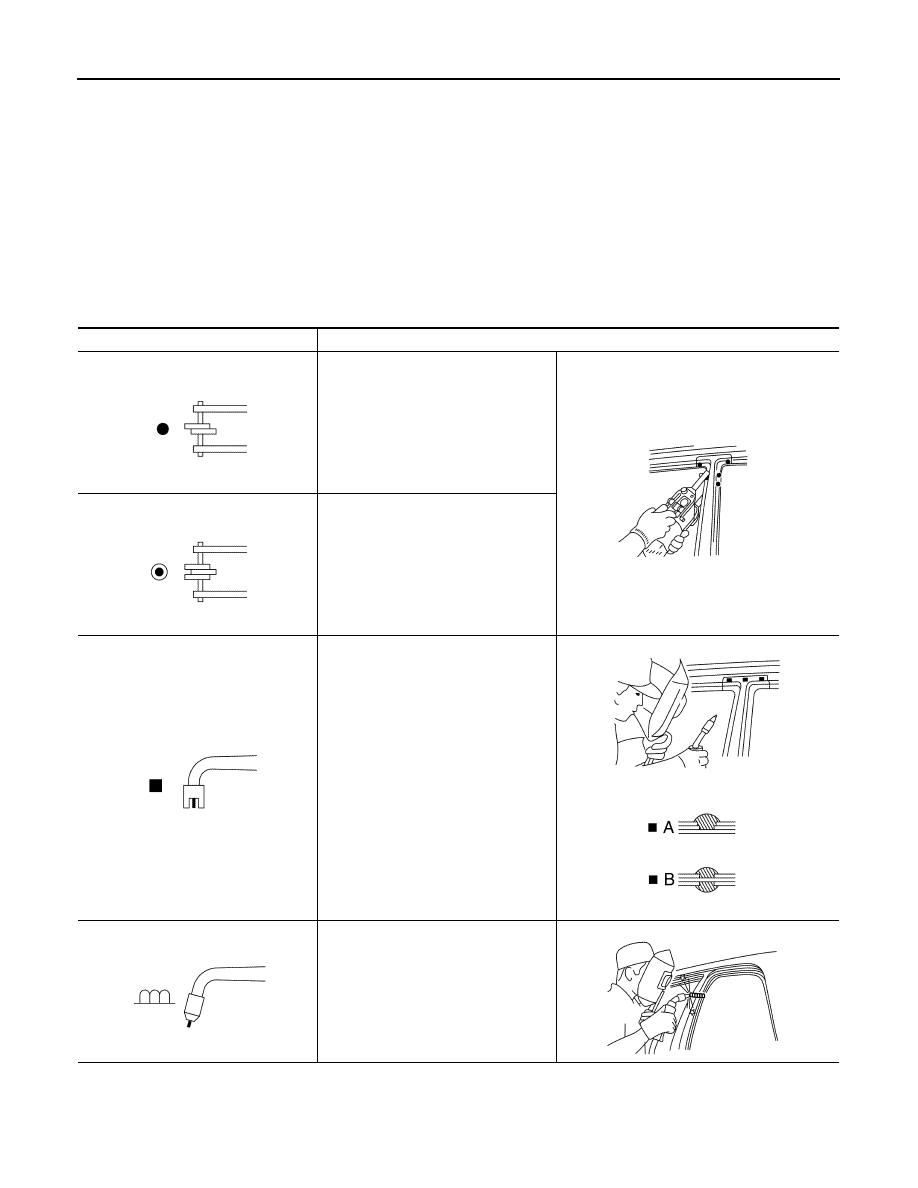

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

REPLACEMENT OPERATIONS

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

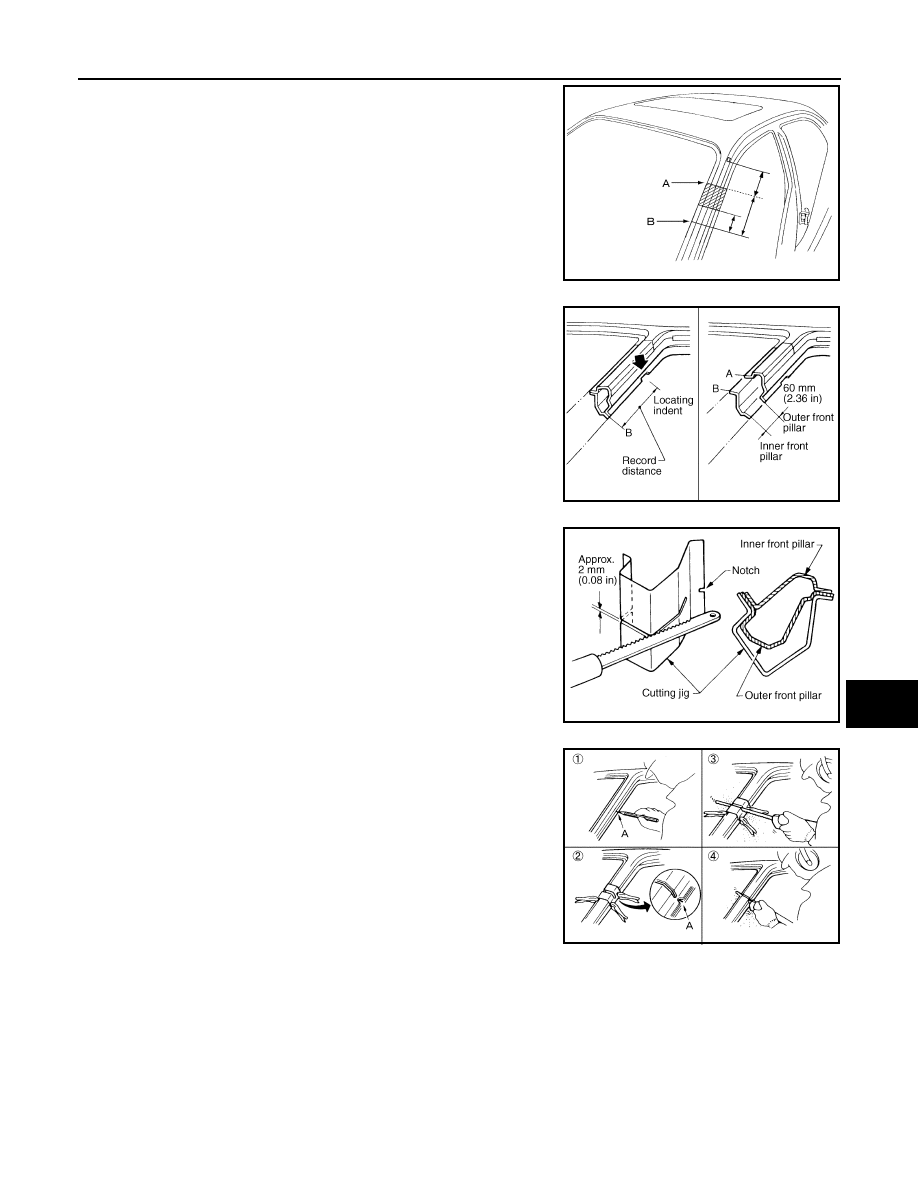

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm (2.36 in) above the inner front pillar cut
position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit the service part to be accurately cut at the joint position.

• An example of cutting operation using a cutting jig is as per the fol-

lowing.

1.

Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar

2.

Align cutting line with notch on jig. Clamp jig to pillar.

3.

Cut outer pillar along groove of jig (at position A).

4.

Remove jig and cut remaining portions.

5.

Cut inner pillar at position B in same manner.

PIIA0150E

JSKIA0104GB

JSKIA0105GB

PIIA0153E

BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Radiator Core Support

INFOID:0000000006248497

Hoodledge

INFOID:0000000006248498

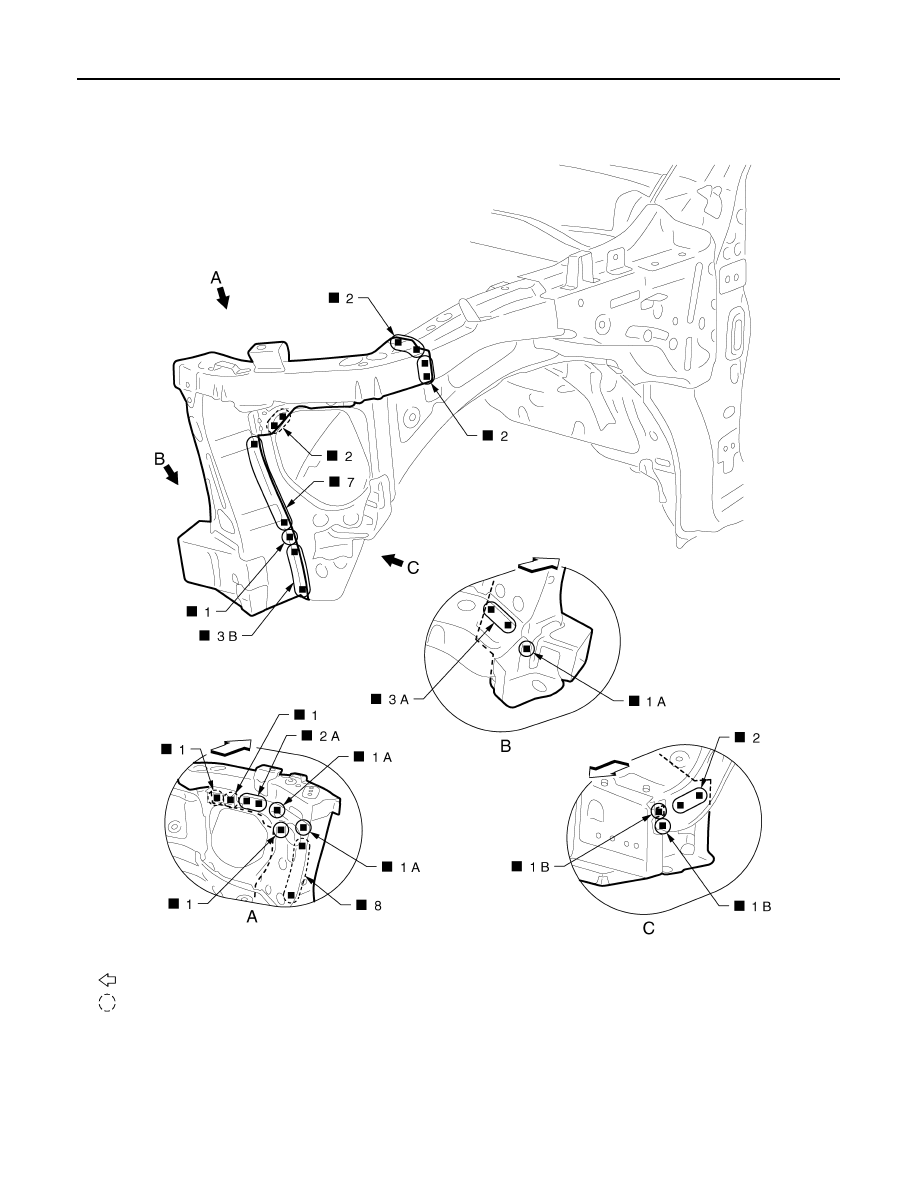

Work after radiator core support is removed.

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Side radiator core support (LH)

JSKIA1914ZZ
