Infiniti QX56 (Z62). Manual - part 171





BODY COMPONENT PARTS

BRM-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

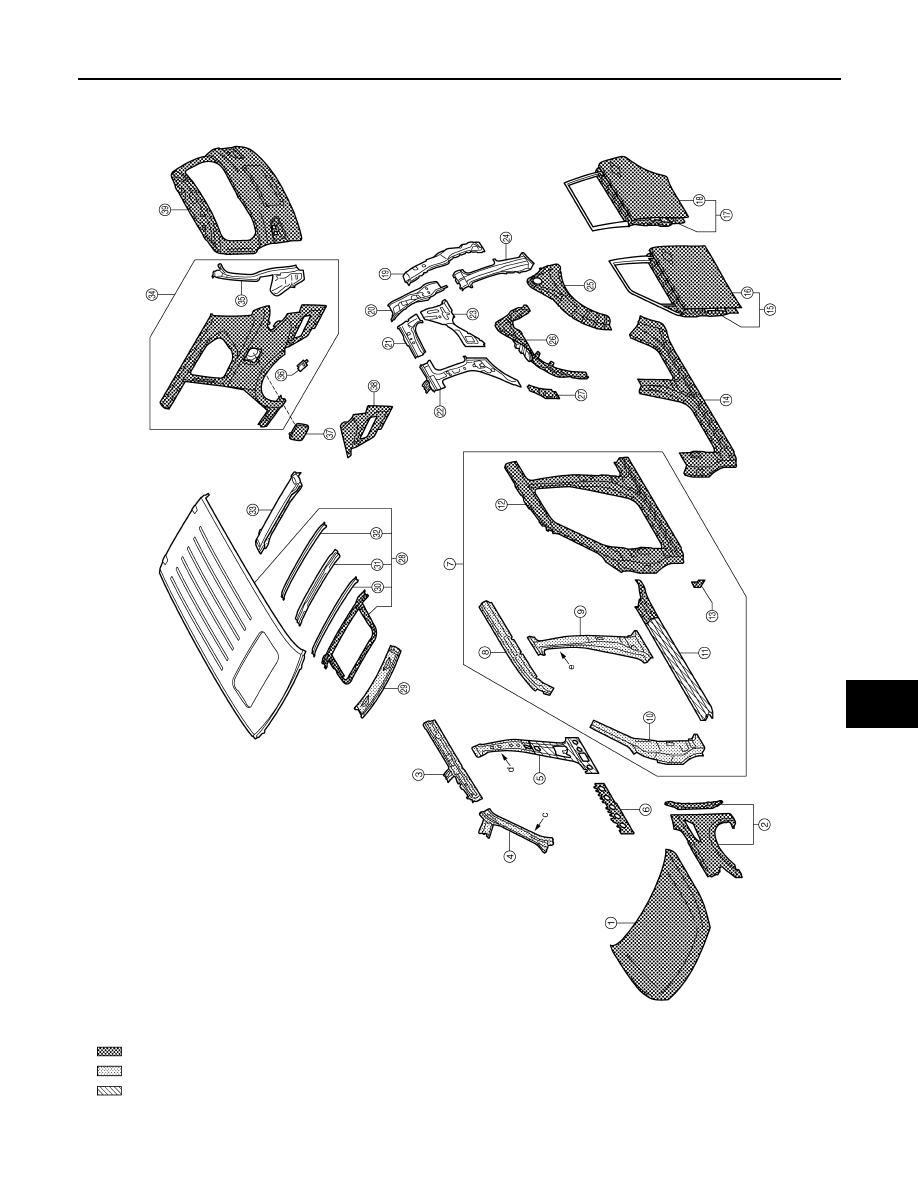

Body Component Parts

INFOID:0000000006248488

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA1951ZZ

BRM-12

< PREPARATION >

BODY COMPONENT PARTS

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Hood

Under 440

×

2.

Front fender (RH & LH)

Under 440

×

3.

Inner side roof rail (RH & LH)

590

—

4.

Upper inner front pillar (RH & LH)

c.

T=1.6 mm
(0.063 in)

980

caution

—

5.

Inner center pillar (RH & LH)

d.

T=1.6 mm
(0.063 in)

980

caution

×

6.

Center sill reinforcement assembly (RH & LH)

Under 440

×

7.

Side body assembly (RH & LH)

Refer to No.8

−

13

8.

Upper front pillar reinforcement (RH & LH)

590

—

9.

Lower center pillar brace (RH & LH)

e.

T=1.8 mm
(0.071 in)

980

caution

—

10.

Front pillar brace (RH & LH)

590

—

11.

Outer sill reinforcement (RH & LH)

590

×

12.

Outer front side body (RH & LH)

Under 440

×

13.

Front fender bracket assembly (RH & LH)

Under 440

×

14.

Outer sill (RH & LH)

Under 440

×

15.

Front door assembly (RH & LH)

440

×

16.

Outer front door panel (RH & LH)

Under 440

×

17.

Rear door assembly (RH & LH)

440

×

18.

Outer rear door panel (RH & LH)

Under 440

×

19.

Back pillar reinforcement (RH & LH)

Under 440

—

20.

Inner back pillar (RH & LH)

Under 440

—

21.

Inner rear side roof rail (RH & LH)

Under 440

—

22.

Inner rear pillar (RH & LH)

590

—

23.

Lower inner rear pillar (RH & LH)v

Under 440

—

24.

Side panel reinforcement (RH & LH)

Under 440

—

25.

Outer rear wheelhouse (RH & LH)

Under 440

×

26.

Inner rear wheelhouse (RH & LH)

Under 440

×

27.

Outer rear wheelhouse extension (RH & LH)

Under 440

×

28.

Roof assembly

Under 440

—

29.

Front roof rail

440

—

30.

Roof bow No.3

Under 440

—

31.

Roof bow No.4

Under 440

—

32.

Roof bow No.5

Under 440

—

33.

Rear roof rail

440

—

34.

Rear fender (RH & LH)

Under 440

×

35.

Back pillar assembly (RH & LH)

Under 440

—

36.

Rear fender bracket (RH & LH)

Under 440

—

37.

Fuel filler lid

Under 440

×

38.

Rear fender extension (RH & LH)

Under 440

×

39.

Back door

Under 440

×

BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

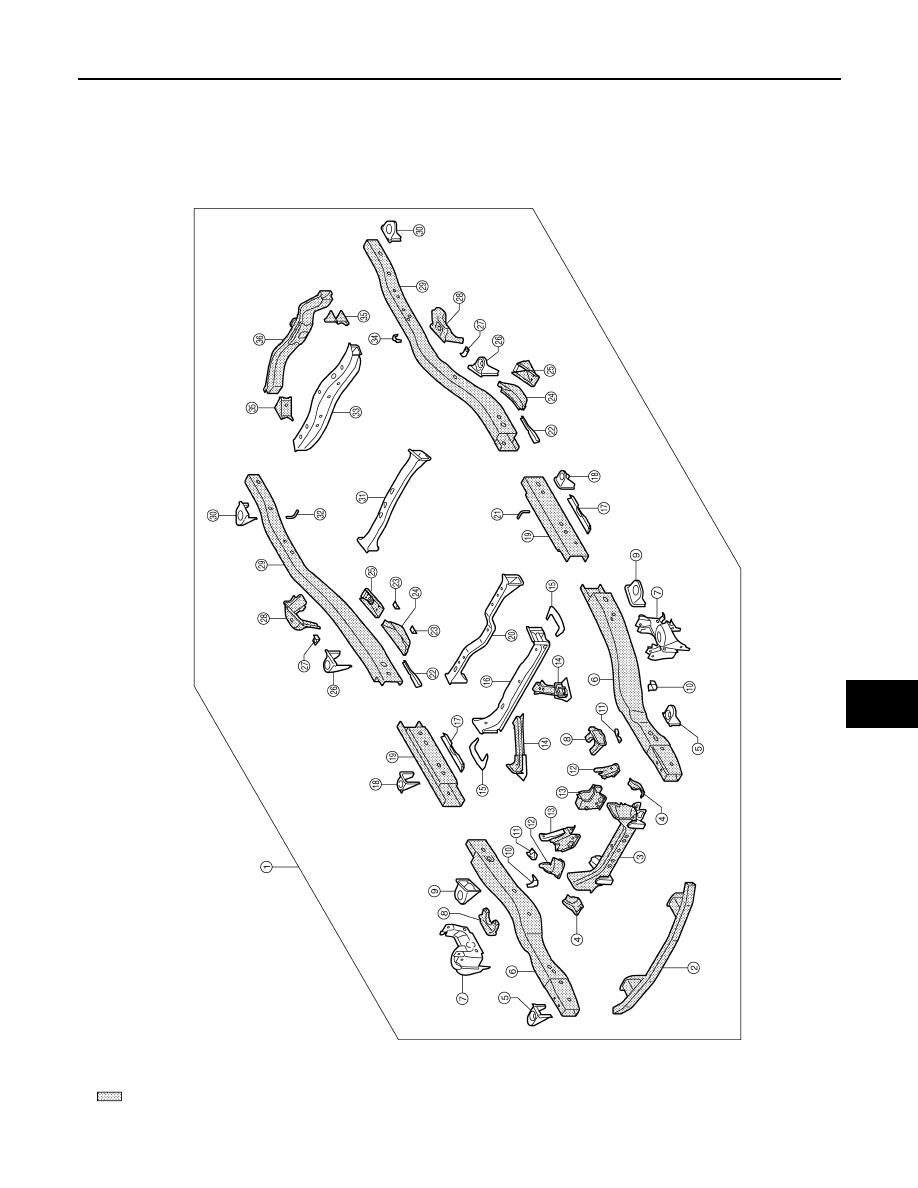

Frame Component Parts

INFOID:0000000006248489

: High strength steel (HSS) sections

JSKIA1952ZZ

BRM-14

< PREPARATION >

BODY COMPONENT PARTS

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Frame assembly

Refer to No.2

−

36

2.

Front bumper crossmember assembly

T=1.8 mm
(0.071 in)

980

caution

—

3.

2nd crossmember assembly

440

—

4.

2nd crossmember reinforcement (RH & LH)

440

—

5.

1st cab mounting bracket (RH & LH)

Under 440

—

6.

Front side member assembly (RH & LH)

540

—

7.

Front suspension bracket assembly (RH & LH)

Under 440

—

8.

Engine mounting bracket assembly (RH & LH)

Under 440

—

9.

2nd cab mounting bracket assembly (RH & LH)

Under 440

—

10.

3way connector bracket assembly (RH & LH)

Under 440

—

11.

Piping bracket assembly (RH & LH)

Under 440

—

12.

Front bound bumper bracket assembly (RH & LH)

540

—

13.

Lower front link mounting bracket assembly (RH & LH)

440

—

14.

Diagonal member complete (RH & LH)

540

—

15.

Rear engine mounting gusset assembly

Under 440

—

16.

Rear engine mounting member complete

Under 440

—

17.

Front fuel tank protector (RH & LH)

Under 440

—

18.

3rd cab mounting bracket assembly (RH & LH)

Under 440

—

19.

Center side member assembly (RH & LH)

540

—

20.

6th crossmember assembly

Under 440

—

21.

Exhaust bracket (Front)

Under 440

—

22.

Fuel tank protector (RH & LH Rear)

Under 440

—

23.

Heat insulator bracket

Under 440

—

24.

Fuel tank protector assembly (RH & LH)

540

—

25.

Rear suspension mounting bracket assembly (RH & LH)

540

—

26.

4th cab body mounting bracket assembly (RH & LH)

Under 440

—

27.

Rear brake hose bracket (RH & LH)

Under 440

—

28.

Rear shock absorber bracket assembly (RH & LH)

540

—

29.

Rear side member assembly (RH & LH)

540

—

30.

5th cab body bracket (RH & LH)

Under 440

—

31.

7th crossmember assembly

Under 440

—

32.

Exhaust bracket (Rear)

Under 440

—

33.

Spare wheel crossmember assembly

Under 440

—

34.

Front under cover bracket assembly

Under 440

—

35.

Rear end gusset (RH & LH)

440

—

36.

Rear end crossmember assembly

540

—
