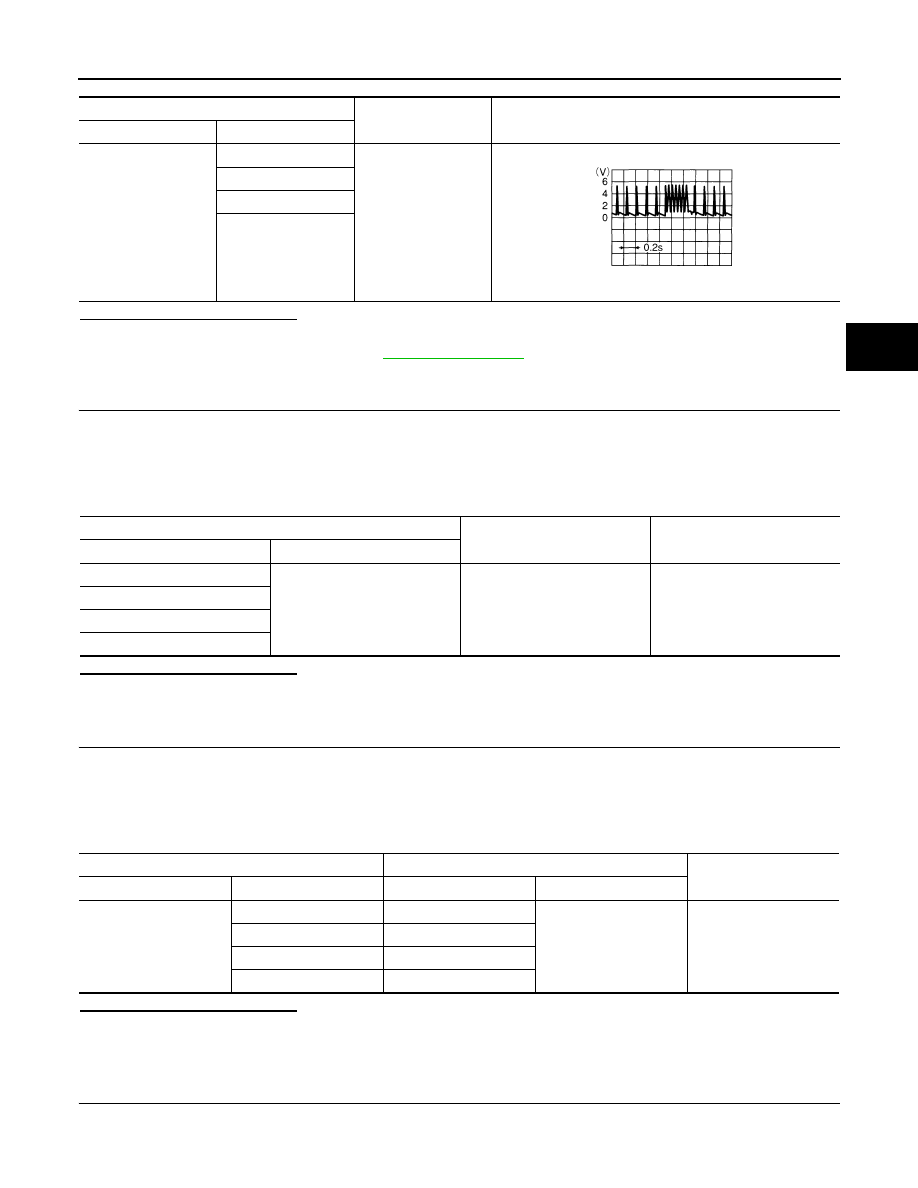

C1750, C1751, C1752, C1753 RECEIVER WT-43 < DTC/CIRCUIT DIAGNOSIS > C D F G H I J K L M A B WT N O P WHEN SIGNAL IS RECEIVED Is the inspection result normal? YES >> Check connector for loose connection and then perform “DTC CONFIRMATION PROCEDURE” (self-diagnosis) again. Refer to NO >> GO TO 2. 2. CHECK TIRE PRESSURE RECEIVER POWER SUPPLY CIRCUIT 1. Disconnect the tire pressure receiver harness connector. 2. Turn the ignition switch ON. CAUTION: Never start the engine. 3. Check the voltage between tire pressure receiver harness connector and ground. Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace the malfunctioning harness or connector. 3. CHECK TIRE PRESSURE RECEIVER GROUND CIRCUIT 1. Turn the ignition switch OFF. 2. Disconnect low tire pressure warning control unit harness connector and tire pressure receiver harness 3. Check the continuity between low tire pressure warning control unit harness connector and tire pressure Is the inspection result normal? YES >> GO TO 4. NO >> Repair or replace the malfunctioning harness or connector. 4. CHECK FOR CHANGE TO THE TIRE PRESSURE RECEIVER INSTALLATION POSITION (EXAMPLE: FRONT LH RECEIVER OK/NG JUDGMENT) NOTE: Low tire pressure warning control unit — Value (Approx.) Connector Terminal M96 3 Ground Approx. 4.5 V 4 5 6 OCC3880D Tire pressure receiver — Voltage Connector Terminal E53 (Front LH) 1 Ground Approx. 9 - 16 V E19 (Front RH) B43 (Rear LH) B212 (Rear RH) Low tire pressure warning control unit Tire pressure receiver Continuity Connector Terminal Connector Terminal M96 26 E53 (Front LH) 4 Existed 25 E19 (Front RH) 24 B43 (Rear LH) 23 B212 (Rear RH) |
