BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006222526

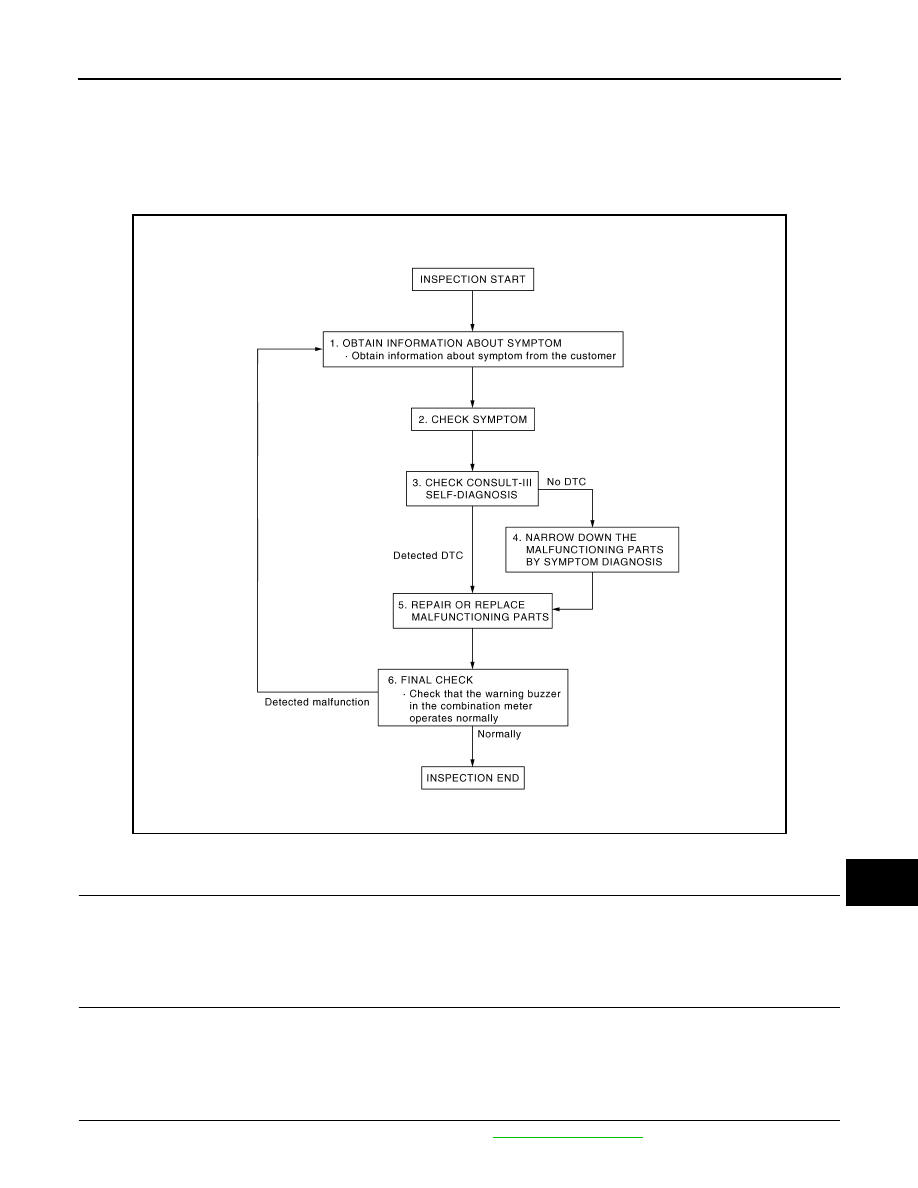

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.
• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT-III SELF-DIAGNOSIS RESULTS

Connect CONSULT-III and perform self-diagnosis. Refer to

MWI-43, "DTC Index"

.

JSNIA0733GB

WCS-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Are self-diagnosis results normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that the warning buzzer in the combination meter operates normally.

Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 1.

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-39

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER

COMBINATION METER : Diagnosis Procedure

INFOID:0000000006222743

1.

CHECK FUSE

Check for blown fuses.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Be sure to eliminate cause of malfunction before installing new fuse.

2.

CHECK POWER SUPPLY CIRCUIT

Check voltage between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check harness between combination meter and fuse.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector.

3.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Power source

Fuse No.

Battery

11

Ignition switch ON or START

3

Terminals

Ignition switch po-

sition

Voltage

(Approx.)

(+)

(

−

)

Combination meter

Ground

Connector

Terminal

M34

1

OFF

Battery voltage

2

ON

Combination meter

Ground

Continuity

Connector

Terminal

M34

3

Existed

23

WCS-40

< DTC/CIRCUIT DIAGNOSIS >

METER BUZZER CIRCUIT

METER BUZZER CIRCUIT

Component Function Check

INFOID:0000000006222528

1.

CHECK OPERATION OF METER BUZZER

1.

Select “BUZZER” of “BCM” on CONSULT-III.

2.

Perform “LIGHT WARN ALM” of “Active Test”.

Does meter buzzer beep?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “BUZZER” monitor value.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Replace BCM. Refer to

BCS-81, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000006222529

1.

CHECK POWER SUPPLY OF COMBINATION METER

Check power supply of combination meter. Refer to

MWI-64, "COMBINATION METER : Diagnosis Proce-

dure"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair power supply circuit of combination meter.

BUZZER

Under the condition of buzzer input

: On

Except above

: Off
