TRANSMISSION ASSEMBLY

TM-241

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

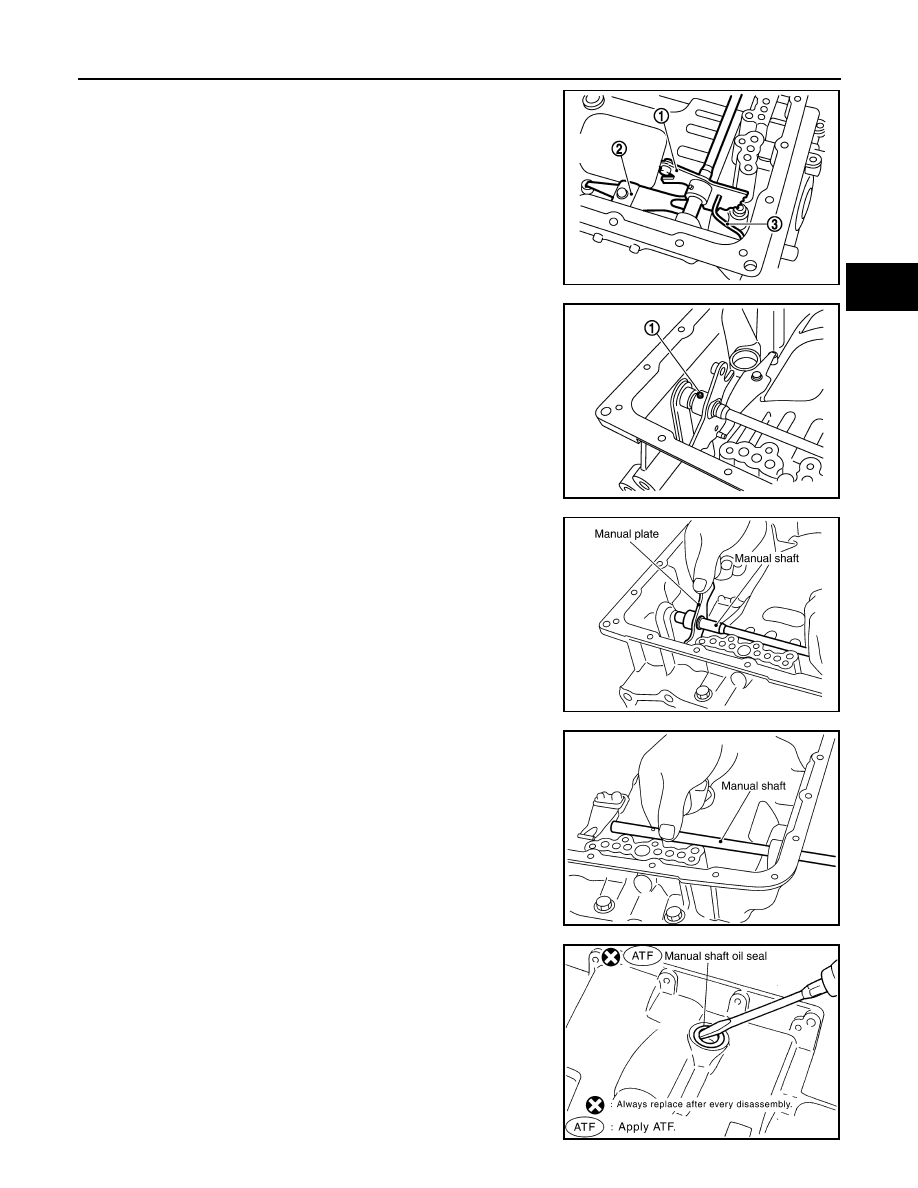

56. Remove manual plate (1) from detent spring (2).

57. Remove parking rod (3) from manual plate.
58. Install manual plate to detent spring.

59. Use a pin punch [4 mm (0.16 in) dia. commercial service tool] to

knock out retaining pin (1).

60. Remove manual plate from manual shaft.

61. Remove manual shaft from transmission case.

62. Remove manual shaft oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transmission case.

JPDIA1131ZZ

JPDIA1132ZZ

SCIA5715E

SCIA5716E

SCIA2331E

TM-242

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

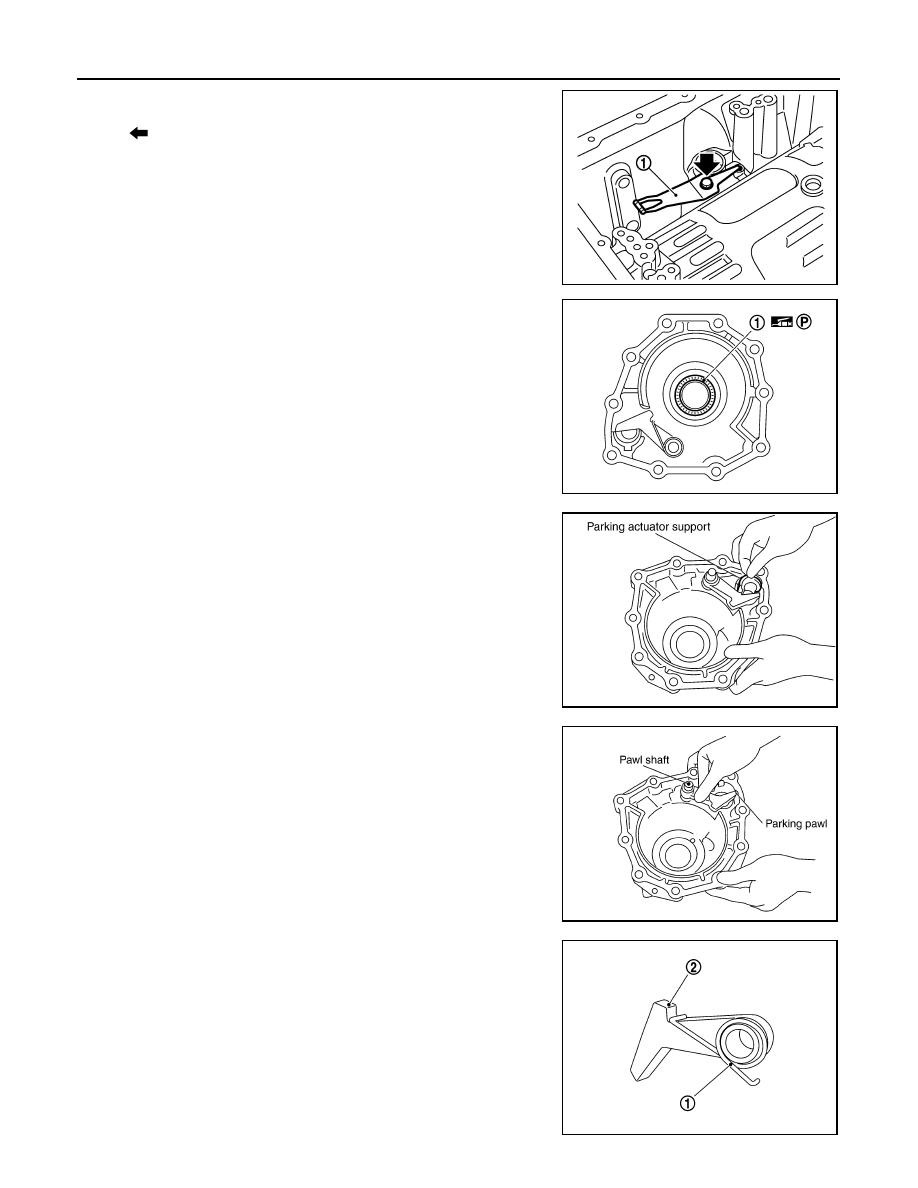

63. Remove detent spring (1) from transmission case.

64. Remove needle bearing (1) from rear extension (2WD) or

adapter case (4WD).

65. Remove parking actuator support from rear extension (2WD) or

adapter case (4WD).

66. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD) or adapter case (4WD).

67. Remove return spring (1) from parking pawl (2).

: Bolt

JPDIA1134ZZ

SCIA6179J

SCIA3423E

SCIA3424E

SCIA6180J

TRANSMISSION ASSEMBLY

TM-243

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

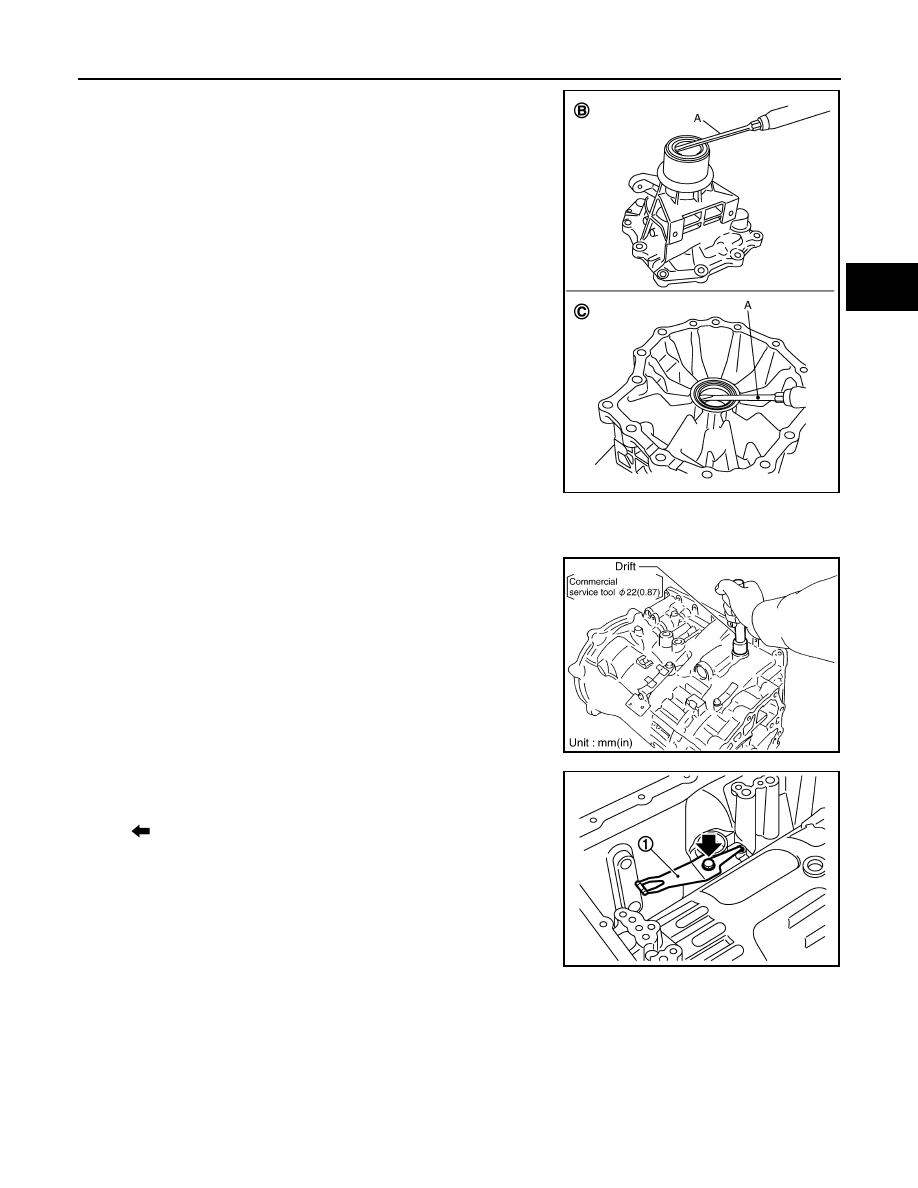

68. Remove rear oil seal from rear extension (B) or adapter case (C)

using a flat-bladed screwdriver (A).

CAUTION:

Be careful not to scratch adapter case.

Assembly

INFOID:0000000006226918

1.

As shown in the figure, use a drift [22 mm (0.87 in) dia. commer-
cial service tool] to drive manual shaft oil seals into the transmis-
sion case until it is flush.

CAUTION:

• Never reuse manual shaft oil seals.
• Apply ATF to manual shaft oil seals.

2.

Install detent spring to transmission case. Tighten detent spring
bolt to the specified torque.

B

:  2WD

C

:  4WD

JSDIA0157ZZ

SCIA5259E

: Bolt

JPDIA1134ZZ

TM-244

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

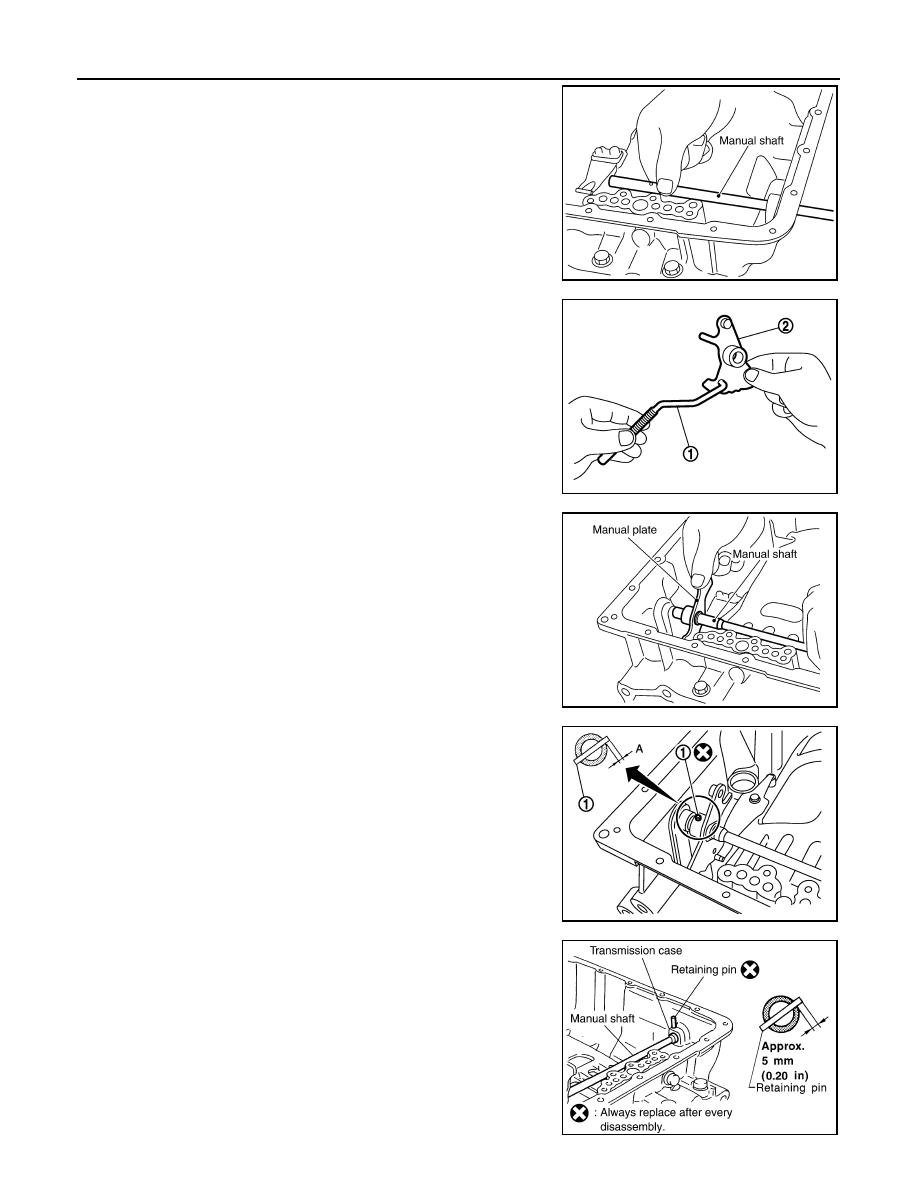

3.

Install manual shaft to transmission case.

4.

Install parking rod (1) to manual plate (2).

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin (1) into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft
with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual
shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the trans-

mission case.

SCIA5716E

JSDIA1820ZZ

SCIA5715E

A

: Approx. 2 mm (0.08in)

JPDIA1133ZZ

SCIA2427E
