DIAGNOSIS AND REPAIR WORK FLOW

TM-89

< BASIC INSPECTION >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

IDENTIFY MALFUNCTIONING SYSTEM WITH “DIAGNOSIS CHART BY SYMPTOM”

Use

TM-165, "Symptom Table"

 from the symptom inspection result in step 4. Then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 8.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the detected malfunctioning parts.
Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.

>> GO TO 8.

8.

FINAL CHECK

Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.
Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3 or 4.
Is DTC or malfunction symptom reproduced?

YES-1 >> DTC is reproduced: GO TO 5.
YES-2 >> Malfunction symptom is reproduced: GO TO 6.
NO

>> Before delivering the vehicle to the customer, make sure that DTC is erased.

Question sheet

INFOID:0000000006226790

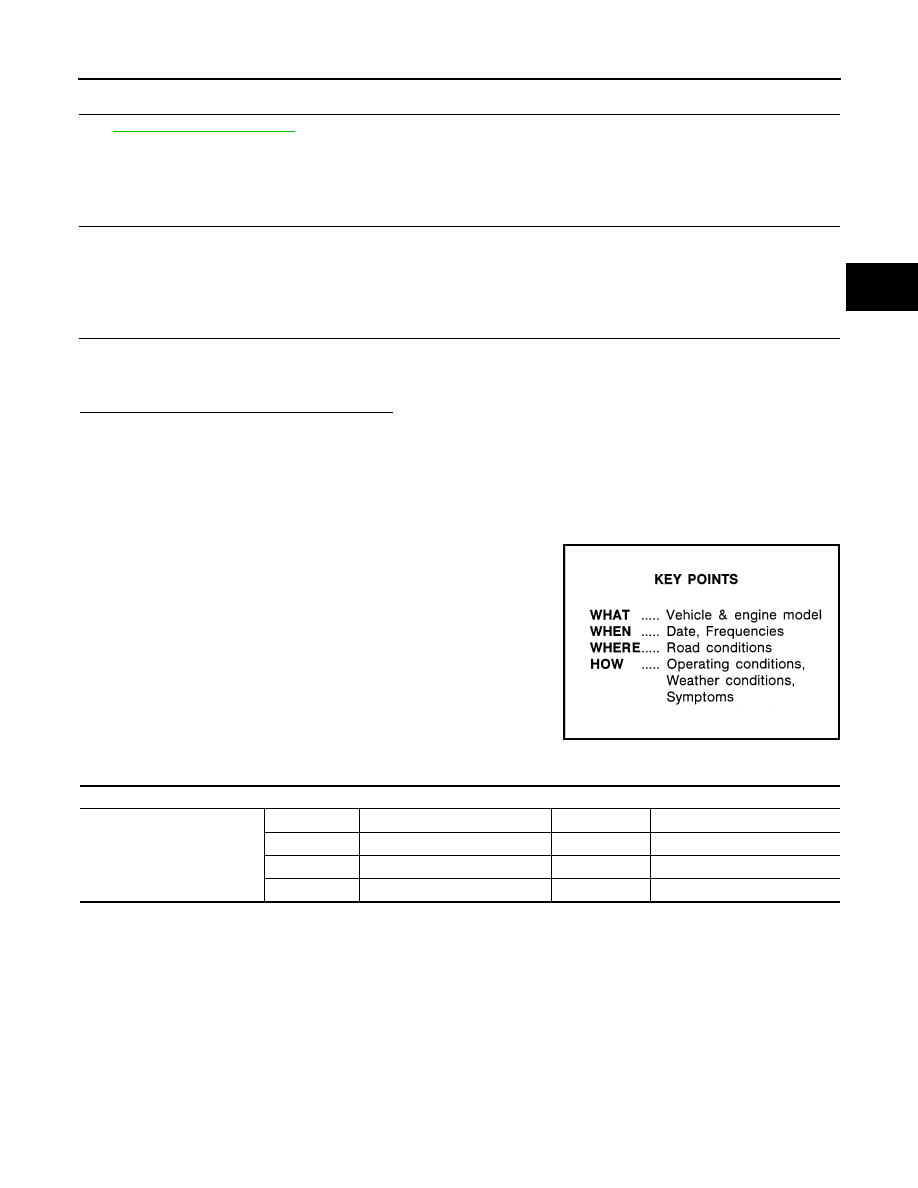

DESCRIPTION

There are many operating conditions that may cause a malfunction
of the transmission parts. By understanding those conditions prop-
erly, a quick and exact diagnosis can be achieved.
In general, customers have their own criteria for a problem. There-
fore, it is important to understand the symptom and status well
enough by asking the customer about the concerns carefully. In
order to systemize all the information for the diagnosis, prepare the
question sheet referring to the question points.

WORKSHEET SAMPLE

SEF907L

Question Sheet

Customer name       MR/MS

Engine #

Manuf. Date

Incident Date

VIN

Model & Year

In Service Date

Trans.

Mileage

km / Mile

TM-90

< BASIC INSPECTION >

[7AT: RE7R01B]

DIAGNOSIS AND REPAIR WORK FLOW

Symptoms

†

 Vehicle does not move     (

†

 Any position

†

 Particular position                                          )

†

 No upshift     (

†

 1GR

 2GR

†

 2GR

 3GR

†

 3GR

 4GR

†

 4GR

 5GR

†

 5GR



6GR

†

 6GR

 7GR)

†

 No downshift     (

†

 7GR

 6GR

†

 6GR

 5GR

†

 5GR

 4GR

†

 4GR

 3GR

†

 3GR



2GR

†

 2GR

 1GR)

†

 Lock-up malfunction

†

 Shift point too high or too low

†

 Shift shock or slip

†

 Noise or vibration

†

 No kick down

†

 No pattern select

†

 Others

Frequency

†

 All the time

†

 Under certain conditions

†

 Sometimes (           times a day)

Weather conditions

†

 Not affected

Weather

†

 Fine

†

 Clouding

†

 Raining

†

 Snowing

†

 Other (                                        )

Temp.

†

 Hot

†

 Warm

†

 Cool

†

 Cold

†

 Temp. [Approx.

°

C (

°

F)]

Humidity

†

 High

†

 Middle

†

 Low

Transmission conditions

†

 Not affected

†

 Cold

†

 During warm-up

†

 After warm-up

†

 Engine speed (                                         rpm)

Road conditions

†

 Not affected

†

 In town

†

 In suburbs

†

 Freeway

†

 Off road (Up / Down)

Driving conditions

†

 Not affected

†

 At starting

†

 While idling

†

 While engine racing

†

 At racing

†

 While cruis-

ing

†

 While accelerating

†

 While decelerating

†

 While turning (Right / Left)

†

 Vehicle speed [                          km/h (                   MPH)]

Other conditions

Question Sheet

ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY

TM-91

< BASIC INSPECTION >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY

Description

INFOID:0000000006233270

Decel G sensor calibration must be performed when replacing A/T assembly.

Special Repair Requirement

INFOID:0000000006233271

1.

PREPARATION BEFORE CALIBRATION PROCEDURE

1.

Park the vehicle on a flat road.

2.

Adjust pressure in all tires to the specified value. Refer to

WT-69, "Tire Air Pressure"

.

>> GO TO 2.

2.

PERFORM CALIBRATION

 With CONSULT-III

1.

Turn ignition switch ON.

CAUTION:

Never start the engine.

2.

Select “G SENSOR CALIBRATION” in “Work Support” in “TRANSMISSION”.

3.

Touch “START”.

CAUTION:

Never give any motion to the vehicle during the calibration.

Is “completed” displayed?

YES

>> GO TO 3.

NO

>> Perform the calibration again.

3.

CHECK DTC

 With CONSULT-III

1.

Turn ignition switch OFF and wait 10 seconds or more.

2.

Turn ignition switch ON.

3.

Select “Self Diagnostic Results” in “ABS”.

Is “C1145” or “C1146” detected?

YES

>> Refer to

BRC-51, "DTC Index"

.

NO

>> Calibration end.

TM-92

< BASIC INSPECTION >

[7AT: RE7R01B]

ADDITIONAL SERVICE WHEN REPLACING CONTROL VALVE & TCM

ADDITIONAL SERVICE WHEN REPLACING CONTROL VALVE & TCM

Description

INFOID:0000000006233274

Decel G sensor calibration must be performed when replacing control valve & TCM.

Special Repair Requirement

INFOID:0000000006233275

1.

PREPARATION BEFORE CALIBRATION PROCEDURE

1.

Park the vehicle on a flat road.

2.

Adjust pressure in all tires to the specified value. Refer to

WT-69, "Tire Air Pressure"

.

>> GO TO 2.

2.

PERFORM CALIBRATION

 With CONSULT-III

1.

Turn ignition switch ON.

CAUTION:

Never start the engine.

2.

Select “G SENSOR CALIBRATION” in “Work Support” in “TRANSMISSION”.

3.

Touch “START”.

CAUTION:

Never give any motion to the vehicle during the calibration.

Is “completed” displayed?

YES

>> GO TO 3.

NO

>> Perform the calibration again.

3.

CHECK DTC

 With CONSULT-III

1.

Turn ignition switch OFF and wait 10 seconds or more.

2.

Turn ignition switch ON.

3.

Select “Self Diagnostic Results” in “ABS”.

Is “C1145” or “C1146” detected?

YES

>> Refer to

BRC-51, "DTC Index"

.

NO

>> Calibration end.
