COMPONENT PARTS

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000006275518

Component Description

INFOID:0000000006275519

1.

IPDM E/R
Refer to

PCS-4, "Component Parts

Location"

.

2.

Starter motor

3.

TCM
Refer to

TM-10, "A/T CONTROL SYS-

TEM : Component Parts Location"

.

4.

BCM
Refer to

BCS-4, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

A.

Engine

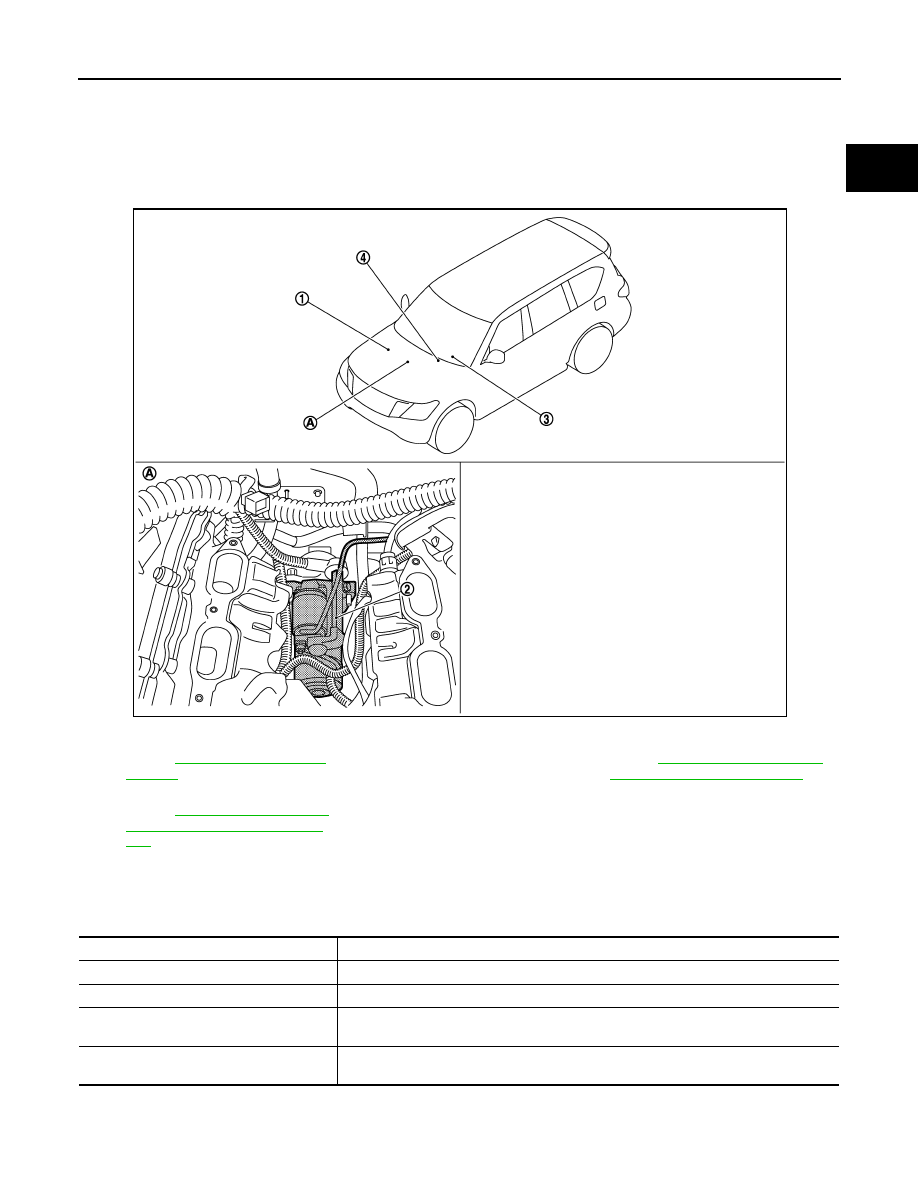

JMBIA2982ZZ

Component part

Description

BCM

BCM controls the starter relay inside IPDM E/R.

IPDM E/R

CPU inside IPDM E/R controls the starter control relay.

Starter motor

The starter motor plunger closes and the motor is supplied with battery power, which in
turn cranks the engine, when the “S” terminal is supplied with electric power.

TCM

TCM supplies power to the starter relay and starter control relay inside IPDM E/R when
the selector lever is shifted to the P or N position.

STR-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Diagram

INFOID:0000000006275520

System Description

INFOID:0000000006275521

• When selector lever is P or N, power is supplied to starter relay and starter control relay by TCM. And BCM

and IPDM E/R (CPU) detect selector lever P/N condition by the inputted signal.

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.
• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

And IPDM E/R (CPU) detect starter relay condition by the inputted signal.

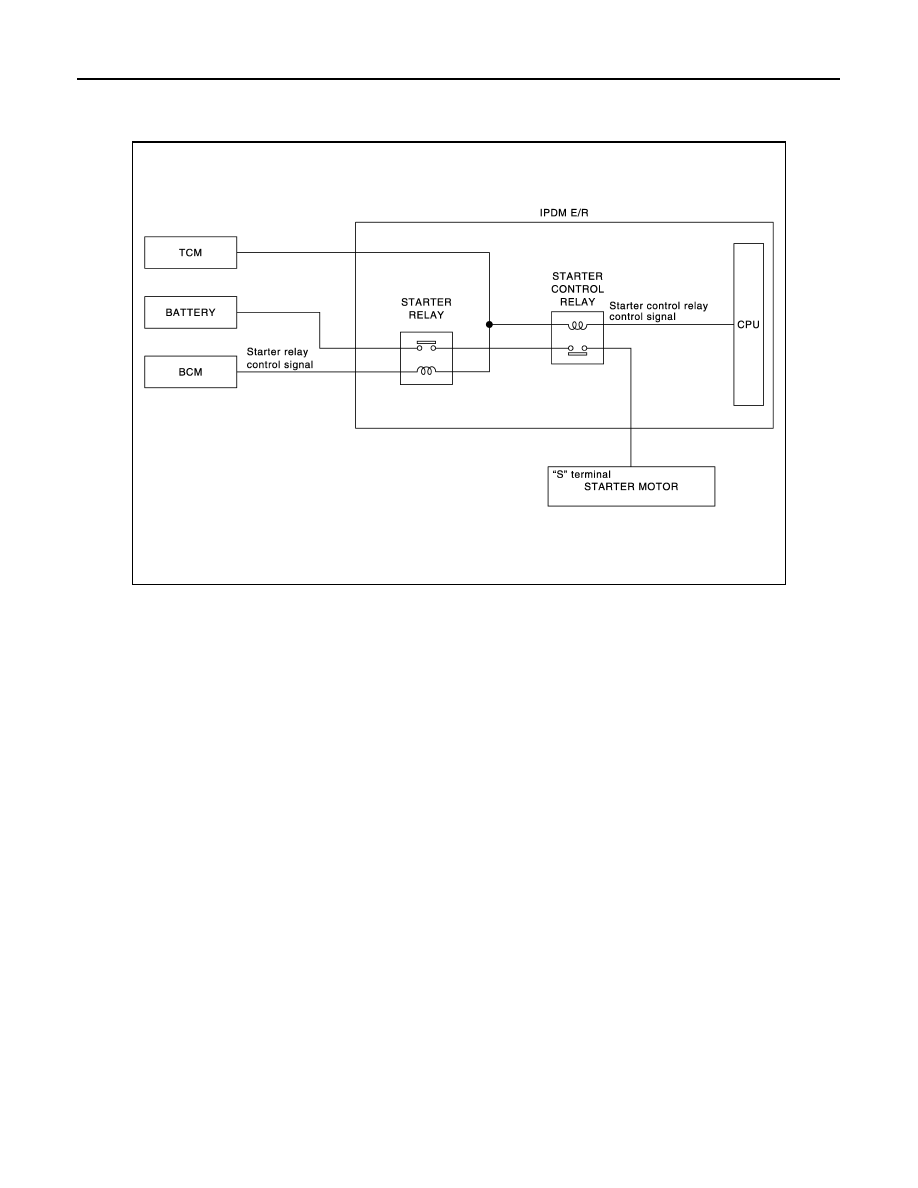

JMBIA2983GB

STARTING SYSTEM

STR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

WIRING DIAGRAM

STARTING SYSTEM

Wiring Diagram

INFOID:0000000006275522

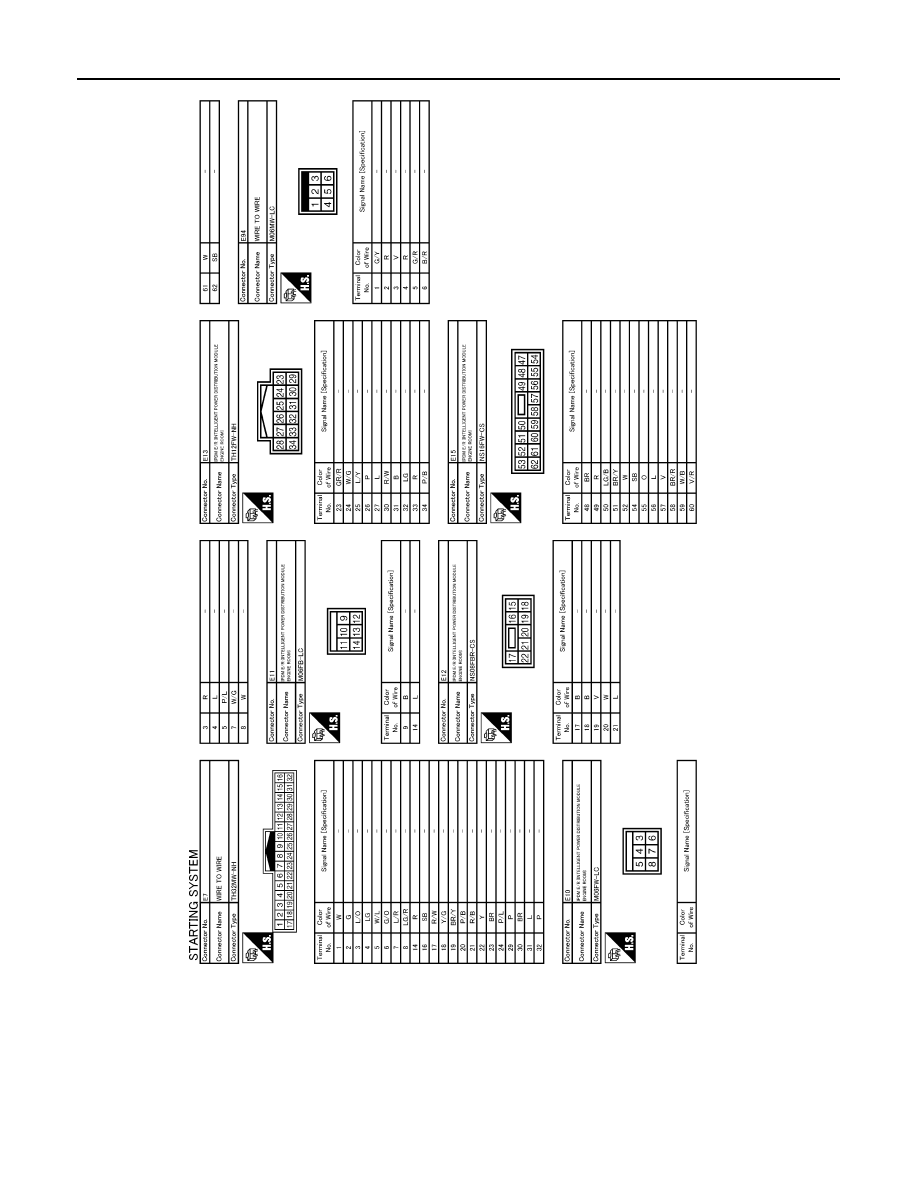

JCBWM2110GB

STR-8

< WIRING DIAGRAM >

STARTING SYSTEM

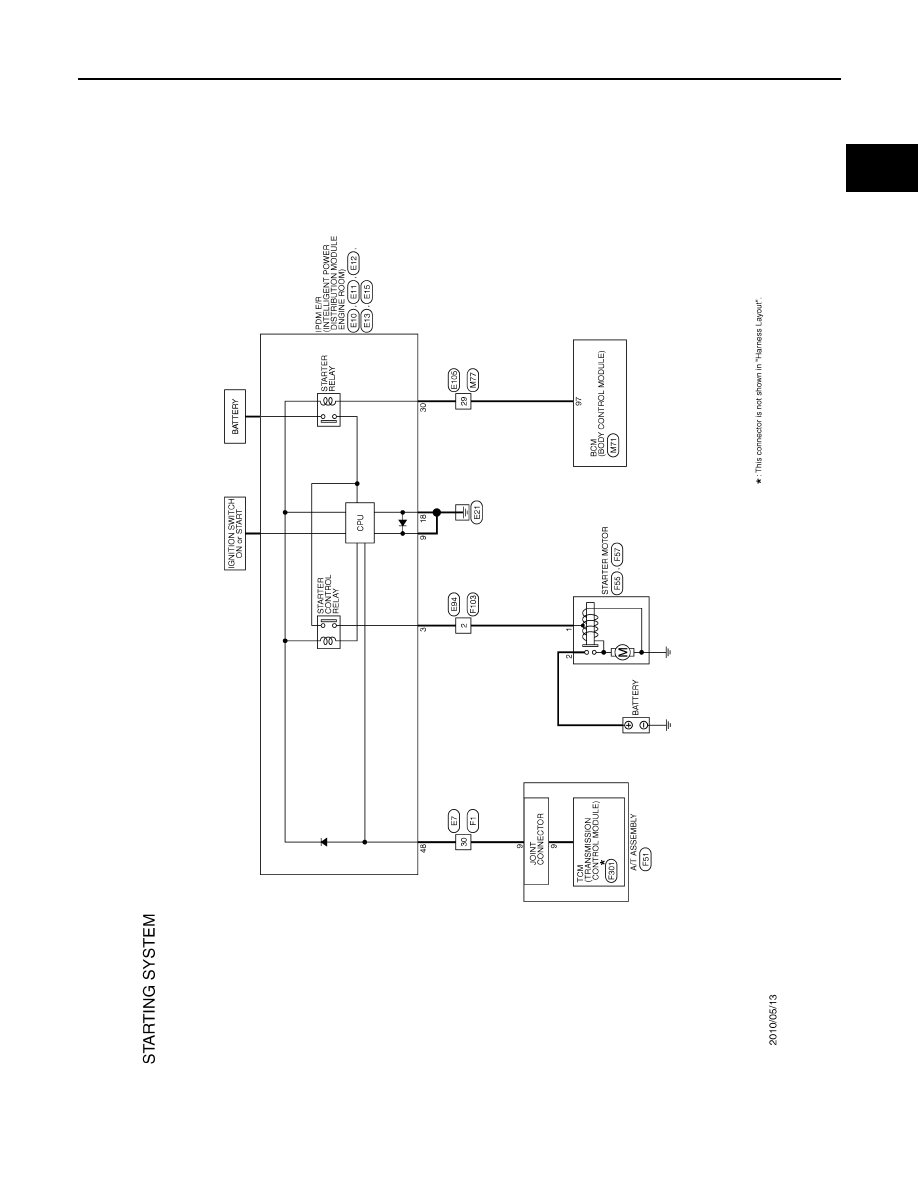

JCBWM2111GB
