ST-54

< REMOVAL AND INSTALLATION >

HYDRAULIC LINE

HYDRAULIC LINE

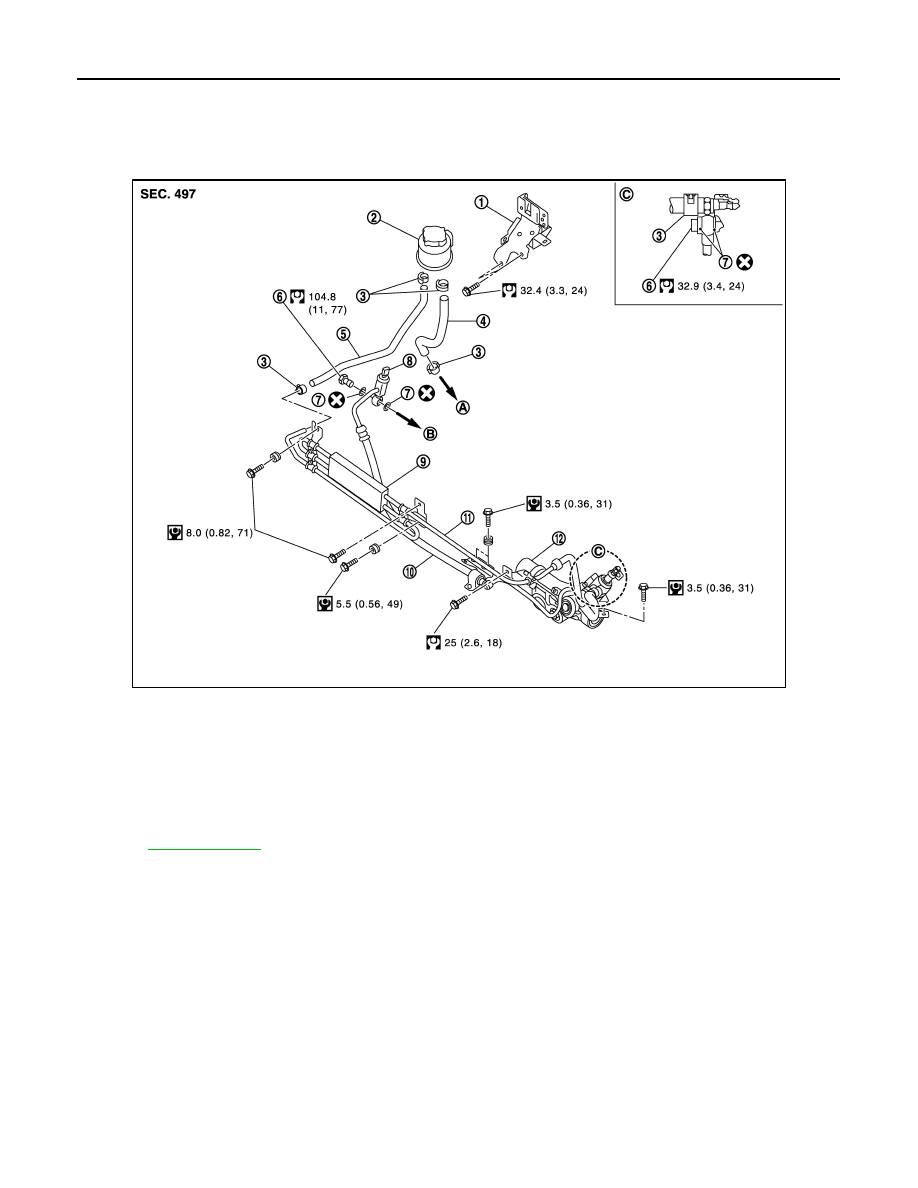

Exploded View

INFOID:0000000006225615

Engine speed sensitive type

JPGIA0096GB

1.

Reservoir tank bracket

2.

Reservoir tank

3.

Clamp

4.

Suction hose

5.

Return hose

6.

Eye bolt

7.

Copper washer

8.

Pressure sensor

9.

Oil cooler

10. High pressure piping

11.

Low pressure piping

12. Steering gear assembly

A.

To power steering oil pump suction hose.

B.

To power steering oil pump.

Refer to

GI-4, "Components"

 for symbols in the figure.

HYDRAULIC LINE

ST-55

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

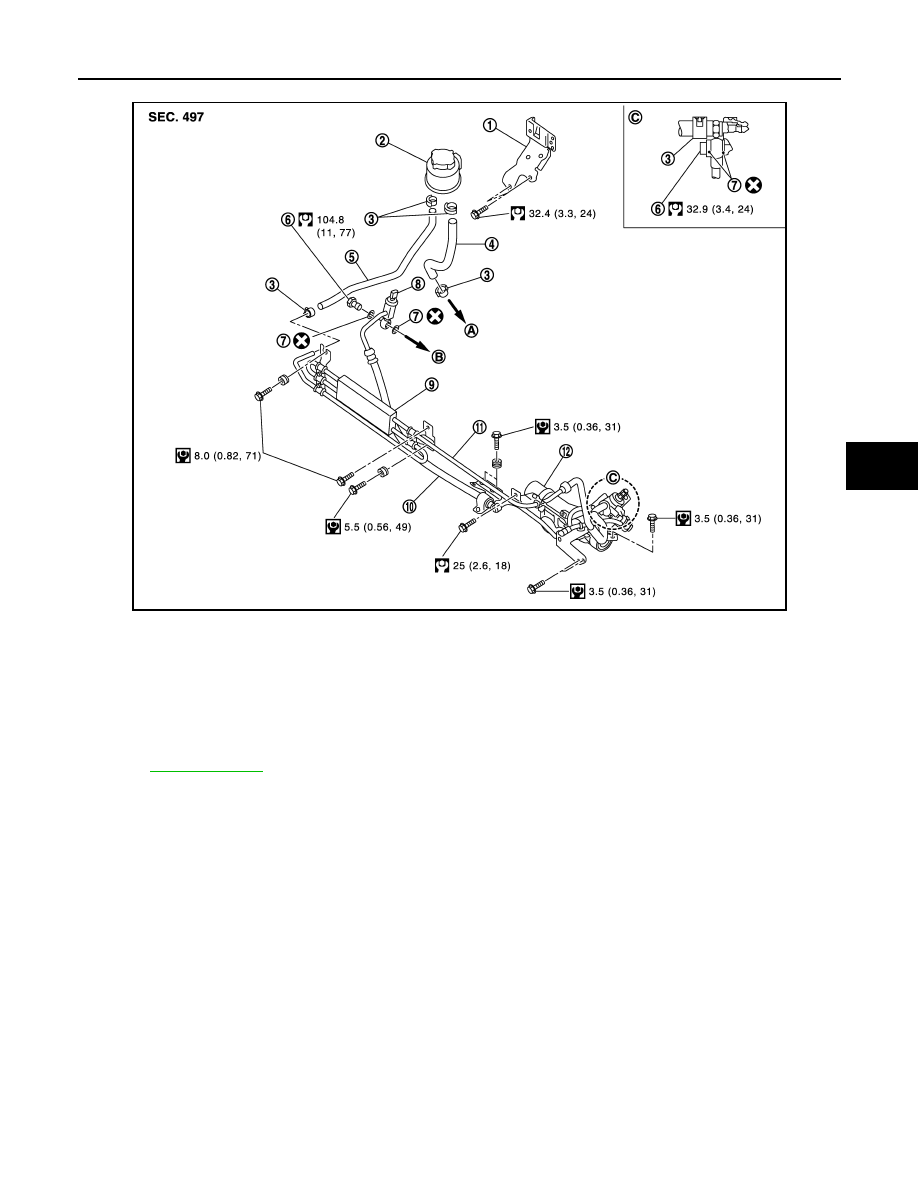

Vehicle speed sensitive type

JPGIA0074GB

1.

Reservoir tank bracket

2.

Reservoir tank

3.

Clamp

4.

Suction hose

5.

Return hose

6.

Eye bolt

7.

Copper washer

8.

Pressure sensor

9.

Oil cooler

10. High pressure piping

11.

Low pressure piping

12. Steering gear assembly

A.

To power steering oil pump suction hose.

B.

To power steering oil pump.

Refer to

GI-4, "Components"

 for symbols in the figure.

ST-56

< REMOVAL AND INSTALLATION >

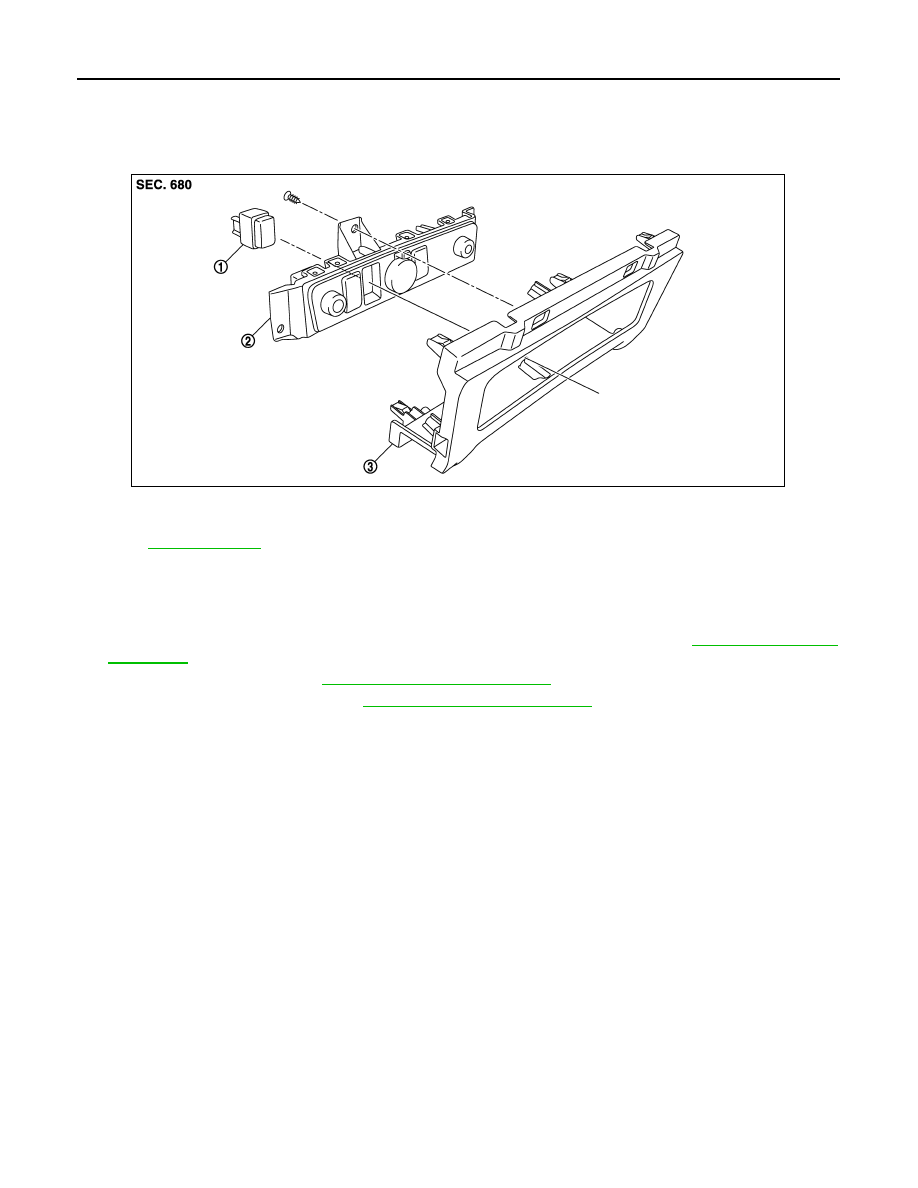

HEATED STEERING WHEEL SWITCH

HEATED STEERING WHEEL SWITCH

Exploded View

INFOID:0000000006225616

Removal and Installation

INFOID:0000000006225617

REMOVAL

1.

Remove Instrument center finisher LH and Instrument center finisher RH. Refer to

IP-14, "Removal and

Installation"

.

2.

Remove cluster lid C. Refer to

IP-14, "Removal and Installation"

.

3.

Remove cluster lid C lower. Refer to

IP-14, "Removal and Installation"

.

4.

Remove cluster lid C lower (inside) form cluster lid C lower (outside).

5.

Remove heated steering wheel switch from cluster lid C lower (inside).

INSTALLATION

Install in the reverse order of removal.

1.

Heated steering wheel switch

2.

Cluster lid C lower (inside)

3.

Cluster lid C lower (outside)

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0825ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-57

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000006225618

Steering Wheel Axial End Play and Play

INFOID:0000000006225619

Unit: mm (in)

Steering Wheel Turning Force

INFOID:0000000006225620

Unit: N·m (kg-m, in-lb)

Steering Angle

INFOID:0000000006225621

Unit: Degree minute (Decimal degree)

Steering Column Length

INFOID:0000000006225622

Unit: mm (in)

Steering Column Mounting Dimensions

INFOID:0000000006225623

Unit: mm (in)

Steering Column Operating Range

INFOID:0000000006225624

Steering gear model

Engine speed sensitive type

PR32AD

Vehicle speed sensitive type

PR32AF

Fluid capacity (Approx.)

 (lmp qt)

1.0 (7/8)

Item

Standard

Steering wheel axial end play

0 (0)

Steering wheel play on the outer circumference

0 – 35 (0 – 1.38)

Item

Standard

Steering wheel turning force

7.45 (0.76, 66)

Item

Standard

Measurement wheel

Left side

Right side

Inner wheel

Minimum

33

°

45

′

 (33.75

°

)

33

°

30

′

 (33.50

°

)

Nominal

36

°

45

′

 (36.75

°

)

36

°

30

′

 (37.50

°

)

Maximum

37

°

45

′

 (37.75

°

)

37

°

30

′

 (37.50

°

)

Outer wheel

Nominal

32

°

20

′

 (32.33

°

)

32

°

40

′

 (32.67

°

)

Item

Standard

Column length

529.8 – 533.8 (20.86 – 21.02)

Item

Standard

Mounting dimension

34.1 – 36.1 (1.343 – 1.421)

Item

Standard

Tilt operating range

74 mm (2.91 in)

Telescopic operating range

40 mm (1.57 in)

Rotating torque

0.49 N·m (0.05 kg-m, 4 in-lb)
